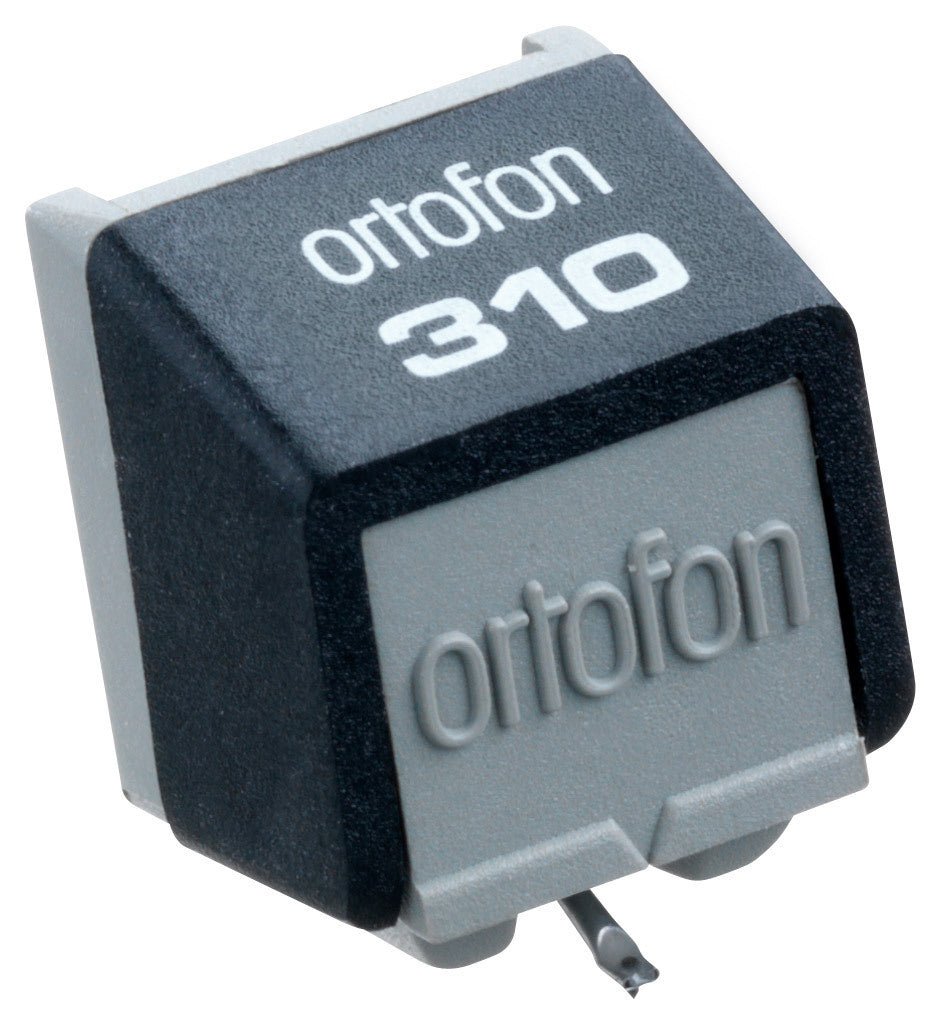

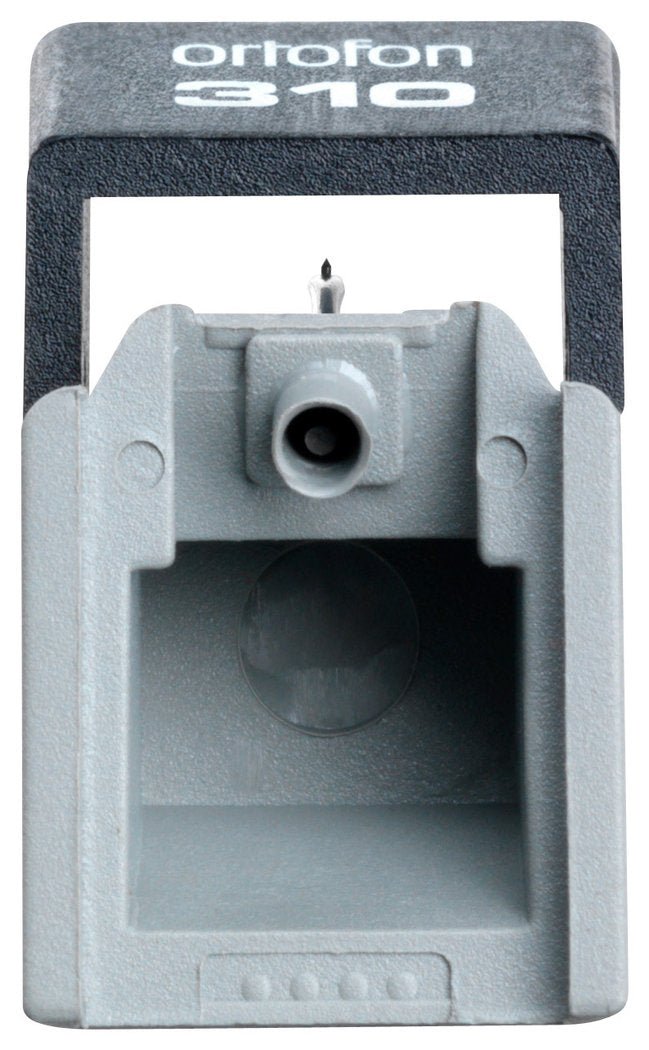

Ortofon Stylus 310
Replacement needle for 305 series speakers.
Technical specifications
- Frequency response: 20 - 20,000 Hz
- Tracking ability at 315 Hz at recommended tracking force *): 60 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Tracking force, recommended: 1.5 g (15 mN)
- Tracking angle: 20°
-
Stylus colour: Gray Recommended for following cartridges - Series 300
