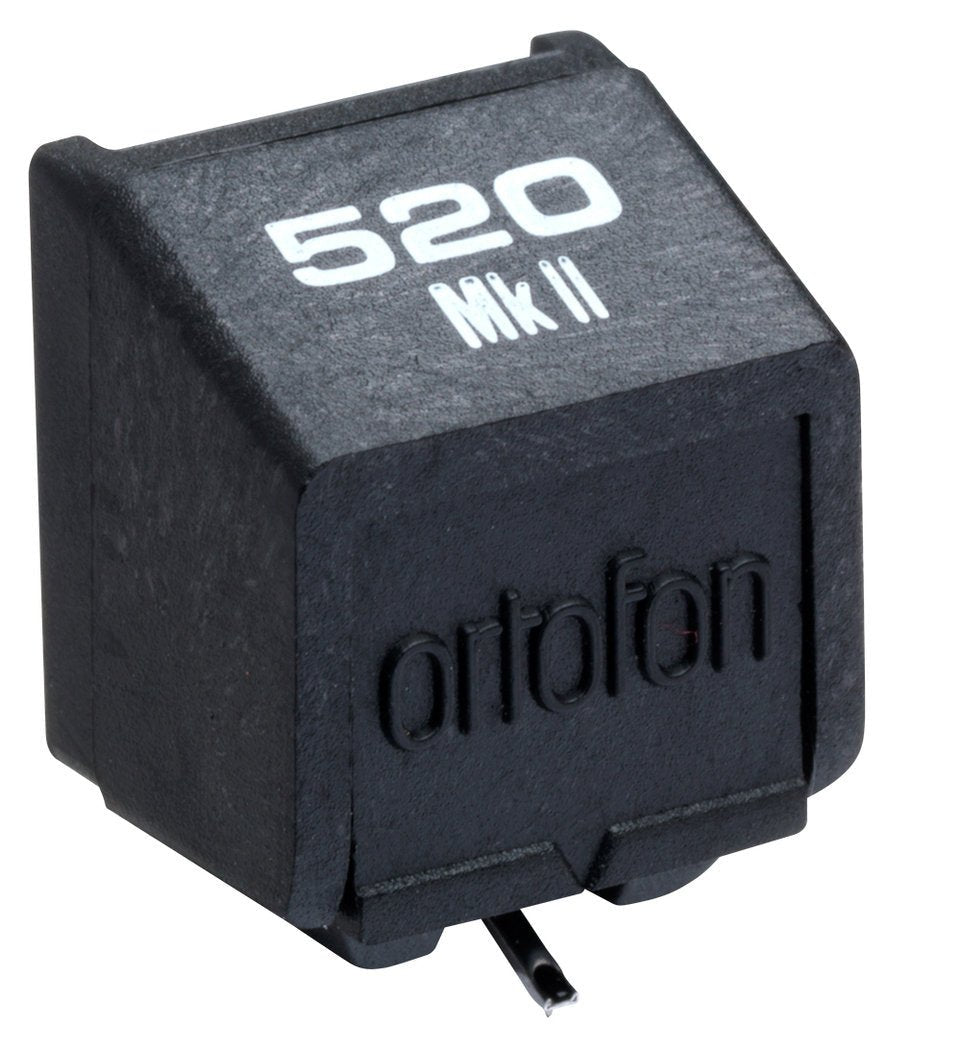

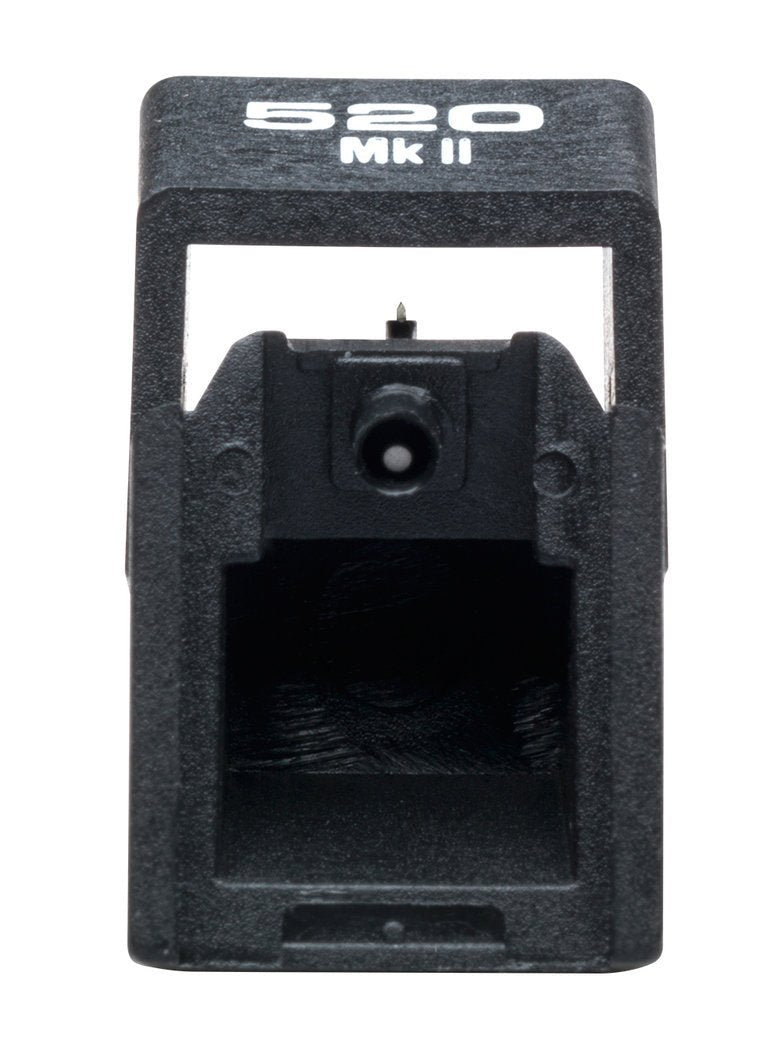

Ortofon Stylus 520 mkII
Replacement needle for 500 series speakers. The needle is also suitable for the Ortofon Alpha sound box. Nude Elliptical grinding.
Replacement stylus, recommended for the following cartridge models: 520 Mkll, 520, 520 P
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced by one of the 500 range as well.
Recommended for Series 520 Mkll, 520, 520 P, Alpha
Technical Data:
- Frequency Range: 20 - 23,000 Hz
- Frequency Response 20 - 20,000 Hz: +2 / -3 dB
- Tracking Ability at 315 Hz: Typically 70 µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Nude Elliptical
- Stylus Tip Radius r / R: 8 / 18 µm
- Equivalent Stylus Tip Mass: 0.3 mg
- Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Color: Black
