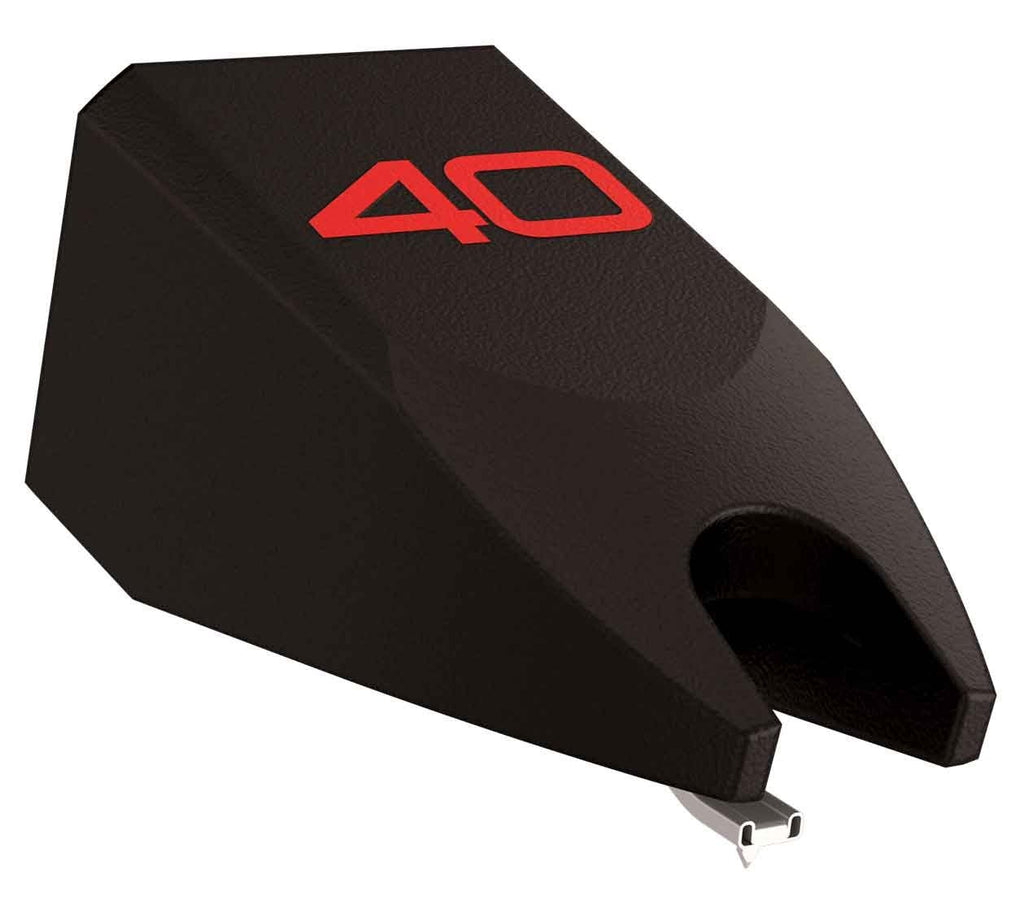

Ortofon Stylus Anniversary 40
Replacement needle for the Ortofon Anniversary 40 sound box.
Specifications:
- Frequency range: 20 - 25,000 Hz
- Frequency response: 20 - 20,000 Hz + 2 / - 1 dB
- Tracking ability at 315 Hz at recommended tracking force *): 80 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Nude Elliptical
- Stylus tip radius: r/R 8/18 µm
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 1.6 - 2.0 g (16 - 20 mN)
- Tracking force, recommended - 1.8 g (18 mN)
- Tracking angle: 20°
- Stylus colour: Black
*) Typical value
