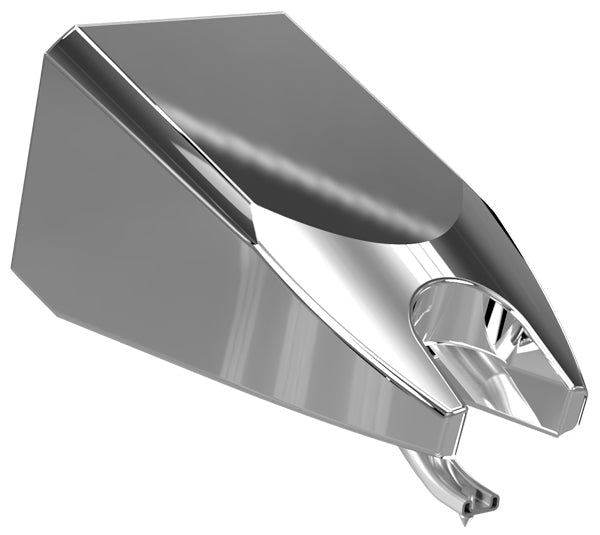

Ortofon Stylus Century
Replacement needle for Concorde Century voice box.
Specifications:
- Frequency range at -3dB: 20 - 29,000 Hz
- Frequency response: 20 - 20.000 + 2 / - 0 dB
- Tracking ability at 315 Hz at recommended tracking force *):70 µm
- Compliance, dynamic, lateral: 16 µm/mN
- Stylus type: Nude Fine Line
- Stylus tip radius: r/R 8/40 µm
- Tracking force range: 1.6 - 2.0 g (16 - 20 mN)
- ?Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20°
- Stylus colour: Chrome
*) Typical value
