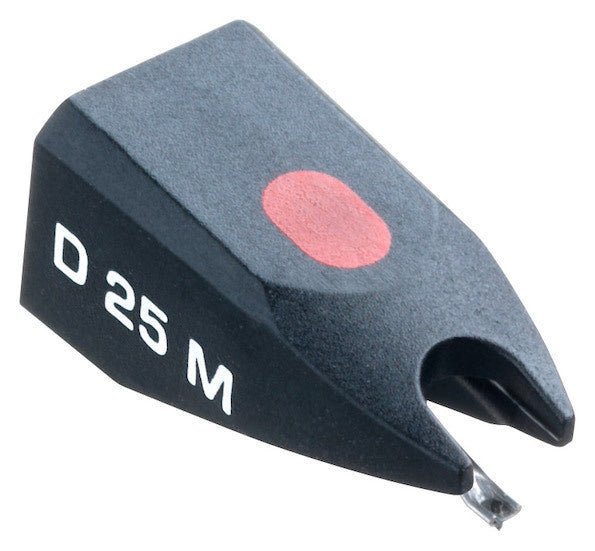

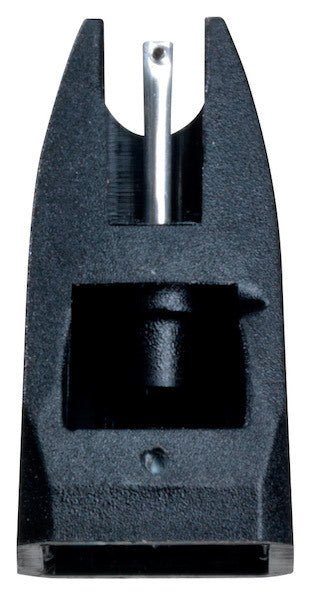

Ortofon Stylus D 25M
Replacement needle for monophonic playback.
Technical specifications
- Frequency range: 20 - 20,000 Hz
- Frequency response: 20 - 18,000 Hz + 2 / - 3 dB
- Tracking ability at 315Hz at recommended tracking force *): 70 µm
- Compliance, dynamic, lateral: 7 µm/mN
- Stylus type: Spherical
- Stylus tip radius: R 25µm
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 2.0 - 3.0 g (20 - 30 mN)
- Tracking force, recommended: 2.5 g (25 mN)
- Tracking angle: 20°
- Stylus colour: Black
*) Typical value
Recommended for the following cartridges: All Super OM, OM, OMP, TM, Concorde cartridges for playing micro-groove records.
