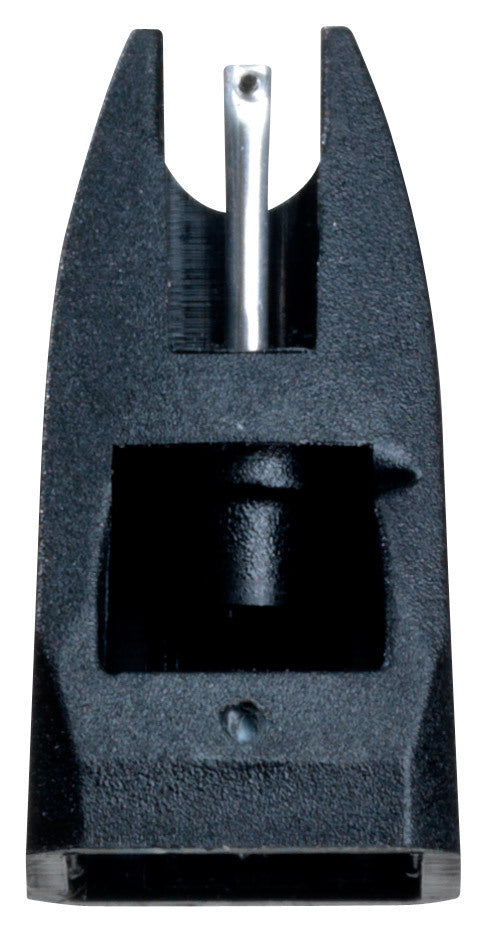

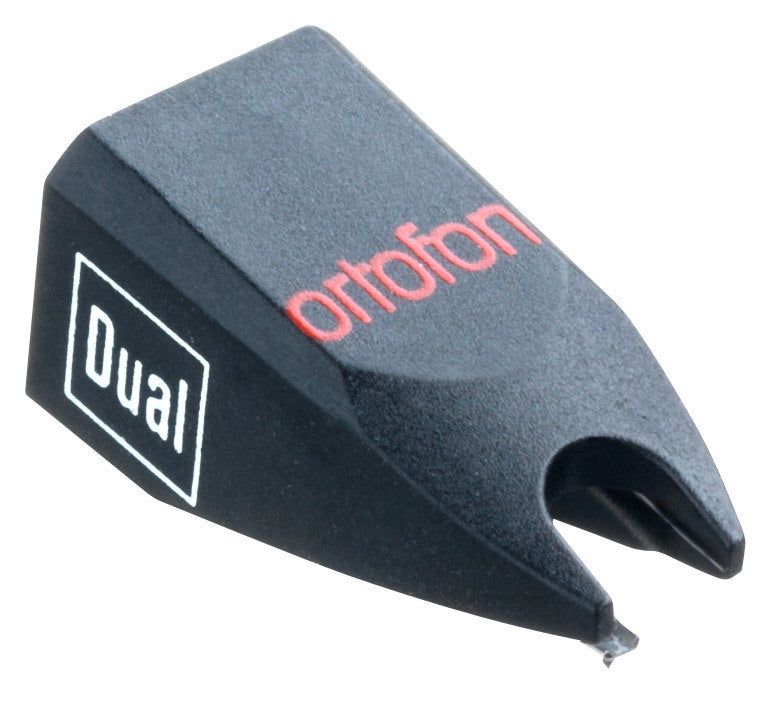

Ortofon Stylus DN 165E
Replacement needle for the old Dual ULM 65E sound box.
Replacement stylus, recommended for the following cartridge models: Dual ULM 65E
Technical Data:
- Frequency Range: 20 - 25,000 Hz
- Frequency Response 20 - 20,000 Hz: +2 / -3 dB
- Tracking Ability at 315 Hz: Typically 70µm
- Compliance, Dynamic, Lateral: 25 µm
- Stylus Type: Elliptical
- Stylus Tip Radius r / R: 8 / 18 µm
- Equivalent Stylus Tip Mass: 0.5 mg
- Tracking Force Range: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended Tracking Force: 1.5 g (15 mN)
- Tracking Angle: 20º
- Stylus Color: Black
