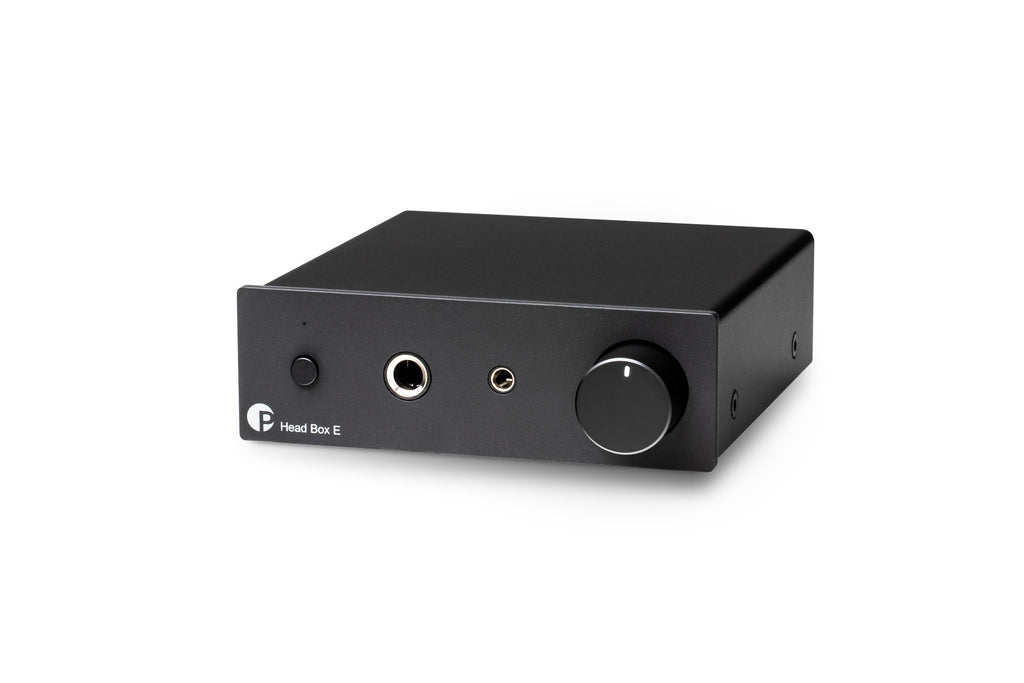

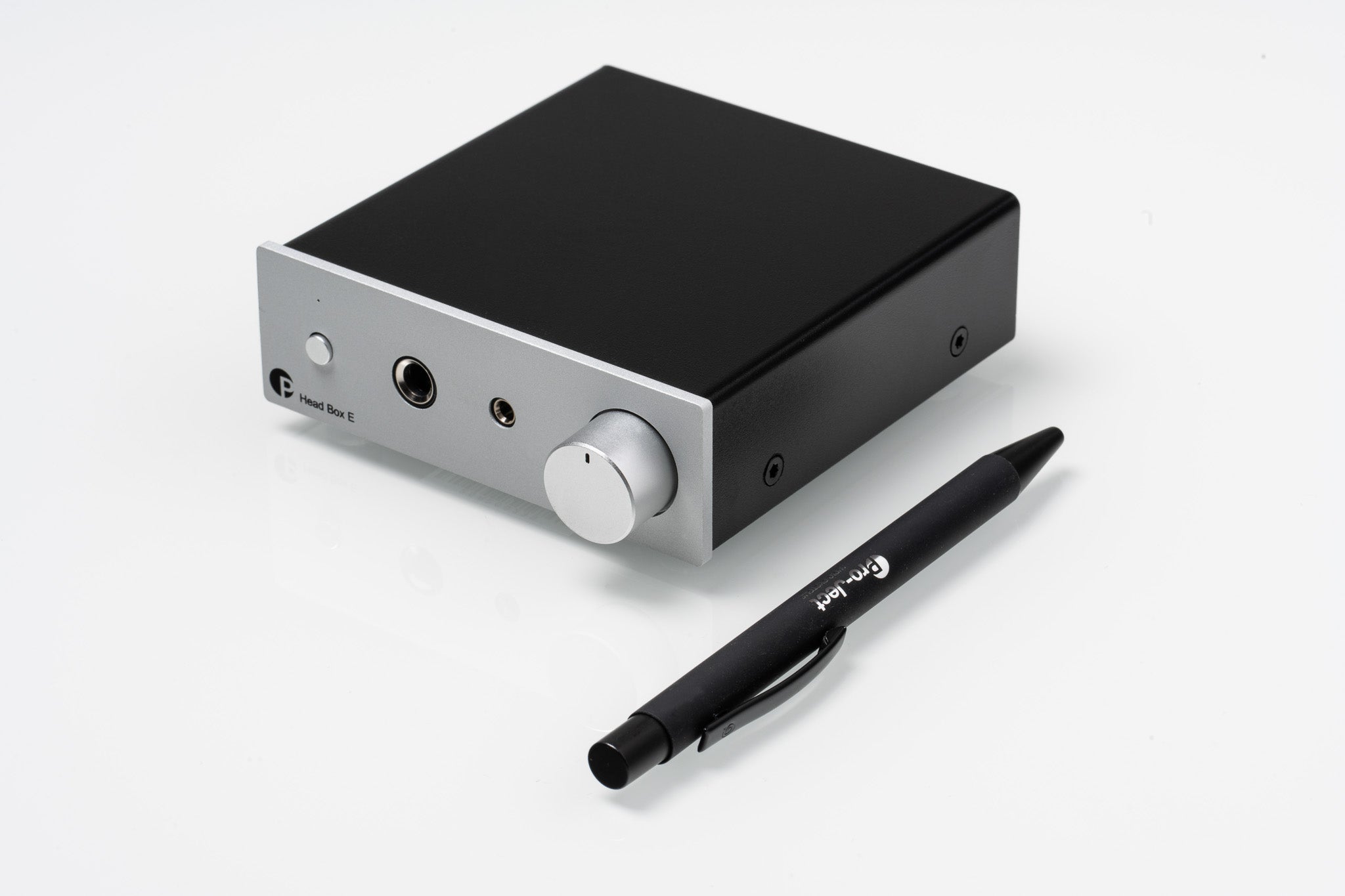

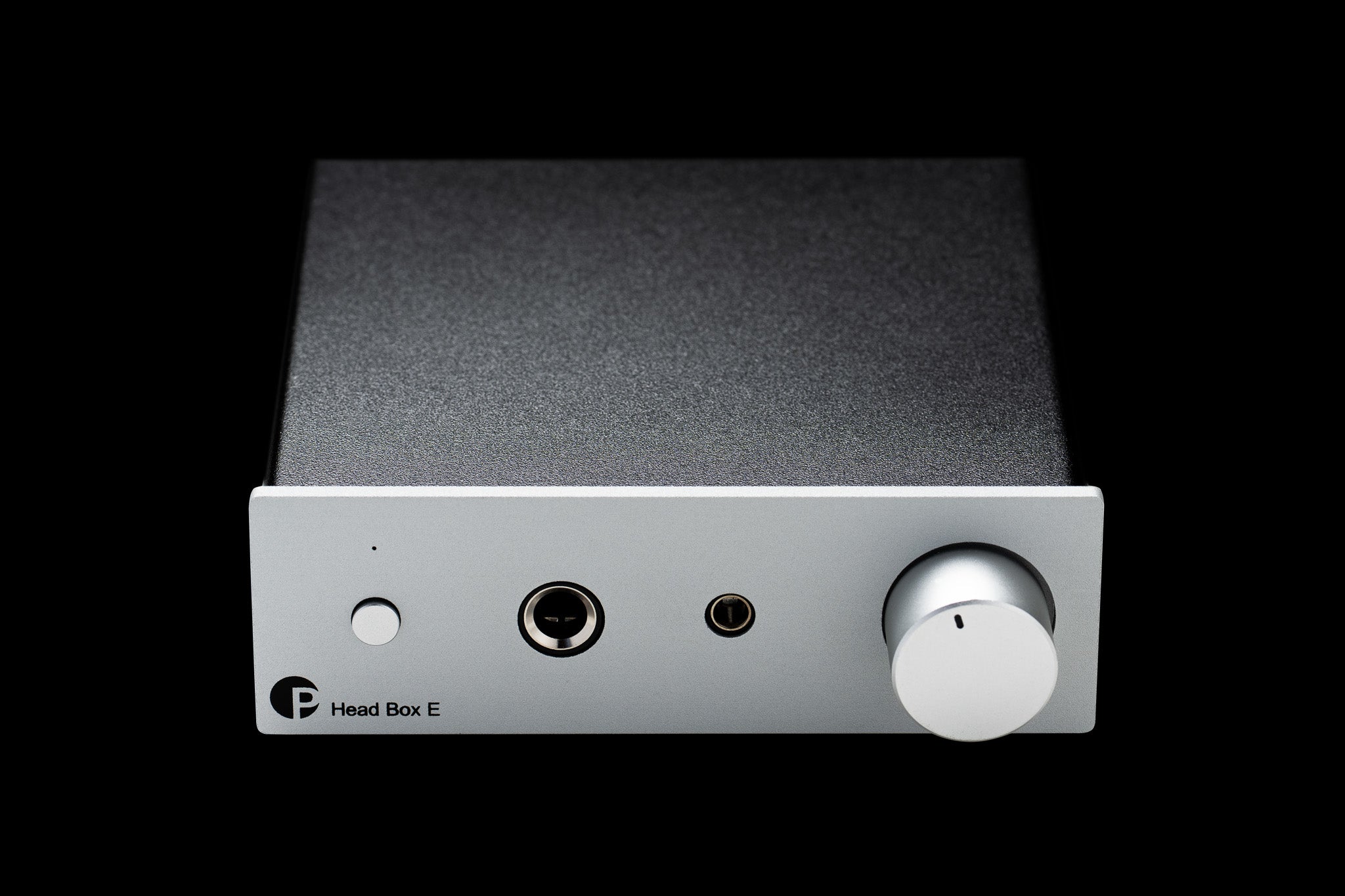

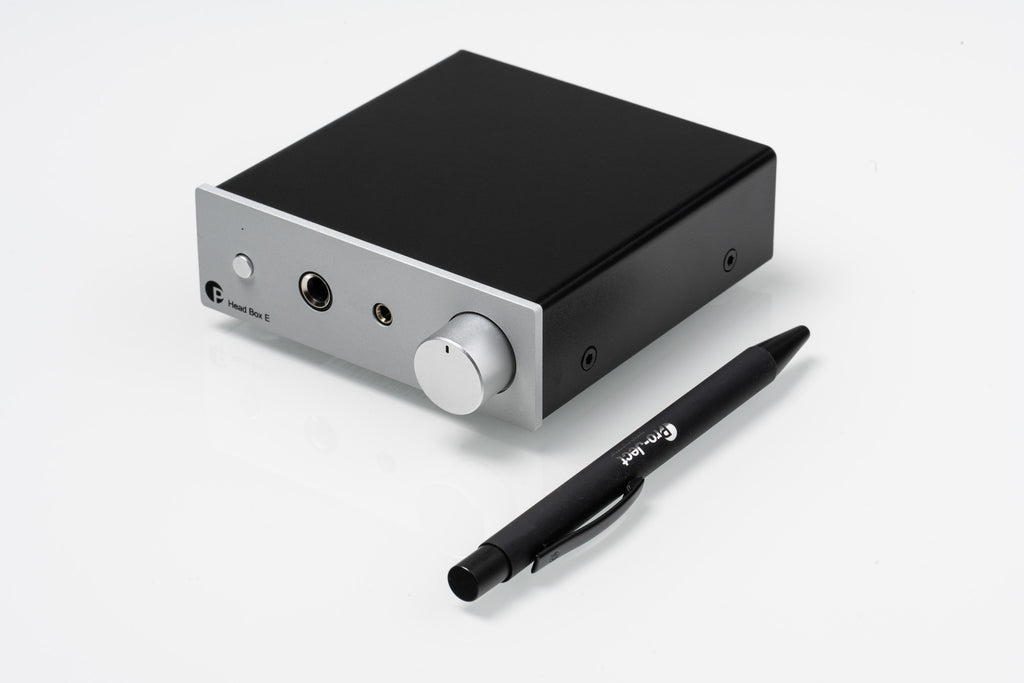

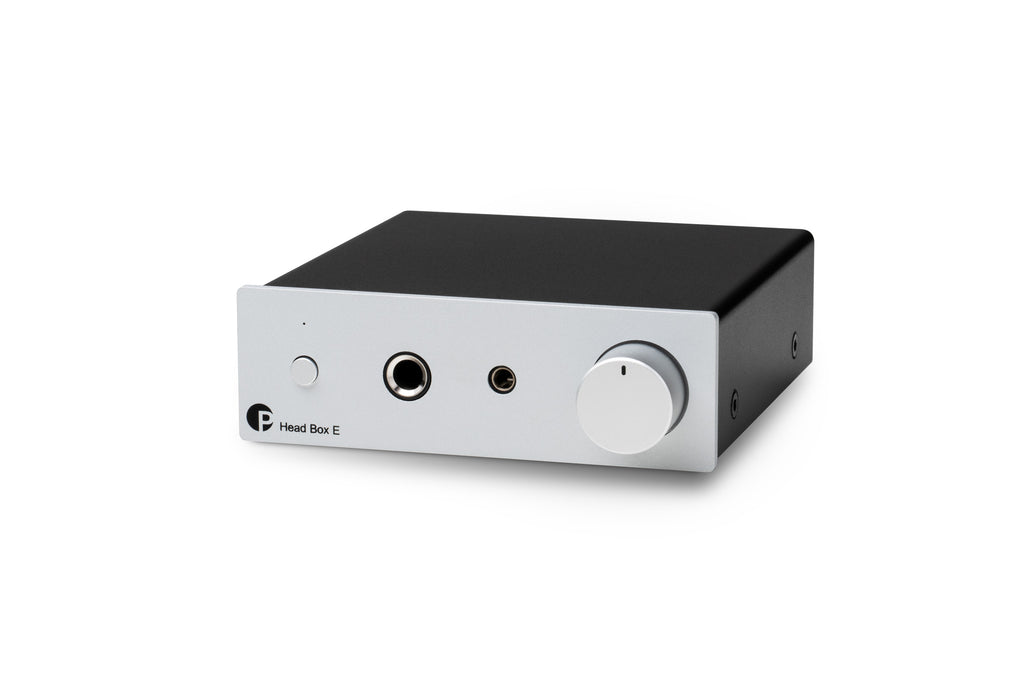

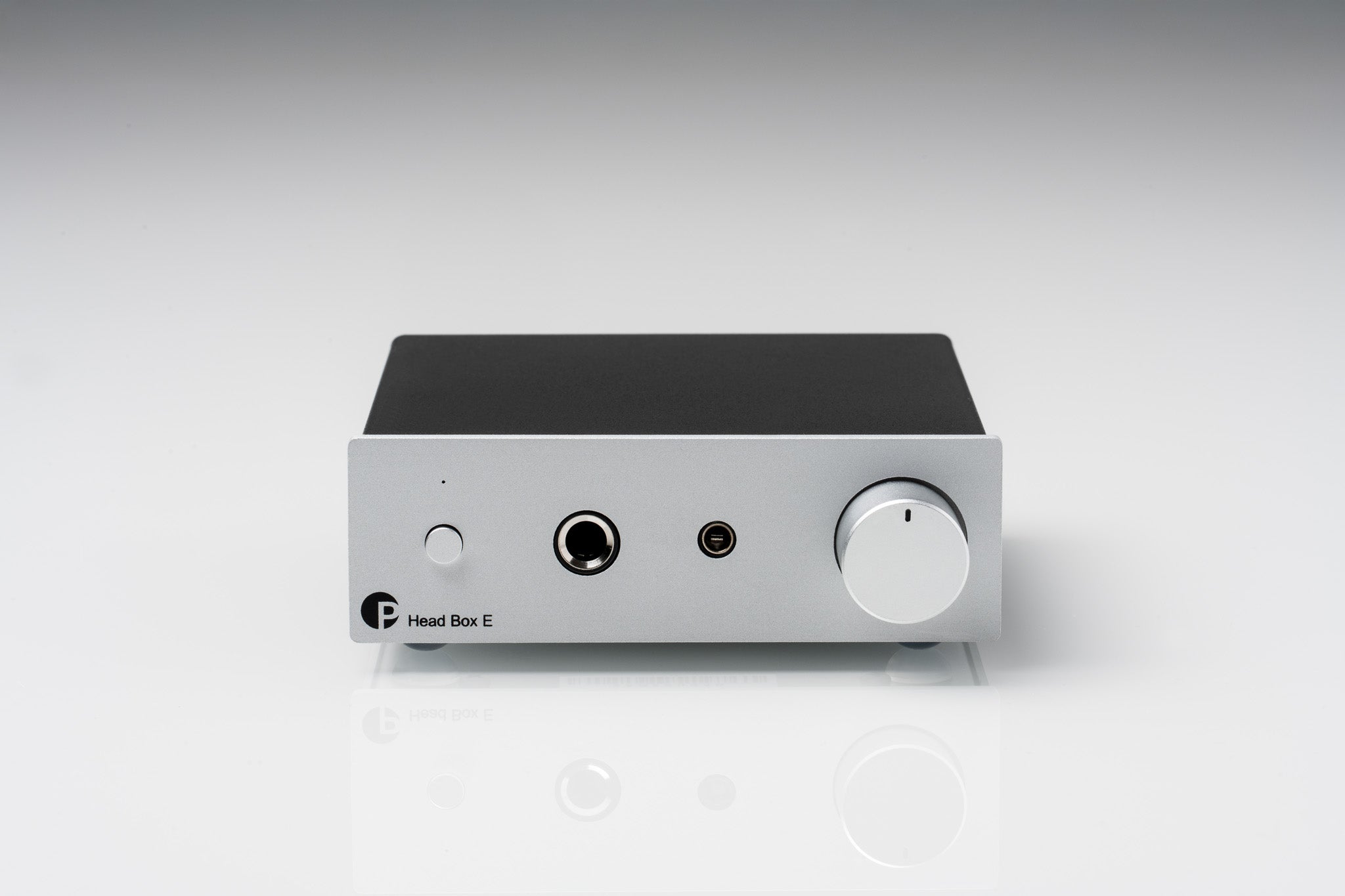

When it comes to delivering high-quality sound through the outputs of modern devices such as laptops or smartphones, they all fail on their own without help. They don't have enough power to unleash the true potential of today's headphones. The Head Box E has enough power to unleash the best possible sound quality from any pair of headphones. It has one RCA input for your chosen source. On the front there are two headphone jacks, one 6.35mm for hi-fi headphones and one 3.5mm for modern headphones. For a shared listening experience, both outputs can be used simultaneously.
Powerful separate headphone amplifier
Its unusually high output power provides top-quality sound and sufficient volume even for those who like to listen at high volumes and use headphones that are difficult to control! The Head Box E has a rich and full sound with plenty of dynamics and transparency.
A fully discrete headphone amplifier does not use cheaper integrated chip structures. It uses completely discrete electronics in an expertly designed circuit board design, which not only produces fantastic power measurements and clear measurement results, but also ensures a long product life, as service, repair and maintenance are guaranteed for years to come.
Only the best possible components have been used to create this unique headphone amplifier. The housing is made entirely of metal to effectively shield it from electromagnetic interference and vibrations that can cause unpleasant listening experiences. The front panel and control elements are made of beautifully machined aluminum.
With its low price, versatility, power and high-quality sound, the Head Box E is an absolute find for audiophiles! The new reference headphone amplifier in the budget market!
Features
- Suitable for demanding headphones
- 6.35 mm and 3.5 mm headphone output
- Bypass RCA loop output
- Excellent low distortion
- Low-noise components
- Small space requirement
- Both outputs available simultaneously
- Sturdy full metal housing
- Available with silver or black front panel
Specifications:
- Output power 665 mW (into 32 ohms)
- Signal-to-noise ratio -105 dBV
- THD +N < 0.005%
- Gain 11 dB
- Crosstalk 65 dB
- Frequency response 20 Hz - 80 kHz (+-0.02 dB)

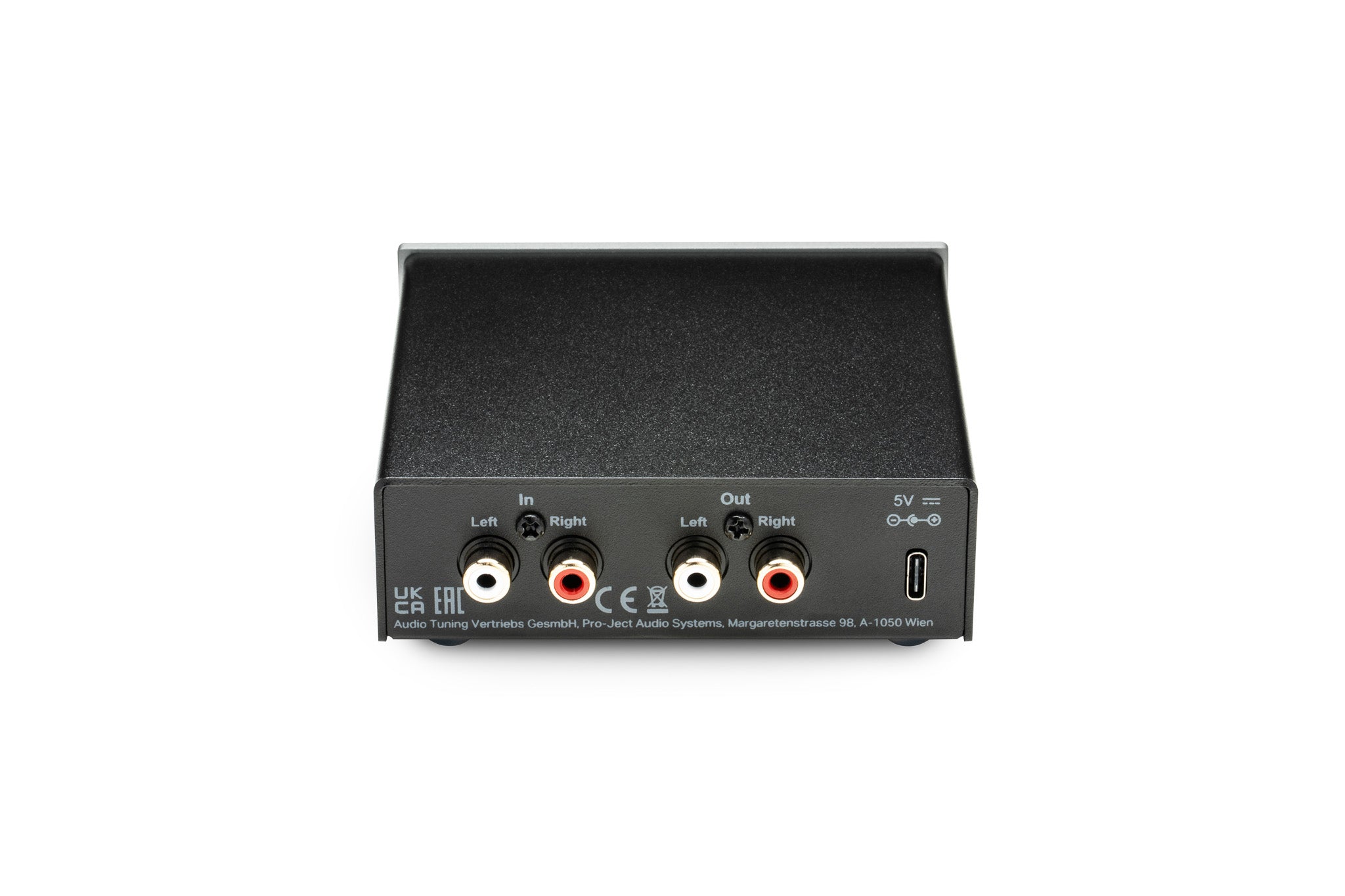

- Analogue inputs 1 pair RCA/Cinch
- Headphone output 1 x 6.3 mm jack, 1 x 3.5 mm jack
- Output impedance (headphone amplifier) <1 ohm
- Analog loop output 1 pair RCA/Cinch
- Power supply 5V/0.5A DC
- Standby power consumption < 0.5 W
- Dimensions W x H x D 103 x 37 x 120 mm
- Weight 390 g without power supply
