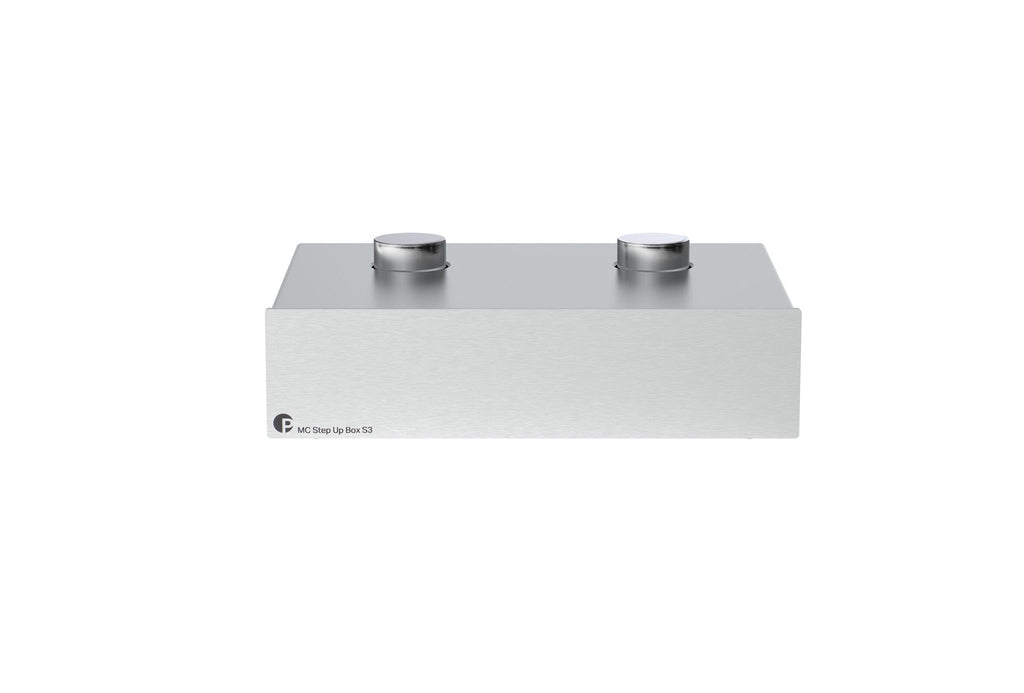

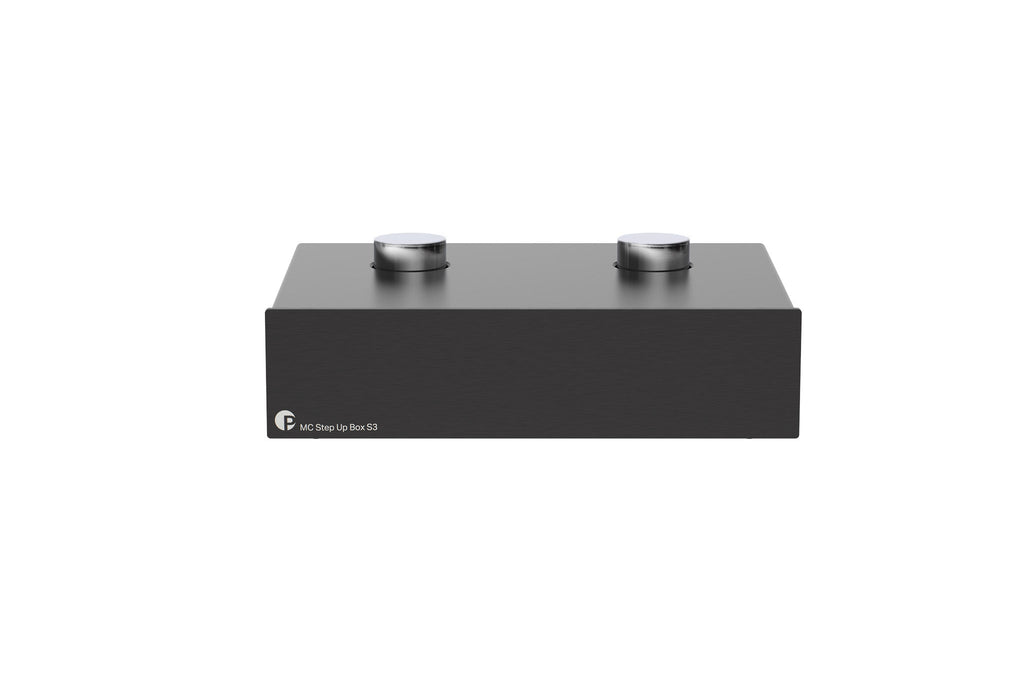

Pro-Ject MC Step Up Box S3 MC Transformer
Audiophile Step Up transformer for MC speakers. Made in Europe.
- Frequency response 10Hz - 55kHz: +/- 1dB
- Gain at 10-40 Ohm: 21dB at 1kHz
- Gain at 40-150 Ohm: 24dB at 1kHz
- Recommended load: 47 kOhm / 100pF
- Input MC: 1x pair RCA phono sockets
- Output: 1x pair RCA phono sockets
- Dimensions WxHxD: 206 x 65 x 153 (164 with sockets) mm
- Weight: 940g
SOUND UPGRADE FOR YOUR MC CARTRIDGE The output level of MC cartridges is very low, compared to a MM (Moving Magnet) one it is about 10x lower, which means, you need a special phono amplifier. A higher gain is needed to utilize the signals, which can result in a higher noise level and distortion. The MC Step Up Box S3 is the solution.
Lively, dynamic & natural The MC Step Up Box S3 works very differently compared to a phono preamplifier. The windings ratio of the transformer determines the gain factor. As it works completely passively and no external power is needed, no extra power can be produced. The increase in voltage is achieved by a corresponding decrease in current. As there is no amplification, the MC Step Up Box S3 has a remarkable noise performance and a very low level of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.
- Gold plated Premium RCA terminals
- Gold plated in- and output RCA terminals for optimal signal transmission.
- Aluminium
- Solid full Aluminum housing
- Due to the Timeless design & rigid Aluminum casework, the MC Step Up Box S3 is built for eternity.

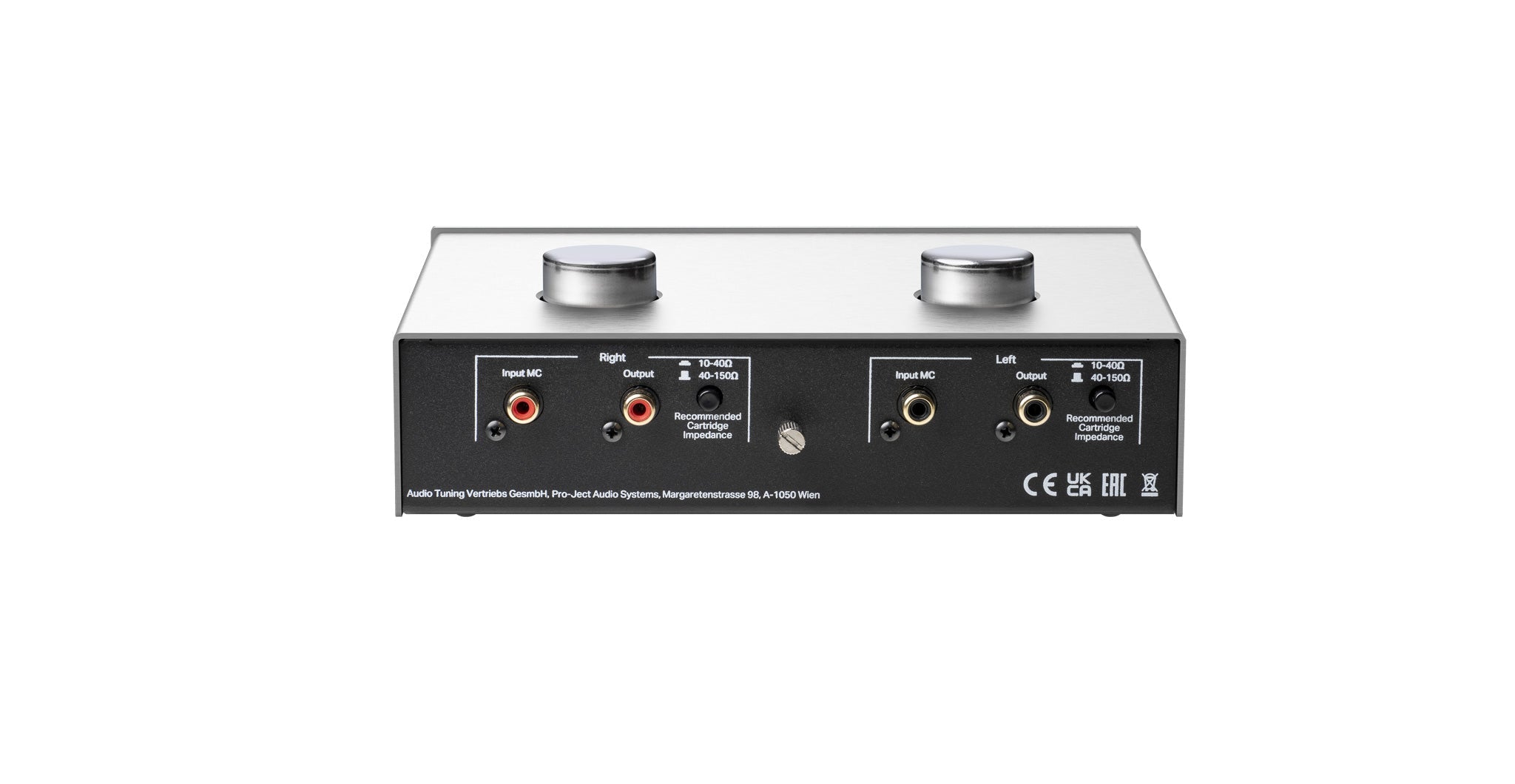

- Cartridge impedance setting
- Cartridge impedance matching button on the back. Two different settings available: 10-40? & 40-150?
- Made in EU
- High-quality materials
- The new Step Up Box S3 is carefully designed and handmade in Europe.
