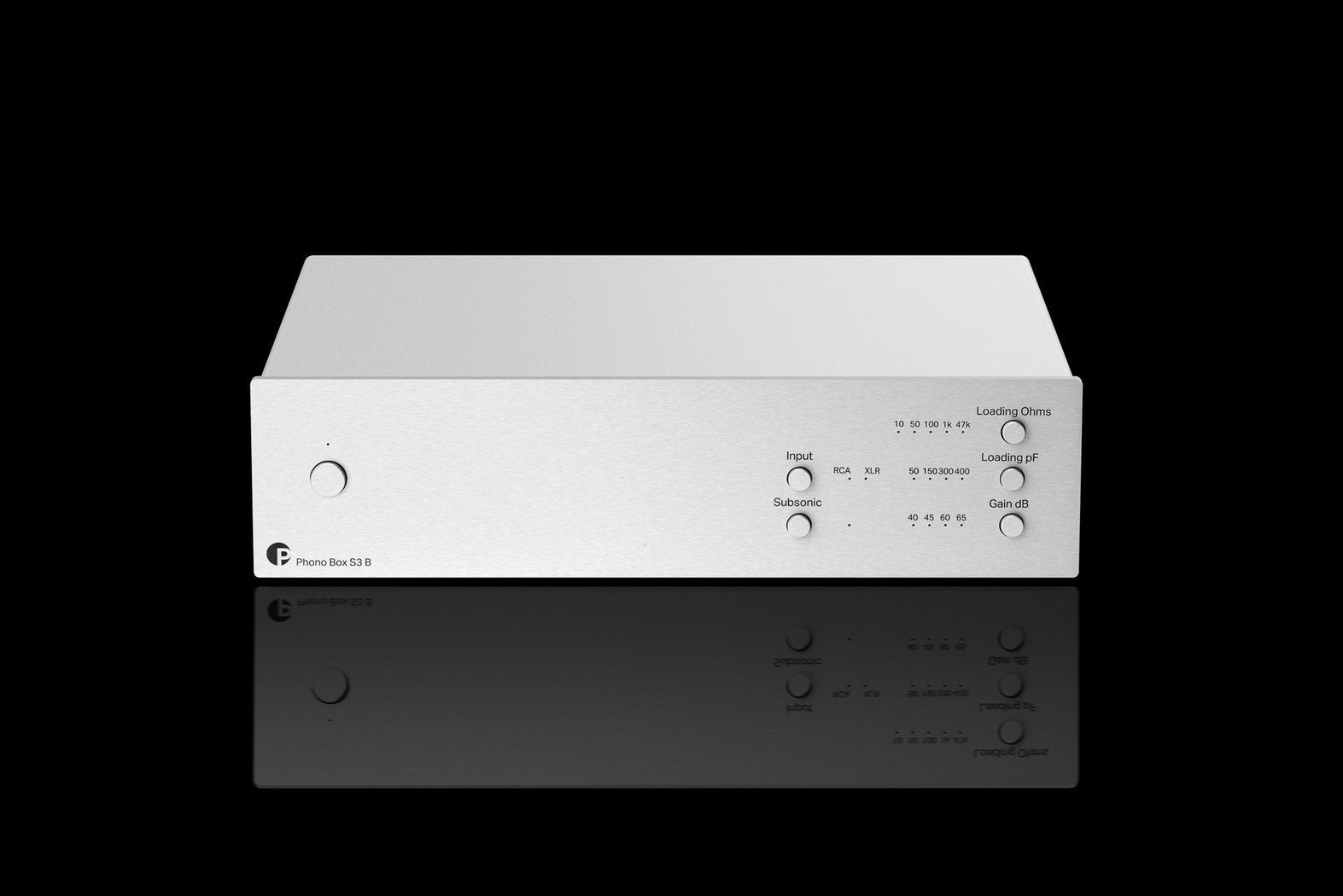

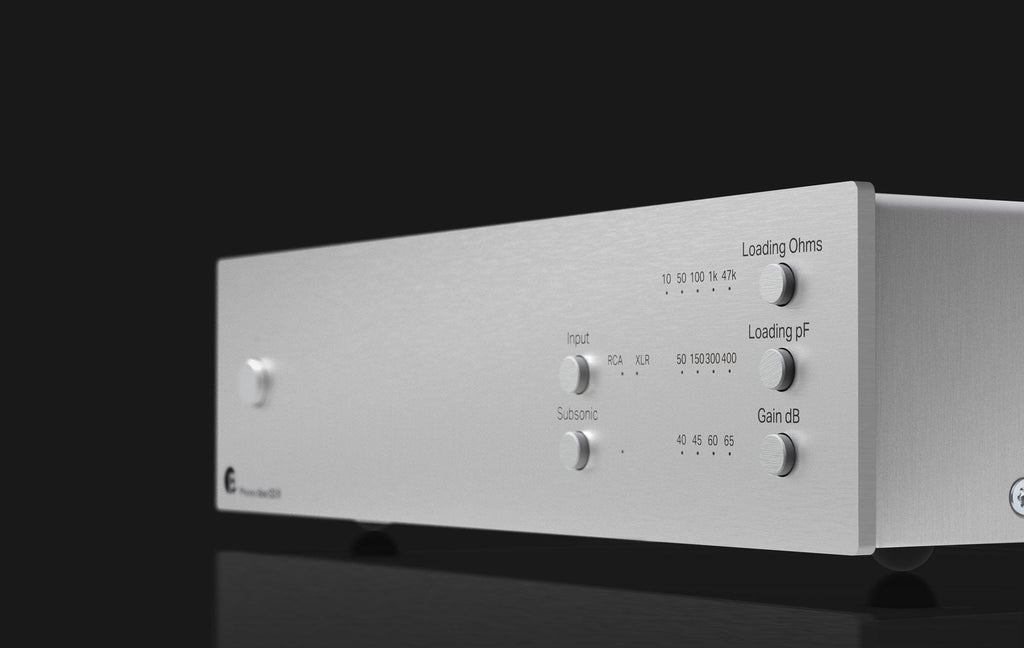

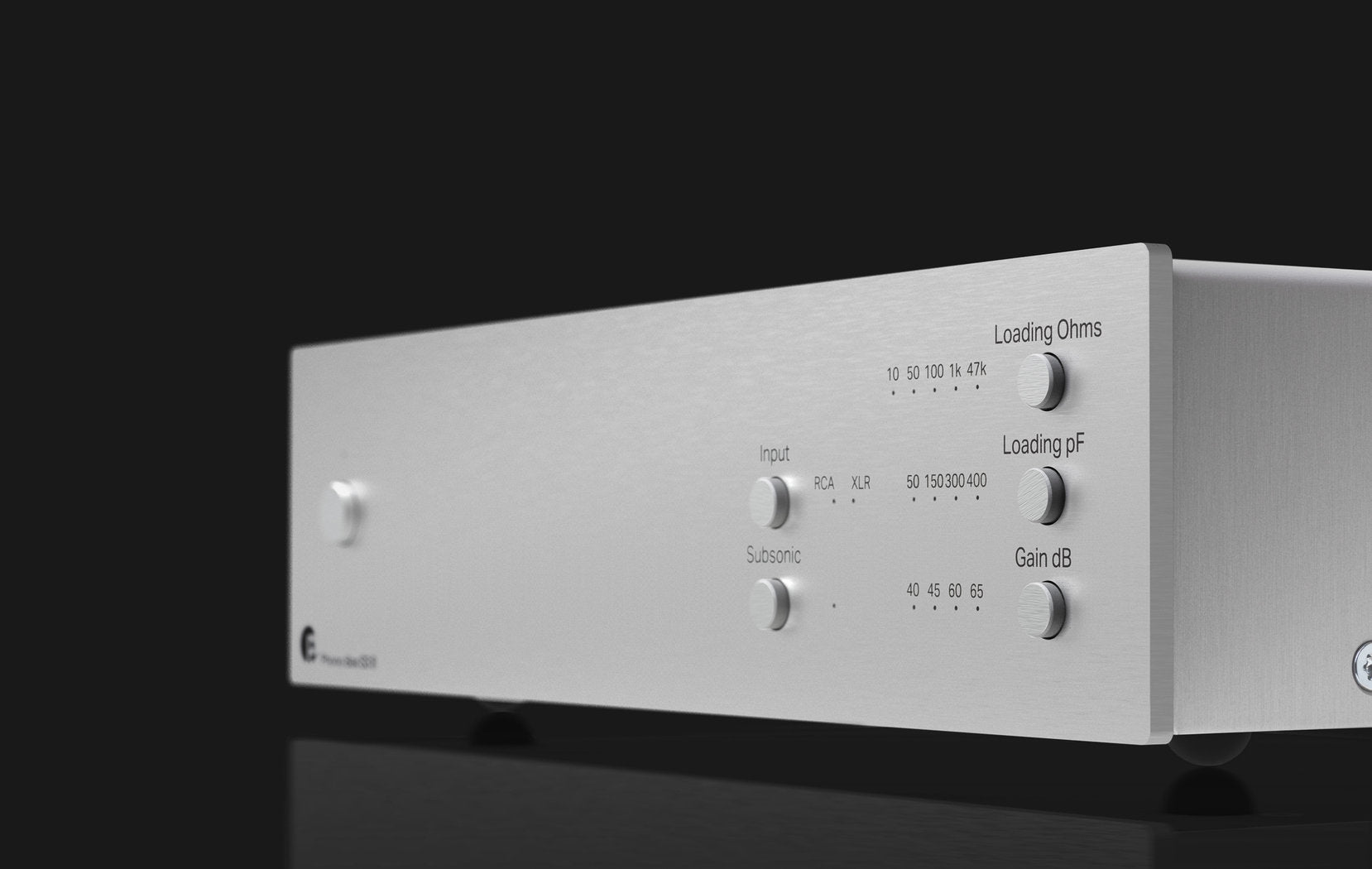

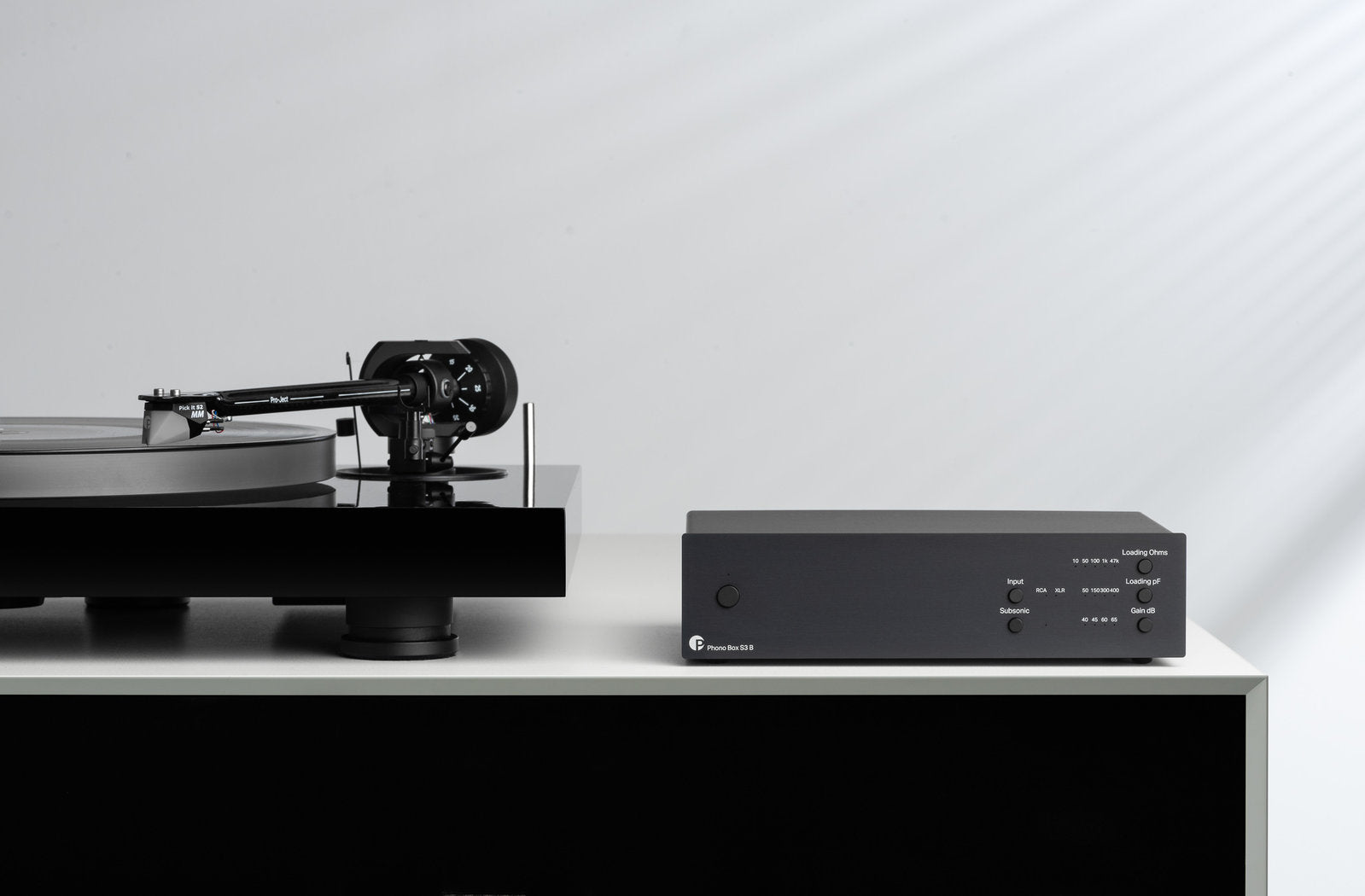

Pro-Ject Phono Box S3 B
New RIAA front amplifier for turntables.
Balanced RIAA preamplifier for turntable with versatile adjustability.
Two turntables can be connected, the input selection settings remain in memory.
- Inputs: 2 pcs RCA and mini XLR (balanced)
- Outputs: 2 pcs RCA and XLR (balanced)

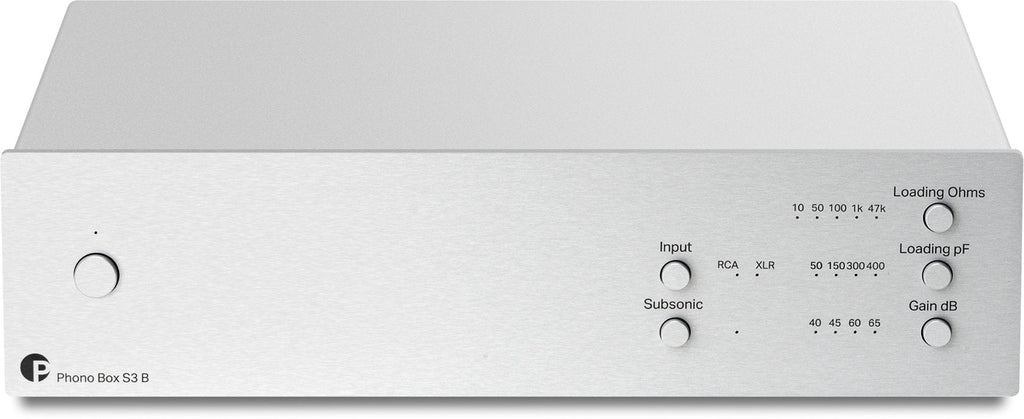

- Adjustments: load impedance, capacitance, gain (db) and subsonic
Specifications:
- Input impedance 10 Ohm/ 50 ohm / 100 Ohm/1 kOhm / 47 kOhm
- Input capacitance: 50 pF/ 150 pF/ 300 pF/ 400 pF
- Gain switch: 40 dB/ 45 dB/ 60 dB/ 65 dB (+ 6 dB if XLR Out is used)
- Subsonic filter: -18 dB per octave @ 20 Hz
- Signal-to-noise ratio MM (40 dB): 103 dBV, 110 dBV a-weighted
- Signal-to-noise ratio MC (60 dB): 85 dBV, 90 dBV a-weighted
- THD at 1 kHz: < 0.001% MM/ < 0.005% MC
- THD (20 Hz-20kHz): < 0.008% MM, < 0.01% MC
- RIAA accuracy: < 0.3 dB / 20 Hz - 20 kHz

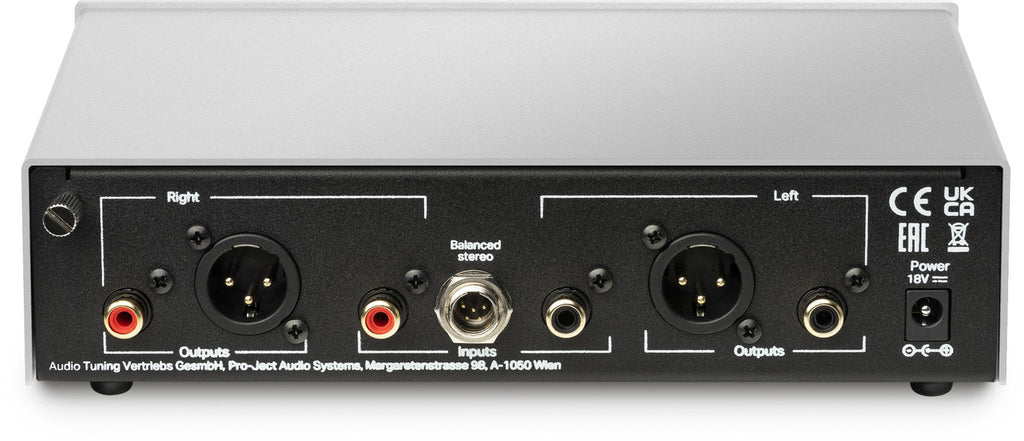

- Input: 1 x 5-pin mini XLR / 1 pr x RCA
- Line level Output: 1 pair RCA connectors, 1 pair XLR
- Power consumption: 18 V / 170 mA, < 0.5 W in standby
- Outboard power supply: 18 Volt DC/ 500 mA
- Dimensions (W x H x D): 206 x 55 x 153 (164 with sockets) mm

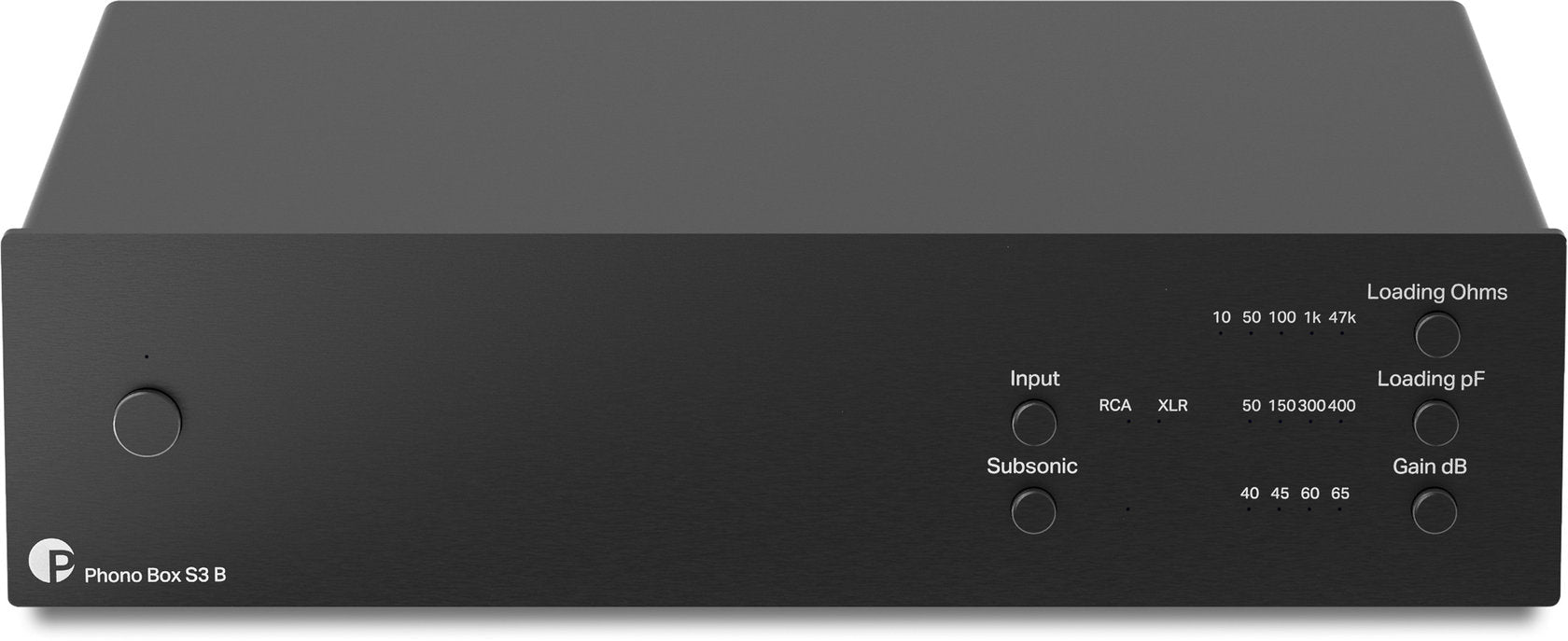

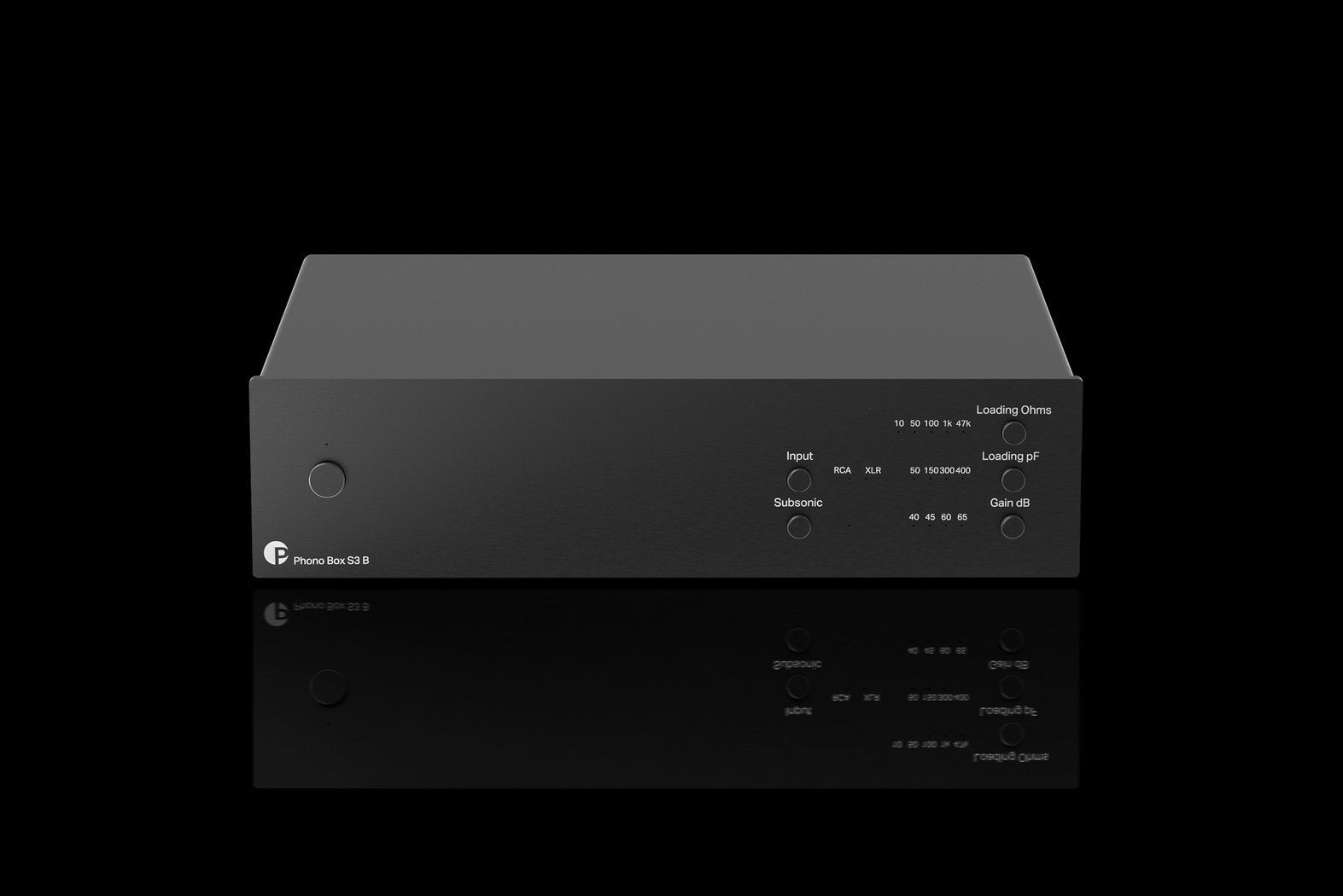

- Face plate colour: silver or black
- Weight: 930 g net
