Description

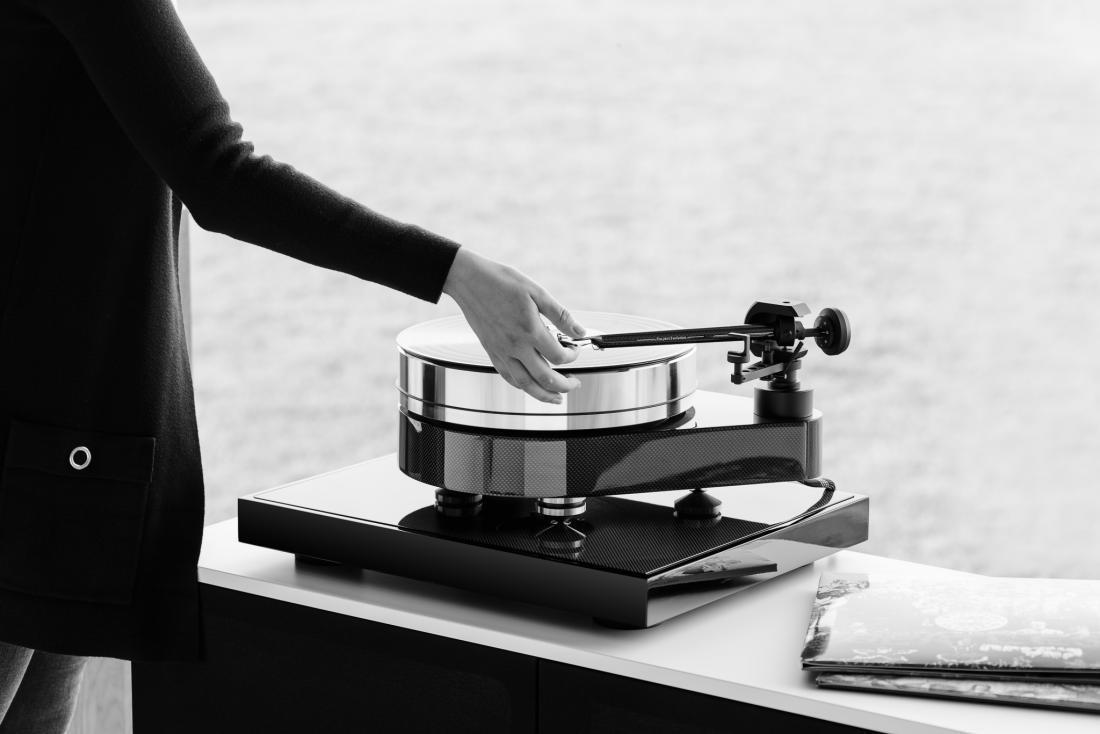

Pro-Ject RPM 10 Carbon Cadenza Red
The flagship turntable of the Pro-Ject RPM series with a 10" Evo sound arm and an Orfoto Cadenza Red sound box.
Clever design with true high-end sound quality
The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensure superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface via the included Ground it Carbon and its magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Due to this unique feature, the turntable is perfectly decoupled from the surface it is placed on.
Combined with a new special polished Aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an Absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 10“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible top-grade copper internal wiring. Delivered with topgrade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).
Motor
The new RPM heavy weight motor integrates an electronic DC/AC power generator to clean up generated noise usually associated with AC power. To further enhance the RPM 10 Carbon the extra heavy outboard motor also consists of a precise motor control allowing for easy switching between 33 and 45 RPM
Tone arm
The highly acclaimed 10”cc Evolution tonearm is made from a one piece conical tube of carbon fiber with an inverted bearing design which offers Ultimate rigidity and internal damping to minimize all unwanted vibrations. The 10”cc Evolution tonearm's design makes it suitable for almost any high quality MM and MC cartridges.
The RPM 10 Carbon comes with the Ground-IT Carbon base and a top grade 5P Connect-IT Phono CC cable with RCA plugs (An XLR option is also available to special order).
The RPM 10 Carbon comes with the Ground-IT Carbon base and a top grade 5P Connect-IT Phono CC cable with RCA plugs (An XLR option is also available to special order).
Key Features:
-
Advanced sandwich construction of plinth with combination of MDF, carbon fiber and steel pellets
-
Plinth manufactured with thermo treatment
-
Mass loaded subchassis design with magnetic feet
-
14.5 kg Ground it Carbon equipment base included
-
Inverted main bearing with ceramic ball/plate
-
Extra-heavy acoustically inert Aluminum platter with TPE damping and vinyl mat on the top
-
DC power supply with AC motor
-
Precise DC driven AC Generator (Speed Box) built-in
-
Electronic speed control with 33/45 rpm switching (78 rpm optional)
-
Outboard motor construction with massive steel base
-
Pre-mounted 10“ tonearm 10cc Evolution
In the box:
-
RPM 10 Carbon with Ortofon Cadenza Red
-
Connect it 5P-CC Phono Cable
-
Ground it Carbon
-
Record Puck
-
Adapter for 7“ singles
-
Power supply, spirit level
Technical information:
-
Nominal Speeds: 33/45 RPM
-
Motor Completely Decoupled: Yes
-
Effective Tonearm Length: 10" (254 mm)
-
Effective Tonearm Mass: 8.5 g
-
Overhang: 16 mm
-
Tracking Force: 10 - 35 mN
-
Wow & Flutter: 33: ± 0.11%, 45: ± 0.10%
-
Speed Drift: ± 0.01%
-
Signal to Noise: -75 dB
-
Supplied Counterweights: 5-7 gr, 7-10 gr, 9-11 gr, 10-14 gr
-
Output Voltage: 15 V/1600 mA DC
-
Power Consumption: 15 W Max./<0.3 W Standby
-
Dimensions (W x H x D): 480 x 210 x 330 mm
-
Weight: 22 kg
-
Weight Base: 14.5 kg
