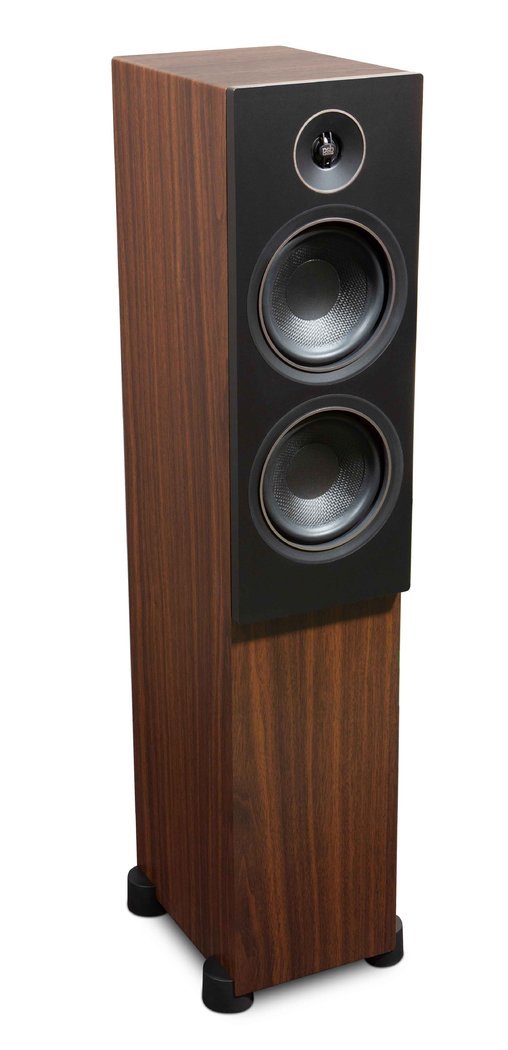

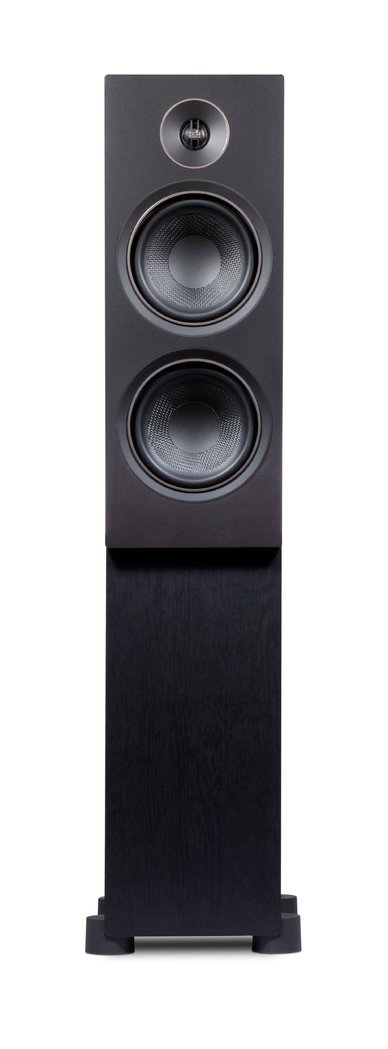

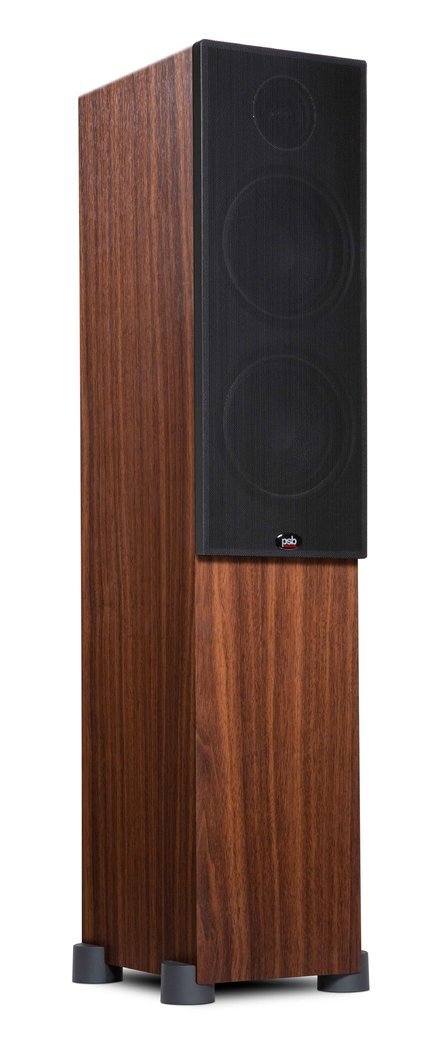

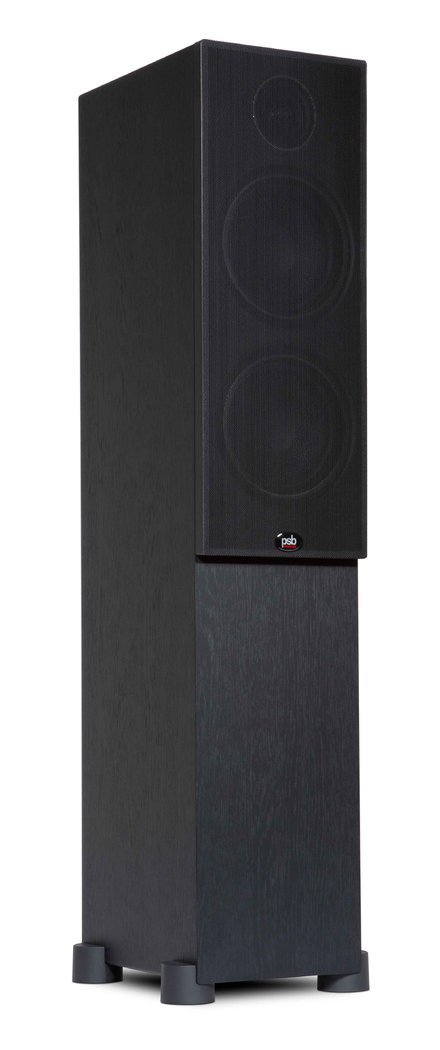

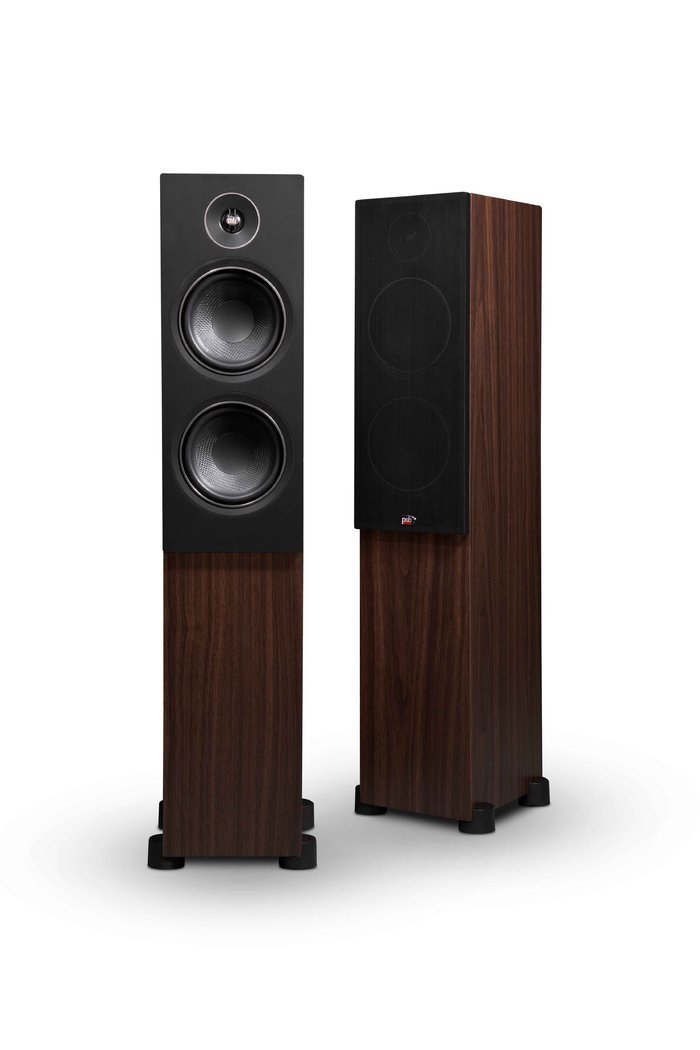

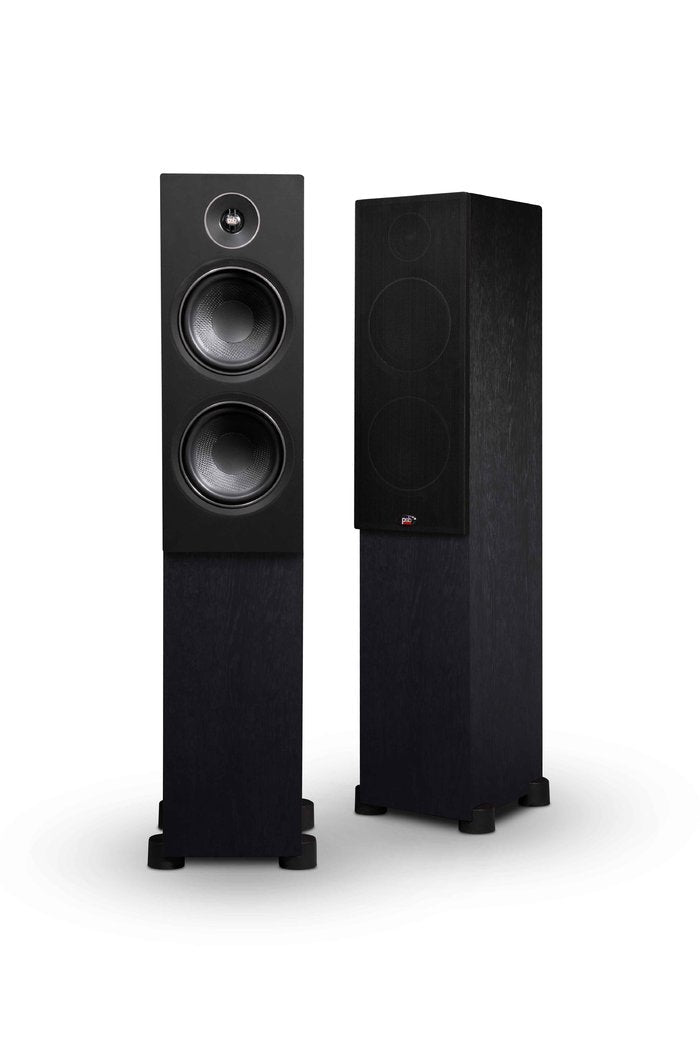

psb Alpha T20
psb's legendary Alpha series has been renewed. The floor speaker novelty serves both the ear and the eye.
Signature speaker for both sound and aesthetics
The PSB T20 Tower delivers the highest quality acoustics in the new Alpha Series and will easily fill any size room with lush, full-bodied sound. Leveraging the latest research in acoustic design and most advanced cabinet and driver technologies, the all-new Alpha tower adds an additional custom 5.25” woofer, while utilizing the Alpha Series' patent Tweeter and crossover design, to deliver bigger and bolder sound with Flawless Imaging . With a center channel to match, the new T20 tower is the perfect start to creating the Ultimate surround system.
Lifelike acoustics and detail
The T20 uses a 0.75” black anodized Aluminum Dome Tweeter to extend the high-frequency response further than any Alpha ever before while lowering distortion to deliver a lush Soundstage full of details. Unlike lesser designs at this price, all the new Alpha Series tweeters employ ferrofluid cooling to prevent dynamic compression and a neodymium magnet for high sensitivity. The tweeter's front Waveguide and its unique placement below the woofer work together to smooth the response at the crossover and perfect on and off-axis performance.
Developed for deep, detailed bass
Featuring PSB's exclusive dual 5.25" woofer connected to a dual-layer voice coil for incredible conductivity, the newest Alpha Series tower provides remarkable low-frequency response and the exceptional efficiency for a speaker at this price. Starting with a specially textured polypropylene cone that lowers distortion and reduces breakup, the woofer is perfectly matched with the Tweeter at the crossover for a smooth sounding transition between high and low frequencies. It's also backed with a rear-firing port that uses bass flex to tightly control the bass response and extend it even lower.
Reference crossover design
The Redesigned Alpha Series tower features a new crossover that exceeds speaker standards with an innovative design that delivers the tightest control and the flattest frequency response. Developed for more than directing low and high frequencies to the individual drivers, the crossover used in the T20 employs a very advanced acoustic Butterworth low-pass filter in the cross to lower distortion and create a large, detailed Soundstage for the best listening experience.
Crafted with Precision
Using a special MDF material and a unique combination of wall thickness and bracing, the Alpha T20 Tower flawlessly controls resonances while leveraging a light internal material that has been accurately positioned to reduce standing waves. The sturdy, well-constructed cabinet is finished with a high-quality wood grain vinyl and features acoustically-transparent magnetic grills that make the speakers disappear into your decor without Sonic interference.
Specifications
- Frequency Response:
- On Axis @ 0° ±3 dB, 36 to 21000 Hz
- On Axis @ 0° ±1 1/2 dB, 54 to 20000 Hz
- Off Axis @ 30° ±1 1/2 dB, 54 to 10000 Hz
- LF Cutoff -10 dB: 28 Hz
- Sensitivity:
- Anechoic Chamber 88 dB
- Listening Room 90 dB
- Impedance:
- Nominal 8 Ohms
- Minimum 6 Ohms
- Input Power:
- Recommended 15 - 120 W
- Program 60 W
- Acoustic Design:
- Tweeter (Nominal) 3/4” (19mm) Black Anodized Aluminum Dome with Ferrofluid and Neodymium Magnet
- Woofer (Nominal) 2 x 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround
- Crossover: 2500 Hz, L4
- Internal Volume: 0.95 cu ft (27.0 L)
- Design Type: Tuned Port Bass Reflex, 2 1/2" (63.5mm) Rear Port
- Dimensions / Weights / Finish:
- Size (W x H x D) 6 3/4” x 32 1/2” x 9 3/8” / (170 x 825 x 243 mm)
- Weight: 26.15lb (11.9 kg)/each
- 62.7lb (28.5kg)/pr
- Finish**:
- Black Ash
- Walnut
Notes
* Non-metric measurements are approximate.
** Some finishes may not be available in all models and/or all countries.
All specifications are subject to change without notice.
