psb CS610
Recessed 2-way speaker for wall and ceiling installations.
This superb group of Architectural speakers embodies over 40 years of cutting edge research in the field of acoustics and loudspeaker design. Musical, refined, and almost invisible, these speakers can create a beautiful ambience, even in larger spaces. Because their Sonic signature is identical to other PSB speakers, these CS600's can integrate perfectly as part of home Theaters or as the soundtrack of the connected home. Since PSB has in-room, on-wall, outdoor, in-wall and in-ceiling designs at many different price points, it makes it easy to specify an audio system that you know will turn out right, be easy to specify and install , and will absolutely thrill even your most discriminating clients.

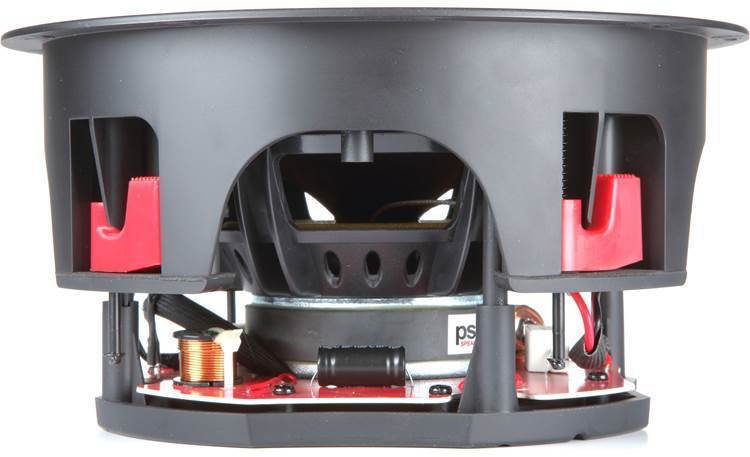

There are three models in this series, and all feature frameless magnetic grills with Invisible scrims. Both round and square grilles are provided, simplifying and reducing your inventory requirements. Each model features an improved simple, foolproof mounting system using heavy duty doglegs. Cutting templates are included. Pre-construction brackets and backcans are also available.

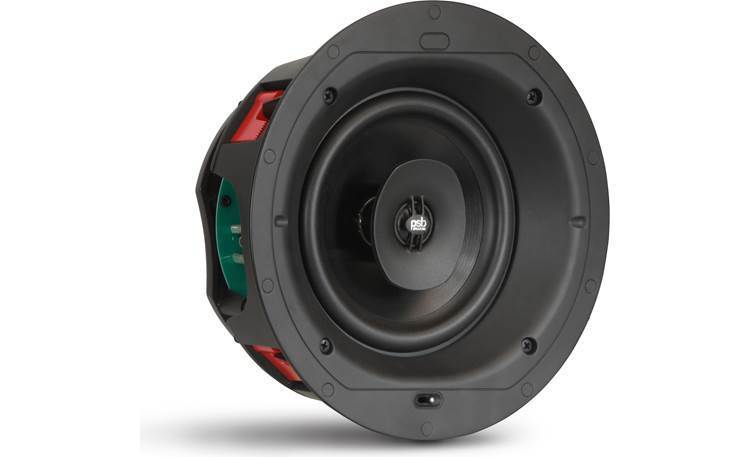

Featuring PSB's trademark carbon-filled polypropylene 6 1/2" woofer, this speaker has a warm and balanced sound with plenty of power handling thanks to the high temperature voice coil. The 3/4” Aluminum Dome tweeter, another proprietary PSB driver, is concentrically mounted and features a carefully engineered Wave Guide and ball-joint pivot mount assembly. This allows the Tweeter to go lower in frequency, creating a perfect Blend with the woofer in the crossover region, and allows the Tweeter to be aimed towards the listening position for enhanced musical imaging. Adjustment for the level of the Tweeter allows you to 'dial in' the upper frequency response of the speaker and its acoustic environment after installation to achieve the most musical balance for every room.
Specifications
- Frequency Response:
- On Axis @ 0°±3 dB, 50 to 20,000 Hz
- On Axis @ 0°±1 1/2 dB
- Off Axis @ 30°±1 1/2 dB
- LF Cutoff -10 dB
- Sensitivity:
- Anechoic chamber 85 dB
- Listening Room 87 dB
- Impedance:
- Nominal 6 Ohms
- Minimum 4 Ohms
- Input Power: Recommended 10 - 100 Watts
- Acoustic Design:
- Tweeter (Nominal)
- 3/4" (19mm) Aluminum Dome Black Anodized
- Woofer (Nominal)
- 6 1/2” (165mm) Fiber filled Injection Molded Polypropylene Cone
- Rubber Surround
- Crossover: 2100 Hz, LR4
- Internal Volume: N/A
- Design Type: Open Back
- Dimensions / Weights / Finish:
- Size: Diameter 212 mm, depth 119 mm
- Weight: 2 kg / each
- Finish: White
