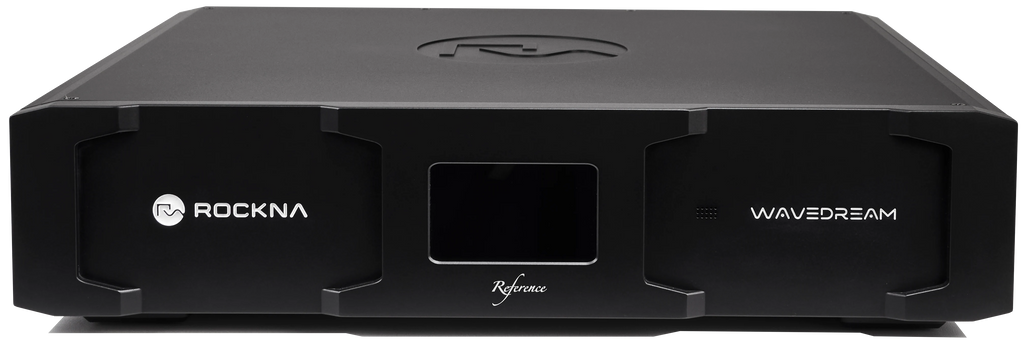

Rockna Audio Wavedream Reference R2R DAC
Wavedream Reference offers a unique combination of cutting-edge technology, tailored to manage the digital and analog signal path. It combines R2R conversion, ASRC-free clocking and precise digital filters – all to achieve the ultimate in musical realism.
Wavedream Reference is not just a DAC – it is a highly tuned audio system, the culmination of 10 years of development and audio engineering. All key components and subsystems have been designed from the ground up as Rockna Audio's own innovation, rejecting off-the-shelf chip solutions and OEM modules. The result is an elegant and original device that exceeds traditional expectations in audio.
Technology and structure

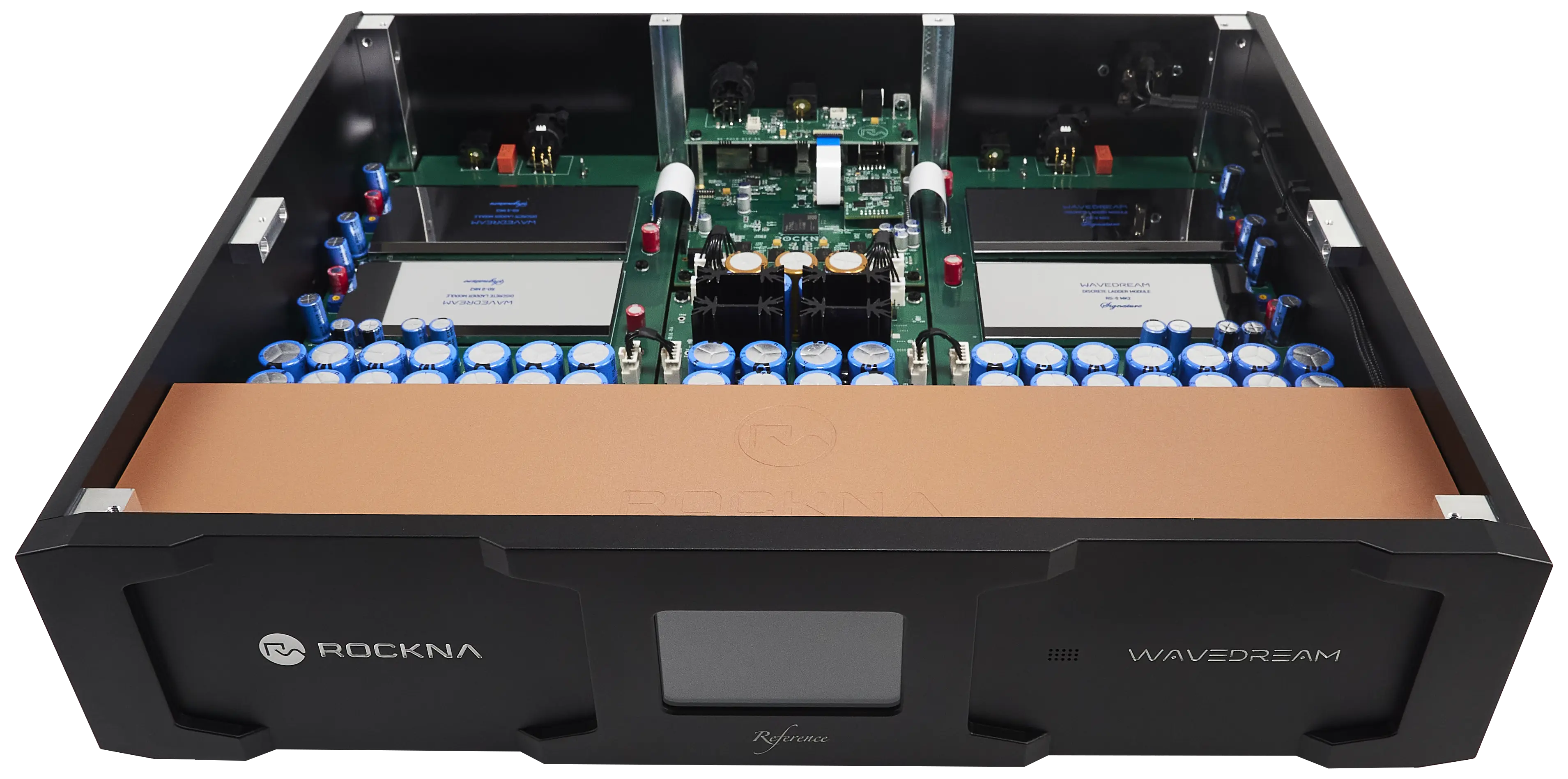

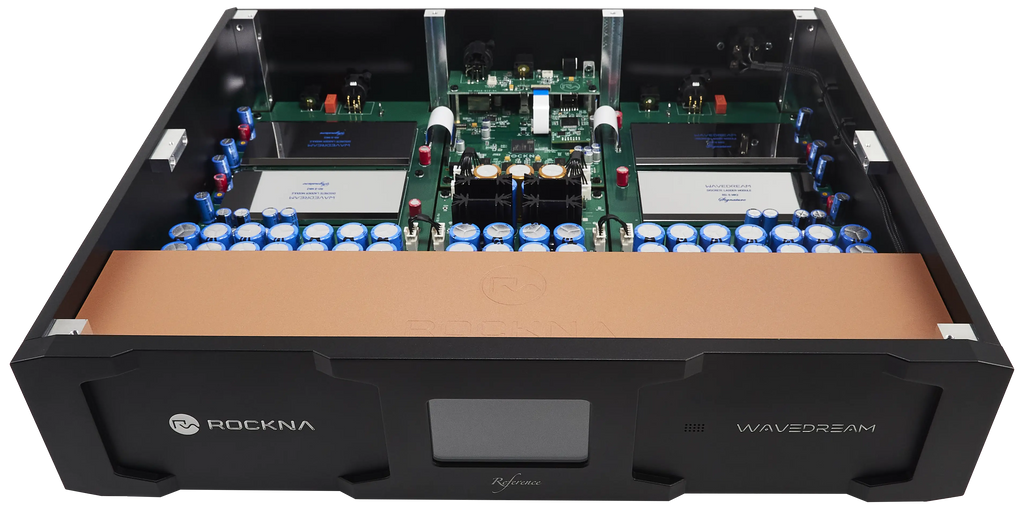

- Custom-designed architecture: Built on an AMD/ZynQ chipset and four FPGA modules responsible for each conversion stage
- 10-layer digital core includes network controller and streaming module
- Quiet, precisely regulated power supplies and copper radiation-shielded toroidal transformers
- ASRC-free digital PLL clock system that naturally mimics the rhythm and tempo of the analog source
- R2R ladder DAC modules with hybrid sign-magnitude architecture, FPGA driver, and supported sample rates up to billions of times per second
- Three pre-controllable digital filters (linear, minimum or hybrid) that utilize the Parks-McClellan algorithm and provide state-of-the-art impulse response
Connectivity & Control

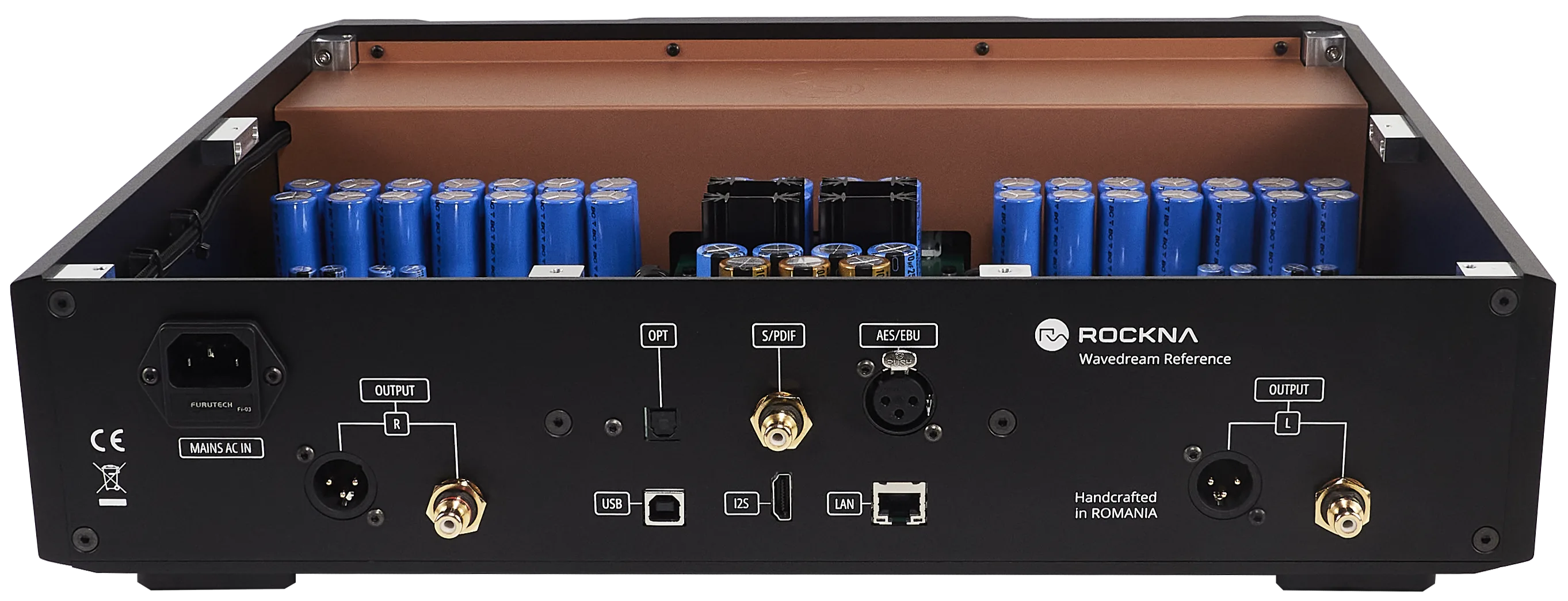

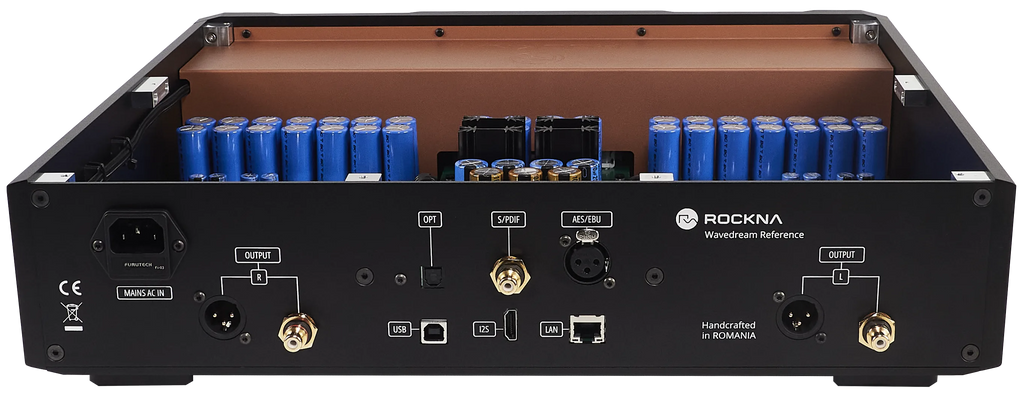

- Connections: LAN, USB, I2S (HD-Link), SPDIF, AES/EBU, Toslink; audio outputs: RCA and XLR
- Control: touchscreen, metal remote control with illuminated buttons and mobile apps (iOS/Android)
- Support for streaming services: Qobuz Connect, Roon Bridge, UPnP, AirPlay, Spotify Connect, etc.
Specifications
- THD (-3 dB) ≈ –100 dB
- DNR (dynamic range) ≈ 132 dB
- Max. output voltage 2.3 V RMS (RCA), 4.6 V RMS (XLR)

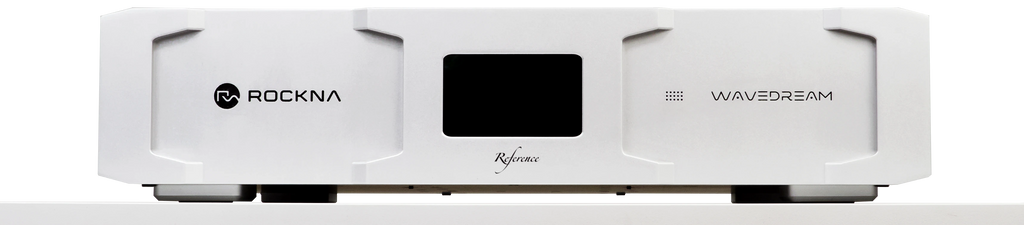

- Housing Full aluminum, matte black or silver
- Dimensions 450 × 390 × 105 mm
- Weight 10 kg
