Return to music
The stereo music consoles of the 1970s started the HiFi revolution, and the new R610 Music Console brings this popular concept back into the modern era. The R610 is designed and engineered to deliver top-quality sound and restore the joy of listening to music.
Main features:
The R610 is the perfect combination of retro design and modern streaming features!
Designed to perform
The R610 music console offers an aesthetic appeal rarely seen in hi-fi components, and the same attention to detail extends to the inside of the device. At the heart of the R610 is a modern switch-mode power supply that optimizes power delivery to the system's motherboard and the latest generation of digital amplifiers. Using Burr-Brown DA converters and high-quality audio components throughout, and delivering a rated power of 75 watts per channel, the R610 is controlled and dynamic – but most importantly, it produces a pleasantly natural sound that makes music listening truly enjoyable.
You are in control.
Our RotoDial controller has been a standout feature of our products since 2006. For the 100 Series, we’ve refined its design even further. Soft, comfortable buttons and a precisely balanced steering wheel make the R610 a pleasure to use. The user experience is enhanced by a sharp 5" TFT display that confirms every command and displays album and station artwork in perfect detail. A compatible rechargeable remote control is also included. Thanks to Bluetooth connectivity, there’s no need to aim the remote, so you can relax and control the R610 completely remotely.
Masterful connection
The R610 streaming amplifier offers all the connectivity you need and its powerful processor can handle high-quality audio streams. With built-in Internet radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast, a huge selection of music awaits your discovery.
The R610 also makes it easy to rediscover physical music formats. A high-quality phono preamplifier allows for simple connection of a turntable.
The R610's HDMI ARC/eARC connection offers a great audio solution for those who want a system that also takes their TV and movie enjoyment to the next level.
Specifications
Audio
Amplifier: 2 × 75W per channel Class-D
Frequency response: 22Hz-22kHz +0/-3dB
Enhancements: Stereo+, bass, treble, loudness
DAC: Up to 32-bit/384kHz resolution
Features

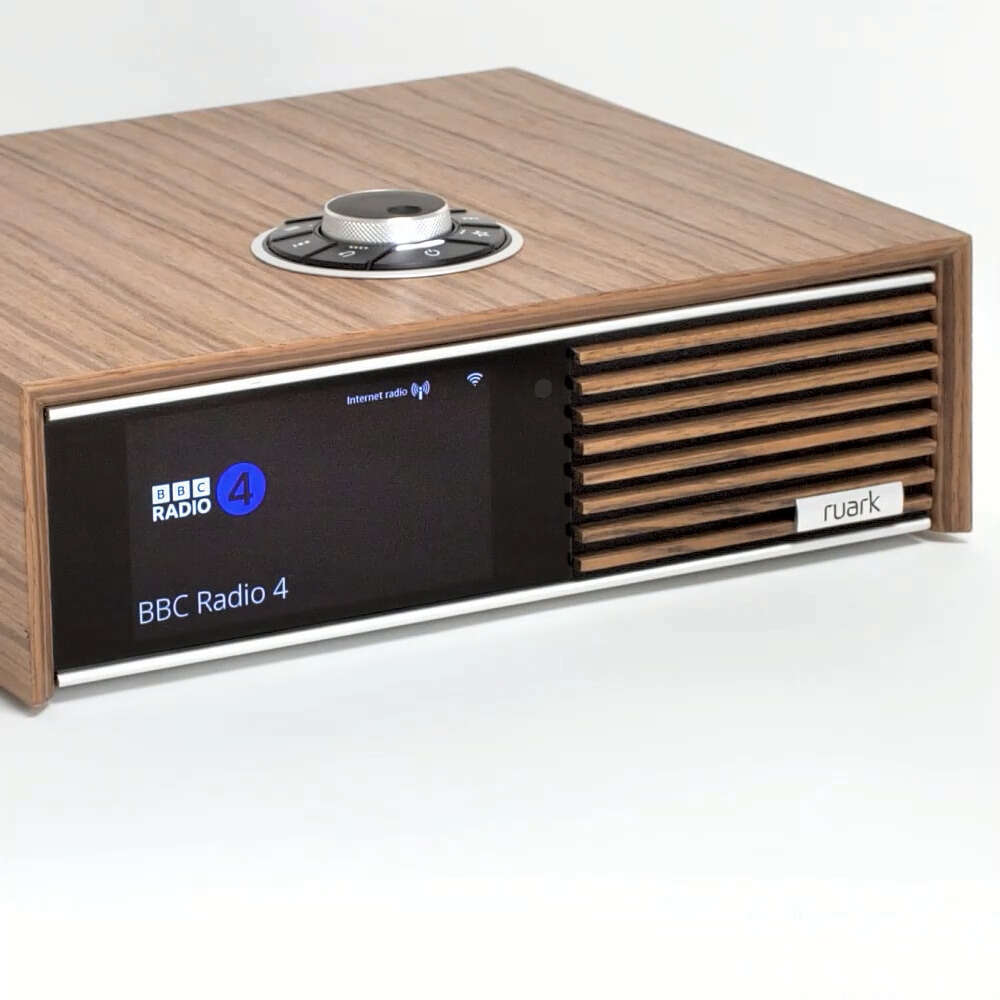

Display: Hi-contrast 5" color TFT
Auto-Standby: Automatic power saving mode
Adjustable input levels: Line-in, phono-in, optical and HDMI
USB Charge Port: USB-C 5V 1A (5W)
Software Updates: Over-the-air and USB
Controller: Ruark RotoDial control system
Remote control: Ruark RotoDial Bluetooth rechargeable remote
Presets: 20 global presets
App control: Via Spotify, BBC Sounds and more
User interface languages: Multilingual

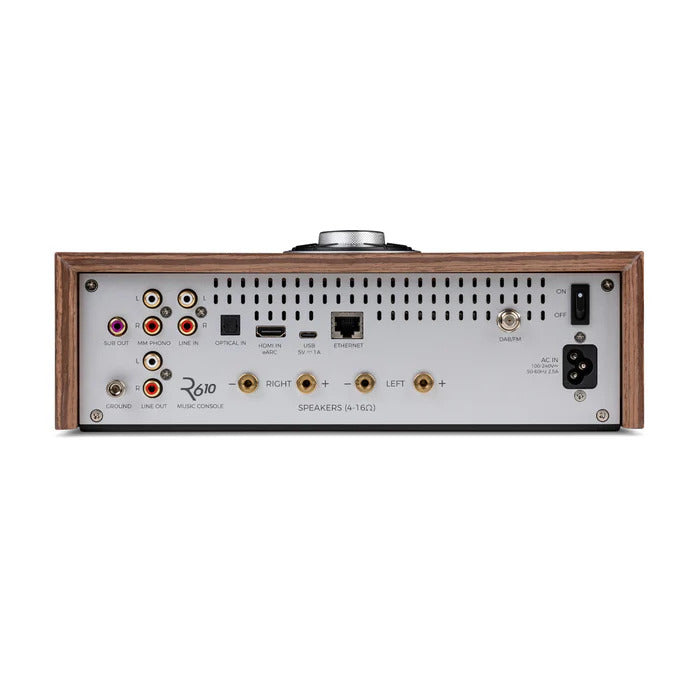

Connectivity
Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
Multiroom capable: Via Apple AirPlay and Google Cast
Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming: Apple AirPlay and Google Cast
Built-in music services: Spotify Connect and TIDAL Connect
Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet: RJ45 connector 10/100 Mbps
DLNA: UPnP™ DLNA media server compatible
CD support: CD playback via external USB CD drive (optional)
HDMI: ARC and eARC
Line-input: Stereo RCA input (up to 2.3Vrms)
Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
Subwoofer output: Volume related full-frequency mono RCA connector
Optical input: TOSLINK digital input up to 24-bit 192kHz
USB-C: playback port
Aerial connector : 75Ω F-type
Supported Audio Formats
FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
MP3: up to 48kHz 320kbps
AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General Specifications

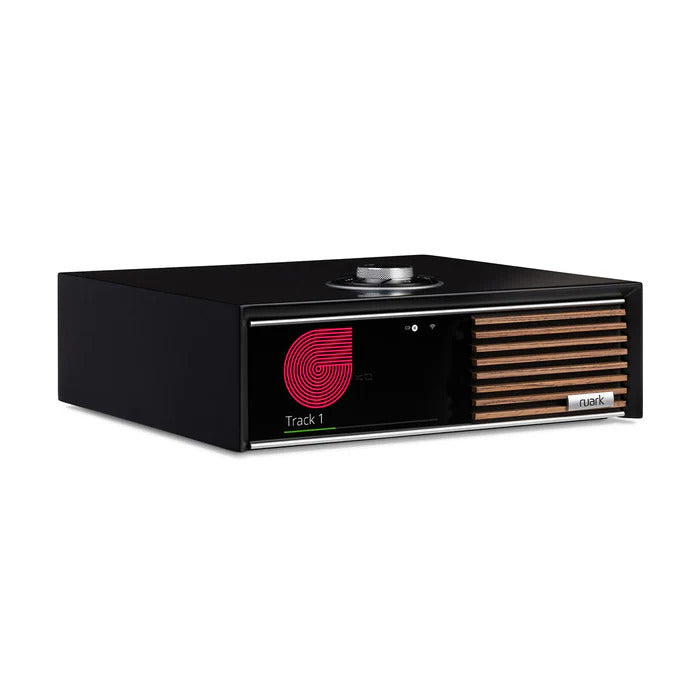

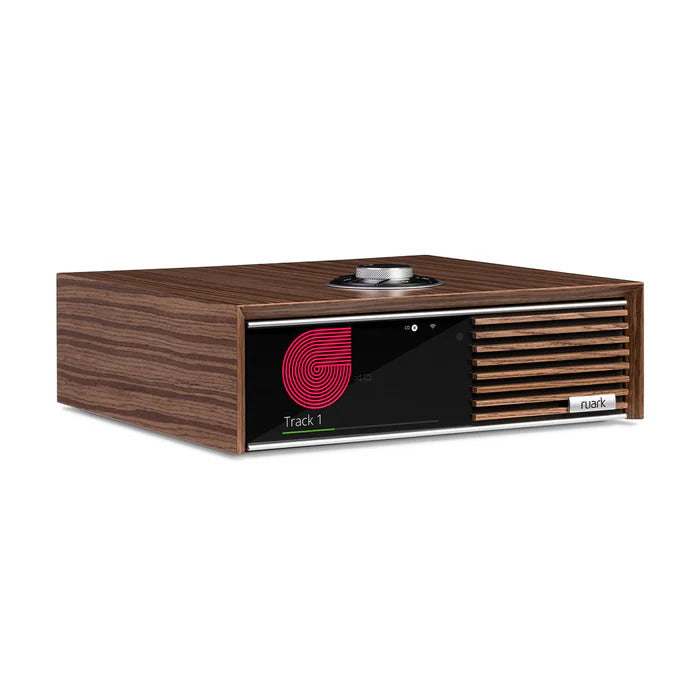

Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
Product dimensions:
H95 × W300 × D280mm (cabinet)
H107 × W300 × D280mm (with Rotodial controls)
Product weight: 4.1kg
Finish: grey soft lacquer, walnut veneer
