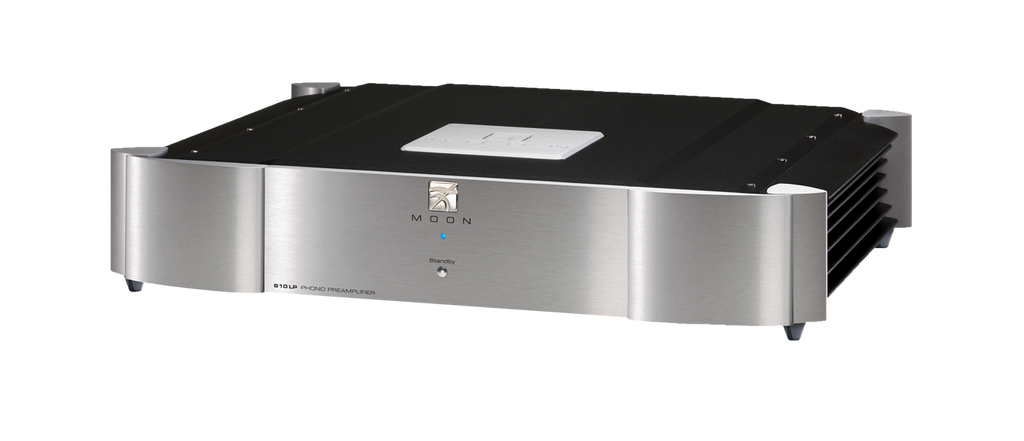

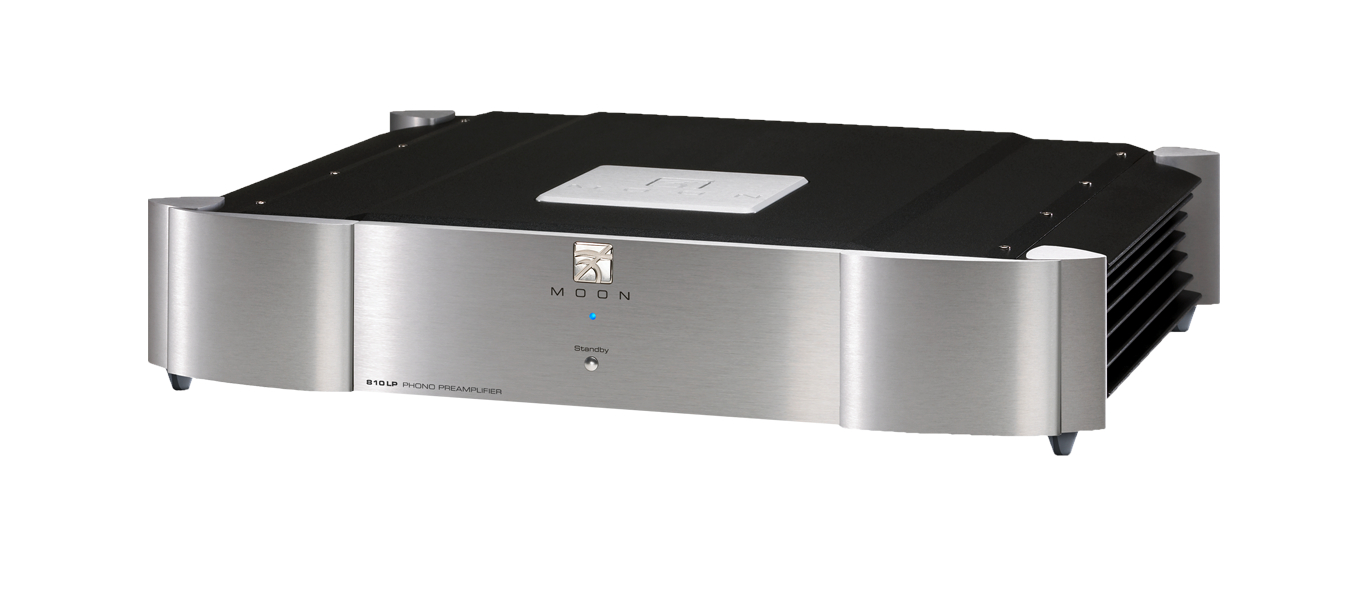

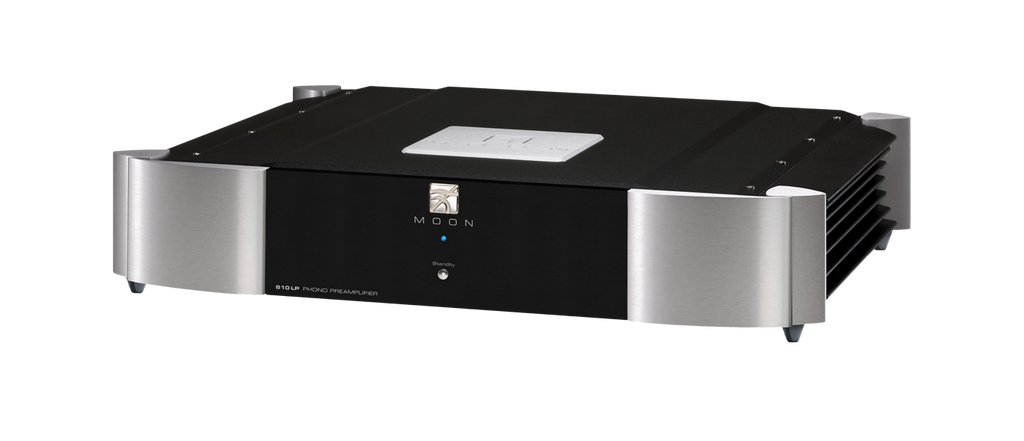

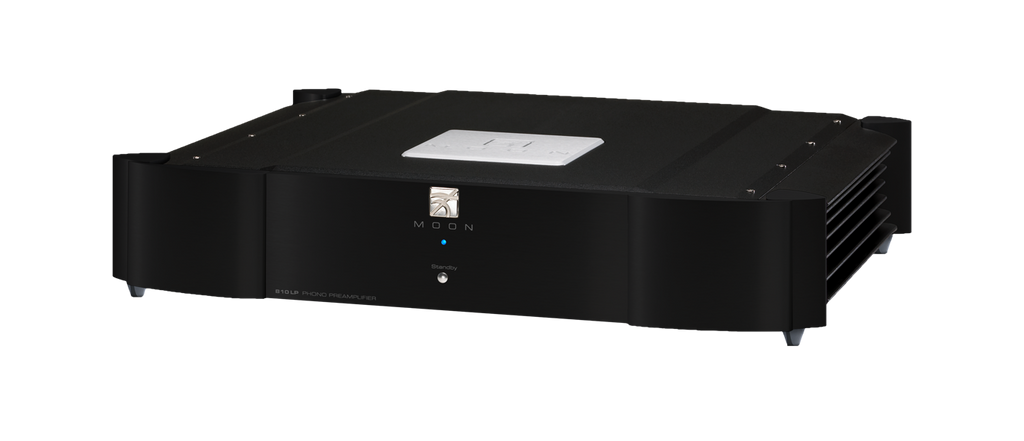

Simaudio MOON 810LP turntable preamplifier
A true pure analog design, ready to become the new reference in the world of analog playback. Amazing analog precision combined with unparalleled flexibility!
"Over time the Soundstage got even Deeper and incredibly wide, with the unerring ability to clearly place and delineate individual Musicians within a fully fleshed-out acoustic. – Graham Abbott, SoundStage! Ultra
"In terms of black backgrounds, top-to-bottom transient response, image definition, dynamic contrasts at both ends of the scale, and rhythm'n'pacing, the MOON 810LP was worth its considerable price. It was a model of rhythmic and spatial organization." – Michael Fremer, Stereophile
Design features
- The power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); one inductor for each IC in the audio circuit signal path – a total of 24 stages.

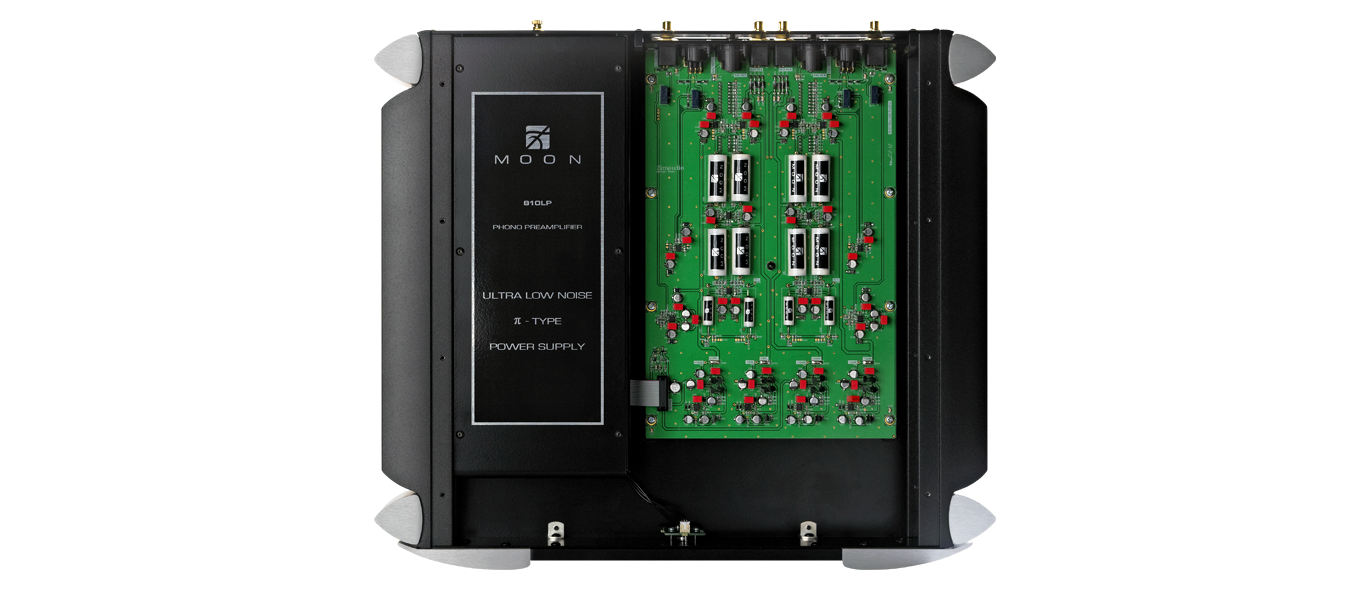

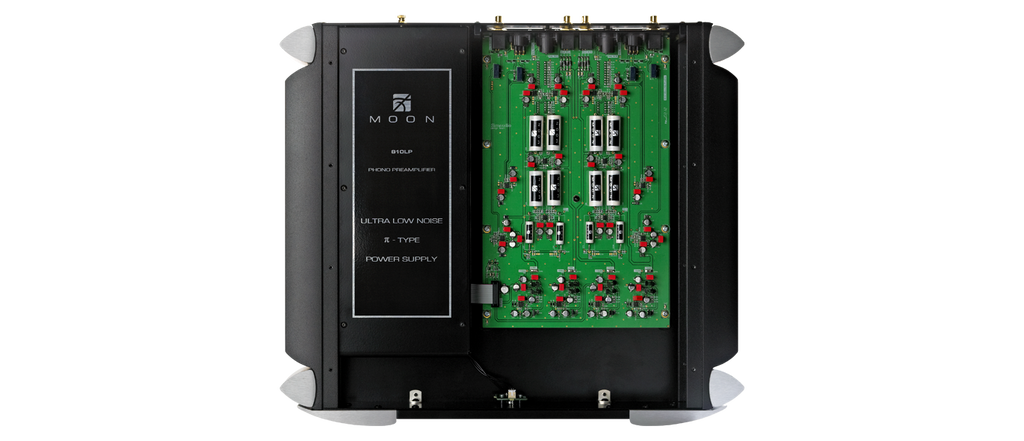

- The dedicated audio circuit board is mounted on a 5-point gel-like floating suspension utilizing M-Octave technology, originally developed for the 850P.
- Fully compatible with the 820S external power supply.
- Custom components include metallized polypropylene film capacitors with highly accurate 1% tolerances.
- Four-layer PCBs with separate ground and power planes, using pure copper to ensure low impedance.
Specifications

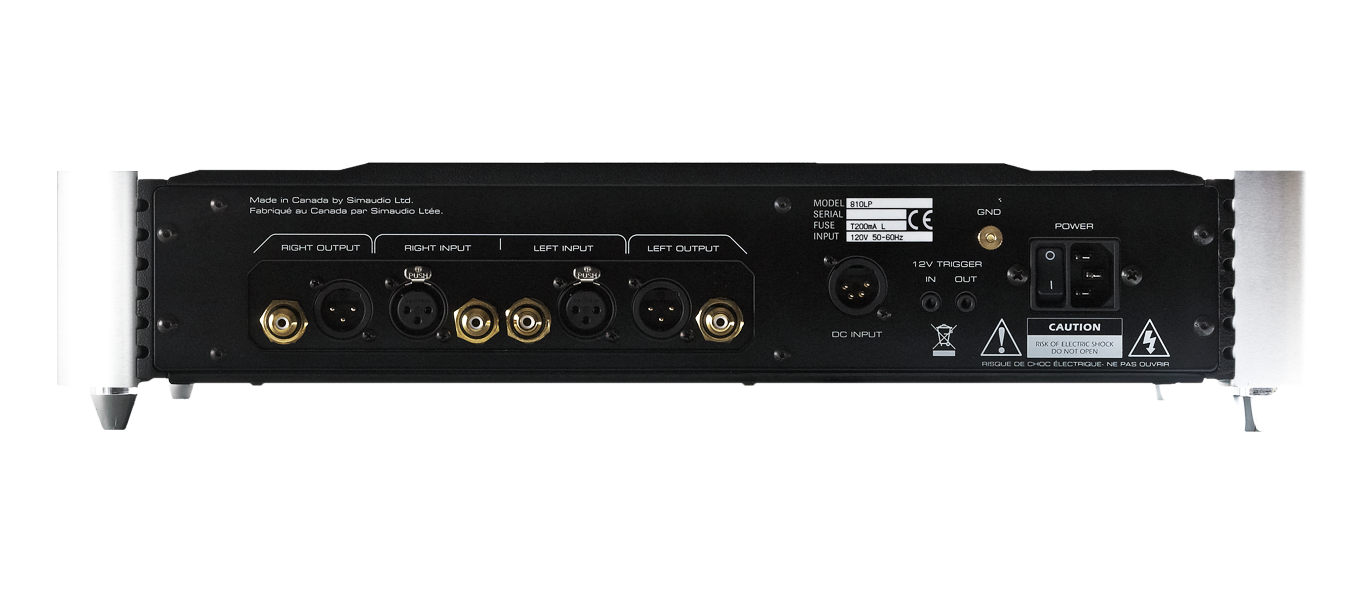

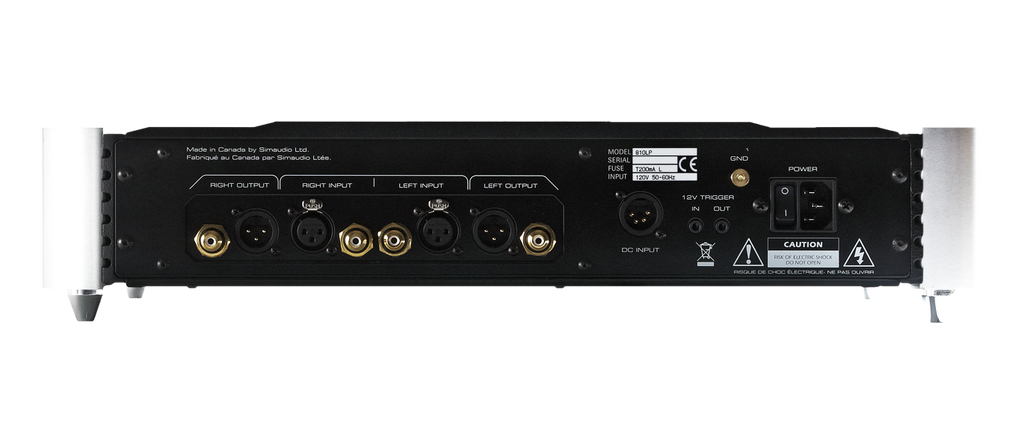

- Inputs (XLR / RCA): 1 pair / 1 pair
- Signal-to-noise ratio (full scale @ 40 dB gain): 115 dBr
- Signal-to-noise ratio (full scale @ 70 dB gain): 95 dBr
- IEC curve effect: -7 dB @ 10 Hz
- Frequency response: 20 Hz – 20 kHz ±0.1 dB
- Crosstalk @ 1kHz: -106 dB
- Output impedance: 50 Ω
- THD (20 Hz - 20 kHz): 0.0008%
- Intermodulation distortion: 0.001%
- Input Overload @ 40 dB Gain (XLR/RCA): 200 mV RMS/100 mV RMS
- Input Overload @ 70 dB Gain (XLR/RCA): 5 mV RMS/2.5 mV RMS
- Shipping weight: 18 kg / 40 lb
- Dimensions (W x H x D): 47.6 x 10.2 x 42.7 cm
