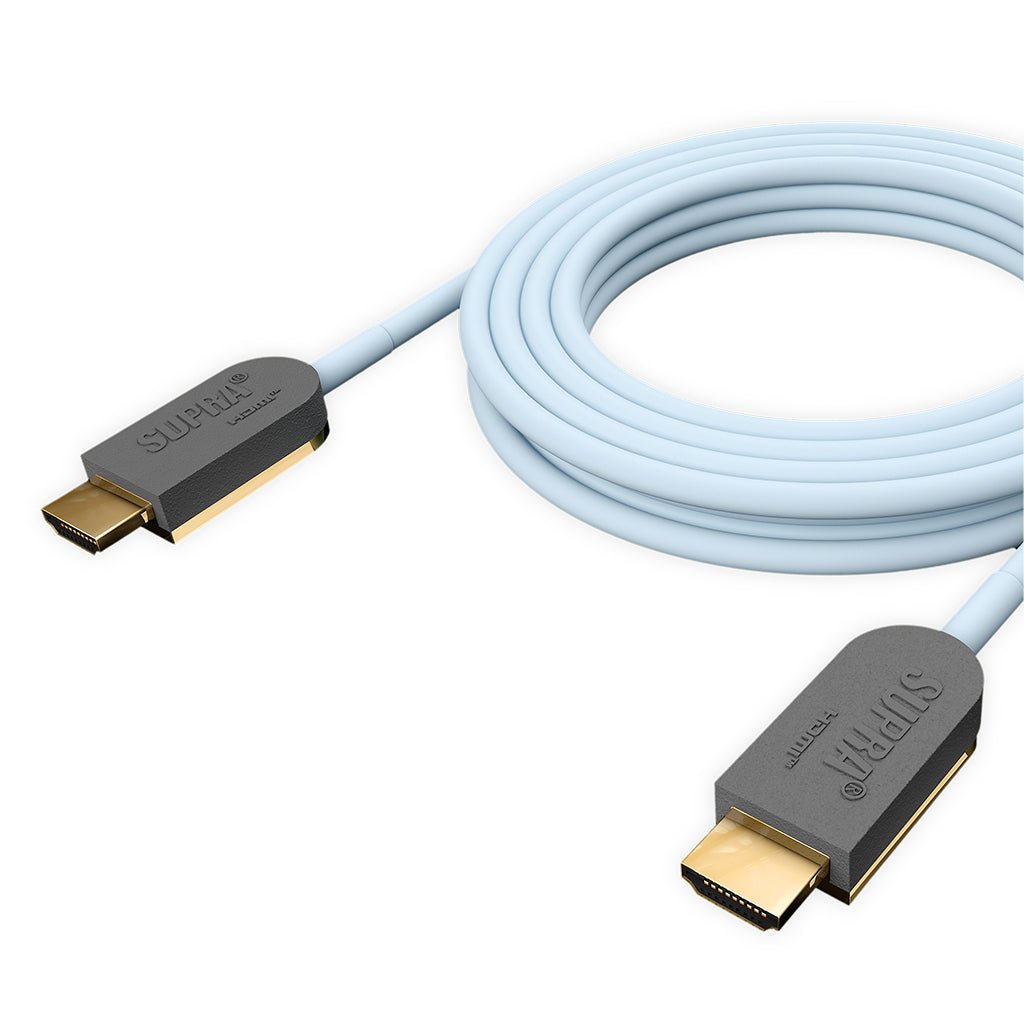

Supra HDMI AOC Optical

Active optical 8K HDR HDMI 2.1 cable

Supra HDMI 2.1 AOC is the perfect solution when 8K signals are transported over long distances. The purity of the optical cable's signal beats traditional copper cables, and thanks to the active technology, there is no loss or stuttering of the image even during long runs.

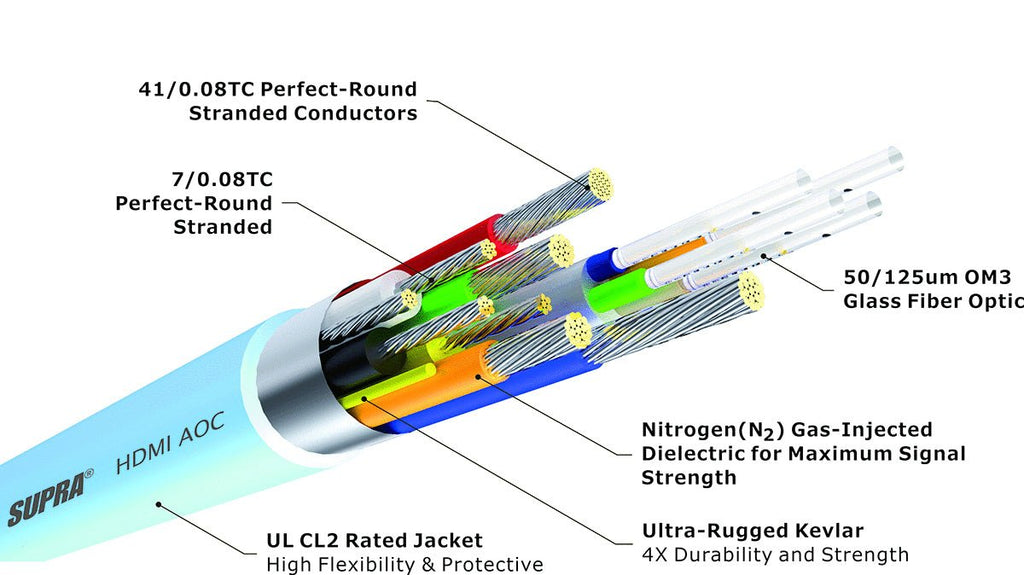

Hybrid fiber optic technology enables lossless signal export over long distances and at the same time RFI and EMI interference remains minimal. The 48 Gbps bandwidth enables ULTRA HD 8K 7840x4320@60Hz signal transmission up to 100 meters. The transmitter and receiver modules are integrated into a standard A type 19-pin male HDMI connector for connection to the source and display.

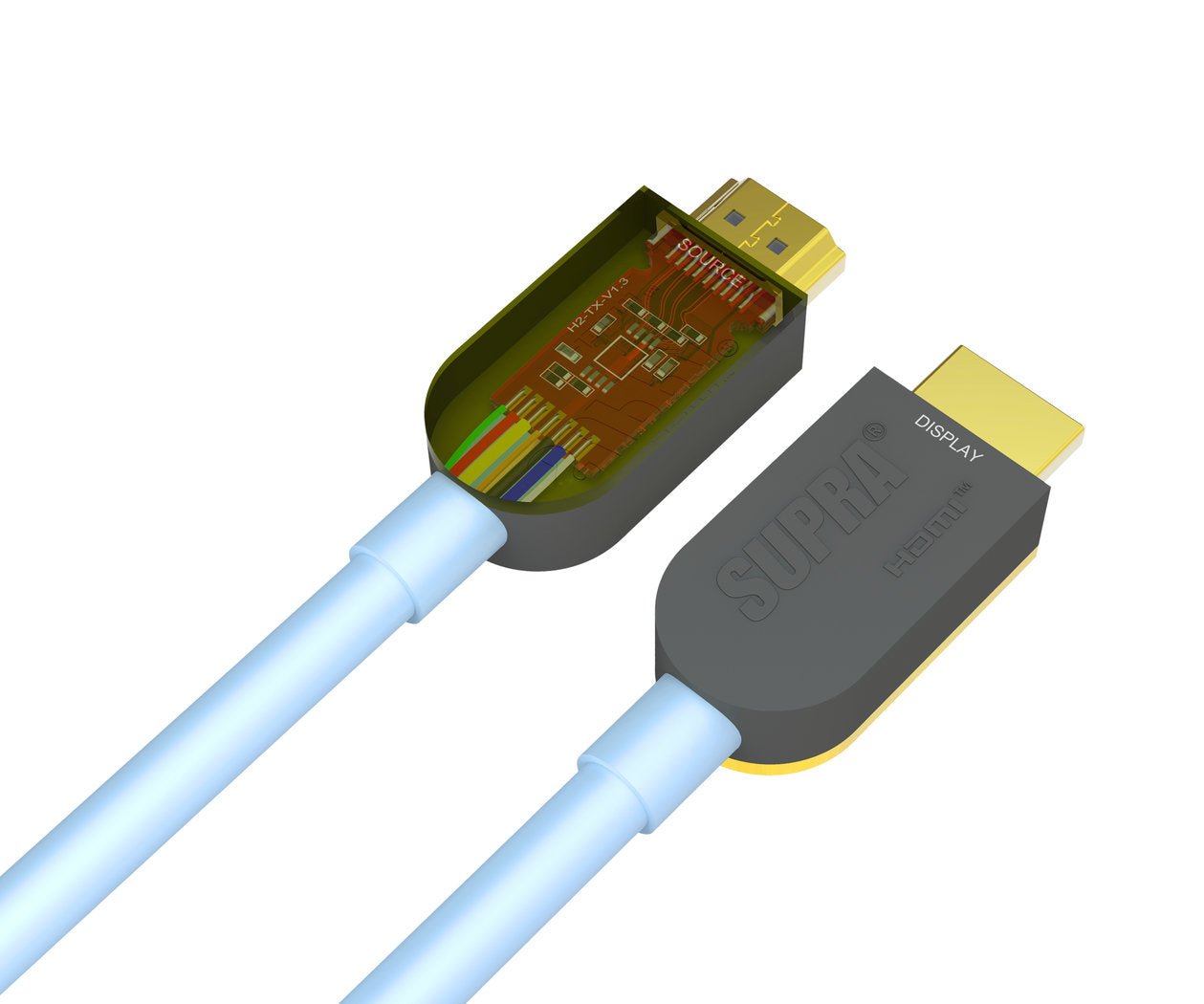

Supra AOC gold-plated connectors contain active control circuits that convert the HDMI signal to optical and back. In addition to this, the AOC concept is completely Plug & Play and does not require external drivers or power supplies - a very neat installation if we do say so ourselves.

By using Supra's AOC cables, you make the installation easier and your system more future-proof.

Features and benefits

• Proprietary gold-plated connectors keep interference out of the signal.
• Fiber optic technology in selected connectors guarantees freedom from extraneous noises.
• Supports resolutions up to Ultra HD 8K 7860x4320@60Hz and up to 100 meters long.
• Dolby Atmos, True HD, DTS-HD Master Audio, up to 32 audio channels.
• Plug & Play installation - no drivers or external power supplies.
• The thin and very flexible wire has a diameter of only 4.5 mm and is therefore easy to install.
• The amazing 48 Gbps bandwidth carries the 8K Ultra signal with full power and color space.
• 4:4:4 color scheme
• HDR support
• eARC & CEC
• HDCP 2.3

Technical information:

• Full HD Blu-ray and HD DVD video
• CEC
• DVD-Audio
• Super Audio (DSD)
• Automatic lip sync
• Dolby TrueHD
• DTS-HD Master Audio
• Updated CEC command list
• 3D Video
• Ethernet channel (100 Mbit/s)
• ARC, eARC
• 4 simultaneous audio channels
• 2 simultaneous video channels (dual view)
• Hybrid Log-Gamma (HLG) HDR OEFT
• Static HDR
• Variable Refresh Rate (VRR)
• Quick Media Switching (QMS)
• Quick Frame Transport (QFT)
• Auto Low Latency Mode (ALLM)
• VESA DCS 1.2a
• Guaranteed resolution: 8K@60Hz
• Bandwidth: 48 Gbit/s
