Supra EXCALIBUR USB2.0 AB cable

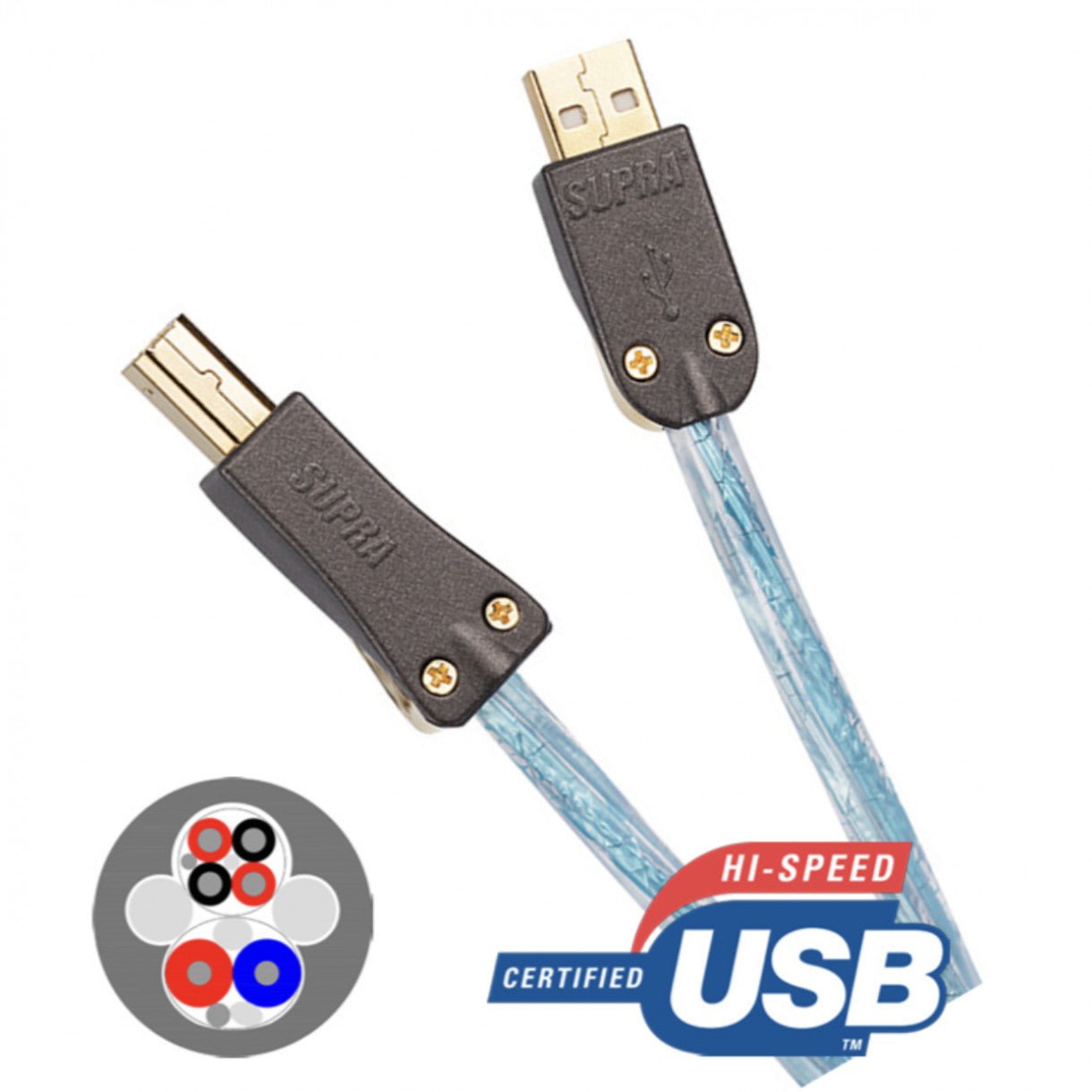

Excalibur is a top-of-the-line USB cable with improved data and power transfer, and is the ideal complement to Supra's current, highly popular USB range. Both the data pair and the power pair are optimised for their purpose. The twisted data pair is made of PE-insulated silver-plated copper conductors. The silver layer is very thick, 3.8% of the entire conductor, which ensures the best conductivity and a high rate factor. Silver is ideal for high frequencies and fast data transfer. The construction of the power conductors is completely different from that of the data pair. To avoid power losses and maximise the surface area of the conductor, Supra uses four tinned conductors in a star configuration. The star configuration and separate shielding significantly reduce susceptibility to RFI effects. The USB connectors are the descendants of Supra's highly regarded HDMI connector. They are fully protected by aluminum, and the connector body is removable to allow the cable to be routed in 12-millimeter pipes - without removing or damaging the high-quality factory termination contacts! So no on-site cutting and re-soldering that would compromise the Supra's signature top-notch performance.
Supra digital cables are always designed to perform perfectly in their intended environments. Unlike basic market cables, Supra USB cables are impedance-matched, which means that their jitter is negligible, so the signal is always transmitted unchanged and on time from one device to another.
Supra knows how to match impedance, how to design the desired low-capacitance conductor, and thanks to this know-how, Supra reaps test victories year after year. The technology is also not shrouded in mysticism or explained as rocket science, but all work stages and material choices are based on best practices and very high tolerances.
Specifications
- Standard: USB 2.0 Hi-Speed

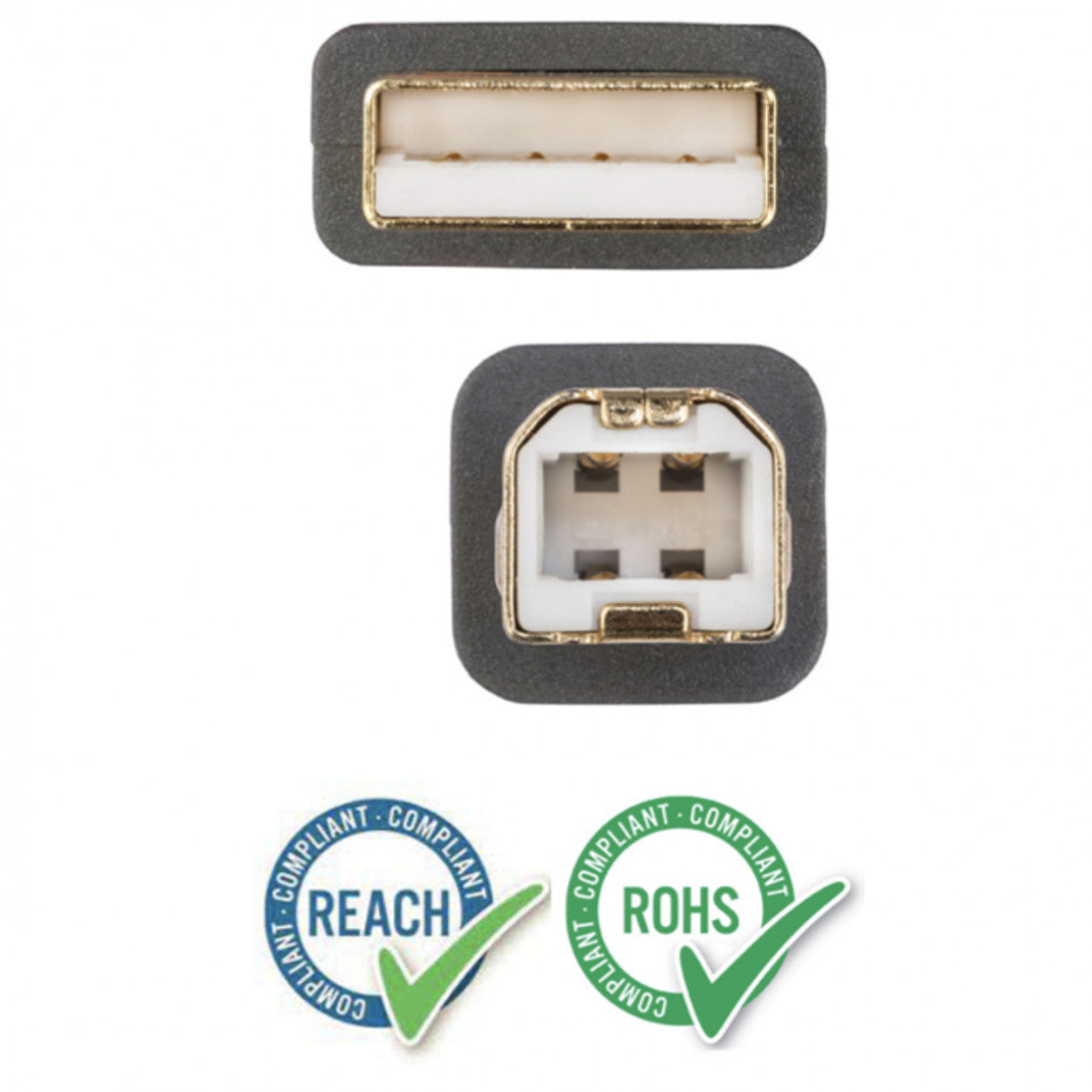

- Connectors: USB A male - USB B male
- Applications: high-quality DA converters, music libraries, computers
- Data conductors: 2x 0.24mm2 / 23AWG, silver-plated copper, strands 2x19 x 0.127mm
- Power conductors: 4x 0.24mm2 / 23AWG, tinned copper, strands 4x19 x 0.127mm
- Insulation material: PE
- Shielding: ALU/PET foil + grounding
- Shell: heat and weather resistant PVC GA74
- Connectors: aluminum shell, gold-plated copper contacts
- Outer diameter: 7.3 mm
- Data transfer rate: 480+ Mbit/s
- Resistance: 52 Ohm/km
- Capacitance: 45 pF/m
- Impedance: 90 Ohm
- Speed factor: 0.66x C (speed of light)
- Special lengths available on request.
- Made in Sweden.
