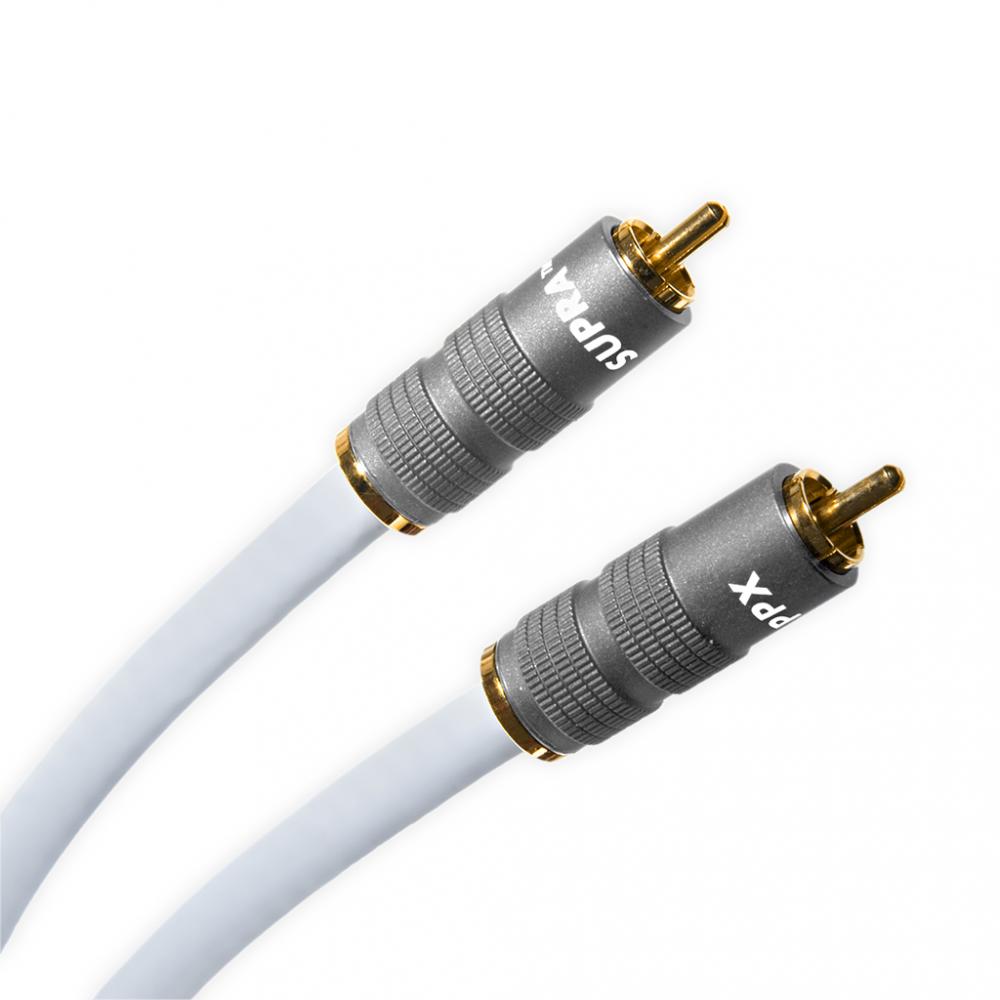

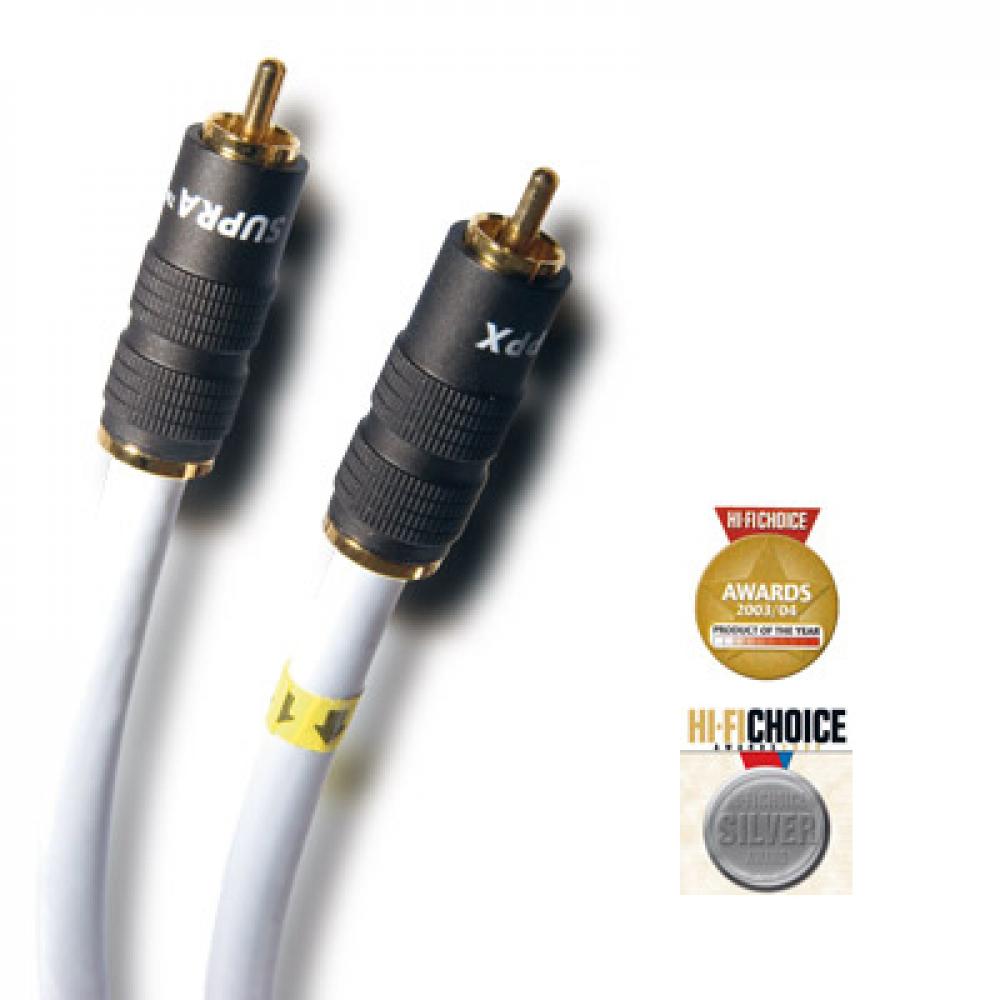

Supra Trico Coaxial coaxial cable
Supra Trico is a true 75 Ohm digital interconnect designed for carrying digital signals between devices that require high bandwidth and closely matched impedance. Trico coaxial cable is equipped with sufficient bandwidth to carry the full digital spectrum, maintaining signal integrity, and is provided with sufficient oversizing so that the signal does not suffer even over long runs. The cable also has very low capacitance, which makes its ability to carry digital square waves first-class.
Features and benefits
- Silver-plated oxygen-free 5N copper conductors ensure excellent high-frequency conductivity
- Thanks to PE insulation and extremely low capacitance, transient response is at a first-class level
- Double-shielded construction makes the cable immune to external noise interference
- 24K gold-plated connectors are free from oxidation and ensure a long and reliable service life
- True 75 Ohm cable is suitable for use with 75 Ohm broadcast standards without signal degradation
- Made in Sweden
Specifications
- Cross-sectional area: 0.71 mm2
- Number of strands per wire: 7
- Conductor diameter: 0.36 mm
- Insulation: PE foam (air-filled)
- Sheath: Heat and aging resistant PVC
- Outer diameter: 8.2 mm
Electrical performance
- Resistance: 8.1 Ohm/km
- Inductance: 0.28 µH/m
- Capacitance: 58 pF/m
- Impedance: 75 Ohms
- Speed factor: 0.78 x C (speed of light)
