WiiM Amp Ultra network amplifier

WiiM Amp Ultra network amplifier

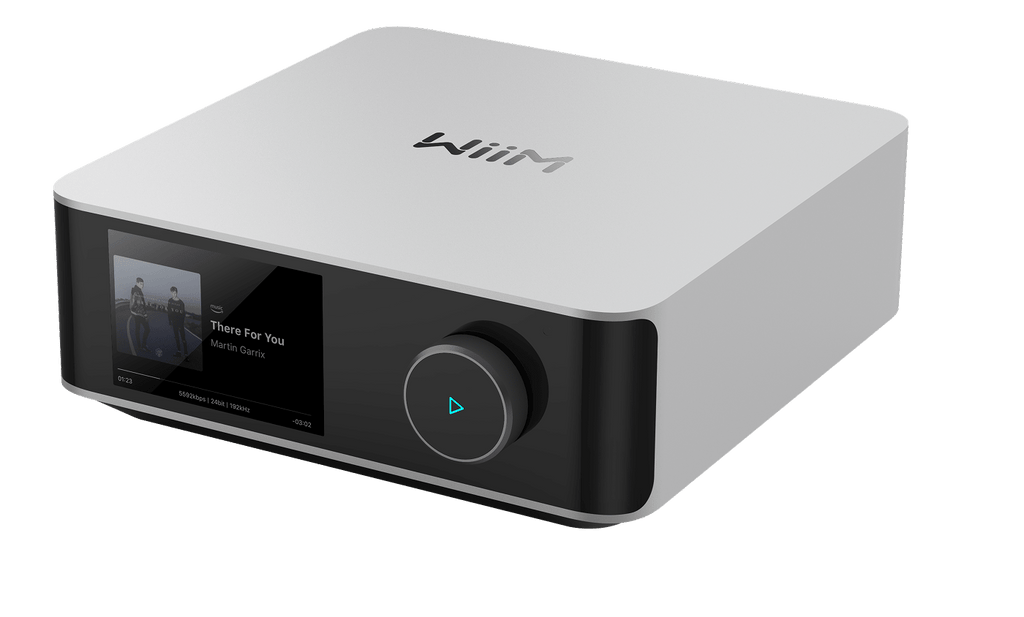

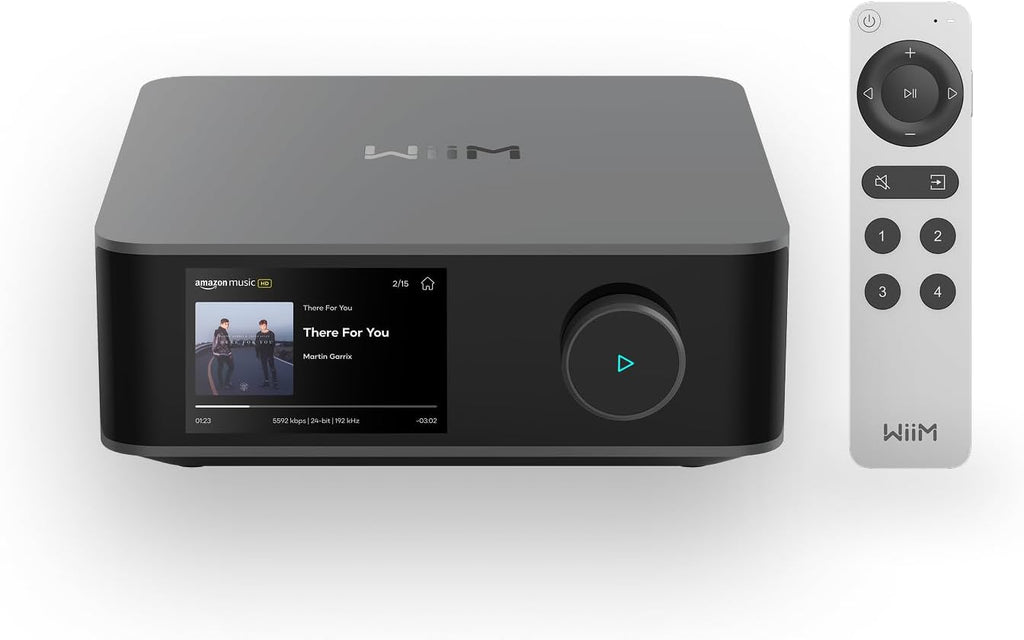

The WiiM Amp Ultra combines clear, powerful audio with top-notch streaming capabilities in a compact, aluminum unibody housing. A 3.5-inch touchscreen and rotary control knob on the front provide an intuitive user experience

Flagship components, perfect sound quality

• Under the hood, the Amp Ultra uses top-of-the-line components
• ESS ES9039Q2M SABRE DAC
• Two TI TPA3255 Class-D amplifiers
• Six TI OPA1612 operational amplifiers
• Combined with Post Filter Feedback (PFFB) technology, it delivers clean and detailed sound consistently at all speaker loads – perfect for bookshelf speakers, floorstanding models or in-wall speakers.

Sound quality & power

• Delivers best-in-class 100W per channel (8Ω) and 200W (4Ω) of power with dual TI TPA3255 Class-D amplifiers
• High-quality ESS ES9039Q2M Sabre DAC + six TPA1612 op-amps ensure sound with extremely low distortion (<–105 dB THD+N) and high signal-to-noise ratio (120 dB)

Post Filter Feedback (PFFB) ensures that the sound remains clean and stable regardless of the load

At the heart of the WiiM Amp Ultra’s superior sound is its advanced Post Filter Feedback (PFFB) technology – a state-of-the-art system that reduces distortion, improves clarity and ensures consistent sound quality across a range of speaker loads. Unlike traditional amplifiers that suffer from load dependency, PFFB dynamically compensates for these variations, delivering a more accurate, balanced and natural soundscape. The result is a wider soundstage, richer detail and an immersive listening experience.

Streaming & Connectivity

• Wireless streaming Wi-Fi 6E, Bluetooth 5.3 and dual antennas – real-time, interference-free streaming up to 24-bit/192 kHz
• Includes a variety of protocols: Google Cast, Alexa Cast, Spotify/TIDAL Connect, DLNA and Roon-ready
• HDMI ARC and Dolby Digital decoding – ready to connect your TV for home theater use
• 3.5" touchscreen on the front for album art, playback control and settings.
• Room Calibration and EQ Functions: 24 presets, 10-band graphic and parametric EQ for each line, plus room calibration for the best sound quality
• Voice and button control including Alexa, Google Assistant, Siri + includes WiiM Voice Remote 2
• Supports multi-room playback with Home speakers and works as part of a wider smart home ecosystem.

Specifications:

• Power 2 x 100 W @8 Ω / 2 x 200 W @4 Ω
• DAC ESS ES9039Q2M (32-bit/384kHz)
• Amplifier circuits 2× TI TPA3255 + 6× OPA1612
• Streaming Wi-Fi 6E, Bluetooth 5.3

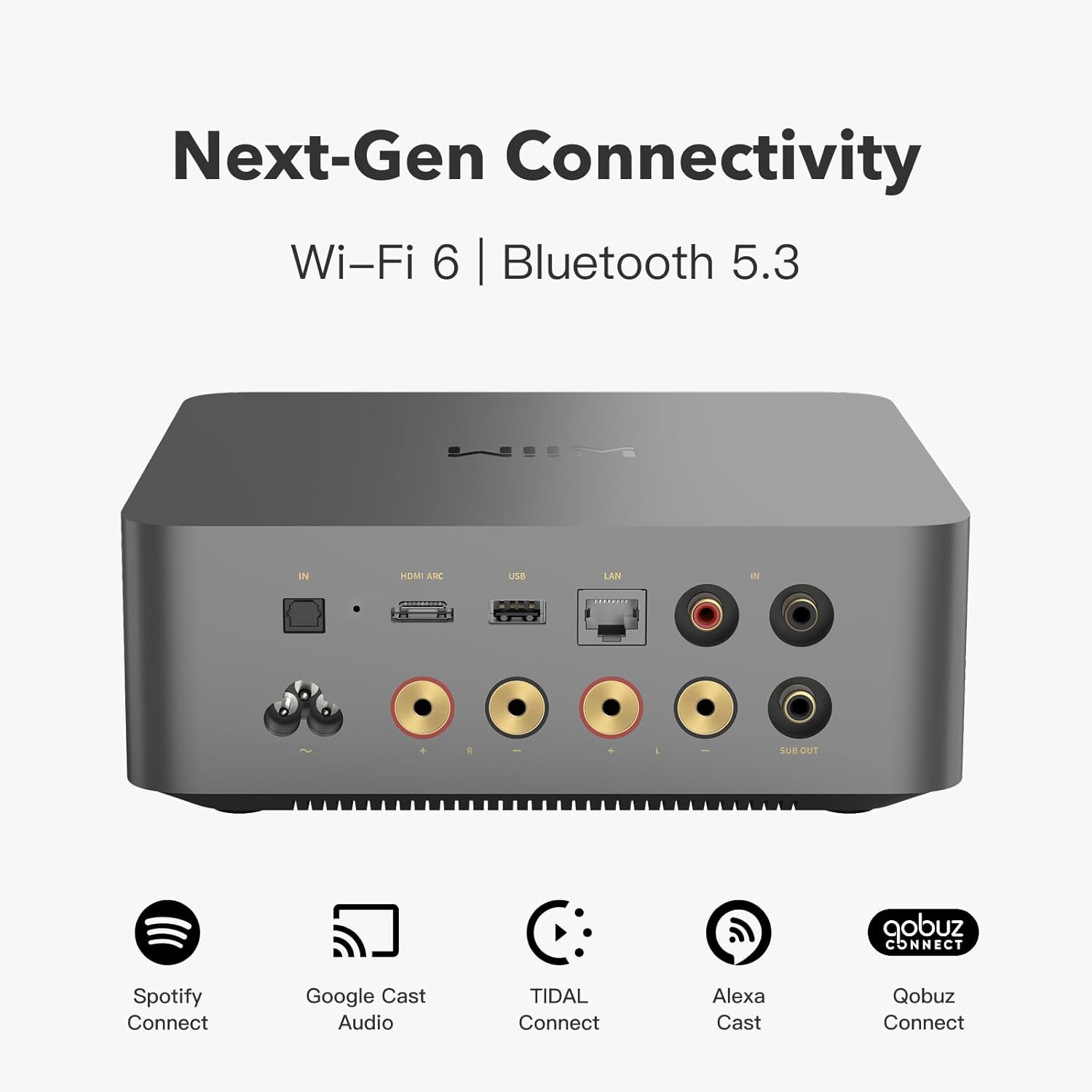

• Connections HDMI ARC, sub-out, RCA line, optical
• Display 3.5" touchscreen
• Streaming services Spotify, TIDAL, Amazon Music, Qobuz…
• Smart home & voice Alexa, Google, Siri, HDMI CEC
• EQ & room correction 24 presets, 10-band graphic/parametric EQ
• Remote control WiiM Voice Remote 2

• Dimensions: 200 x 211 x 76.2 mm
• Weight: 2.45 kg
