Pro-Ject Connect It Phono DS RCA-TAC
The magic is always in the details - made in Europe!
Flexible high purity OFC copper conductor with silver plated connectors
The "Connect it DS" signal cables use a high purity OFC copper conductor. Its low capacity makes them perfect for phono applications. The shielding is done with an OFC copper helix with a carbon saturated conductive sub-jacket which offers a perfect protection, but also great cable flexibility. All DS-Line connectors use silver plated signal pins, which offer a higher conductivity with the lowest contact resistance compared to gold. As you may know from your silver knives and forks at home, silver can oxidize. Don't worry, this is just an optical issue, because silver oxide is as conductive as silver itself.
Available versions:

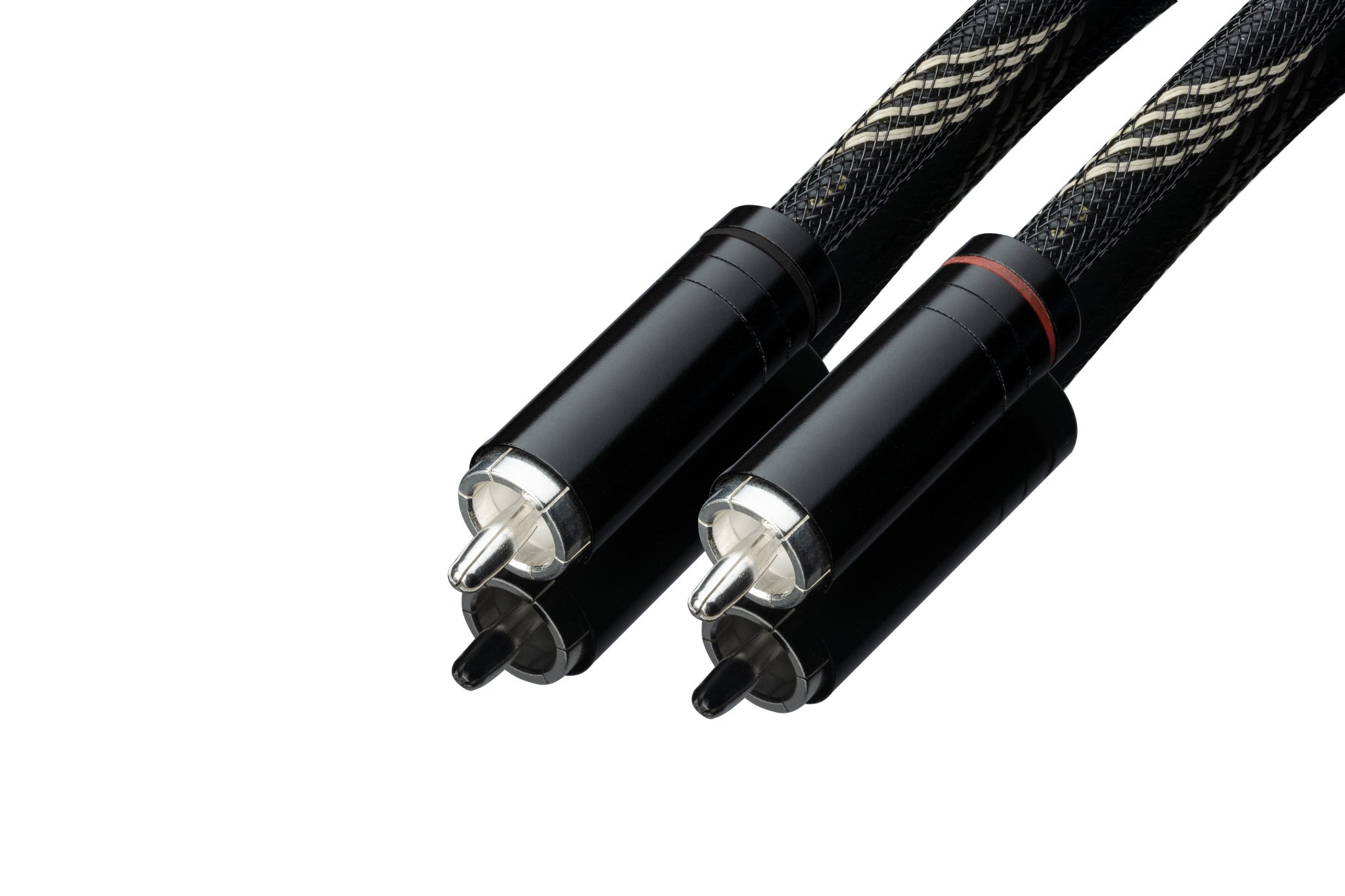

1 – Connect it Phono DS RCA (1.23m)
2 – Connect it Line DS RCA (0.41 / 0.82 / 1.23 / 1.85m)
3 – Connect it Line DS XLR (0.41 / 0.82 / 1.23 / 1.85m)

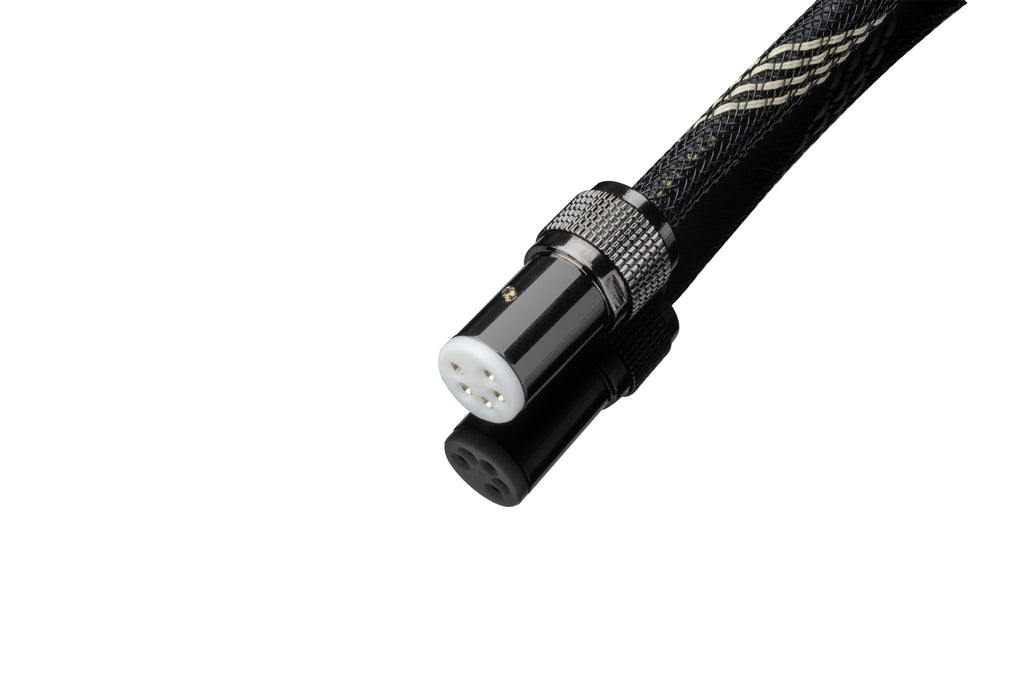

4 – Connect it Phono DS 5P/RCA (1.23m)
5 – Connect it Phono DS 5P/XLR* (1.23m)
6 – Connect it Phono DS 5P/miniXLR* (1.23m)
7 – Connect it Phono DS RCA/miniXLR* (1.23m)
8 – Connect it Phono DS miniXLR/miniXLR* (1.23m)
9 – Connect it Phono DS miniXLR/XLR* (1.23m)
*To use our True Balanced Connection, your Pro-Ject turntable needs to be equipped with an MC cartridge or the Pick it PRO Balanced.
HANDMADE IN EUROPE
What is True Balanced?
Balanced audio connections are usually known from the professional sector like recording studios or live concerts. It is very important to have a stable & interference free connection, as these signals will be highly amplified. The same applies to the connection from your turntable to the phono preamplifier. The big advantage of a balanced connection is its ability to remove picked up noise and interferences. And best of all, cartridges by nature are already balanced signal transducers! With True Balanced you are simply using everything, literally everything, that your cartridge is picking up from the record groove. You are not throwing away half of the usable signal, like is done in typical single-ended RCA phono connections.
Features
- Metal connectors
- Ultra low capacitance
- High quality stereo NF cable
- Optimized for turntable connection
- Low distortion level & neutral sound
-
- Conductors: 99.99% OFC copper
- Construction: 2 x 0.2mm2
- Cable Capacity: 90pF (1.23m)
- Dielectric: High flexible cell polyethylene
- Shielding: Helical OFC copper with carbon sub jacket
- Jacket: Thermoplastic Elastomer
