Description
Yamaha A-S301 V2
integrated amplifier with digital inputs
The device is designed to produce excellent sound quality without forgetting the beautiful appearance. Integrated amplifier with the possibilities offered by the digital input.
The design of high-quality sound circuits is based on ToP-ART technology (Total Purity Audio Reproduction Technology)
ToP-ART Design and ART Base ensure optimal sound reproduction. When the processing and transmission of the audio signal is simple and as direct as possible, the signal is subject to less interference and distortion. Yamaha's amplifier design technology called ToP-ART includes a direct symmetrical model of I / O input (output to input), and the direct symmetrical placement of the right and left channels achieves the cleanest possible signal. In addition, the ART (Anti-Resonance and Tough) Base and solid center beam provide very rigid support and vibration damping. These Yamaha design innovations contribute to the rich sound reproduction of the amplifiers with abundant musicality.
High-quality components for excellent sound reproduction.
A custom-made transformer, custom-made coupling capacitors, two direct signal paths to the speakers, single-point grounding, aluminum pressed heatsinks and other top-quality components effortlessly handle demanding audio signals. The quality of each individual part and how they work together essentially defines the sound quality of any component. Yamaha only uses very high quality parts, carefully selected and tested.
Made with Yamaha's experience and traditions, as well as utilizing high technological know-how.
Yamaha, with over 125 years of musical instrument experience, also has a good reputation as a manufacturer of HiFi components. A-S301 is created utilizing this rich experience and high technical expertise. The starting point is the "Natural Sound" concept, which reproduces all music as it would originally sound.
Pure Direct function for cleaner sound
Switching on the Pure Direct function causes music signals to take the shortest possible route, bypassing the buffer amplifier and the tone, volume and balance controls, virtually eliminating signal attenuation and producing the purest sound quality.
Continuously adjustable loudness.
The A-S301 also features a new analog loudness control on the front panel that uses an electronic volume control to achieve higher sound quality, allowing you to adjust the volume as desired. Unlike a normal volume control, this adjusts the balance of low and high frequency sounds by providing a full tonal range at any volume, compensating for the human ear's natural loss of high and low frequencies.
Digital connections for TV or Blu-ray use
The A-S301 is equipped with digital audio input with both optical and coaxial connectors. Optical is for receiving audio from the TV and coaxial for receiving audio from the Blu-ray player. Audio remains in digital form, giving you clean, superbly dynamic sound for all your entertainment sources, from sports to movies and concerts.
YBA-11 Bluetooth adapter connection
The YBA-11 allows you to wirelessly transfer music from a Bluetooth-enabled mobile phone or computer. Thanks to the digital connection and aptX® audio coding algorithms, you can enjoy wireless music streaming with optimal sound quality. You can also conveniently power the YBA-11 via the DC output connector on the back panel of the amplifier.

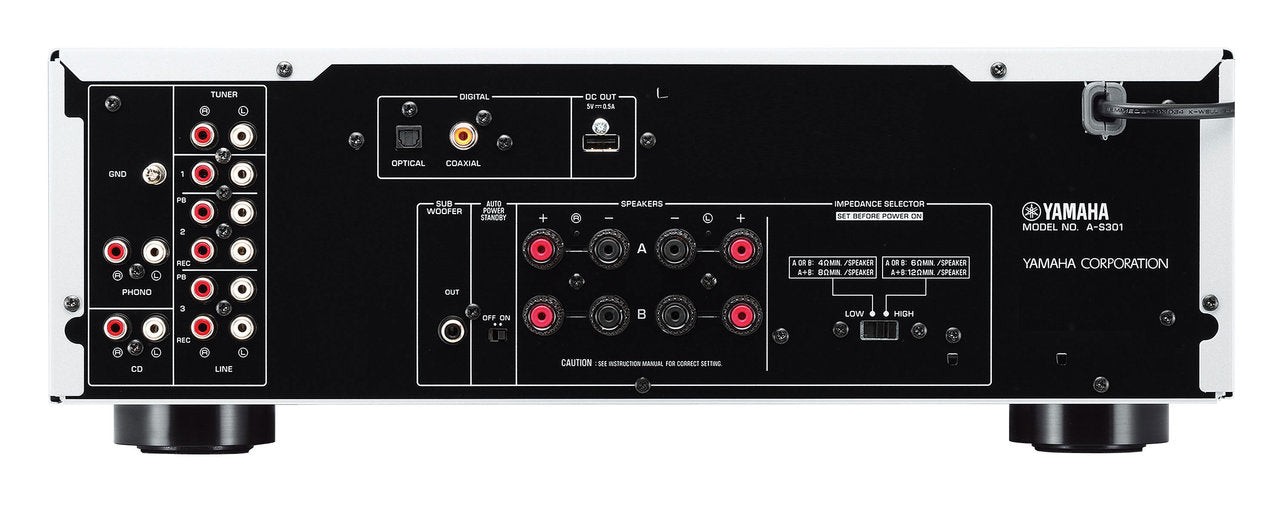

Speaker A, B or A + B selection and speaker connections for two systems
You can connect two separate speaker systems in different rooms and switch between them or play both at the same time. Four connections, so you can easily change the speakers to match the sound source.
Subwoofer connection
You have the option of connecting a subwoofer, which allows you to increase the bass reproduction and achieve an even stronger volume.
Turntable MM connection
You can connect a record player with a MM sound box to play vinyl records. Thanks to this, you can enjoy not only CDs but also analog recordings with the amplifier.

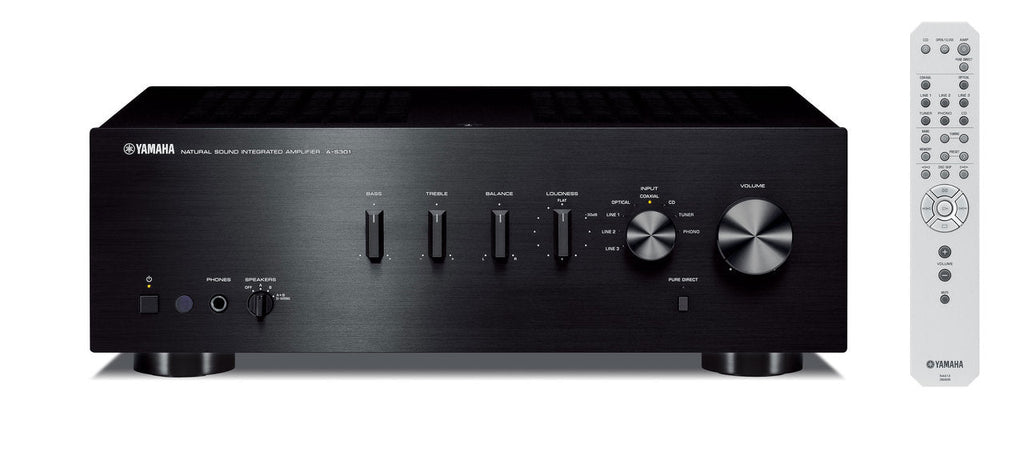

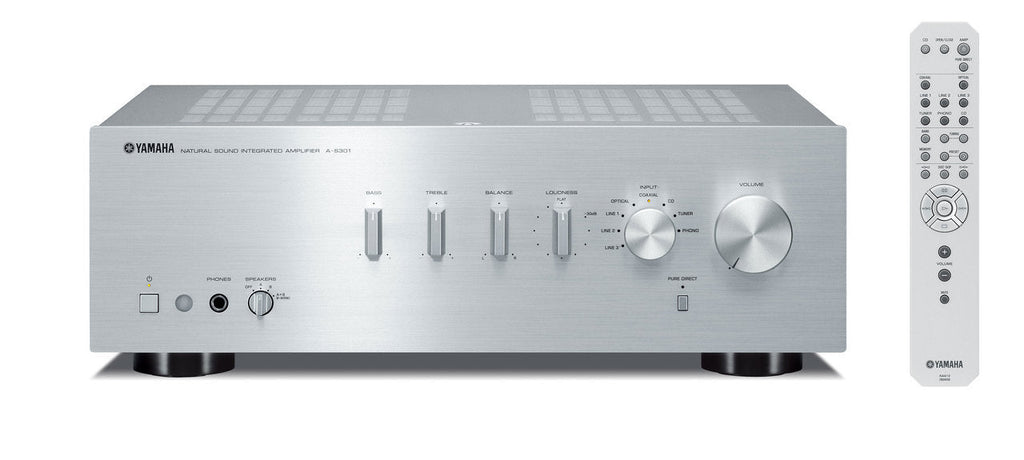

Simple, clear design
The AS-301 model inherits the beautifully simple and unique design of Yamaha HiFi components, with easy-to-understand operation switches. Stylish aluminum front panel.
A remote control with a clean, simple design
The clean and simple design of the remote control makes it easier to control the device. The easy-to-use design makes it easier to adjust the volume and track order. Design that follows the design of amplifiers. You can also control the Yamaha CD player with the remote control.
Program source with input selector LEDs
The rotating program source selector makes it easier to select input sources. The LED lights clearly indicate the source to be selected, so you can easily change sources even in a dark room.
Auto Power Standby function
The amplifier has a power management function that detects if the amplifier has not been used for a long time (about 8 hours), even when the power is on. The function automatically switches the amplifier to standby mode. So even if you forget to turn off the device, power consumption is minimized.
- ToP-ART (Total Purity Audio Reproduction Technology) high-quality components
- I / O (input to output) Direct symmetrical design
- ART (Anti-Resolution and Tough) platform
- Custom made transformer / 6,800uF coupling capacitors / Aluminum pressed heatsinks
- 95 W x 2 (Max), 60 W x 2 (RMS) power
- Pure Direct function for purer sound.
- Stepless Loudness control
- Digital connections for TV or Blu-ray use
- YBA-11 Bluetooth adapter connection
- Simple clear design (Aluminum front panel and switches)
- Auto Power Standby function
