Yamaha A-S701 V2

TOP ART ( Total Purity Audio Reproduction Technology ) concept integrated amplifier

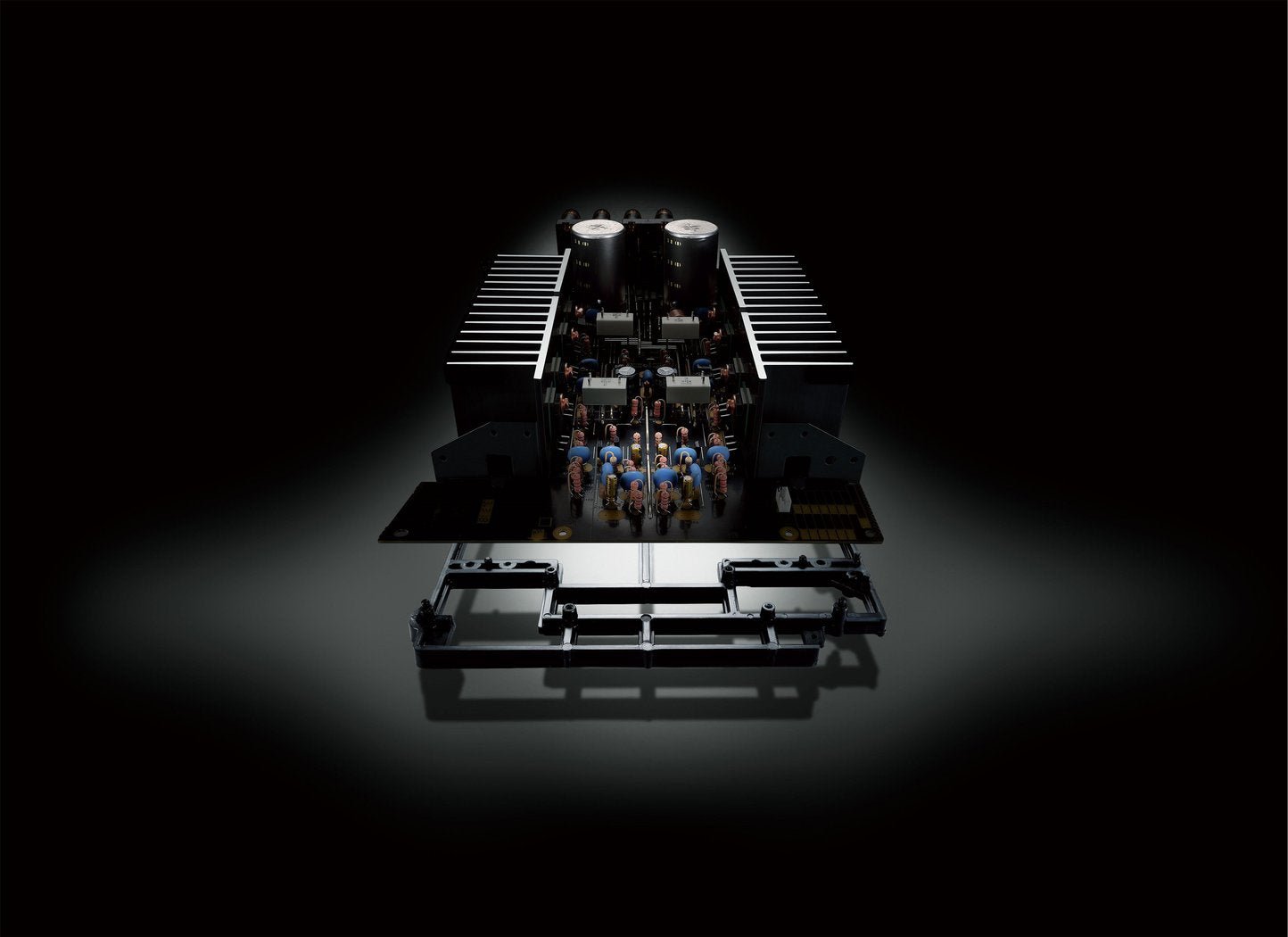

When the audio signal is processed and transmitted in a simple and straightforward manner, it is less affected by interference and distortion. Yamaha's TOP-ART amplifier technology utilizes a direct, symmetrical I/O structure (from input to output). The straight, symmetrical layout of its left and right channels guarantees the cleanest possible signal. In addition, the ART-based (Anti Resonance and Tough) frame and solid central beam enable sturdy support and vibration damping.

High-quality components guarantee incredible sound quality

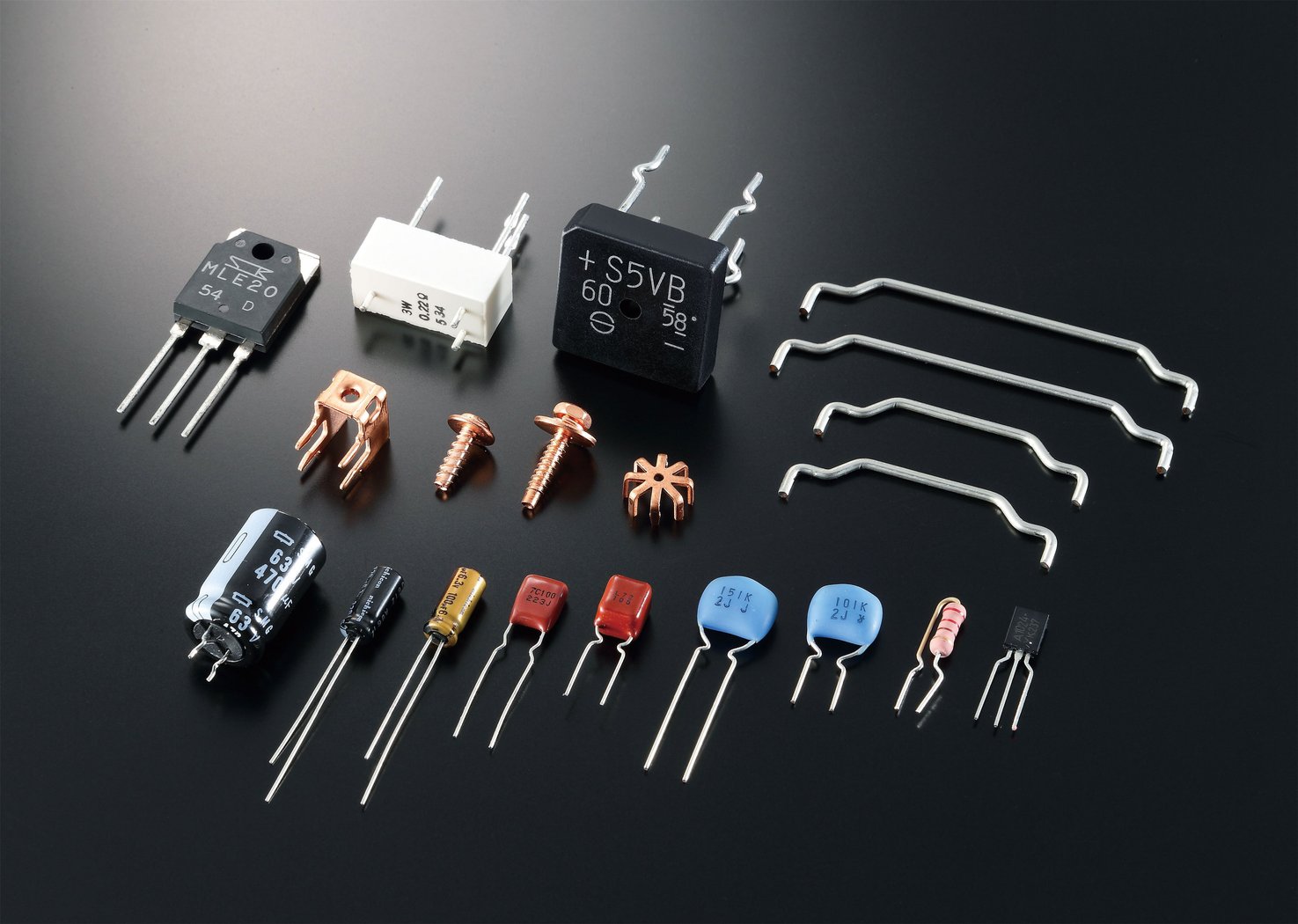

Specially made transformer, specially made coupling capacitors, two direct signal path speaker relays, single point grounding, aluminum pressed cooling plates and several other components that affect top-class sound reproduction. In this new model series, component choices and sound fine-tuning have been carried out in Europe, corresponding to European listening habits and construction materials. CD Direct amplification and Pure Direct mode for the purest sound quality level. Through CD and Pure Direct connection, the signal path is shortened even more. Switching on the function bypasses all factors affecting the sound, such as tone controls, Loudness and balance. The gold-plated speaker connector terminals guarantee a high-quality connection and reduce signal loss. The Yamaha AS701 model has gold-plated speaker terminals and analog connections.

Infinitely adjustable loudness switch.

The Yamaha A-S701 model has a new analog loudness control on the front panel that uses electronic volume control to achieve a higher sound quality and allows you to adjust the loudness exactly as you want. This control controls the balance of low and high frequencies, producing a perfect tonal range audible at all volume levels. This control also compensates for the human ear's natural ability to hear high and low frequencies, at a quiet volume level.

Digital Audio input connections for TV and Blu-ray connection

The Yamaha A-S701 model has digital inputs, both optical and coaxial, for digital connection of TV and Blu-ray.

Connector for Yamaha YBA-11 Bluetooth adapter

With the Yamaha YBA-11 Bluetooth adapter, you can stream music wirelessly from a Bluetooth-compatible mobile phone or tablet computer. The YBA-11 adapter also supports the highest quality Bluetooth Audio Decoding aptX.

Technical information:

• ToP-ART (Total Purity Audio Reproduction Technology) high-quality components
• I / O (input to output) Direct symmetrical design
• ART (Anti-Resolution and Tough) platform
• Custom made transformer / 12,000uF coupling capacitors / Aluminum pressed heatsinks
• 160 W x 2 (maximum), 100 W x 2 (RMS) power
• CD direct amplification and Pure Direct function
• Stepless Loudness control
• Gold-plated speaker and RCA connections
• Digital connections for TV or Blu-ray use
• YBA-11 Bluetooth adapter connection
• Simple clear design (Aluminum front panel and switches)
• Auto Power Standby function
• Audio IN / OUT : 8/ 2
• Digital Inputs : 2
• Standby power consumption 0.5W
• Dimensions W x H x D e.g. : 435 x 151 x 387
• Weight: 11.2 kg
