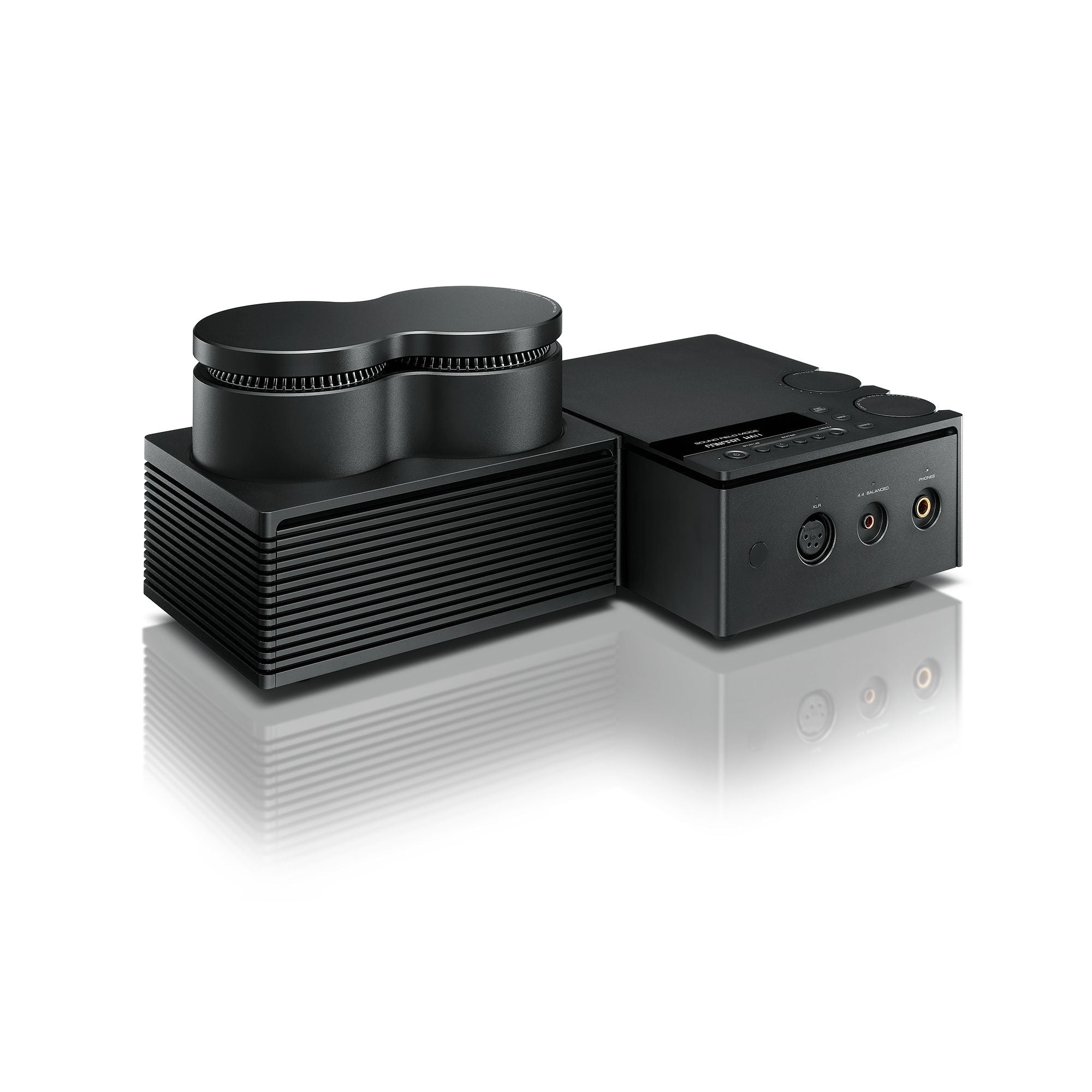

Yamaha HA-L7A headphone amplifier

The Yamaha HA-L7A is a headphone amplifier that allows you to immerse yourself in your favorite content and combines premium hi-fi sound technologies with the advanced sound field of AV receivers.

• Yamaha's unique floating and balanced power amplifier technology optimized for headphone listening
• ESS Technology's ES9038PRO to produce premium sound quality
• Very spacious sound thanks to two toroidal transformers
• The SOUND FIELD mode offers an even more immersive experience with all content
• With the Pure Direct function, you can enjoy even the most subtle nuances of music
• Stylish design and very solid construction
• Five metal legs guarantee excellent stability and dampen vibrations
• Precise OLED display

AUTHENTIC SOUND TO REACH GREATER HEIGHTS.

In an effort to produce an extremely realistic sound world for headphone listening, Yamaha has created a headphone amplifier that meets the performance requirements of a true hi-fi enthusiast. Our passion for continuous creation and innovation has kept us at the forefront of audio development for over 30 years. Our state-of-the-art HA-L7A headphone amplifier combines premium hi-fi sound technologies with the advanced sound field of our AV receivers. Immerse yourself and experience the emotions and excitement perfectly in all the entertainment.

AMAZING VOICE REPRODUCTION

Yamaha is involved from the creation of the sound until the sound reaches the human ear. It is the only brand in the world that knows the exact process from making musical instruments to professional audio equipment. The realistic sound, which strives to accurately reproduce the artist's world of thought behind the music and the expression as the creator intended it, makes you fully immerse and achieve a deep music listening experience, as if you were in the middle of the performance.

TONAL BALANCE

We strive to completely remove even the smallest noise and achieve a high rate of change, which is crucial for very high-resolution music sources. We want to ensure that the amplifier can handle even the softest signals accurately, so that all sound elements from instruments to vocal parts and dialogues are reproduced faithfully without unnatural timbre or timbre changes.

YAMAHA'S UNIQUE FLOATING AND BALANCED POWER AMPLIFIER TECHNOLOGY

Yamaha has optimized its patented floating and balanced power amplifier technology for this headphone amplifier. The four power amplifier circuits on the plus and minus sides of the left and right channels of the output stage are floating, thanks to which the switching phase of the output stage is completely symmetrical. The headphones can be used without changing the configuration of the amplifier between balanced and unbalanced, in which case the possible differences in sound quality due to different output connections are minimized. In addition, all circuits, including the power supply, are completely independent of grounding, and the effect of the smallest voltage fluctuations and external ground disturbance is completely eliminated. By maximizing these sound quality benefits, the amplifier produces a natural and unstressed sound, and you can relax perfectly with your entertainment for long periods at a time.

HIGH PERFORMANCE ESS 32-BIT DA CONVERTER

To achieve premium sound quality befitting Yamaha's top-of-the-line headphone amplifier, we use ESS Technology's ES9038PRO converter, which is in a class of its own among DA converters for its top-quality sound reproduction of small signals. The main clock of the device uses a crystal oscillator with very low phase noise to realize accurate DA conversion. An on-chip eight-channel DAC performs the conversion on four channels on the right and left sides. Four channels provide an exceptionally high-quality sound output with a wide dynamic range and a first-class signal-to-noise ratio. This way you can enjoy a wonderful headphone experience where you can hear even the background sounds of the concert hall and the subtlest details of the sounds of the instruments.

SEPARATE STRUCTURE AND BALANCED TRANSMISSION

All main stages after the DA converter are connected to a balanced circuit and separate assembly, allowing a fully balanced transfer from the output of the DA converter to the headphone jack. In addition, standard single-ended (unbalanced) inputs are internally converted to balanced, so that the unique benefits of balanced transfer and amplification, including reduction of external noise and audio degradation, can be utilized across a wide range of input sources. When using headphones that support balancing, the common impedance of the transmission system is removed, which further improves signal separation, which is crucial for headphone listening.

DYNAMICS

In order to perfectly convey the contrast between the quietness of the sound and the dramatic movement, the amplifier has two toroidal transformers and a unique, very rigid construction. Without making compromises, we have achieved excellent low-frequency response that responds to even the smallest sounds, luxurious volume and exceptional clarity. All types of content are accurately reproduced with dynamic and realistic sound.

LOW FREQUENCY REPEAT AND EXCELLENT SPACE WITH TWO TOROID TRANSFORMERS

Separate transformers are used in the front-stage signal circuits of the power supply part and in the second stage of the amplifier part. The power supply is separate, which minimizes noise due to mutual signal interference. In addition, using toroidal transformers significantly reduces magnetic flux leakage. Using a double coil also reduces voltage fluctuations, which in turn improves the stability of the power source and produces a wonderful space and powerful low-frequency reproduction.

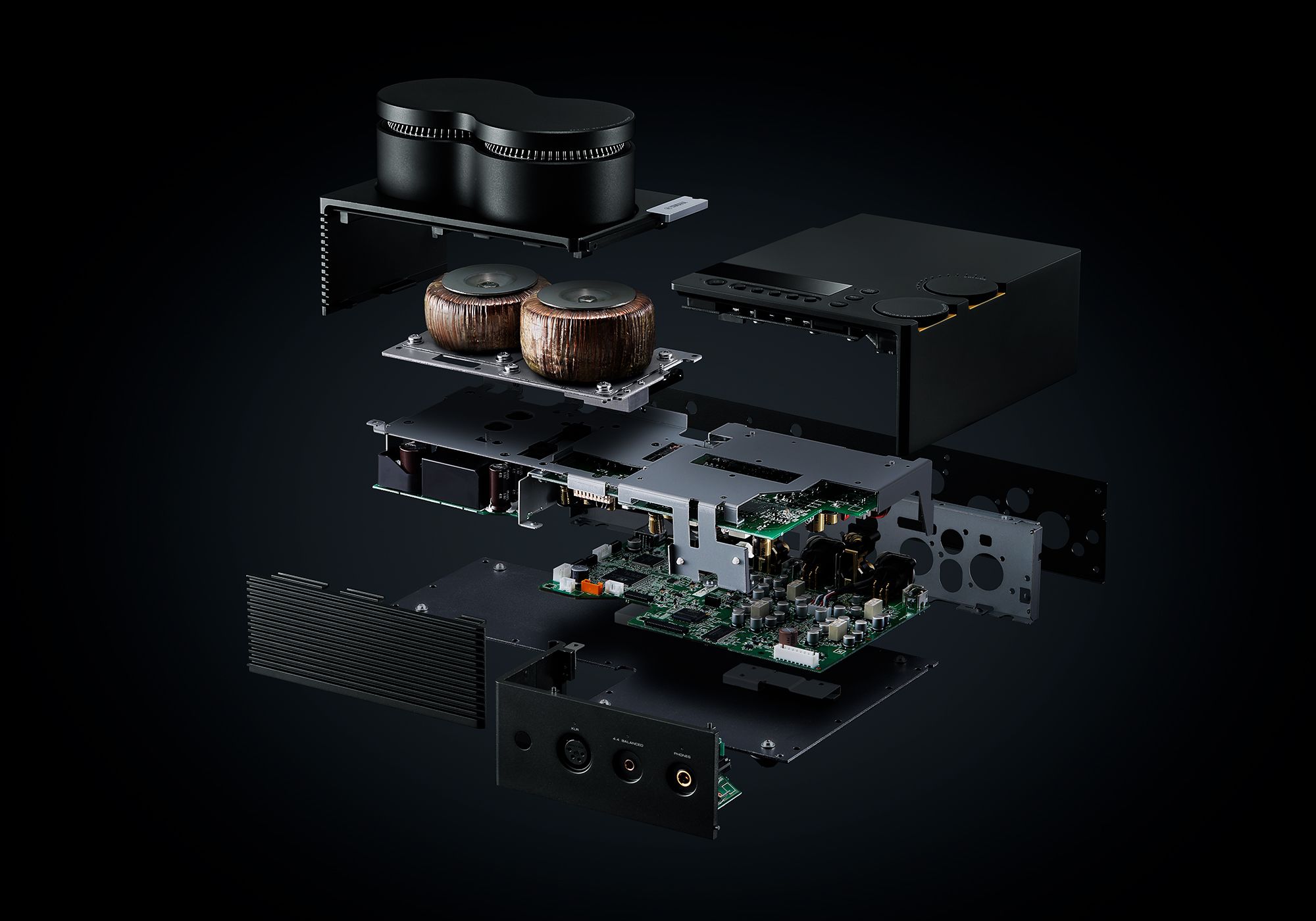

EXTREMELY RIGID STRUCTURE PREVENTS THE EFFECT OF VIBRATION ON THE SOUND

In order to prevent the harmful effects of external and internal vibration on the audio signals, the unit has a solid construction that combines an original design concept with very rigid parts. The L-shaped top surface is made of 8 mm thick pressed aluminum panel, and the naturally vibrating toroidal transformer is firmly attached to a 2 mm thick steel plate. Strong support is ensured by a thick front panel, a double back panel and a unique case design with a base plate at the bottom. The durable housing eliminates unnecessary vibration and enables powerful yet sensitive low-frequency reproduction so you can feel the music's full powerful energy and true realism.

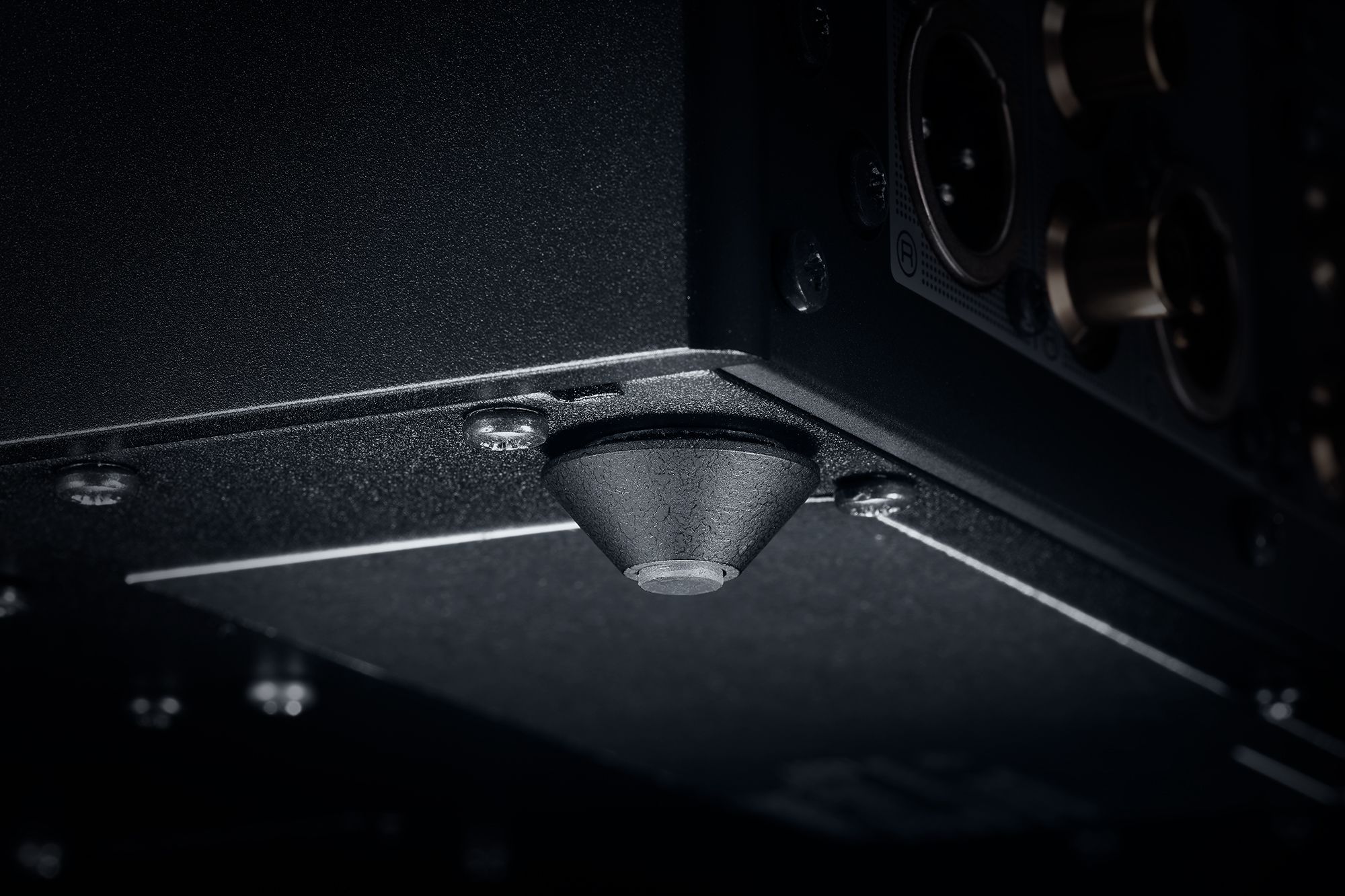

STABLE METAL FEET

The eye-catching L-shaped HA-L7A amplifier has five cone-shaped steel legs at each corner of the frame. Between each leg and the base plate there are dampers that effectively remove all vibration and support the amplifier firmly and stably even on a desk or table top. The 5.3 kg body and all the parts together effectively eliminate unwanted vibration to produce a focused and realistic sound reproduction.

SOUND PICTURE

Yamaha's unique SOUND FIELD mode and superb sound field reproduction have only been possible because our commitment to the best sound reproduction is absolute. We offer a new, never-before-seen entertainment experience with headphone amplifiers, which enables complete immersion in a realistic, natural sound field. Enjoy the immersive feeling, as if you were in the performance space with the artist.

LOW NOISE CIRCUIT STRUCTURE AND HIGH QUALITY COMPONENTS

The HA-L7A amplifier features a low-noise design with three circuit boards isolated: a main board that processes small signals, an amplifier board and an amplifier, and a system power supply board. In addition, the main board is designed to eliminate unwanted crosstalk between digital and analog signals by using a multi-layer board and eliminating ground loops. The volume microcircuit is the MUSES72323, known for its exceptionally low distortion and low-noise output. The power supply microcircuit manufactured by Analog Devices has low output noise and high ripple removal. The converter part has an ES9842QPRO made by ESS Technology. By using only high-quality components carefully selected through repeated listening tests, we have achieved the most natural sound field reproduction possible.

CONNECTIVITY WITHOUT COMPROMISES

Because the HA-L7A is fully compatible with the widest possible range of music, video and entertainment sources, you can immerse yourself in your favorite tunes with sound that brings out the full potential of all your headphones. Comprehensive connections and the flexibility of expansion improve and deepen the enjoyment of the headphone experience even more.

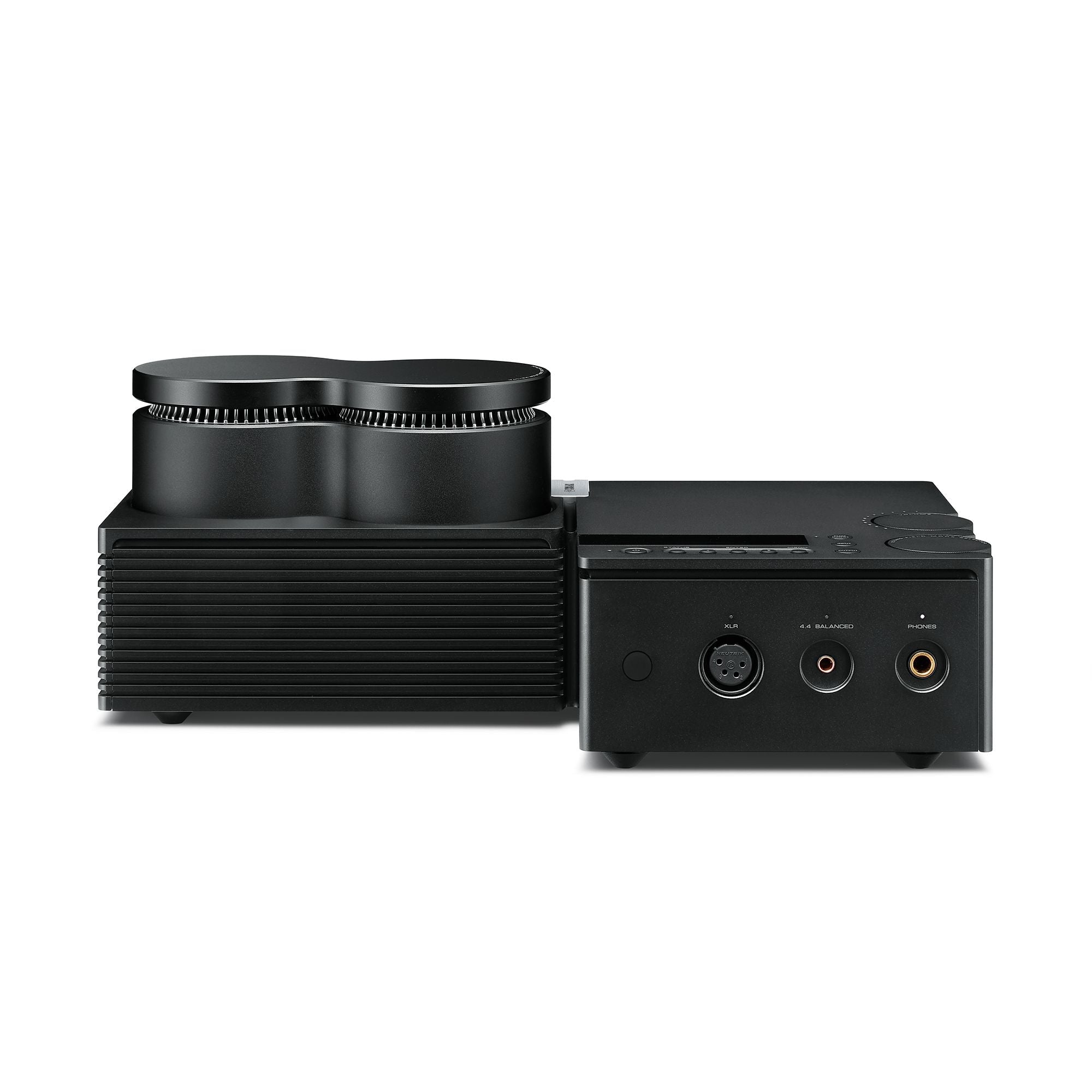

THREE HEADPHONE CONNECTORS ON THE FRONT PANEL

The front panel of the HA-L7A amplifier has two balanced headphone jacks, so you can enjoy the precise high quality of a balanced circuit, and one unbalanced headphone jack with gold plating to reduce contact loss. The balanced XLR headphone jacks feature the renowned NEUTRIK connectors, and the 4.4mm 5-pin connectors feature Pentaconn connectors, where you can connect your favorite headphones and unleash their full potential.

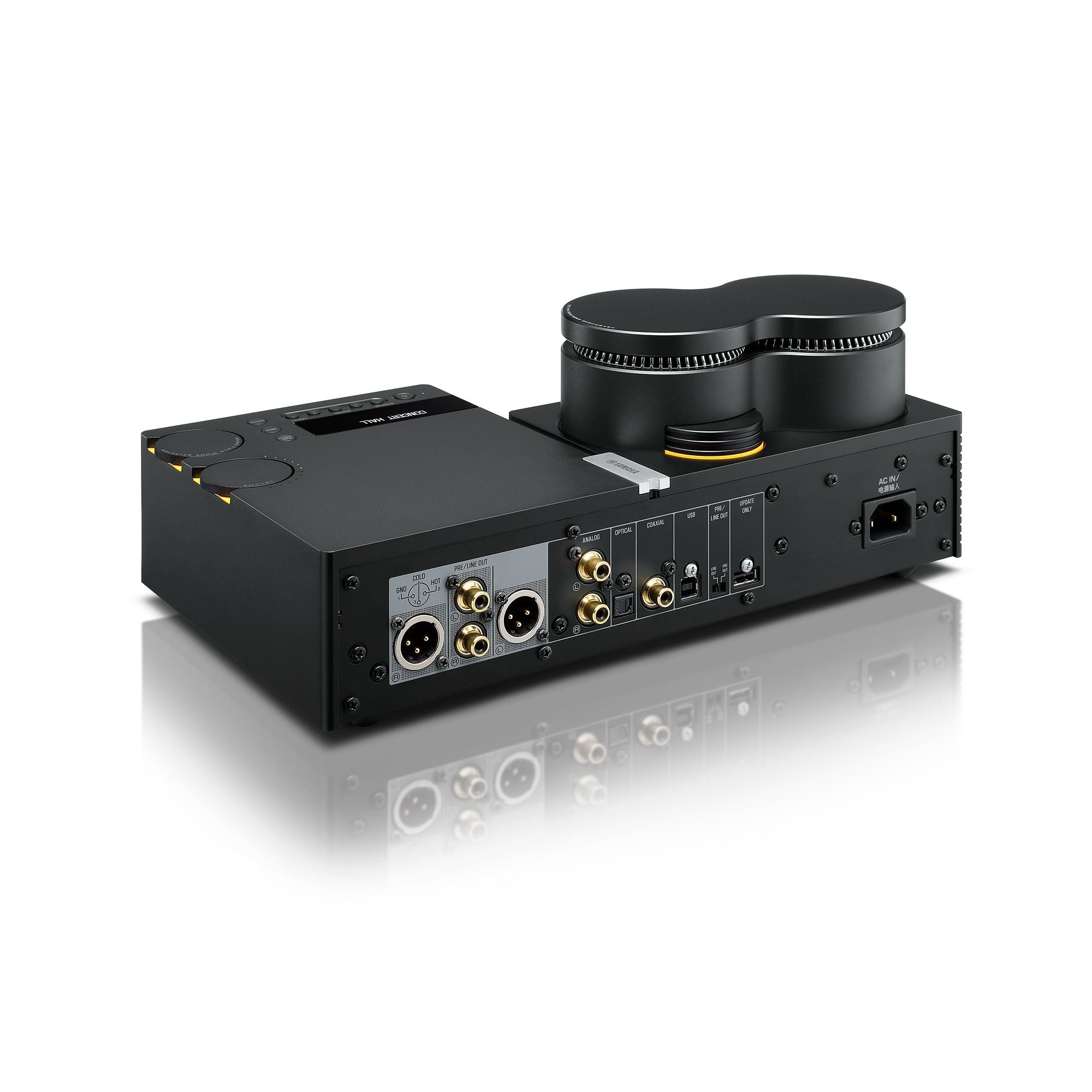

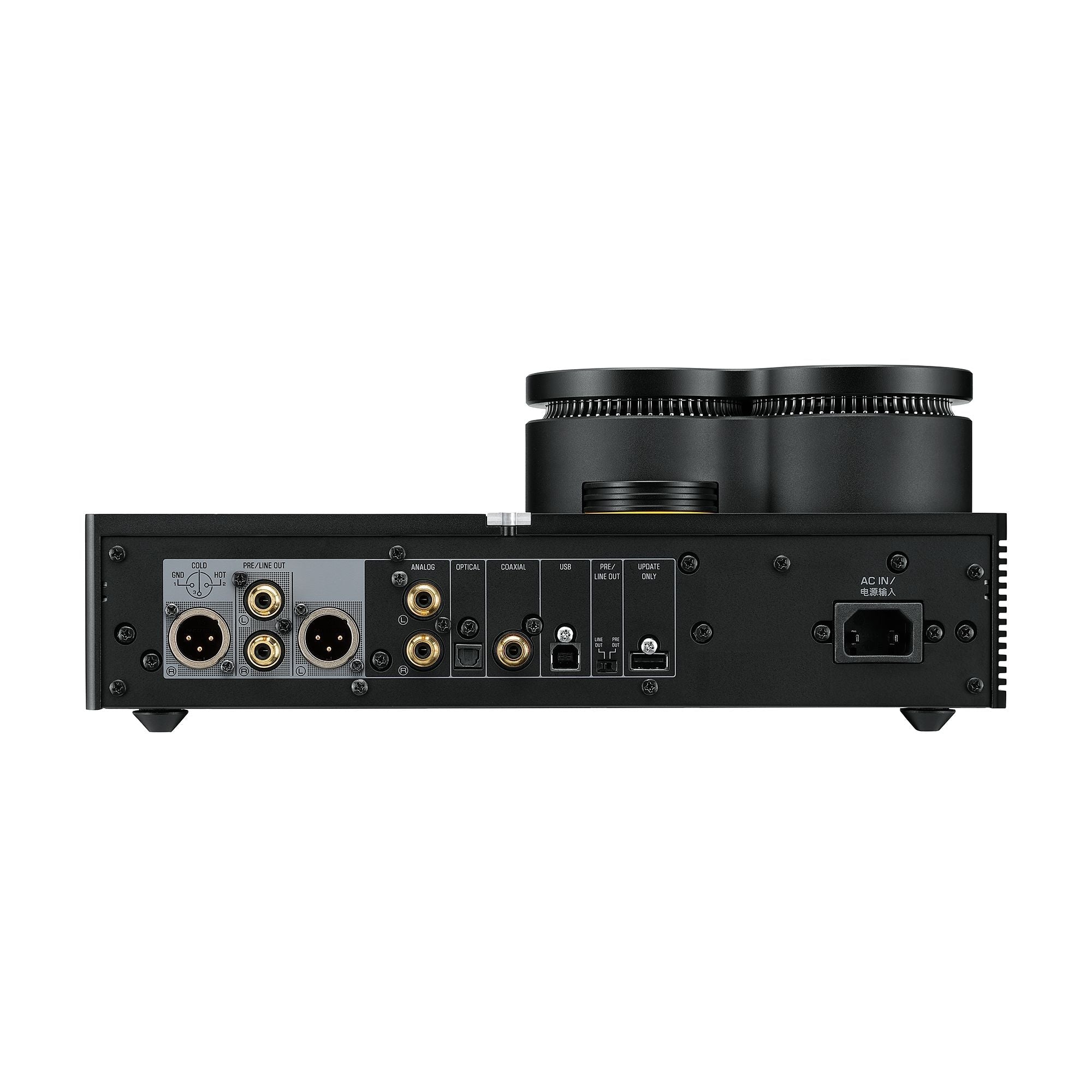

COMPREHENSIVE INPUT AND OUTPUT CONNECTIONS FOR VERSATILE USE

The HA-L7A amplifier has a comprehensive range of input connections, such as USB (Type B), coaxial and optical, allowing you to connect a wide range of devices such as high-resolution digital audio equipment (DAP), computers and CD players. The amplifier also has built-in XLR and RCA pre-out/line-out outputs, so it can be used as a DA converter or pre-amplifier, offering excellent connectivity and expandability when used as an external amplifier.

QUALITY THAT EMPHASIZES THE JOY OF USE AND OWNERSHIP

The pragmatic internal structure of this headphone amplifier prioritizes the highest possible sound quality, and its stylish exterior makes your listening space special. The thoughtful design and high-quality surface that you can see and feel when using the amplifier only deepens the pleasure of listening to music with your favorite headphones.

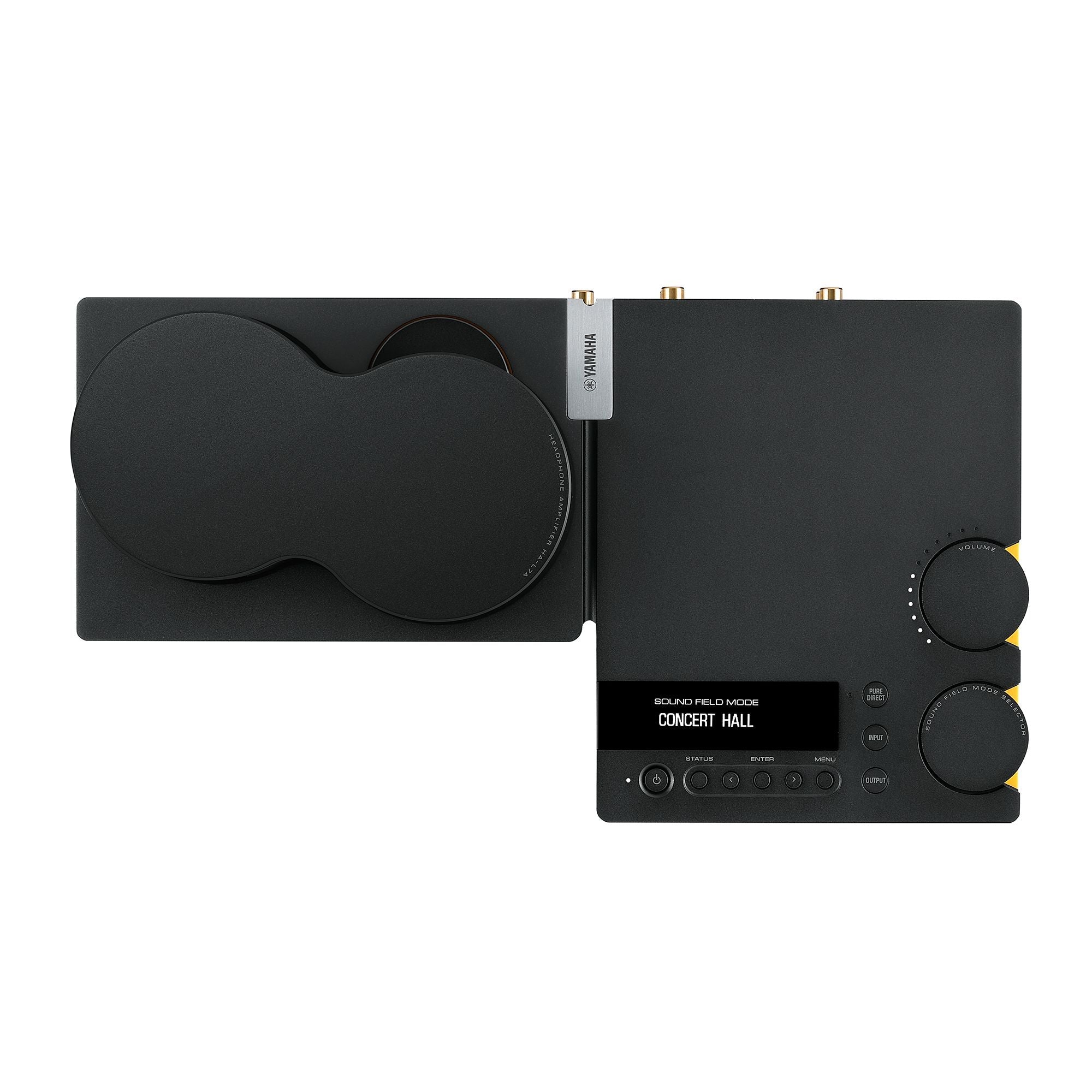

PRECISION OLED DISPLAY

The top panel of the unit has a wonderful OLED screen, which shows a lot of important information in a very easy-to-read format, such as the input source and its sample rate, volume and the name of the SOUND FIELD mode used. The screen turns off automatically after use, so that nothing causes interference or even the slightest unwanted effect on the sound.

HA-L7A Headphone Amplifier

• Frequency response (HP OUT) 4 Hz to 80 KHz, -3 dB
• Headphone Output φ6.3㎜ 1,000 mW + 1,000 mW (1 kHz, 0.01 %THD, 32 Ω)
• φ4.4㎜ 1,000 mW + 1,000 mW (1 kHz, 0.01 %THD, 32 Ω)
• XLR4 1,000 mW + 1,000 mW (1 kHz, 0.01 %THD, 32 Ω)
• Total Harmonic Distortion(THD) ≦ 0.003% (Digital IN 1 kHz, 300 mW, 32 Ω)
• Signal to Noise Ratio (SNR) > 120 dB
• Input RCA Yes
• Optical Yes (PCM: 32/44.1/48/88.2/96 kHz, 16/24 bit)
• Coaxial Yes (PCM: 32/44.1/48/88.2/96/176.4/192 kHz, 16/24 bit)
• USB Type-B Yes (PCM: 44.1/48/88.2/96/176.4/192/352.8/384 kHz, 16/24/32 bit, DSD: 2.8 MHz/5.6 MHz/11.2 MHz: ASIO Native, DoP)
• PRE/LINE Out XLR3 Yes
• RCA Yes
• Recommended Headphones impedance 32 ～ 600 Ω
• SOUND FIELD mode Yes (CINEMA/DRAMA/MUSIC VIDEO/CONCERT HALL/OUTDOOR LIVE/BGM + STRAIGHT)
• Pure Direct Yes
• Power Consumption 19 W
• Standby Power Consumption 0.2 W
• Dimensions (W x H x D) 333 x 133 x 189 mm
• Weight 5.3 kg
