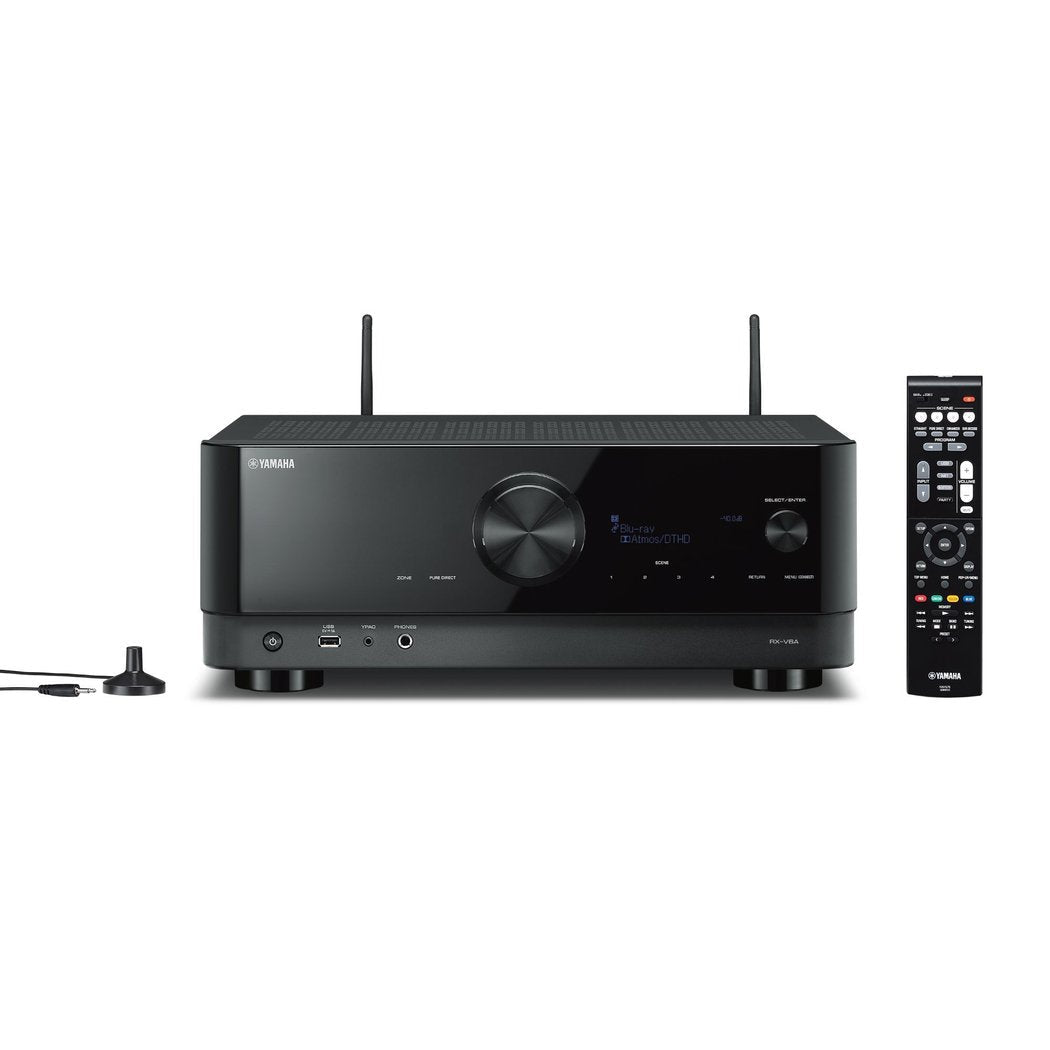

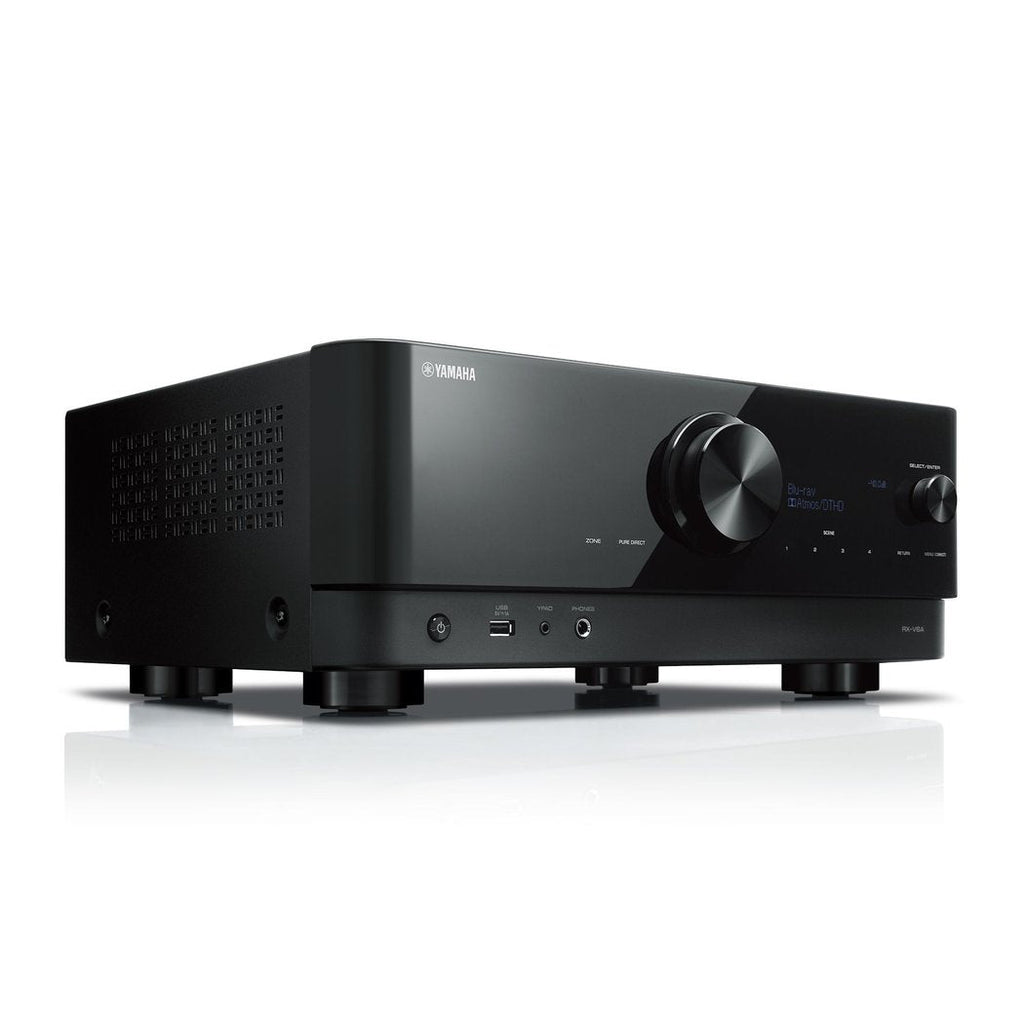

YAMAHA RX-V6A

7.2 AV receiver/amplifier

Get more out of your entertainment. With crystal clear images combined with immersive sound, the V6A makes every moment feel real. The latest in entertainment, available now!

UNHEARD-OF-THE-EARTH SOUND

• Cinema DSP3D
• Dolby Atmos with Height Virtualization (software update)
• Compressed Music Enhancer audio enhancement
• High Slew Rate- Fast Response Amplifiers

MOVIES AND GAMES, BETTER THAN EVER

• HDR 10+, 8k/60HZ and 4K/120HZ. (software update)
• Gaming-specific features (ALLM, VRR, QMS, QFT) (software update)
• Multiple HDMI connections with the latest technology (software update)

SIMPLE TO INSTALL, EASY TO USE

• AV-setup Guide deployment application
• MusicCast control app
• Alexa and Google Assistant voice control support (availability depends on region)
• Siri control with Airplay2 feature

MADE FOR YOUR HOME

• YPAO™ RSC with multi-point measurement
• MusicCast Surround wireless rear speaker option
• Impressive Design

HDR10+, 8K/60Hz, 4K/120Hz*

HDR10+ is not only dynamic video content, but also provides a small amount of metadata between bright and dark scenes to better highlight important details. This allows displays to reproduce images more realistically, adhering to the director's original intention.

Dolby Atmos® Height Virtualization *

For those whose system does not allow for ceiling-mounted speakers or upward-firing speakers, Dolby Atmos Height Virtualization simulates the Atmos experience through forward-firing elements. Configure five speakers to reproduce the effect of two ceiling speakers, or utilize all seven channels to simulate the powerful effect of four ceiling speakers. * This feature is available via FW update.

Additionally, support for 8K/4K resolutions and higher refresh rates over a single cable ensures seamless integration into the HDMI ecosystem. 4K/120Hz enables the clarity and sharpness of ultra-fast UHD images; giving sports, action movies, high-performance gaming and VR significant benefits. *These features are available via FW update.

The advantage of High Slew Rate amplifiers

Yamaha's High Slew Rate amplifiers promote precise signal transfer, which is particularly suitable for high-resolution audio signals. Yamaha's newly developed circuit technology achieves both fast signal speed and stable signal transfer. Slew Rate: How quickly the amplifier responds to rapid changes in the input signal.

YPAO™RSC/Multi-Point

YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and system, fine-tuning various audio parameters to provide the best possible sound for your space. Simply place the included microphone at your listening position and turn on YPAO, and the system will automatically calibrate to achieve the best possible performance for your home theater space.

CINEMA DSP 3D for movies, music and games

Yamaha's special and unique sound field creation technology was developed by combining data collected from sound fields with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, drawing on its extensive experience in concert hall design, speaker systems and mixing. By digitizing this extensive information and incorporating it into special LSI devices, home appliances can effectively recreate concert hall-like environments. Immerse yourself in the amazingly realistic sound of movies and step deep into the world of theater sound.

Wireless rear speakers

Pair this AV receiver with a MusicCast 50 or MusicCast 20 wireless speaker and you'll be amazed at how easy it is to create a home theater with wireless rear speakers. Plus, you'll get amazingly realistic sound without the clutter of cables. You can easily transform your living room into a special entertainment space where you can enjoy movies and music to the fullest.

SCENE shortcuts, easier and faster.

The RXV6A has four SCENE presets. You can set different inputs, sound field programs, Music Enhancement Circuit, HDMI output, and more. You can set the presets for sources such as FM radio and Internet radio stations, music streaming services, USB device, or PC. Make a setting and hold down the SCENE button for a moment, the setting will be stored behind the preset button.

Control easily with the MusicCast control app

Use the MusicCast app on your smartphone or tablet to control and operate the RX-V6A. You can use the app to control multiple MusicCast products and share music between devices wirelessly.

Multi-room audio – MusicCast

Imagine sharing all the music you love at home. MusicCast covers everything from traditional vinyl record sharing, to AirPlay®, Bluetooth® music streaming services* and even TV audio sharing. What’s more, MusicCast is designed with audio in mind, supporting High Resolution audio formats like Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 192 kHz

AirPlay2

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices in your home. Easily control it from your iPhone or iPad, connect it to HomePod, or just use voice control and ask Siri for help.

eARC

Unlock the full potential of 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC - available from Yamaha. eARC delivers full resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® over your existing HDMI connection, giving you the most realistic surround sound experience for your favorite movies and moments.

An extended warranty is available for this product. To receive the extended warranty, registration must be completed within 6 months of purchasing the product.

Register your product.

		RX-V6A
Amplifier	Channel number	7.2.
	Output power (1kHz, 1ch driven)	150W (4 ohms, 0.9% THD)
	Output power (20Hz-20kHz, 2ch driven)	100W (8 ohms, 0.06% THD)
	Maximum output power (1kHz, 1ch driven) (JEITA)	160W (6 ohms, 10% THD)
	High Slew Rate Amplifiers	Yes
Surround Sound Processing	CINEMA DSP	Yes
	DSP programs	17
	Separate voice control	Yes
	Virtual overhead speaker support	Yes
	Virtual Surround Back speakers	Yes
	Center channel lift	Yes
	SILENT CINEMA headset Surround / Virtual CINEMA DSP	Yes
	Dolby Atmos	Yes
	Dolby Atmos Height Virtualizer	Yes
	Dolby TrueHD	Yes
	Dolby Digital Plus	Yes
	Dolby Surround	Yes
	DTS:X	Yes
	DTS-HD Master Audio	Yes
	File Format	MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Audio features	Pure Direct	Yes
	Compressed Music Enhancer	Yes
	YPAO multi-point metering	Yes
	YPAO Volume	Yes
	Adaptive DRC (Dynamic Range Control)	Yes
	Customizable Volume & Max Volume settings	Yes
	Bi-amp amplification	Yes
	Audio delay adjustment	Yes (0-500 ms)
	DA converter	384 kHz / 32-bit BB PCM5102A
	HDMI eARC	Yes
Video features	HDMI Audio Return Channel (ARC)	Yes
	HDMI pass-through	8K/60Hz, 4K/120Hz (software update)
	HDMI upscaling	Yes to 4K quality
	HDR 10+	Yes (software update)
	VRR/ALLM/QMS/QFT	Yes (software update)
	MusicCast Surround	Yes

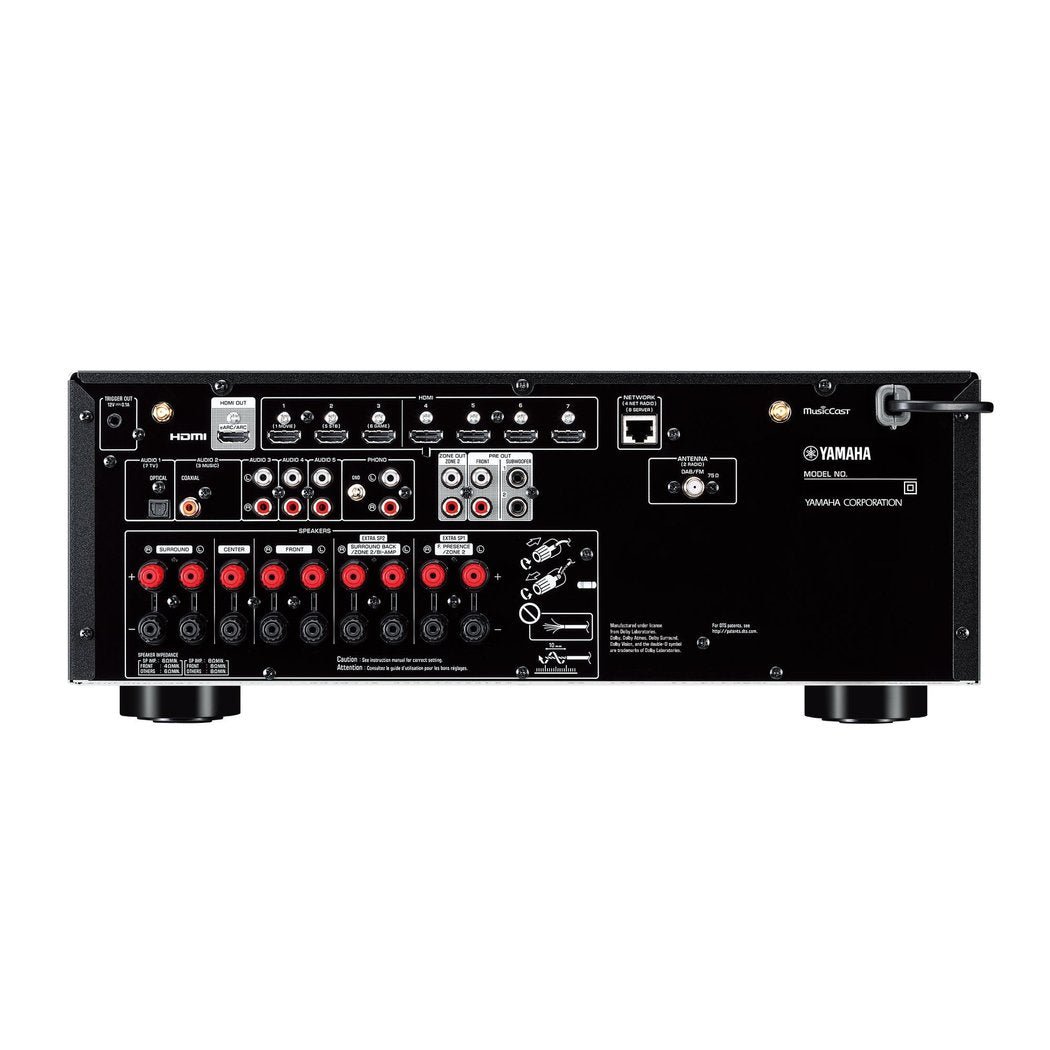

Connectivity	HDMI in/out	7/1.
	HDMI-CEC	Yes
	USB input	Yes
	Network connection (ethernet)	Yes
	Wi-Fi	Yes (2.4 / 5GHz)
	AirPlay2	Yes
	Bluetooth	Yes (SBC/AAC)
	Front AV connection	USB
	Digital Audio In/Out: Optical	1 / 0
	Digital Audio In/Out: Coax	1 / 0
	Analog Audio in/out	4 / 0
	Phono turntable connection	Yes
	Preout	2.2-ch
	Headphone jack	1
	FM/AM radio	Yes
	Screen control	Graphical user interface
Use	SCENE shortcuts	Yes (8 settings)
	Application control	Yes (iPhone/iPad/Android phone/tablet)
	Web browser control	Yes
	Remote control	Yes
	Zone 2 Audio output	Preout
	Confirmed Zone	Zone 2
	+12V Trigger Output	1
	Party Mode	Yes
	Standby power consumption (IR only)	0.1W
Change	Automatic power off	Yes
	ECO mode	Yes
	Dimensions W x H x D	435 x 171 x 377 mm.
	Weight	9.8 kg
	Warranty	24 months.
