AI-SONIC S2-A2200.1 with S2-BASS KNOB S2-A2200.1 + KNOB


Price:
Sale price€469,00
Stock:
In stock
Verkkokauppa In stock
,

Description

AI-SONIC S2-A2200.1 with S2-BASS KNOB


Note! In addition to the amplifier, this package includes a wired level control ( S2-BASS KNOB )

AI-Sonic S2 amplifiers. Designed in Finland by AI-Group.

Excellent sound quality, versatile adjustment features and can be connected to any system to play any speakers. Ai-Sonic S2 amplifiers are really hard to beat.

The ambitious goal was to design and implement an amplifier collection that offers the best possible sound quality in its price range. The work started by designing a unique cooling profile.

Maximizing cooling and minimizing the physical size of the devices continued with circuit board design. The locations of the components on the circuit board are carefully selected in order to achieve the smallest possible physical size of the amplifier and efficient cooling of the components.

Twice as much copper has been used in the circuit board compared to a standard car amplifier circuit board.

Three years have been spent selecting and testing the components of the AI-Sonic S2 amplifiers. By testing and auditioning numerous different parts and combinations of parts, the parts that form the best possible whole in their price category have been found.

All parts of AI-Sonic amplifiers are slightly oversized in relation to the power of the amplifier. Double power sources are used in larger models.

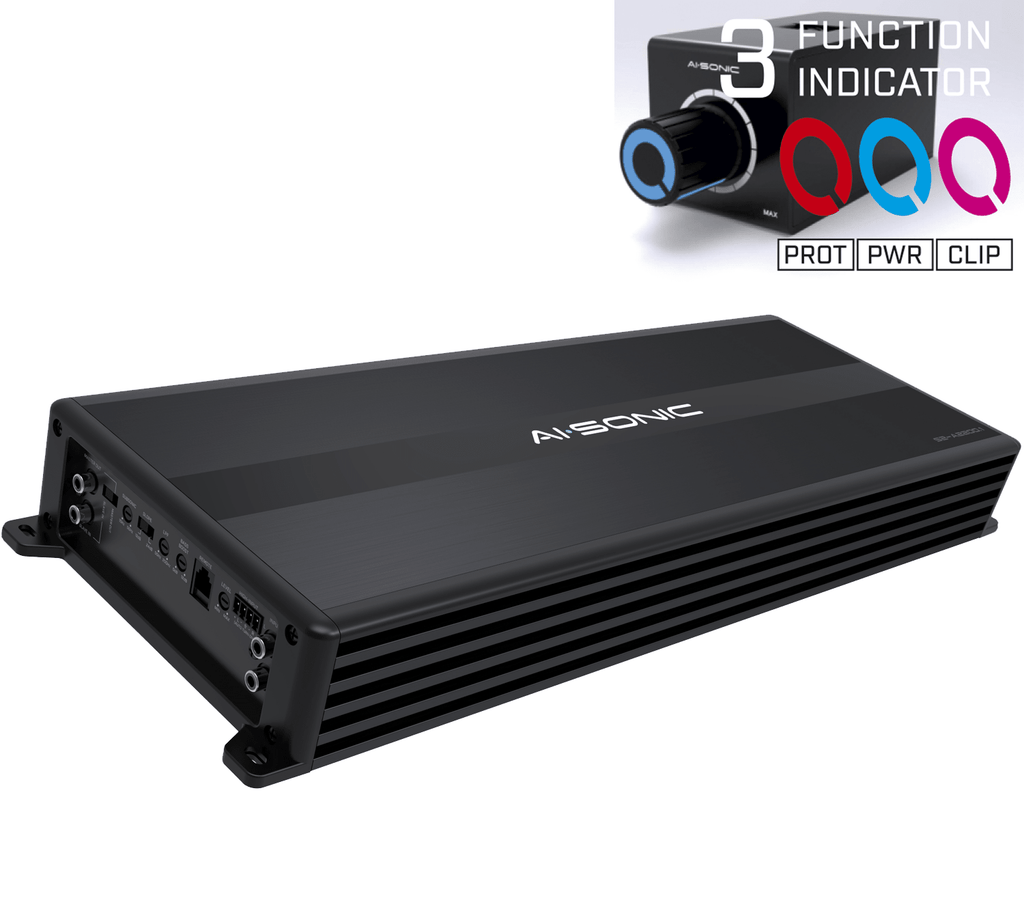

Note! The level remote only works when the LPF is on. The level control also has indicators for power, clip and noise status.

Technical information:
RMS POWER (1ohm) THD 0.5% 2200W
RMS POWER (2ohm) THD 0.5% 1400W
RMS POWER (4ohm) THD 0.5% 750W
BRIDGED POWER(2ohm) THD 0.5% 4400 W ( Link )
BRIDGED POWER(4ohm) THD 0.5% 2800W ( Link )
THD: 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35- 6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: External 250A
Cable fitting size:
+12V = 50mm2
GND = 50mm2
REM = 6mm2
SPEAKER = 20mm2
Current Draw (Max): 250A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
W: 524mm / ( 20.6 IN).
