Description

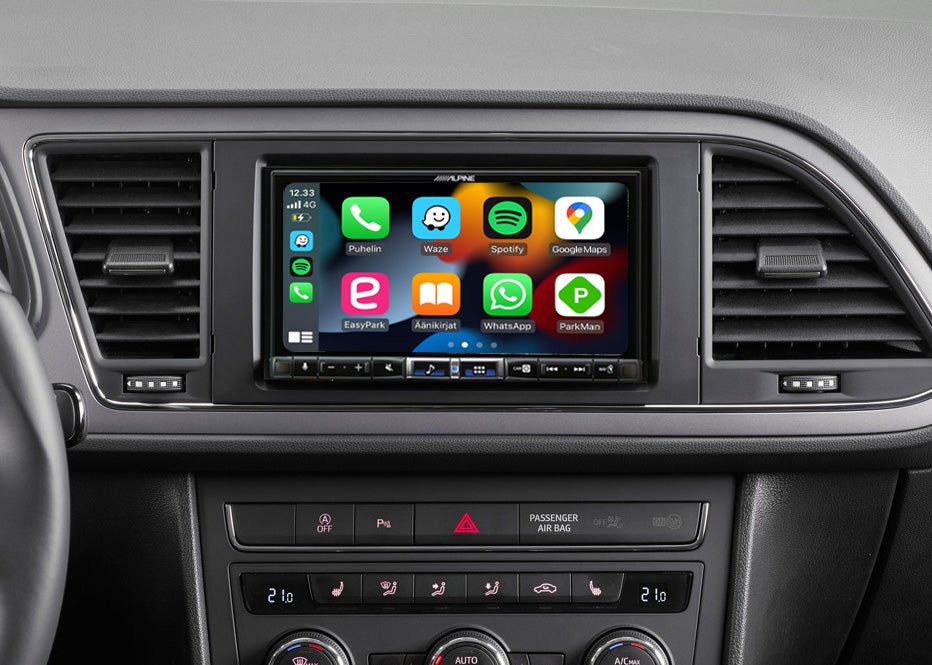

Made for Seat Leon
The centerpiece of Alpine's "Leon player" is the ILX-705DM, where the body of the player is exceptionally located at the top of the screen, which enables installation in the 2013 - 2017 Seat Leon.
The ILX-705Leon brings all the goodies of today to your car, such as wireless Apple CarPlay, Bluetooth, 1280 x 720p touchscreen, AndroidAuto, and many other great features. The player integrates both mechanically and electrically into the Seat perfectly and you control it with the car's original steering wheel buttons, and if the car has a reversing camera or radar, these will also work with the ILX-705Leon.

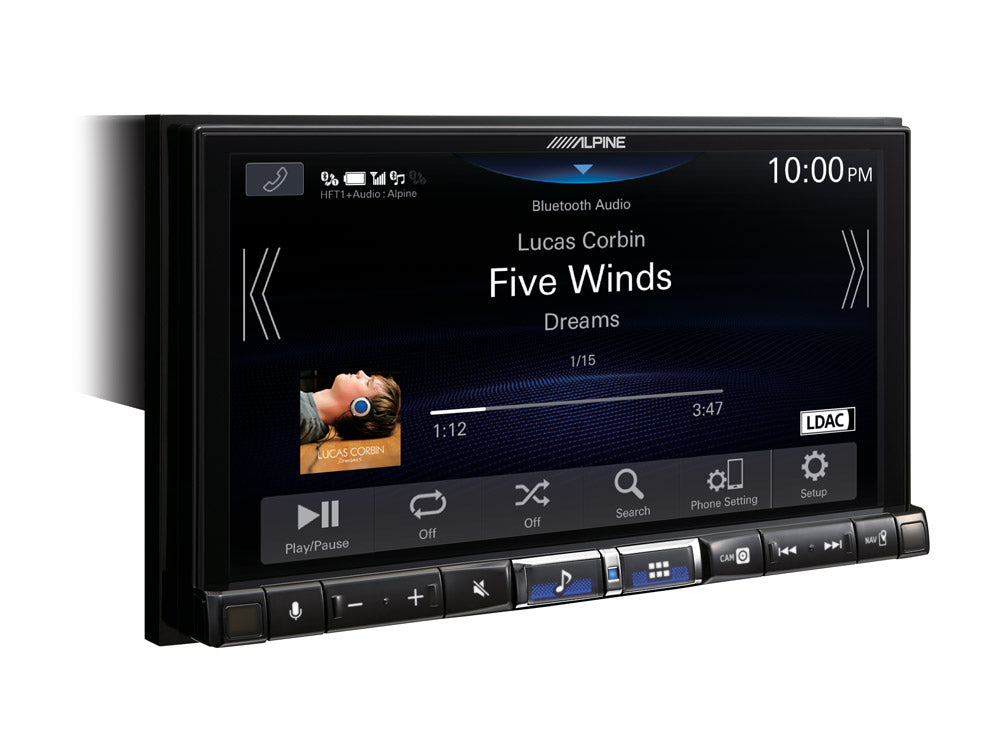

7″ WXGA screen
The Alpine iLX-705Leon has a 1280 x 720p (WXGA) resolution, which means the screen has more than 2.7 million pixels. Thanks to this, all icons, menus and, for example, navigation map information are displayed really sharp and clear. The iLX-705Leon includes Alpine's best 7″ screen ever.

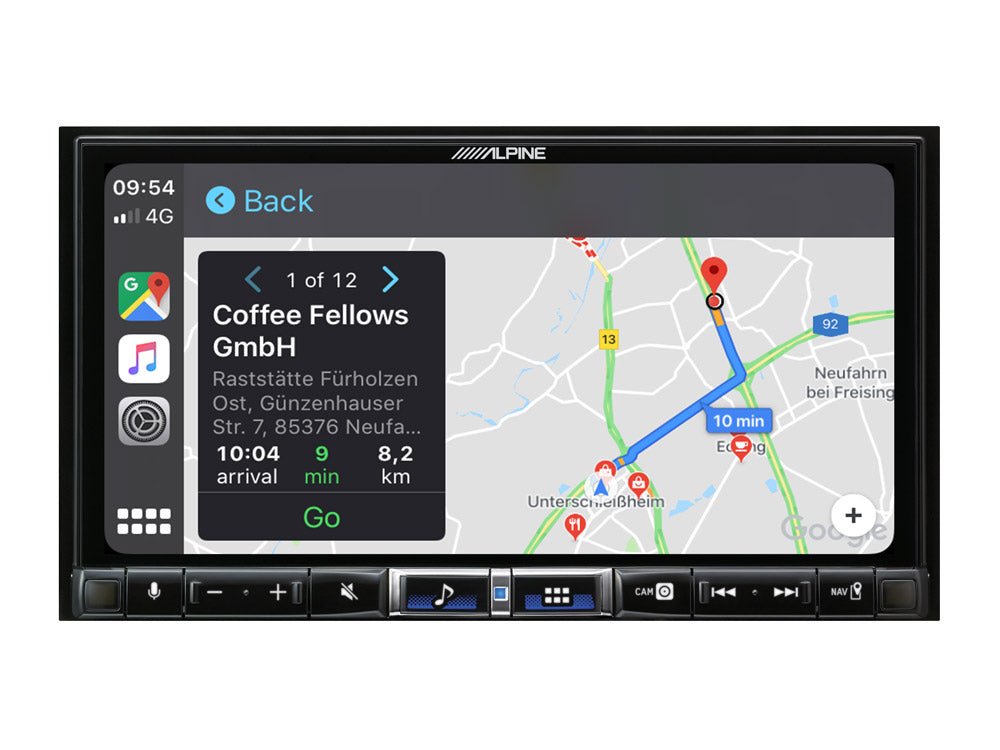

Wireless Apple CarPlay
The iLX-705Leon works wirelessly with the iPhone and you can, among other things, receive and make calls, dictate messages using Siri and use, for example, Google Maps, Apple's Maps application, WhatsApp or Spotify streaming while the phone is in your pocket.
You can easily use Siri by pressing the voice control button on the player once.
The Apple CarPlay information page can be found here.
Two USB inputs
The Alpine iLX-705Leon does not contain a CD/DVD drive, but thanks to the two USB connections, you can, for example, charge your phone through one connector, and the other connector can hold a USB stick or hard drive from which you play music and video files.
Android Auto
Android Auto enables the use of many applications on the phone directly from the iLX-705Leon's screen. You just connect your phone to the player with a USB cable and all Android Auto applications are immediately available. You can use your own favorite applications for navigation, such as Google Maps, Waze or Sygic, and you can play music via, for example, Spotify, Deezer or e.g. Amazon Music.
You can find the Android Auto info page here.
The world's first car stereo with a class D amplifier
The Alpine iLX-705/-F905/-F115 are the world's first car retrofits with a built-in 4 x 50W Class D amplifier. The advantage of class D is an incredibly good efficiency (about 90%) compared to the efficiency of a class AB amplifier (about 50-70%). New and almost silent high-speed fans keep the player cool.
Pioneer in sound quality
Alpine's sound quality has become a concept that other instrument brands are always compared to.
A 56-band parametric equalizer, two-way crossover filters, six-channel digital delay controls, and separate Bass Engine SQ and MediaXpander allow you to adjust the sound exactly the way you want it.
And it didn't end there, because the iLX-705Leon is Hi-Res Audio certified and the player is able to play 96kHZ / 1.536 kbps lossless files from USB in FLAC, WAV and APE formats.
The TIDAL app
Alpine ILX-705 / ILX-F905 / ILX-F115 are the world's first retrofit car stereos that allow streaming completely uncompressed music from TIDAL. With Alpine, a WiFi connection is created to e.g. the phone's hotspot, after which Alpine is directly connected to TIDAL's servers. The music is not compressed or compressed at any point and you get the best possible sound quality!
When the phone's hotspot and TIDAL are active, Apple CarPlay exceptionally requires the phone to be connected to the player with a USB cable.
The TIDAL application requires updating the player's software to version 2.0.000
Vehicle Data Bus
If your car is equipped with a factory-installed reversing radar, Alpine can display the radar data automatically. If you add a reversing camera to your car, you can get the views of both on the screen at the same time.
Camera management
A reversing camera is a piece of equipment that we recommend for every car. The camera's image appears on the player's 7″ screen automatically, when the reverse gear is switched on. The camera's guidance lines can be adjusted according to the dimensions of your car, making reversing and understanding distances even easier.
Due to the player's large screen, we recommend Alpine MultiView cameras with a sufficient 1280 x 960 resolution.
Wireless volume control (Accessory)
The Alpine RUE-BK01 is a Bluetooth-operated volume control that can be paired with the ILX-705Leon. By pressing the volume knob, you can view the reversing or front camera image.
CHARACTERISTICS
Radio / DAB tuner
- Memory slots (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Automatic
- Search method: Local, DX, Pre-Set, Service
- RDS : PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB support
- DAB+ Slideshow feature
- DLS (Dynamic Label Service) and DAB Service Following
- RDS Fallback (according to RDS offer)
- Auto Ensemble/Service Memory
- Service search and PTY search
- Alphabetical search
BLUETOOTH®
- Built-in BLUETOOTH® V4.2
- HFP (Hands-Free Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5
- Phone book synchronization
- Speed dial: 4 pcs (per phone)
- Call History: Outgoing / Incoming / Not Answered
- Replay
- Voice volume adjustment: (Outgoing / incoming)
- 24 language options
- Comes with a microphone
Works with iPhone®
- iPod and iPhone compatibility (models with Lightning)
- Various search options
- Album cover display
- Battery charging
Connectivity
- Apple CarPlay (Wireless) (requires a CarPlay compatible iPhone)
- Android Auto (Wired) (requires Android Auto compatible phone)
- DVR-C320S dashboard camera management
Navigation functions
- Online navigation option with Apple CarPlay and Android Auto compatible phone
- Includes GPS / Glonass antenna
USB Media
- Two USB connections
- USB port 1: Charging and data transfer
- USB port 2: Charging
- Music files: FLAC, MP3, WMA, AAC, WAV, APE
- Video files: MP4, MOV, FLV, MKV
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Various file search options
Sound controls
- Bass Engine SQ and Bass Engine PRO
- Subwoofer level control
- 4V PreOut
- 10 Equalizer presets
- 13-channel parametric EQ for four channels + 4 channels for subwoofer
- 6-channel time delay controls
- Distribution filters: Front HPF, Front LPF, Rear HPF, Rear LPF, Subw. LPF
- Source-specific volume control
General
- 4x 50 W Class-D High Power amplifier
- 7″ capacitive XWGA touch screen (1280 x 720p)
- 3 line outputs (4V, Front / Rear / Subwoofer)
- 1 A/V AUX In (3.5mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB ports (1x USB charging and data / 1x USB charging)
- Ready for the car's original steering wheel remote control
- Vehicle Display Interface Ready (UART interface)
- Ready for IR remote control
- 2 x Camera connection (for Alpine Direct cameras)
- Camera Guide Lines (Adjustable)
- Live contrast adjustment
- Language options: 24 pcs
- Automatic dimming
- Anti-theft security code
- Start-Stop compatibility
TECHNICAL INFORMATION
Display
- Screen: 7″ capacitive XWGA
- Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
- Lighting: White LED backlight
- Effective Number of Picture Elements: 99.99%
- Color system: NTSC, PAL
Max amplifier power
- Max Power: 4 x 50 W
Radio / DAB tuner
- FM search range: 87.5 – 108.0 MHz
- AM search range: 531 – 1.602 kHz
- DAB band III: 174 – 240 MHz
- Alternative channel selection: 80 dB
- Signal to noise ratio: 65 dB
- DAB audio formats: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC
Wi-Fi
- Reception frequency: IEEE 802.11 B/g/n (2.4GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
- USB: USB 2.0
- USB 1: Data / Charging 2,400mA (Mass Storage Class)
- USB 2: Charging 1,500 mA (CDP support)
- USB category: Mass storage, Playback from source
- File system: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE decoding
- Video playback: MP4, MOV, FLV, MKV compatibility
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Channels: Two (Stereo)
- Playback range: 5 – 20k Hz ±1 dB *Frequency response varies depending on encoder software and bit stream
- Harmonic Distortion (1kHz): 0.008%
- Dynamic range (at 1kHz): 95 dB
- Signal to noise ratio: 100 dB
GPS / Glonass
- GPS / Glonass antenna included
- GPS frequencies: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Support for high resolution LDAC Audio codec
Sound settings
- Subwoofer level control: 0 – +15
- Subwoofer phase shift: 0° or 180°
- BASS ENGINE SQ: 5 modes, Levels 0 to +6
-
Distribution filters:
-
Advantage High pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Advantage Low pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Rear Overpass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Rear Lowpass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Subw. Low pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
HDMI
- Input 720p / 480p / 480i
General
- Operating voltage: 14.4 V. DC (11-16 V allowed)
- Pre Out voltage (before cutting): 4 V / 10k ohms
- Weight: 1.4 kg
- Body dimensions (W x H x D) mm: 178 x 50 x 150 mm
- Screen dimensions (W x H x D) mm: 171 x 96 x 18 mm
Compatibility:
- Seat Leon 11/2012 – 12/2016
- Not for cars with factory-installed SEAT Sound system
- If the car has had traffic sign recognition, this will be disabled. In addition, a few adjustment functions are performed differently than on the original player, but these functions are not disabled.

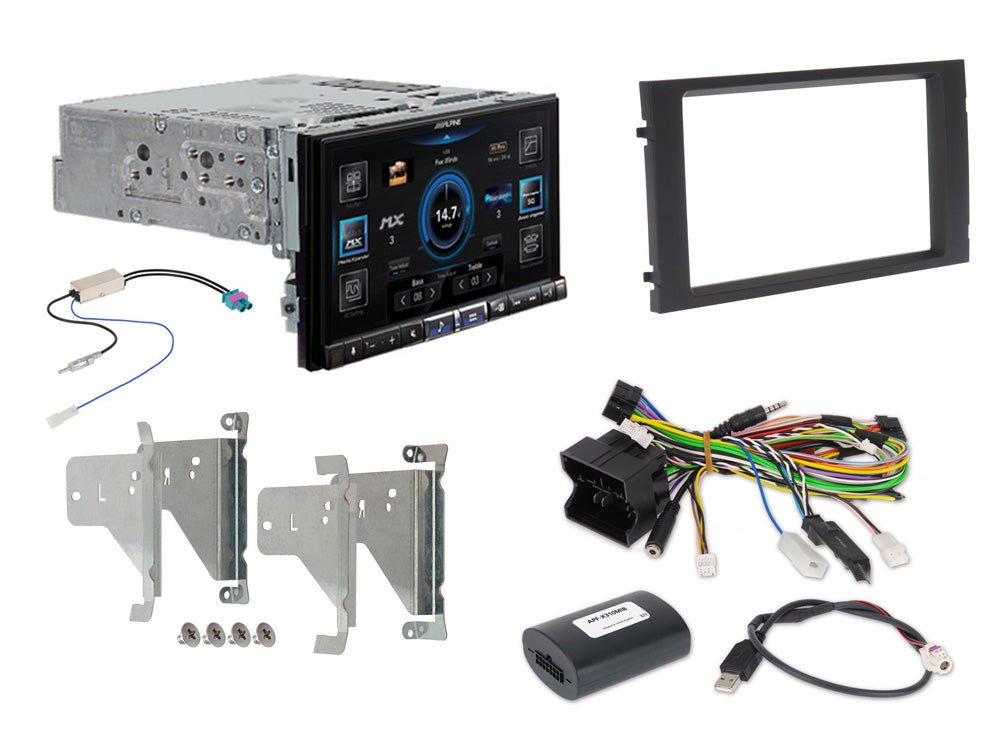

Package contents:
- Alpine ILX-705DM
- Alpine KIT-7Leon
- Alpine APF-X310MIB
