Alpine iLX-F115D-G7
Alpine iLX-F115D-G7
A multimedia player with an 11″ XXL screen that fits perfectly in the VW Golf “stationary” 2013 – 2017.

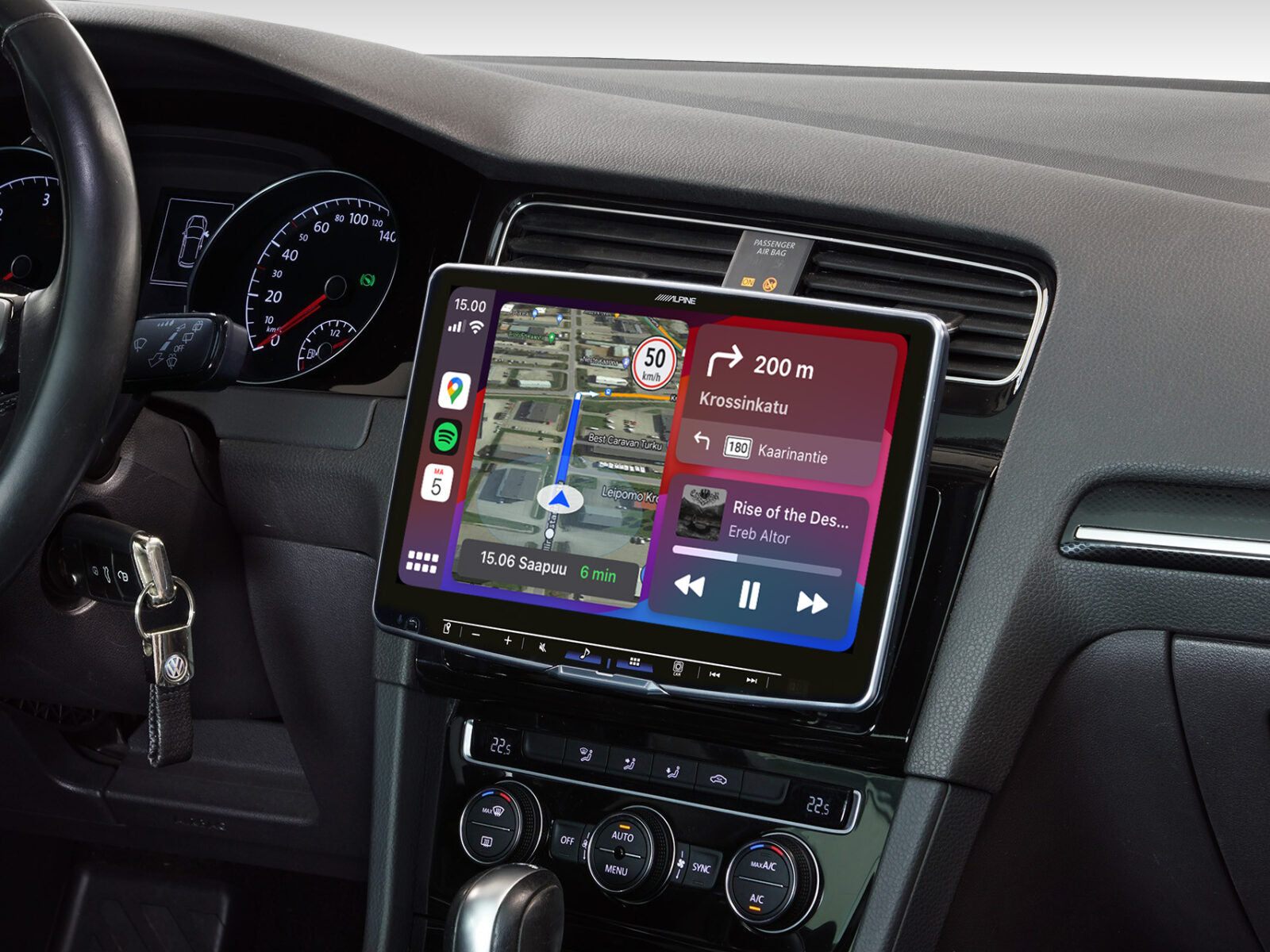

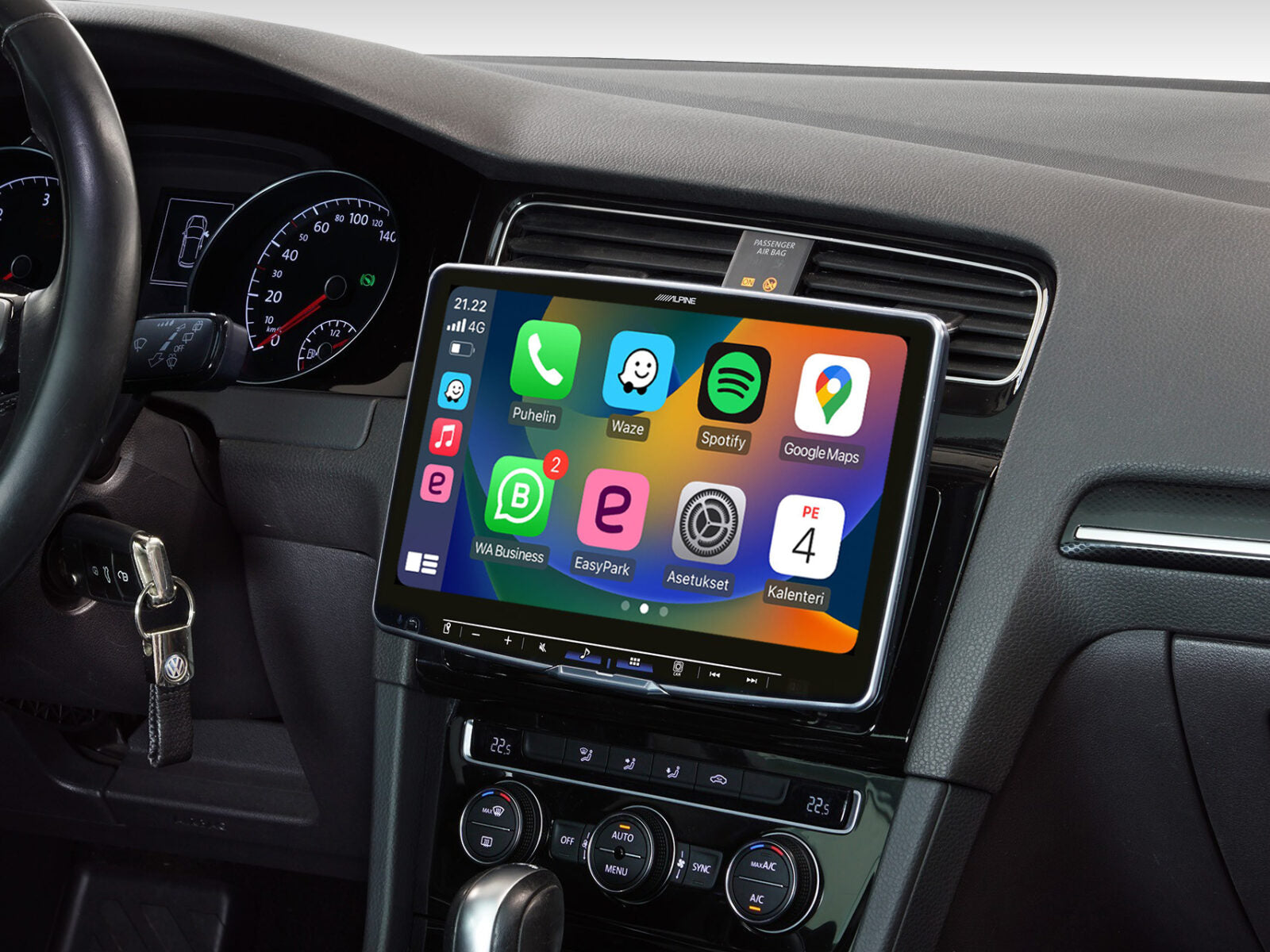

Wireless Apple CarPlay
The iLX-F115D-G7 works wirelessly with the iPhone and you can, among other things, receive and make calls, dictate messages using Siri or Whatsapp and use, for example, Google Maps, Apple's Maps application or Spotify streaming while the phone is in your pocket.
You can find the features of Apple CarPlay here

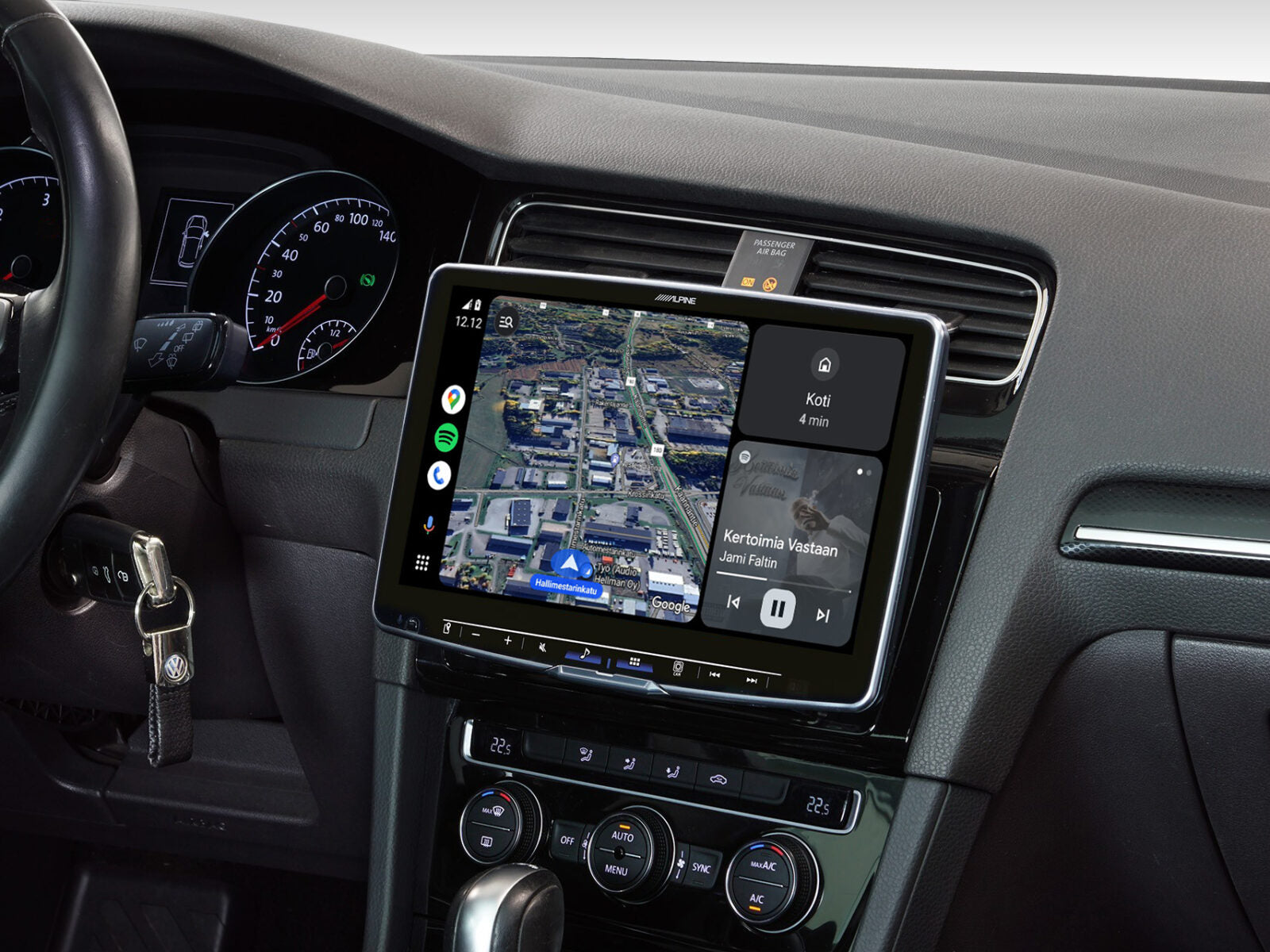

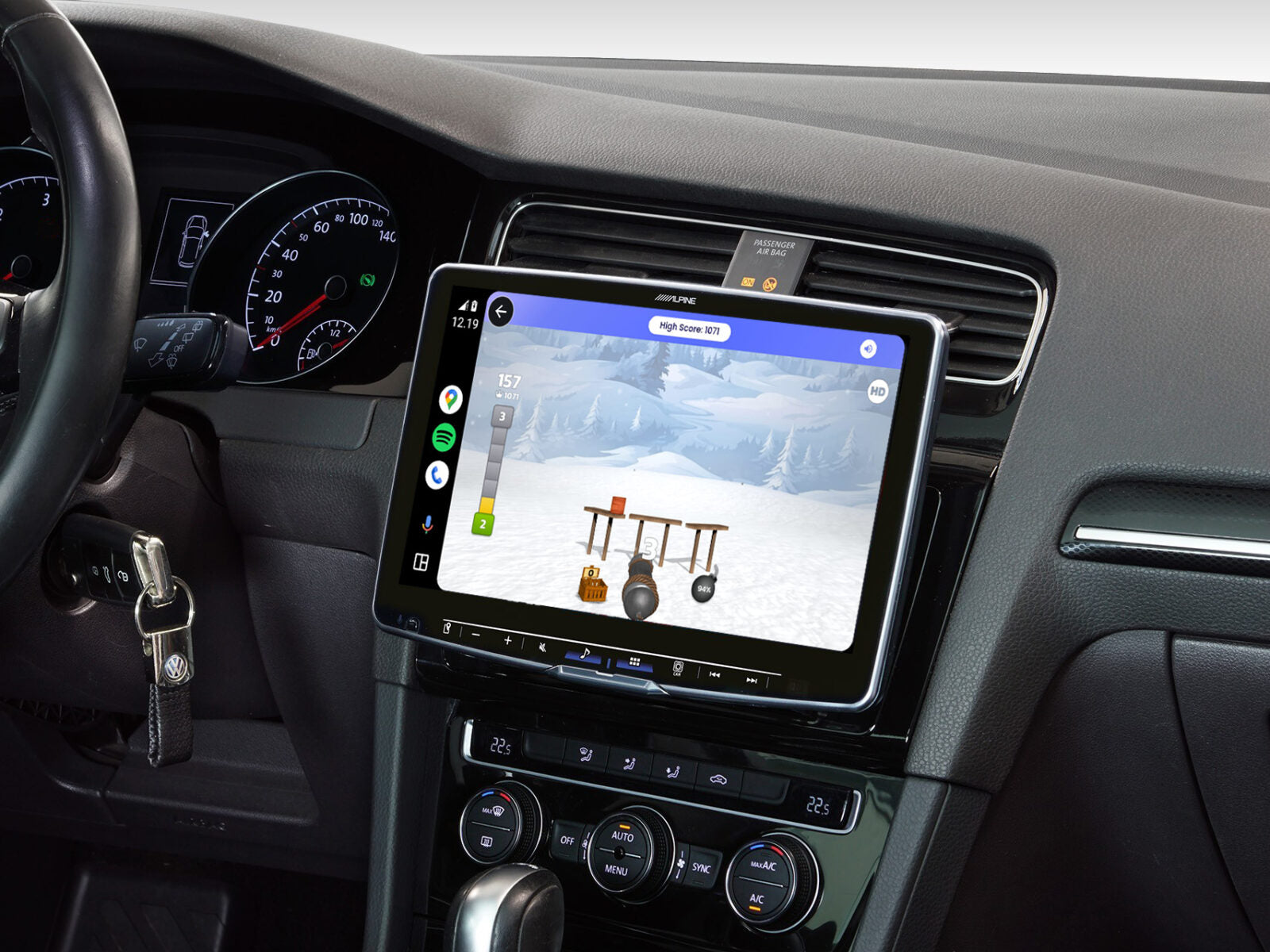

Android Auto
Android Auto is standard on all Android phones with Android 11.0 or higher operating system. With Android Auto, you can access Spotify, Google Maps, Waze, etc. and use them from the player's screen when you connect the USB cable to your phone. The iLX-F115D-G7's USB connection has a 2.4 amp output, so the phone charges quickly while driving.
You can find the Android Auto info page here.

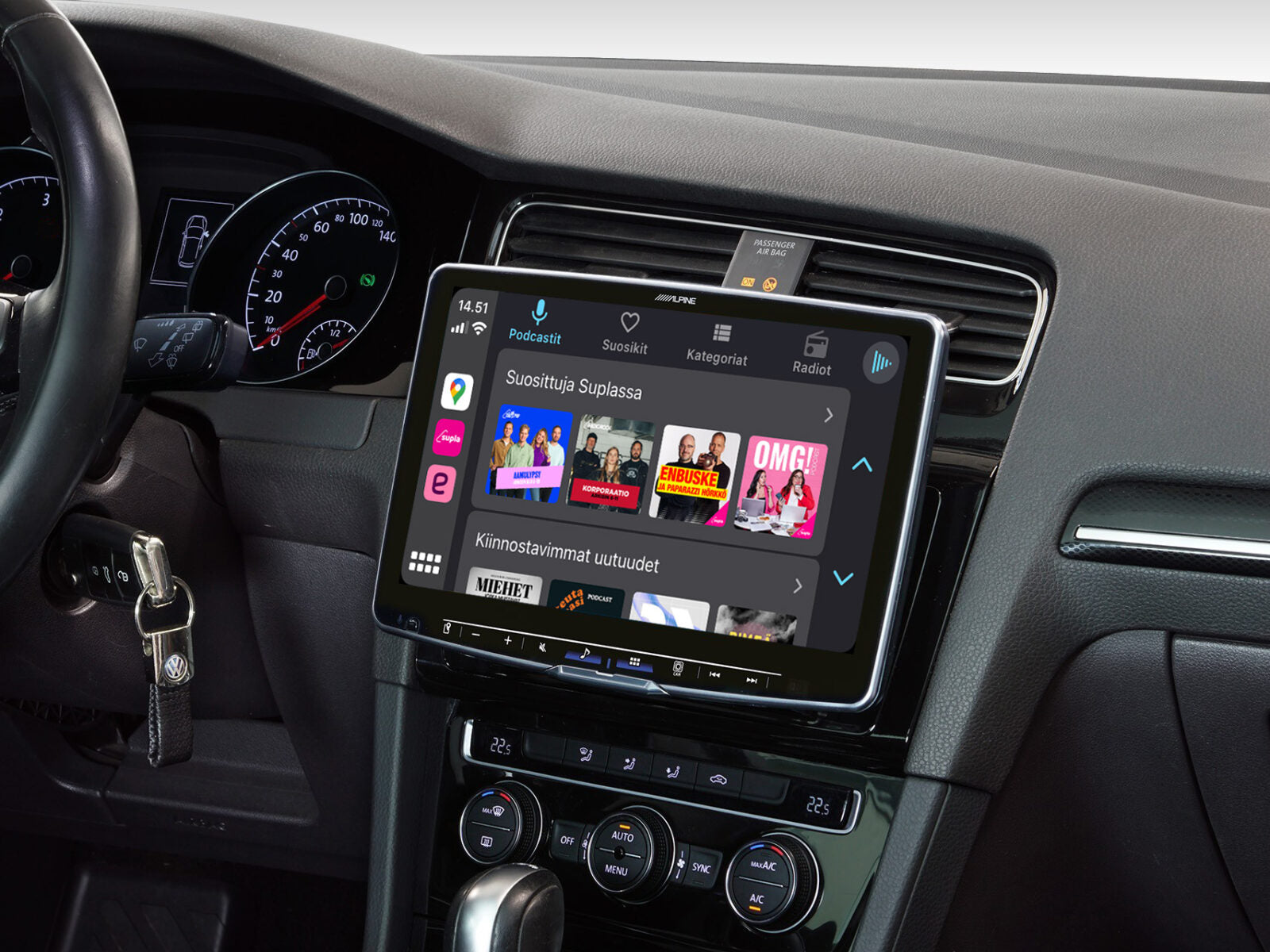

Travel comfort
Apple CarPlay and Android Auto quickly bring comfort to travel. You can access dozens of different applications on the phone directly from Alpine's touchscreen, and if you're used to using, for example, Spotify, Supla or BookBeat's services from your phone, you'll control all of these from Alpine's large touchscreen in the future.
Of course, you can also listen to audiobooks, streaming services or internet radios at the same time as you use Apple CarPlay or Android Auto navigation applications.
Car settings management
When the VW Golf's factory-installed player is replaced, it is especially important not to lose the car's settings controlled via the original player. Alpine offers a unique solution for this, which allows you to modify the car's settings from the touch screen of your new player.*
*) If the original player has traffic sign recognition, this function will be disabled.
*) The car's settings menus are in English.
You won't lose the reversing camera or radar
If your car has Volkswagen's original reversing camera and/or original reversing radars, these also work seamlessly with the iLX-F115D-G7. If you want, you can also get the radar and camera view on Alpine's 11" screen at the same time.
Original steering wheel buttons
Your car's original steering wheel buttons also work with the iLX-F115D-G7. You can perform basic functions without taking your hands off the wheel, such as muting the player, changing e.g. the program source or radio channel, adjusting the volume, etc.
MFD display
Alpine iLX-F115D-G7 also supports the car's MFD (Multi Function Display) in the instrument cluster. You can see, among other things, the name of the radio channel and the information of the song being played, just like on the original player.
Air conditioner screen
When you adjust the car's air conditioning in the VW Golf, Alpine displays this information on a large screen and indicates, among other things, the temperatures on the driver's and passenger's side, information on the seat heaters, and the blowing strength.
The information comes on the screen automatically for a few seconds when any setting of the air conditioner is changed.
Two USB inputs
Alpine iLX-F115D-G7 comes with a USB/Aux connection, which you use to replace the car's original USB connection. This allows you to use the USB connection as you are used to with the original player.
Original microphone
If your car has Volkswagen's own hands-free microphone, the iLX-F115D-G7 is compatible with it, which makes installation easier and faster.
Note: If your car does not have an original microphone, you need a microphone (spare part number: 3BO 035 711 B B41) and a KWE-901G7MIC intermediate cable.
The world's first car stereo with a class D amplifier
The Alpine iLX-F115D-G7 is the world's first car retrofit with a built-in 4 x 50W Class D amplifier. The advantage of class D is an incredibly good efficiency (about 90%) compared to the efficiency of a class AB amplifier (about 50-70%). New and almost silent high-speed fans keep the player cool.
Pioneer in sound quality
Alpine's sound quality has become a concept that other instrument brands are always compared to.
A 56-band parametric equalizer, two-way crossover filters, six-channel digital delay controls, and separate Bass Engine SQ and MediaXpander allow you to adjust the sound exactly the way you want it.
And it didn't stop there, because the iLX-F115D-W447 is Hi-Res Audio certified and the player is able to play 96kHZ / 1.536 kbps lossless files from USB in FLAC, WAV and APE formats.
The TIDAL app
Alpine ILX-705D / ILX-F905D / ILX-F115D are the world's first retrofit car stereos that enable completely uncompressed music streaming from TIDAL. With Alpine, a WiFi connection is created to e.g. the phone's hotspot, after which Alpine is directly connected to TIDAL's servers. The music is not compressed or compressed at any point and you get the best possible sound quality!
When the phone's hotspot and TIDAL are active, Apple CarPlay exceptionally requires the phone to be connected to the player with a USB cable.
The TIDAL application requires updating the player's software to version 2.0.000
The best display
The screen with a resolution of 1280 x 720p (WXGA) is the most accurate and the best Alpine screen ever, where all icons and symbols appear sharp and clear.

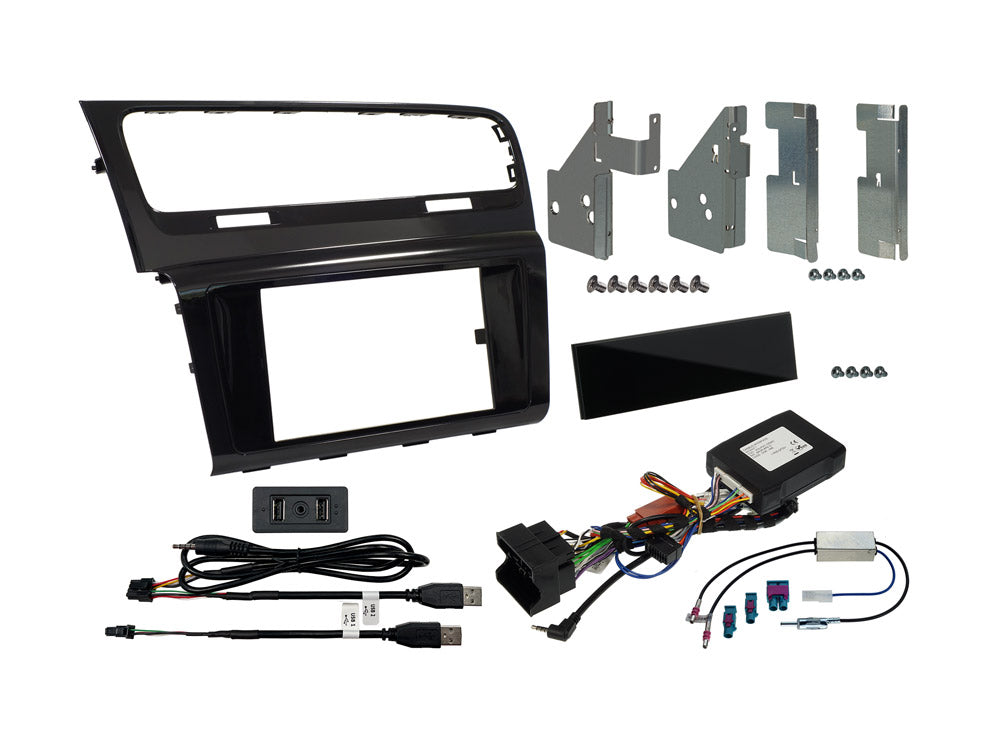

VW Golf VII installation accessories
The iLX-F115D-G7 comes with all the necessary adapters to install the player in your car.
Included in the package:
- 2-DIN plastic frame
- 1-DIN cover plate
- Metal side brackets
- Fakra antenna adapter with power supply
- CAN-bus info adapter that supports the car's steering wheel buttons
- USB/Aux adapter
CHARACTERISTICS
Radio / DAB tuner
- Memory slots (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Automatic
- Search method: Local, DX, Pre-Set, Service
- RDS : PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB support
- DAB+ Slideshow feature
- DLS (Dynamic Label Service) and DAB Service Following
- RDS Fallback (according to RDS offer)
- Auto Ensemble/Service Memory
- Service search and PTY search
- Alphabetical search
BLUETOOTH®
- Built-in BLUETOOTH® V4.2
- HFP (Hands-Free Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5
- Phone book synchronization
- Speed dial: 4 pcs (per phone)
- Call History: Outgoing / Incoming / Not Answered
- Replay
- Voice volume adjustment: (Outgoing / incoming)
- 24 language options
- Comes with a microphone
Works with iPhone®
- iPod and iPhone compatibility (models with Lightning)
- Various search options
- Album cover display
- Battery charging
Connectivity
- Apple CarPlay (Wireless) (requires a CarPlay compatible iPhone)
- Android Auto (Wired) (requires Android Auto compatible phone)
- DVR-C320S dashboard camera management
Navigation functions
- Online navigation option with Apple CarPlay and Android Auto compatible phone
- Includes GPS / Glonass antenna
USB Media Connection
- Two USB connections
- USB port 1: Charging and data transfer
- USB port 2: Charging
- Music files: FLAC, MP3, WMA, AAC, WAV, APE
- Video files: MP4, MOV, FLV, MKV
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Various file search options
Sound settings
- Bass Engine SQ and Bass Engine PRO
- Subwoofer level control
- 4V PreOut
- 10 Equalizer presets
- 13-channel parametric EQ for four channels + 4 channels for subwoofer
- 6-channel time delay controls
- Distribution filters: Front HPF, Front LPF, Rear HPF, Rear LPF, Subw. LPF
- Source-specific volume control
General
- 4x 50 W Class-D High Power amplifier
- 11″ capacitive XWGA touch screen (1280 x 720p)
- 3 line outputs (4V, Front / Rear / Subwoofer)
- 1 A/V AUX In (3.5mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB ports (1x USB charging and data / 1x USB charging)
- Ready for the car's original steering wheel remote control
- Vehicle Display Interface Ready (UART interface)
- Ready for IR remote control
- 2 x Camera connection (for Alpine Direct cameras)
- Camera Guide Lines (Adjustable)
- Live contrast adjustment
- Language options: 24 pcs
- Automatic dimming
- Anti-theft security code
- Start-Stop compatibility
Installation
- VW Golf VII installation accessories included
TECHNICAL INFORMATION
Display
- Screen: 9″ capacitive XWGA
- Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
- Lighting: White LED backlight
- Effective Number of Picture Elements: 99.99%
- Color system: NTSC, PAL
Max amplifier power
- Max Power: 4 x 50 W
Radio / DAB tuner
- FM search range: 87.5 – 108.0 MHz
- AM search range: 531 – 1.602 kHz
- DAB band III: 174 – 240 MHz
- Alternative channel selection: 80 dB
- Signal to noise ratio: 65 dB
- DAB audio formats: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC
Wi-Fi
- Reception frequency: IEEE 802.11 B/g/n (2.4GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
- USB: USB 2.0
- USB 1: Data / Charging 2,400mA (Mass Storage Class)
- USB 2: Charging 1,500 mA (CDP support)
- USB category: Mass storage, Playback from source
- File system: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE decoding
- Video playback: MP4, MOV, FLV, MKV compatibility
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Channels: Two (Stereo)
- Playback range: 5 – 20k Hz ±1 dB *Frequency response varies depending on encoder software and bit stream
- Harmonic Distortion (1kHz): 0.008%
- Dynamic range (at 1kHz): 95 dB
- Signal to noise ratio: 100 dB
GPS / Glonass
- GPS / Glonass antenna included
- GPS frequencies: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Support for high resolution LDAC Audio codec
Sound controls
- Subwoofer level control: 0 – +15
- Subwoofer phase shift: 0° or 180°
- BASS ENGINE SQ: 5 modes, Levels 0 to +6
-
Distribution filters:
-
Advantage High pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Advantage Low pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Rear Overpass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Rear Low pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Subw. Low pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
HDMI
- Input 720p / 480p / 480i
General
- Operating voltage: 14.4 V. DC (11-16 V allowed)
- Pre Out voltage (before cutting): 4 V / 10k ohms
- Weight: 2.6 kg
- Body dimensions (W x H x D) mm: 178 x 50 x 150 mm
- Screen dimensions (W x H x D) mm: 269 x 178 x 55 mm
Compatibility
-
Volkswagen Golf VII 08/2013 – 02/2017
- Cars with the eCall emergency call function require a 1424-28 adapter
- Cars without a factory-installed HF microphone require the original microphone (part number: 3BO 035 711 B B41) and the KWE-901G7MIC intermediate cable.
- The iLX-F115D-G7 does not support the traffic sign recognition of the original player
- iLX-F115D-G7 is not compatible with the following models: VW Golf Sportsvan, VW e-Golf, VW Golf GTE and cars with Active Info Display in the instrument panel and/or Dynaudio Sound System
