Description
Large – Larger – Alpine Halo 11
The ILX-F115S907-Navi is a player with an XXL size 11″ WXGA touch screen, made for the Mercedes Benz Sprinter (W907).
The ILX-F115S907-Navi fits the Sprinter's dashboard perfectly and the player also supports the car's original steering wheel buttons and brings all today's multimedia features to the car.
Navigation includes three years of free map updates.
iGo Primo Nextgen
The ILX-F115S907-Navi comes with an Alpine KTX-NS01EU navigation stick , which is connected to the player's USB connection and after that you have Finnish-language navigation with maps of 50 European countries, millions of pre-loaded POIs (gas stations, hotels, shopping centers, etc.) and the very comprehensive park4night with buspark software.
Consider the dimensions of your car
The ILX-F115S907-Navi also takes into account the external dimensions and weight of your car when calculating the route, and does not, for example, guide you to a road where your vehicle exceeds the weight limit of the road or bridge on the route. The directions for forbidden roads, which are only allowed for passenger cars, will also be removed.
Also perfect for campers and RVs
There are more than 120,000 bus parks in the built-in park4night database, and you can see from the icons what services are available at the bus park in question (e.g. WiFi connection, washing facilities, Water point, etc.)
In addition, the information contains photos and user reviews of almost every buska park. You navigate to the bus park you want with a few button presses.
Park4night user reviews and information are in English.
HERE maps
The included navigation stick contains maps of 50 Eastern and Western European countries and millions of different POIs (Points Of Interests), such as gas stations, hotels, shopping centers, etc.
Free map updates can be downloaded to the device for the first three years without limitation. After this, you can update the maps for a fee, and you can update, for example, only the maps of the Nordic countries, if you feel that there is no need for the updated maps of Central Europe.
Updates are handled via alpine.naviextras.com.
11″ XXL size HD screen
Alpine Halo 11 has a resolution of 1280 x 720p (WXGA) and the screen area is 49% larger than that of the highly popular Alpine Halo 9 player. The icons, menus and details on the screen are therefore larger and more detailed.

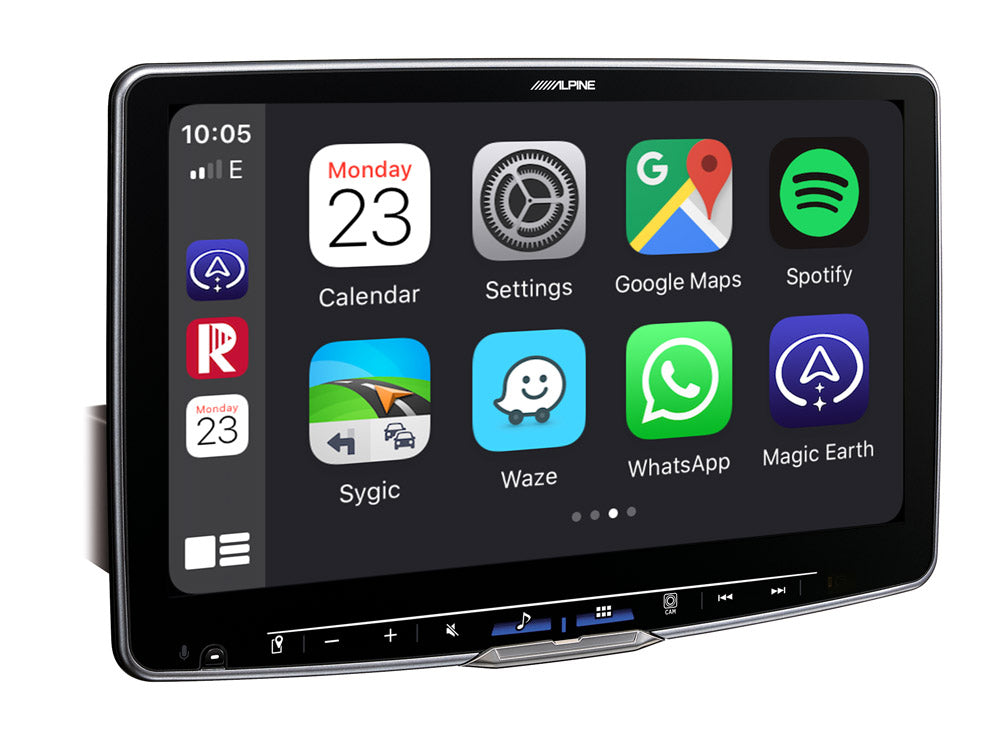

Wireless Apple CarPlay
The iLX-F115D works wirelessly with the iPhone and you can, among other things, receive and make calls, dictate messages using Siri or Whatsapp and use, for example, Google Maps, Apple's Maps application or Spotify streaming while the phone is in your pocket.
You can find the features of Apple CarPlay here
Note: When Alpine's navigation stick is connected to the player, the player cannot use the Android Auto or Apple CarPlay functions. However, your phone is connected to Alpine via Bluetooth and you can, for example, play music from the phone, and you can use the hands-free calls offered by the player as normal.
Entertainment on the big screen
In addition to the traditional RDS tuner, you also have a digital DAB radio and the option to play video files (MP4, MOV, FLV, MKV) via the USB connection. Bluetooth, on the other hand, allows you to play music from your phone and make hands-free calls, and you can bring images and sound from an external device to the HDMI input. When you connect your Android phone with a USB cable, you can use all the functions of Android Auto, such as Spotify , Google Maps , Waze , etc.

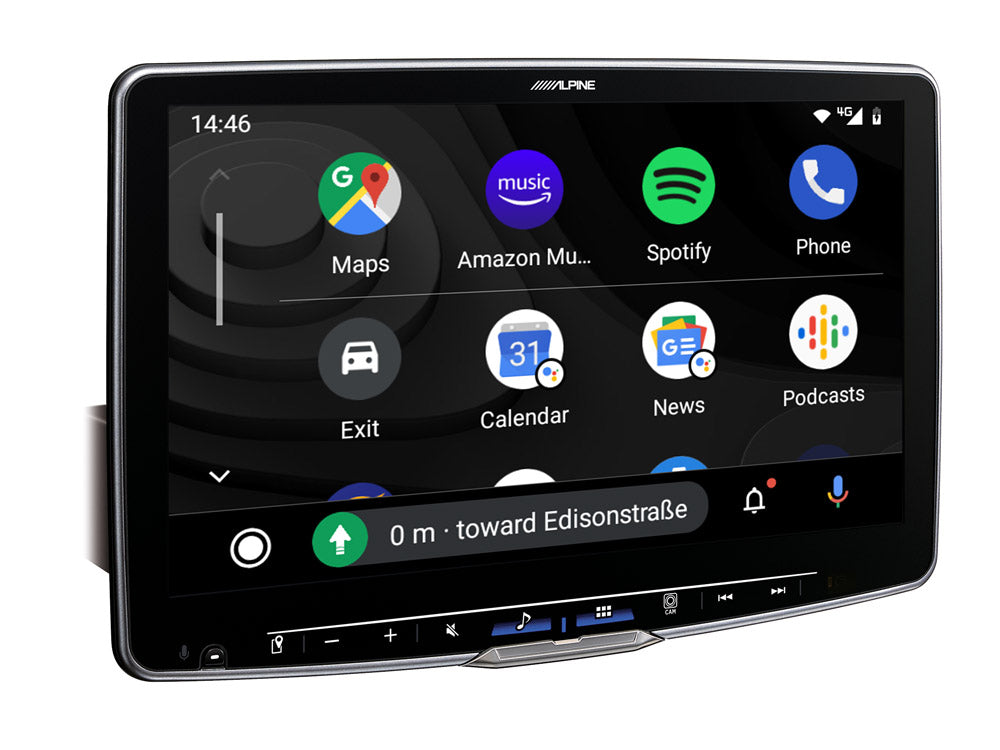

You can find the Android Auto info page here.
Note: When Alpine's navigation stick is connected to the player, the player cannot use the Android Auto or Apple CarPlay functions. However, your phone is connected to Alpine via Bluetooth and you can, for example, play music from the phone, and you can use the hands-free calls offered by the player as normal.
Two USB inputs
The Alpine Halo11 does not contain a CD/DVD drive, but thanks to the two USB connections, you can, for example, charge your phone through one connector, and the other connector can hold a USB stick or hard drive from which you play music and video files.
Angle, depth and height adjustment
When installing the iLX-F115D on the dashboard, there are several different installation options. The depth adjustment of the screen has two positions and there are five different height options. The tilt angle of the screen can be turned continuously, and unlike the first generation Halo 9 player, the tilt of the screen can also be adjusted after installing the player.
The world's first car stereo with a class D amplifier
Alpine iLX-F115S907-Navi is the world's first retrofit car stereo with a built-in 4 x 50W class D amplifier. The advantage of class D is an incredibly good efficiency (about 90%) compared to the efficiency of a class AB amplifier (about 50-70%). New and almost silent high-speed fans keep the player cool.
Pioneer in sound quality
Alpine's sound quality has become a concept that other instrument brands are always compared to.
A 56-band parametric equalizer, two-way crossover filters, six-channel digital delay controls, and separate Bass Engine SQ and MediaXpander allow you to adjust the sound exactly the way you want it.
And it didn't end there, because iLX-F115S907-Navi is Hi-Res Audio certified and the player is able to play 96kHZ / 1.536 kbps lossless files from USB in FLAC, WAV and APE formats.
The TIDAL app
Alpine ILX-705D / ILX-F905D / ILX-F115D are the world's first retrofit car stereos that enable completely uncompressed music streaming from TIDAL. With Alpine, a WiFi connection is created to e.g. the phone's hotspot, after which Alpine is directly connected to TIDAL's servers. The music is not compressed or compressed at any point and you get the best possible sound quality!
When the phone's hotspot and TIDAL are active, Apple CarPlay exceptionally requires the phone to be connected to the player with a USB cable.
The TIDAL application requires updating the player's software to version 2.0.000
Camera management
A reversing camera is a piece of equipment that we recommend for every car. The camera image appears on the large 11″ screen automatically when the reverse gear is switched on. Guide lines can also be used in the camera view and adjusted according to the dimensions of your car, making reversing and understanding distances even easier.
The ILX-F115S907-Navi contains two camera connections, so you can install both a reversing camera and a front camera in your car without separate adapters.
Due to the player's large screen, we recommend Alpine MultiView cameras ( HCE-C2100RD reversing camera and HCE-C2600FD front camera).
Mercedes Benz installation accessories

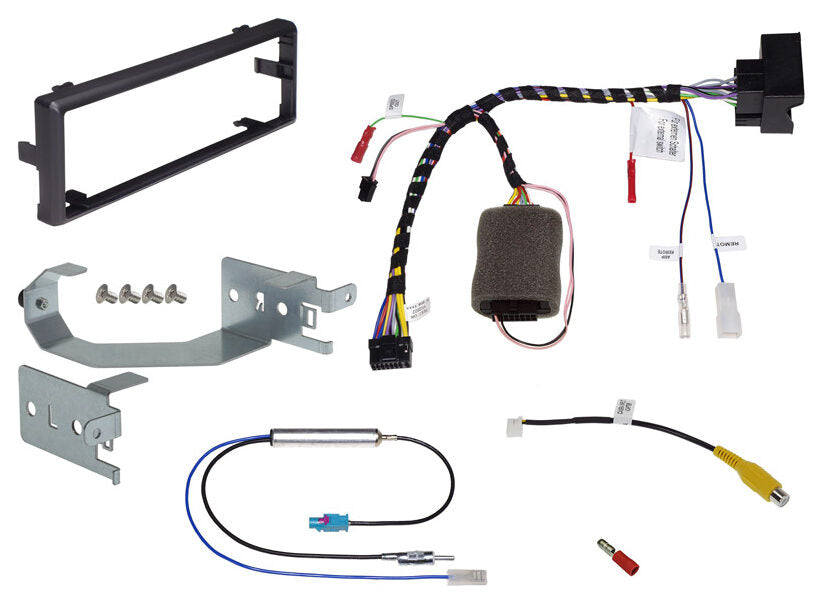

The ILX-F115S907-Nav comes with all the necessary adapters to install the Halo11 player in your car. The package contains a CAN bus converter / steering wheel remote control adapter, an antenna adapter, mounting brackets for the player, a plastic frame for the player and a camera adapter, if you want to install a reversing camera with an RCA connection in the car.
Protective film KAE-HF11DA (Accessory)
We definitely recommend the KAE-HF11DA protective film for the ILX-F115D. The film prevents fingerprints, protects the screen from scratches and improves the readability of the screen in direct sunlight. With the help of the film, you can keep the screen as good as new. KAE-HF11DA also includes a microfibre cloth and for installation a plastic spatula and tape for removing dust particles.
FEATURES (Navigation)
- iGo Primo Nextgen navigation software
- HERE maps covering 50 countries (Western and Eastern Europe) with three years of free updates
- Live Traffic Information (requires internet connection), with three years of free updates
- Built-in WiFi
- Traffic sign display
- Advanced Address Search
- Postal code search, free-form search, partial Name search
- Advanced POI functions
- Smart Routes using previous searches and routes
- Advanced route planning
- Eco Route search
- 7 alternative routes
- Map view: 2D driving direction, 2D North at the top, 3D
- 3D urban space: 3D buildings/landmarks
- 3D maps with height curves
- 3D motorway exit view, with signposts
- Lane recommendations
- Tunnel mode
- Motorway mode
- Mixing of the guidance voice
- Status indicating LED light
- 10cm USB cable included
Technical data (Navigation)
- Dual-Core 2GHz (64Bit) ARMv8 Cortex-A53
- PowerVR GE8300 GPU (Open GL ES 3.2 and Vulcan 1.3)
- 3Gb RAM
- 32Gb Flash memory
- 2.4GHz / 5GHz Wi-Fi
- HERE maps of fifty countries: Albania, Andorra, Austria, Azerbaijan, Belarus, Belgium, Bosnia Hrz, Bulgaria, Croatia, Czech Rep, Denmark, Estonia, FYROM, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan , Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Finland, Sweden, Switzerland, Turkey, Ukraine, Ukraine Crimea, United Kingdom, Vatican
- 29 languages for menus and instructions: Bulgarian, Catalan, Croatian, Czech, Danish, Dutch-be, Dutch-NL, English-UK, Estonian, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Finnish, Swedish, Turkish, Ukrainian,
- 13 Text-to-speech (TTS) languages: Danish, Dutch, English, French, German, Hungarian, Italian, Polish, Portuguese, Spanish, Swedish, Turkish, Vlaams
FEATURES (Player)
Radio / DAB tuner
- Memory slots (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Automatic
- Search method: Local, DX, Pre-Set, Service
- RDS : PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB support
- DAB+ Slideshow feature
- DLS (Dynamic Label Service) and DAB Service Following
- RDS Fallback (according to RDS offer)
- Auto Ensemble/Service Memory
- Service search and PTY search
- Alphabetical search
BLUETOOTH®
- Built-in BLUETOOTH® V4.2
- HFP (Hands-Free Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5
- Phone book synchronization
- Speed dial: 4 pcs (per phone)
- Call History: Outgoing / Incoming / Not Answered
- Redial
- Voice volume adjustment: (Outgoing / incoming)
- Comes with a microphone
Works with iPhone®
- iPod and iPhone compatibility (models with Lightning)
- Various search options
- Album cover display
- Battery charging
Connectivity
- Apple CarPlay (Wireless) (requires a CarPlay compatible iPhone)
- Android Auto (Wired) (requires Android Auto compatible phone)
- DVR-C320S dashboard camera management
Navigation functions
- Online navigation option with Apple CarPlay and Android Auto compatible phone
- Includes GPS / Glonass antenna
USB Media Connection
- Two USB connections
- USB port 1: Charging and data transfer
- USB port 2: Charging
- Music files: FLAC, MP3, WMA, AAC, WAV, APE
- Video files: MP4, MOV, FLV, MKV
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Various file search options
Sound settings
- Bass Engine SQ and Bass Engine PRO
- Subwoofer level control
- 4V PreOut
- 10 Equalizer presets
- 13-channel parametric EQ for four channels + 4 channels for subwoofer
- 6-channel time delay controls
- Distribution filters: Front HPF, Front LPF, Rear HPF, Rear LPF, Subw. LPF
- Source-specific volume control
General
- 4x 50 W Class-D High Power amplifier
- 11″ capacitive XWGA touch screen (1280 x 720p)
- Tilt adjustment option even after installation
- 3 line outputs (4V, Front / Rear / Subwoofer)
- 1 A/V AUX In (3.5mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB ports (1x USB charging and data / 1x USB charging)
- Ready for the car's original steering wheel remote control
- Vehicle Display Interface Ready (UART interface)
- Ready for IR remote control
- 2 x Camera connection (for Alpine Direct cameras)
- Camera Guide Lines (Adjustable)
- Live contrast adjustment
- Language options: 24 pieces (e.g. Finnish, Swedish, English)
- Automatic dimming
- Anti-theft security code
- Start-Stop compatibility
Installation
- The package includes a CAN bus converter / steering wheel remote control adapter, antenna adapter, player mounting brackets, player plastic frame and camera adapter
TECHNICAL INFORMATION
Display
- Screen: 11″ capacitive XWGA
- Number of pixels: 2,764,800 pixels (1280 x 3 x 720)
- Lighting: White LED backlight
- Effective Number of Picture Elements: 99.99%
- Color system: NTSC, PAL
Max amplifier power
- Max Power: 4 x 50 W
Radio / DAB tuner
- FM search range: 87.5 – 108.0 MHz
- AM search range: 531 – 1.602 kHz
- DAB band III: 174 – 240 MHz
- Alternative channel selection: 80 dB
- Signal to noise ratio: 65 dB
- DAB audio formats: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC
Wi-Fi
- Reception frequency: IEEE 802.11 B/g/n (2.4GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
- USB: USB 2.0
- USB 1: Data / Charging 2,400mA (Mass Storage Class)
- USB 2: Charging 1,500 mA (CDP support)
- USB category: Mass storage, Playback from source
- File system: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE decoding
- Video playback: MP4, MOV, FLV, MKV compatibility
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Channels: Two (Stereo)
- Playback range: 5 – 20k Hz ±1 dB *Frequency response varies depending on encoder software and bit stream
- Harmonic Distortion (1kHz): 0.008%
- Dynamic range (at 1kHz): 95 dB
- Signal to noise ratio: 100 dB
GPS / Glonass
- GPS / Glonass antenna included
- GPS frequencies: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Support for high resolution LDAC Audio codec
Sound controls
- Subwoofer level control: 0 – +15
- Subwoofer phase shift: 0° or 180°
- BASS ENGINE SQ: 5 modes, Levels 0 to +6
-
Distribution filters:
-
Advantage High pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Advantage Low pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Rear Overpass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Rear Lowpass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Subw. Low pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
HDMI
- Input 720p / 480p / 480i
General
- Operating voltage: 14.4 V. DC (11-16 V allowed)
- Pre Out voltage (before cutting): 4 V / 10k ohms
- Weight: 2.6 kg
- Body dimensions (W x H x D) mm: 178 x 50 x 150 mm
- Screen dimensions (W x H x D) mm: 269 x 178 x 55 mm
