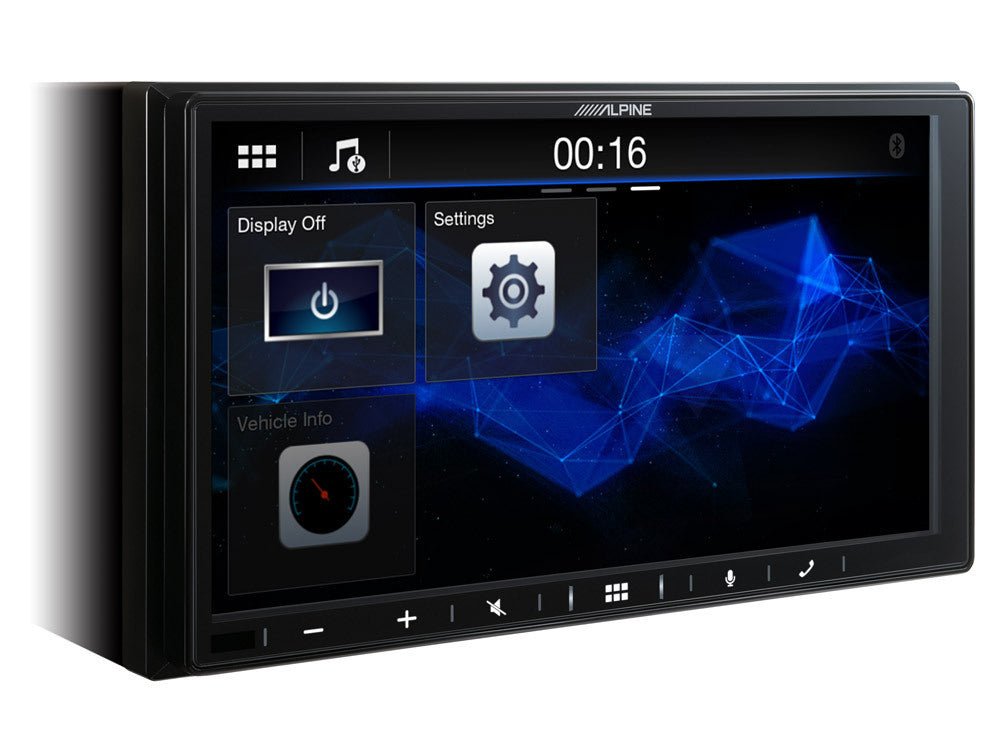

Alpine iLX-W690D

Seamless collaboration with your phone
Do you listen to music via Spotify, Amazon Music or another streaming service? Do you use Google Maps for navigation? The Alpine iLX-W690D is the perfect player to take advantage of these features, and the seven-inch screen makes it really pleasant to manage and follow the phone's navigation, for example.

Phone navigation to the player
You can use Android Auto or Apple CarPlay with the iLX-W690D and you can use e.g. navigation applications offered by phones (Google Maps, Apple Maps, Waze, etc.) of which several applications even show real-time traffic situations.

Android Auto
iLX-W690D is compatible with Android Auto. Android Auto enables, for example, navigation management of Google Maps directly from the player. You can choose a drawn map as the map view or, alternatively, a realistic satellite view. Google Maps navigation takes traffic situations into account in real time in route planning and offers different route options if necessary. Android Auto works via a USB connection.

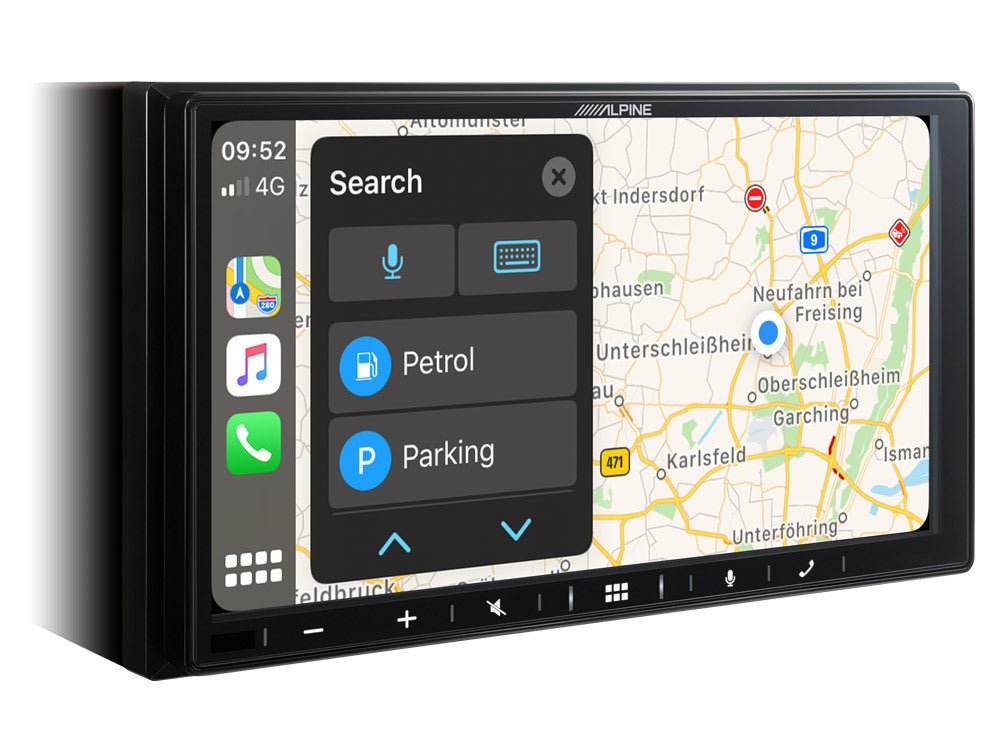

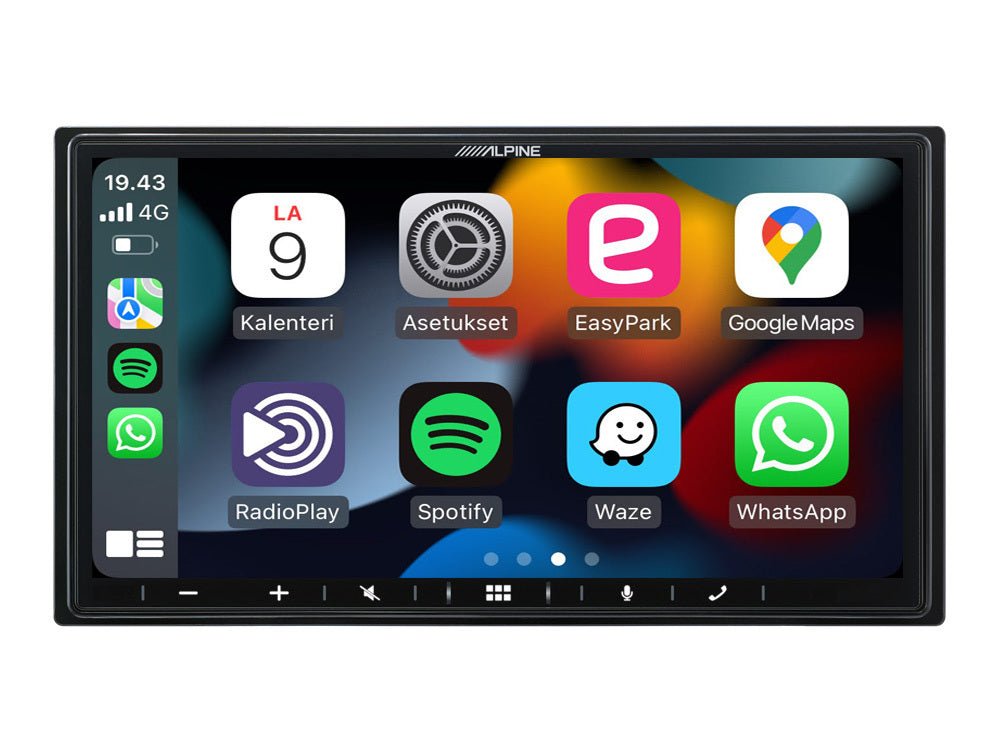

Apple CarPlay
The iLX-W690D offers iPhone users the ability to make and receive calls, use navigation, control music playback and, for example, ask Siri for instructions or ask Siri to perform desired actions. The iPhone is connected to the player with a USB -> Lightning cable.

The Apple CarPlay information page can be found here.

High Speed ​​charging (1500mA)
When you connect your phone to the player with a USB cable, your phone's battery charges quickly, even if you use Bluetooth or Android Auto / Apple CarPlay at the same time.

Short body
The iLX-W690D body is only 6cm deep, which enables the player to be installed even in a car where it is not possible to install a traditional 2DIN player due to its depth. Thanks to the short body, the Alpine KTA-200M amplifier for subwoofer can be connected to the player.

Cameras and radars
The iLX-W690D includes two camera inputs, so you can connect a reversing camera and a front camera to the player. If your car has a factory-installed reversing radar, Alpine offers an APF-X adapter as an accessory for many cars, which you can use to get the original reversing radar information to Alpine's player as well.
The iLX-W690D does not support changing the car's settings in the APF-X controls, but only functions as an information display.

Bluetooth
Built-in Bluetooth enables hands-free calls and wireless transfer of music from the phone to the player.

Power to the subbar
The iLX-W690D is compatible with Alpine's ingenious KTA-200M subwoofer. The amplifier can be installed behind the player, using the Plug / Play cable set that comes with the amplifier. The "Power Stack" amplifier has won the "Best of CES Award 2019" award.

• General
  • 7″ capacitive touch screen
  • AM / FM (RDS) tuner
  • Memory slots (FM: 2×6 / DAB: 3×6 / AM: 1×6)
  • Apple CarPlay compatibility
  • Android Auto compatibility
  • 5-band graphic EQ
  • 10 preset EQ settings
  • Digital dividers
  • Six channel time delay controls
  • Media Xpander
  • Source-specific volume control
  • Bluetooth for music streaming and hands-free calls
  • Included microphone

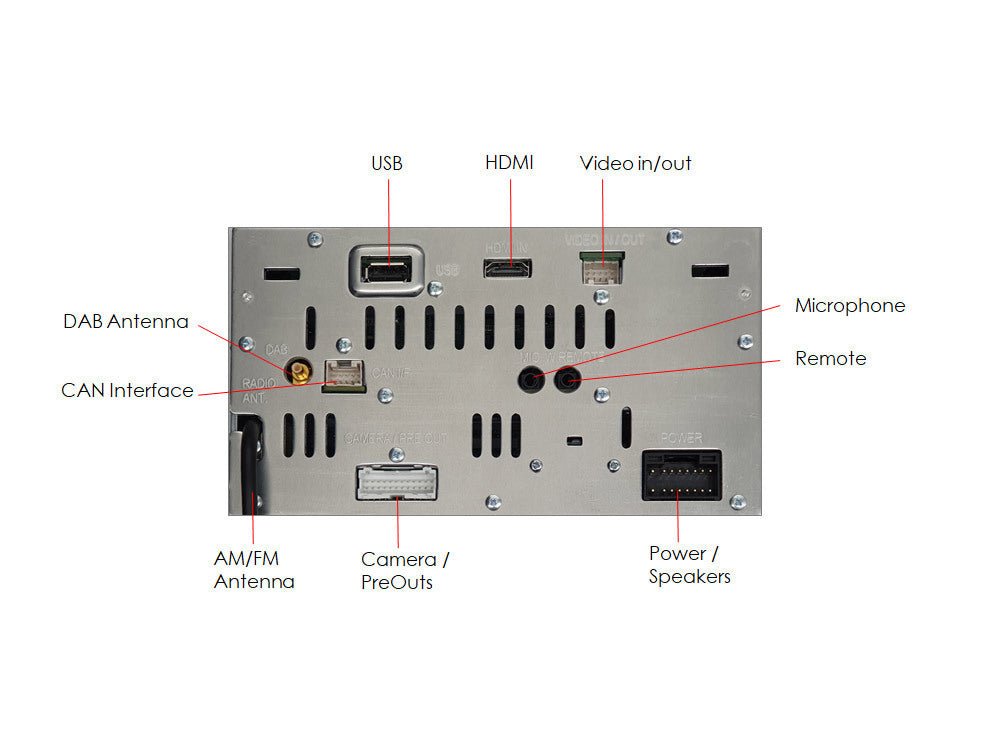

  • 1 A/V AUX input (RCA)
  • 1 Video output (RCA)
  • 2 RCA camera inputs (front and back)
  • HDMI input
  • 3 line outputs (4 Volts)
  • KTA-200M compatibility
  • USB connection
  • USB playback: Audio / Video / Pictures
  • Ready for steering wheel remote control adapter
  • DAB+ digital radio
  • Compatible with IR remote control
  • Various vehicle specific installation kits available
• Display
  • Screen size: 7″
  • LCD: Transparent TN LCD
  • TFT active matrix
  • Number of pixels: 1,152,000 pcs. (800 × 480 × 3 (RGB))
  • LED lit
• Tuner
  • FM frequency range: 87.5 – 108.0 MHz
  • AM frequency range: 531 – 1.602 kHz
  • Signal to noise ratio: 65 dB
  • DAB frequency range: 174.928 – 239.2 MHz
  • Operating sensitivity: -92dBm
  • Signal-to-noise ratio channel III: 70dB
• USB
  • USB interface: USB 2.0
  • Max. power supply: 1,500 mA (CDP Support)
  • USB (playback from device) / USB (mass storage mode)
  • Format type: FAT16/32
  • Dynamic range: 95 dB (at 1 kHz)
  • Signal to noise ratio: 100 dB
  • WAV / FLAC / MP3 / WMA / AAC Audio playback (USB)
  • MP4 / MOV / AVI / WMV / MPG Video playback (USB)
  • JPG / PNG / BMP image playback (USB)
• HDMI
  • Input: 720p/480p/VGA
• BLUETOOTH
  • Bluetooth version: Bluetooth V4.1
  • HFP (Hands-Free Profile)
  • PBAP (Phone Book Access Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)
• General
  • Switch-on voltage: 14.4 V DC (11–16 V allowed)
  • Operating temperature: -20 -> + 60 Celsius
  • Output power: 4x 50 W
  • Weight: 1.0 kg
• Dimensions
  • Width: 178 mm
  • Height: 100 mm
  • Depth: 60 mm
