Alpine S2-W10D2

S-Series subwoofers now also in Europe!
Alpine's S-series subwoofers have until now only been available in the American market.
The S-Series subwoofers have an unbeatable price-performance ratio and the range has the right element for everyone's needs!

---

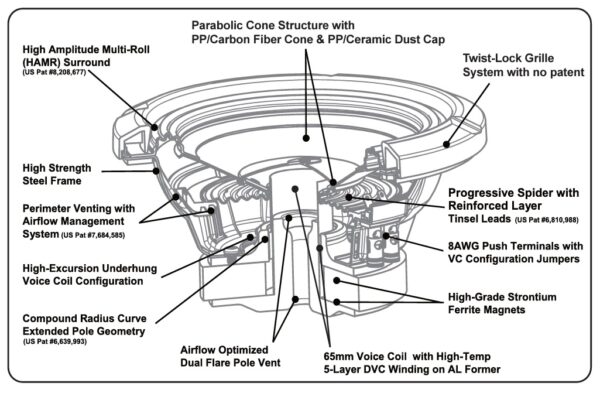

Patented performance
S-Series subwoofers use numerous Alpine patented solutions that you won't find in any other brand!

• Patented magnetic solution that ensures a symmetrical magnetic field and minimizes distortion. (US Pat#6639993)
• Patented voice coil cooling, where cool air is supplied to the voice coil from behind the magnet and warm air is removed from the voice coil through the body's ventilation channels. (US Pat #7684585)
• Patented HAMR top suspension, which allows the cone's trajectory to be kept under better control than traditional suspension. (US Pat #8208677)
• Patented progressive suspension with integrated silver wires that prevents possible mechanical noise. (US Pat #6810988)

---

HAMR
High Amplitude Multi-Roll (HAMR) is Alpine's patented upper suspension. Compared to traditional suspension, HAMR suspension maintains a significantly more linear cone trajectory, especially at higher volumes where the standard suspension starts to take on a life of its own.

---

Carbon fiber/polypropylene cone
The S-Series subwoofer's cone material is a combination of carbon fiber and polypropylene. Thanks to the lightweight yet sturdy cone, the ten-inch driver extends down to 25 Hz, producing distortion-free and pleasant bass throughout its entire range, regardless of the musical style.

---

Dual coils and proper cooling

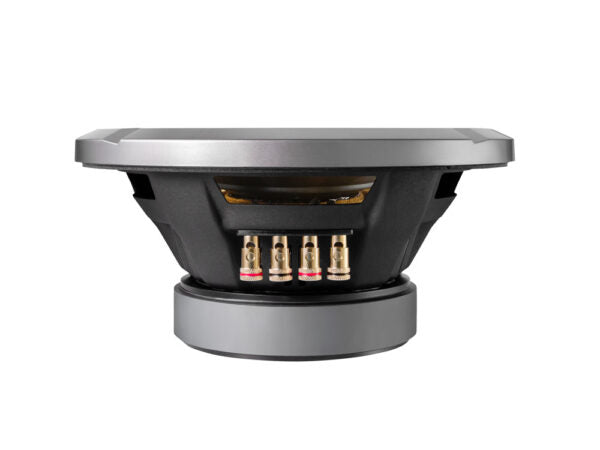

The Alpine S2-W10D2 has two 2-ohm voice coils. The subwoofer comes with jumpers that allow you to easily make the desired connection. The spring-loaded terminals are placed side by side, which makes connection even easier.
The terminals accept up to 8mm² speaker cable.

---

The perfect companion for S2 amplifiers
The best amplifier for the S-Series subwoofer is the Alpine S2-A60M mono amplifier from the same model series.

---

Freedom of choice
Build your car exactly the way you want it. S-Series subwoofers are available in 8″, 10″ and 12″ versions, each available in 2 x 2ohm and 2 x 4ohm models.

---

The “Ace” family
In addition to subwoofers and amplifiers, Alpine's "ace" collection also includes very popular separate sets and coaxial speakers. You can find all of these in the "Compatible products" section at the bottom of the page.

---

---

Eric from Alpine-USA takes a closer look at the new S-Series subwoofers.
