Description
S-Series subwoofers now also in Europe!
Up until now, Alpine's S-series subwoofers have only been available on the American market.
S-Series subwoofers have an unbeatable price-performance ratio, and the selection has the right element for everyone's needs!

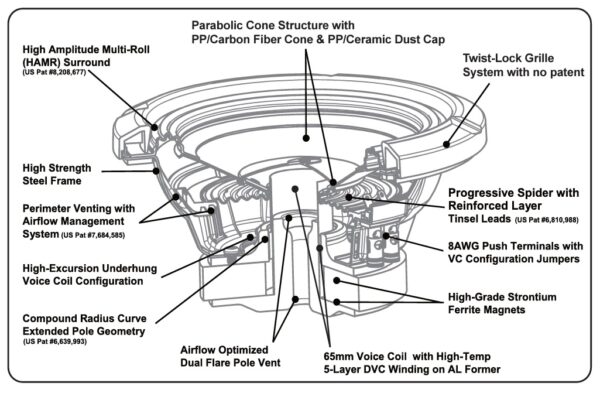

Patented performance
S-Series subwoofers use numerous solutions patented by Alpine that you will not find from any other brand!
- Patented magnetic solution, thanks to which the magnetic field can be symmetrical and the amount of distortion minimized. (US Pat#6639993)
- Patented voice coil cooling, where cool air is supplied to the voice coil from behind the magnet and warm air is brought out of the voice coil through the ventilation ducts of the frame. (US Pat #7684585)
- Patented HAMR upper suspension, where the trajectory of the cone can be kept under better control than traditional suspension. (US Pat #8208677)
- Patented progressive lower suspension with integrated silver wires, which prevents possible mechanical interference sounds. (US Pat #6810988)
HAMR
High Amplitude Multi-Roll (HAMR) is Alpine's patented upper suspension. Compared to a traditional suspension, with a HAMR suspension, the trajectory of the cone stays much better linear, especially when at a higher volume the normal suspension starts to live a life of its own.
New cone
The cone material of the S-Series subbar is a combination of carbon fiber and polypropylene. Thanks to the light but sturdy cone, the reproduction of the eight-inch element reaches up to 35 hertz, producing a distortion-free and pleasant bass reproduction in its entire reproduction range, regardless of the music style.
Double coils and decent cooling
The Alpine S2-W8D2 has two 2-ohm voice coils. The subbar comes with "jumpers" that you can easily make the connection you want. The spring-loaded terminals are placed next to each other, which makes connecting even easier.
The perfect companion for S2 amplifiers
The best amplifier for the S-Series subwoofer is the Alpine S2-A60M mono amplifier from the same model series.
Freedom of choice
Make exactly the set you want for your car. S-Series subwoofers are available in 8″, 10″ and 12″ versions, and each of these is available in 2 x 2ohm and 2 x 4ohm models.
"Ace" family
In addition to subwoofers and amplifiers, Alpine's "ace" collection also includes very popular stand-alone sets and coaxial speakers. You can find all of these in the "Compatible products" section at the bottom of the page.
General
- Double voice coil (load can be changed with jumpers)
- Carbon fiber/polypropylene cone
- Polypropylene / ceramic dust cup
- High-Grade ferrite magnet
- Twist-Lock frame with which you get a stylish installation
- High-Amplitude Multi-Roll (HAMR) upper suspension
- Spring-loaded terminals (for up to 8mm² cable)
Technical information

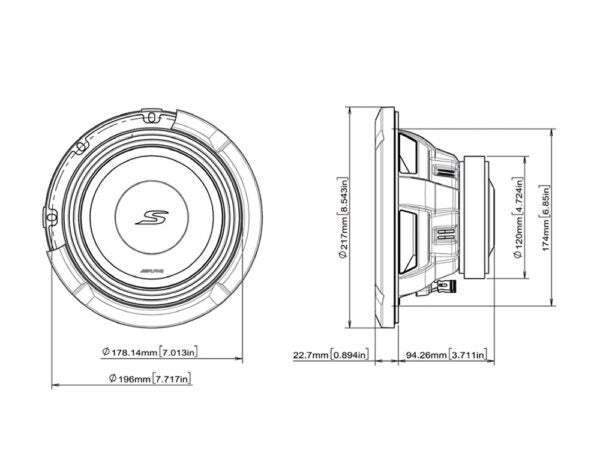

- Size: 8″
- Power consumption: 300W RMS / 900W Peak
- Impedance: 2 x 2ohm
- Playback range: 35Hz – 215Hz
- Sensitivity (1W/1M): 82.6dB
- Voice Coil: 1.4″
- X-Max: +/- 13mm
- Magnet: 34oz
- Case recommendation: 5.1 – 15 liters (closed)
- Case recommendation: 10.8 – 20.7 liters (reflex)
Eric from Alpine-USA presents the new S-Series subwoofers in more detail.
