Alpine SPC-R100-DU (Fiat Ducato)

Audio restrictions

The cockpit of the Fiat Ducato is not particularly optimal for good sound reproduction. The tweeter and mid-bass speaker are far from each other, and when most of the speech and singing sound comes from the door speaker, the driver's and passenger's feet usually cover the speaker. The Ducato's doors have no soundproofing at all, which causes problems for mid-bass reproduction, the door panel resonates more easily and, in addition, music can be heard very well outside the car, for example when listening to the radio at a campsite.

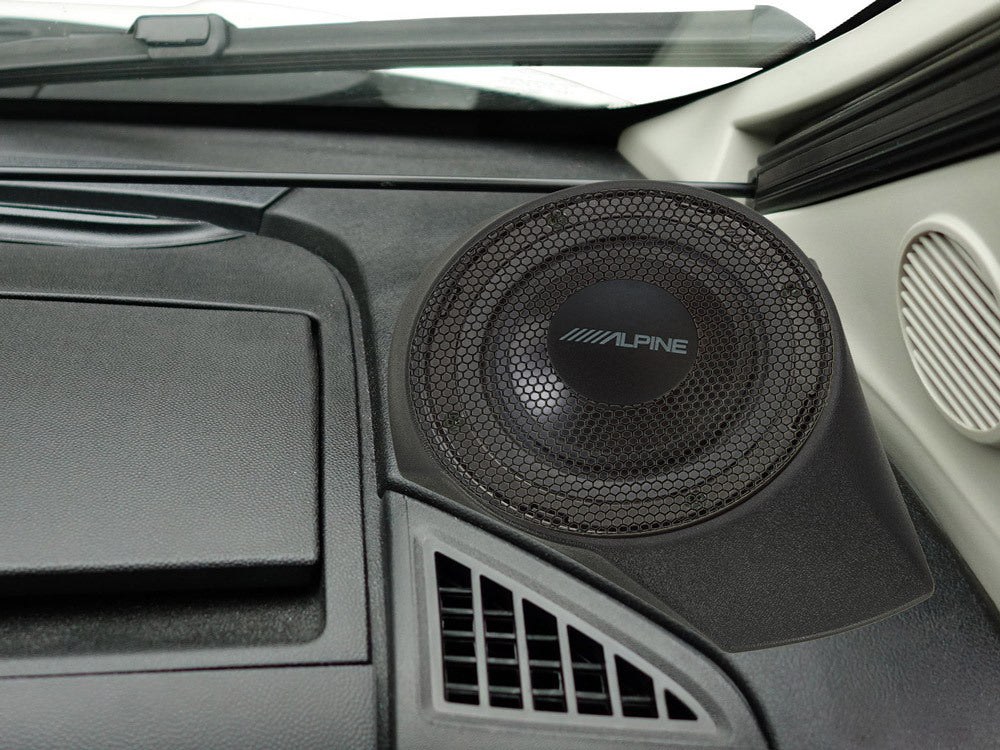

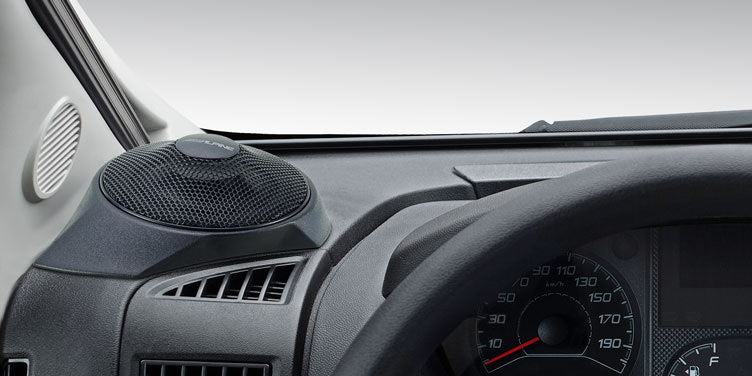

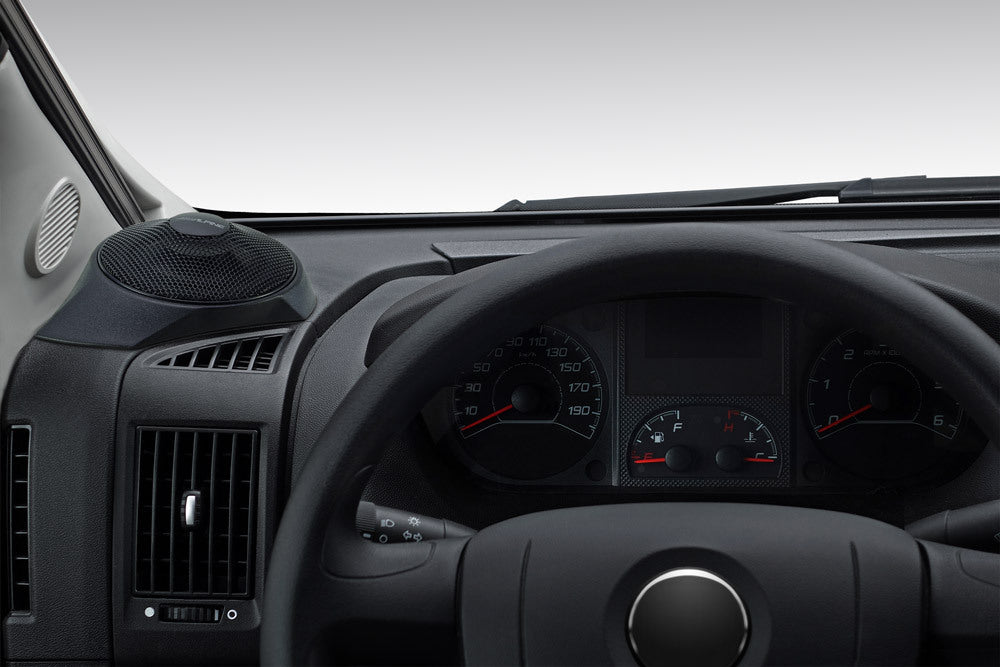

The SPC-R100DU speakers are placed on the dashboard, so the above problems can be avoided.

Surround speaker

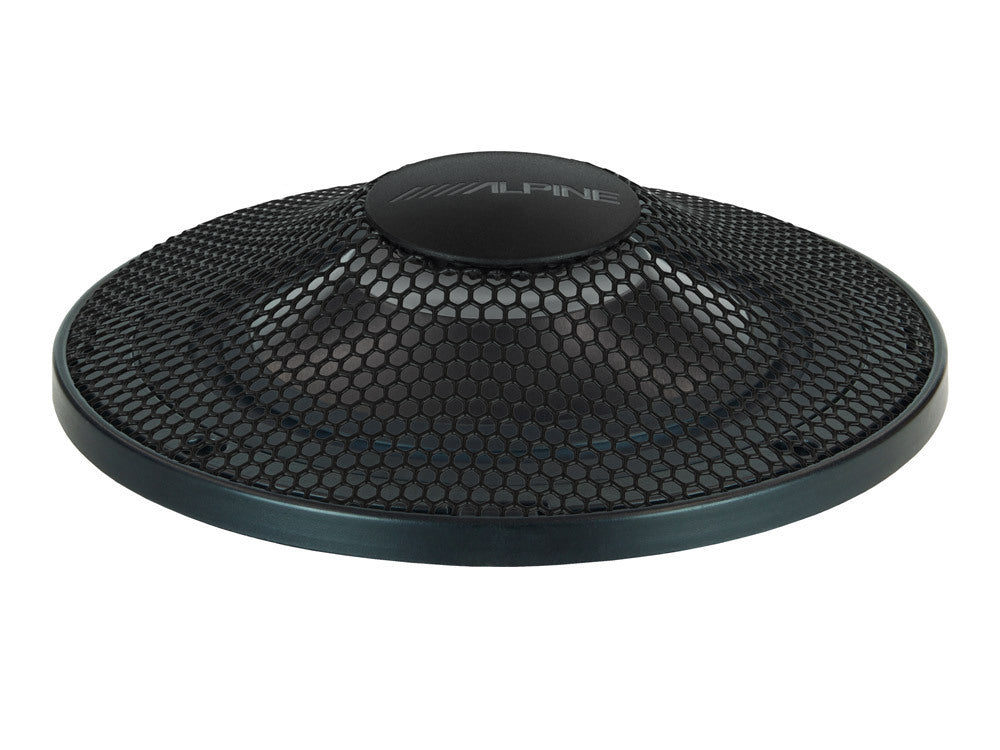

The 120mm radiating around the entire sound range is installed on the dashboard of the Fiat Ducato and the speakers replace the car's original tweeter. The speakers have an inverted cone that enables a 360° sound field to form. The speakers especially improve the frequencies of speech and singing. As a result, listening to news, podcasts and audiobooks in particular is more pleasant, but the SPR-R100-DU speakers bring balance and more detailed reproduction to music as well.

Easy to install

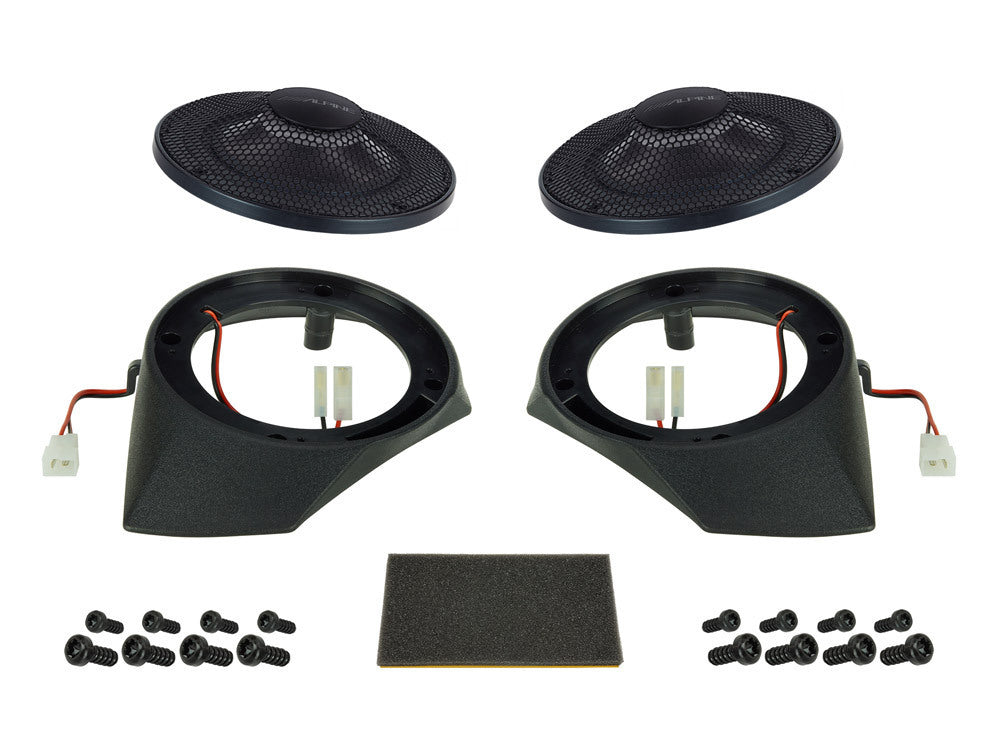

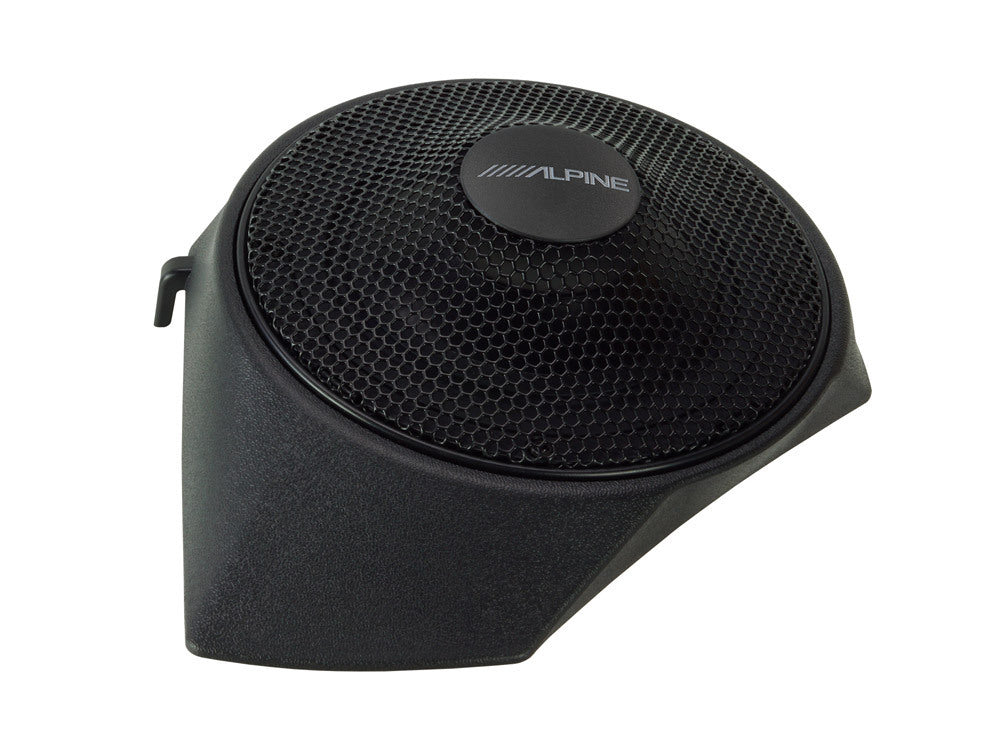

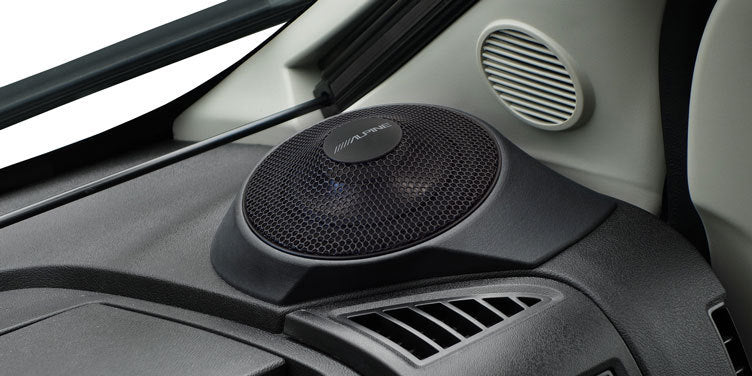

Installation of SPC-R100-DU speakers has been made easy. The included speaker adapter fits perfectly into the shape of the car's dashboard and is attached to it with screws. Since the speaker itself is very low, there is no need to make separate holes for the speaker in the dashboard for the speaker or its magnet. Speaker cable adapters are also included, with the help of which all the car's original connectors remain intact, and no cable has to be cut.

Compatible vehicles

SPC-R100-DU is made for Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 camper vans and vans. The speakers are also directly suitable for those cars with curtains for the windshield.

Also available:

Stage 2 – Front speakers + Subwoofer

If you want to add a subwoofer to your car, it can be done very easily. The Alpine SWC-D84S subwoofer fits perfectly under the cup holder of the Fiat Ducato. The eight-inch element does not require high amplifier power and the subwoofer can be connected to the rear speaker outputs of the Alpine player.

Stage 3 – Front speakers + Subwoofer + amplifier

In addition to the front speakers and subwoofer, Stage 3 includes a separate 150W amplifier for the subwoofer and a separate bass level control. The amplifier is very compact in terms of physical dimensions and can be installed hidden behind the car's center console. The amplifier comes with a Plug & Play cable set to connect the amplifier to the Alpine player.

Technical information

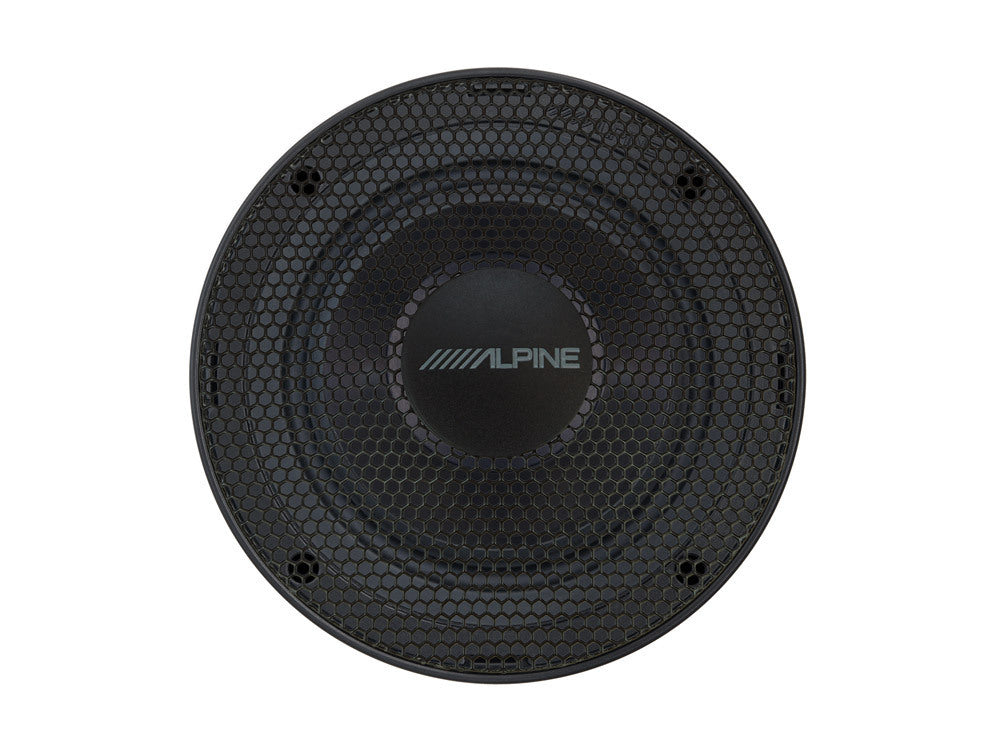

• 12cm surround sound speaker

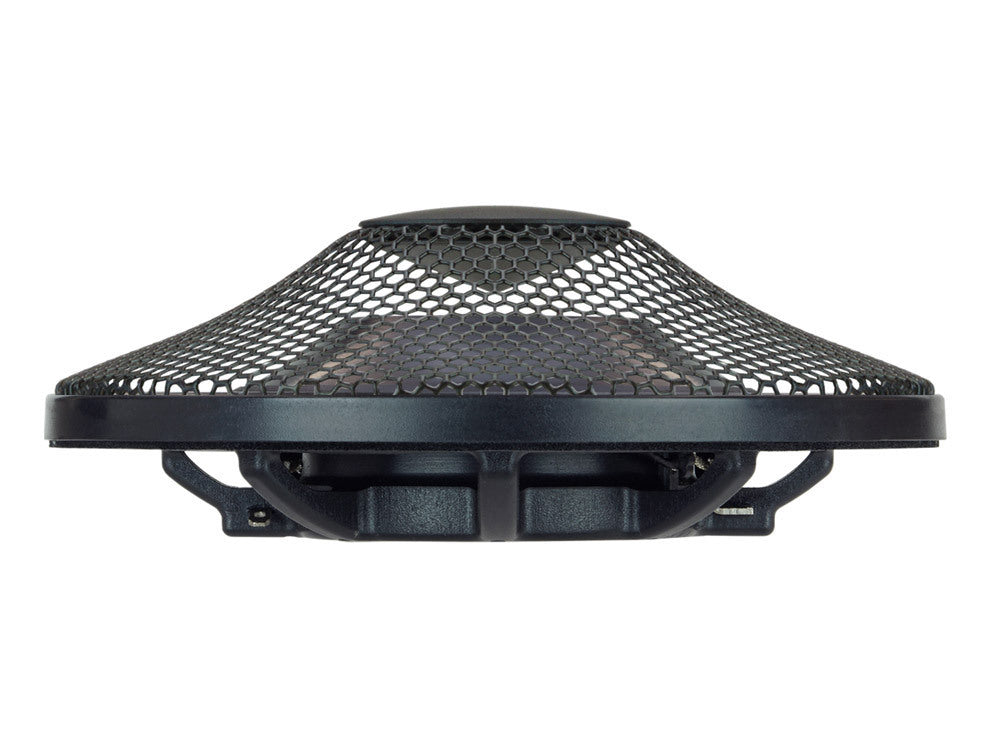

• Low profile
• 360° sound field

Installation

• Surface mounting adapters included
• Cord adapters included
• Includes all necessary installation accessories
• If a subwoofer and an amplifier are not installed in the car, the original door speakers will be left in use.

Power endurance

• RMS: 45W
• Peak: 180W

Dimensions

• Speaker outer diameter: 120mm
• Speaker immersion depth: 12mm
• Speaker height: 45mm

General

• Playback range: 100Hz – 20kHz
• Impedance: 4ohm
