Description

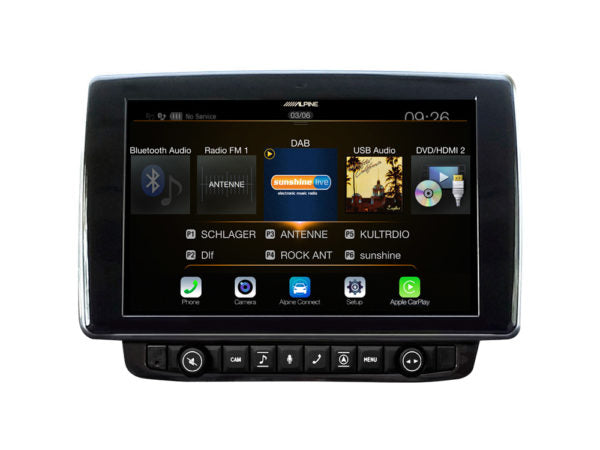

Navigation device made for Fiat Ducato III motorhomes
X903D-DU is designed for Fiat Ducato III (250/251 models), Citroen Jumper II and Peugeot Boxer II.
The player fits directly into the above-mentioned cars, which have a 1-DIN sized player installed at the factory or, alternatively, the car has come from the factory with a radio ready.
Cars with 2-DIN size factory-fitted radio VP1 or factory-fitted navigation device VP2, the original Fiat plastic frame is required.
Easy to use from the driver's seat
Ease of use is one of the most important things when driving a long distance and wanting to change radio channels or, for example, change the navigation destination in the middle of the trip. Alpine X903D-DU is designed so that the player can be used from the driver's seat without reaching.
New design, with new buttons
The renewed design includes rotary controls for volume and radio channels. The reversing camera can also be turned on while driving if desired, with one push of a button.
Control with the car's own steering wheel buttons
If your car is equipped with steering wheel buttons, these also work with the X903D-DU. You can perform basic functions without taking your hands off the wheel, such as muting the player, changing e.g. the program source or radio channel, adjusting the volume, etc.
One Look display
Alpine's innovative OneLook screen splits the screen in half. You can see navigation information and audio information at a glance. Therefore, choosing different views does not require jumping through different menus. You can switch from OneLook mode to full screen mode with a single swipe.
Add Alpine's HDR camera
The optional Alpine HDR reversing camera turns on automatically when reversing. You can also check with the camera while driving that all the items behind the car are in place or, for example, after passing, that it is safe to return to your own lane with one push of a button.
If the car already has a camera with an RCA connection, you can use it with an adapter.
Camera for Fiat Ducato
Alpine offers the KIT-R1DUC camera adapter, which is installed in place of the car's original additional brake light. Installing the camera does not require drilling extra holes in the car, instead the adapter is attached to the holes of the original brake light and there is no need to drill new holes for the camera cable. KIT-R1DUC is compatible with all Alpine reversing cameras.
If the car already has a camera with an RCA connection, you can use it with the AH-CAMA-ALP1 adapter.
Navigation software tailored for motorhomes
The X903D-DU contains maps of 48 European countries. iGo Primo nextgen navigation uses GPS and Glonass positioning, so the positioning information is very accurate. There are three years of free updates for TomTom maps (the counter starts from the first update or when the device connects to the satellites for the first time).
Vehicle information
You can choose from three different vehicle profiles (Small / Medium / Large) or enter the length, width, height and weight of the car. Alpine always takes these into account when calculating the route and calculates the route only according to roads and streets that do not have these restrictions.
3D maps and speed data
You can see the map in 3D format, and the outlines of buildings and landmarks are also visible on the map of the largest European cities. If necessary, you can also get the speed limits and speed camera information on the screen.
Campsites and other caravan sites
The X903D-DU recognizes hundreds of thousands of objects (gas stations, hotels, campsites, shopping centers, etc.) around Europe. If you want, you can import more POIs into the device as a .kml file.
Lane guidance
Clear lane guidance makes it easier to group up at intersections in advance.
Online navigation
The X903D-DU is compatible with Apple CarPlay and Android Auto*. This enables the phone's various navigation software (e.g. Google maps, Waze, Sygic, Apple Maps) to be used directly from Alpine's screen when the phone is connected to the player with a USB cable.
Entering the destination with coordinates
Many tourist destinations and attractions are far from main roads, and they may not have an exact address. However, you can use coordinates to navigate to any destination, even if there is no street address for the destination.
Park4Night inside
The X903D-DU has park4night data built-in. The database covers more than 120,000 destinations in Europe. You can search for a destination on Alpine's screen by category, country or region, or based on your route / destination. NOTE: In addition to campsites, park4night also shows bus parks.
All destinations have clear icons and, for example, opening hours and possible services of the campsite (e.g. WiFi, washing facilities, tank emptying, etc.) and you can see the distance to the destination, user reviews and even photos of the destination.
You can call a destination or start navigation with just one button press. The information is updated annually and the updates cover not only the items but also the updates of all reviews and comments. park4night is pre-installed on X903D-DU players purchased after 06/2020 and for older X903D-DU players it can be purchased afterwards.
Note: X901 and X902 players do not support the park4night function.
- Information stored in the device's memory, so you can browse information anywhere and anytime
- Updates can be downloaded annually
- Search for destinations by destination, location or your route
- Favorites function
- Shows the opening hours and enables e.g. to the destination of the call
- Easy to use
- Park4Night is ready for X903D-DU players purchased after 06/2020, and for older X903D-DU players, it will later be available for separate purchase.
TomTom maps, with three years of free updates
The most important aspect of navigation is its map database. Alpine X903D-DU contains maps of 48 countries, which are responsible for TomTom. You can update the maps free of charge for three years via alpine.naviextras.com. After free map updates, updates can be obtained through the same site for a fee.
Travel comfort
Compatibility with different phones and expandability with different accessories brings comfort on long trips. Power Saving Mode is also a new feature: When you turn off the Alpine with the remote control, for example, from a sleeping position, the player's power consumption drops to a minimum and the player's standby mode does not drain the battery.
DAB/DAB+ Digital radio
The built-in DAB/DAB+ tuner uses advanced digital technology that guarantees interference-free radio broadcasts. Compared to traditional FM radio, DAB radio also brings several additional functions and significantly more radio channels. You can search for radio channels in alphabetical order or, for example, by program type.
NOTE: DAB broadcasts are not available in Finland!
Bluetooth
Built-in Bluetooth creates a wireless connection between your phone and your player. Logical user interface, call management, wireless music playback and all of this available directly from the touch screen.
Android Auto* and Apple CarPlay
X903D-DU supports Apple CarPlay and Android Auto*. This offers an easy and road safety-enhancing way to manage calls, use navigation, receive messages, etc. while driving.
The Apple CarPlay information page can be found here.
The Android Auto information page can be found here.
Connect up to three cameras!
The optional KCX-C250MC allows up to three cameras to be connected to the player. The cameras are controlled from the touch screen. Alpine has cameras for the front, back and side, and you can also get cameras with a very wide viewing angle, whose viewing angles you can change directly from Alpine's screen.
If the car already has a camera with an RCA connection, you can use it with the AH-CAMA-ALP1 adapter.
Connection for amplifiers
KTX-PRE1 front, rear and subwoofer line output sold separately.
Technical information:
-
Radio
- Memory location: Preset Stations (FM: 12 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Search method: Local / DX
RDS
- RDS functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
(DAB broadcasts are not available in Finland)
-
BLUETOOTH®
- Built-in BLUETOOTH®
- HFP (Hands-Free Profile)
- Music streaming: A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5
- Pairing: SSP (Simple Secure Pairing)
- Possibility to connect two phones at the same time, one HF and the other for music streaming
- Phone book synchronization
- Speed dials: 4 pcs (per phone)
- Multiple number management: 5 different numbers can be stored under the same name
- Automatic reply
- Call History: Outgoing / Incoming / Missed
- Replay
- Volume control (outgoing / incoming sound)
- DTMF (Touch-Tone) function
- Signal strength indicator
- Battery charge level display
- Menu: 24 languages
- The software can be updated
- Integrated microphone
Made for iPod® / iPhone®
- iPod/iPhone compatibility: Made for iPod touch 6th/5th Gen., iPod nano 7th Gen., iPhone X, iPhone 8 and 8 Plus, iPhone 7 and 7 Plus, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5 , iPhone 4s
- Music playback
- Functions: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabetical search
- Cover art display (Only when connected with a Lightning cable)
- Next / Previous: Playlist / Artist / Album / Genre / Composer
- MIX (Shuffle) playback: Song, Albums, All
- Reiteration
- Battery charging
Navigation
- 48 countries (Western and Eastern Europe)
- Languages: 29 different languages (including Finnish
- Voice guidance: 29 different languages (including Finnish), 15 Text-to-Speech languages (TTS) (not Finnish)
- Advanced Address Search
- Postal code search
- Free search
- Search by partial name
- Advanced POIs
- Smart Routes: Smart Routes takes advantage of previous driving routes and driving times
- Advanced route planning
- Eco route search
- 7 different alternative routes
- TMC (Alpine does not support Finnish TMC)
- Map views: 2D direction of travel, 2D north at the top, 3D
- 3D city view: 3D buildings / icons
- Elevation view: 3D maps with elevation curves
- 3D motorway junctions
- Lane guidance
- Tunnel mode
- Motorway mode
- Mixing of the guidance voice
- Text-to-Speech
- Direct phone option at POI destinations
- 3 different sensors: GPS, acceleration sensor, car speed information
Caravan functions of navigation
- Navigation takes into account the following points in route calculation: Prohibited areas for parcels and trucks, U-turn restrictions, restrictions for trailers and caravans, length restrictions, width restrictions, weight restrictions, height restrictions, height and width restrictions for tunnels and bridges, maximum permitted weight restrictions
- The software covers the following countries: Andorra, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United Kingdom
USB
- Audio and video playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV
- File / folder search
- Tag search
- Folders Up / Down
- MIX mixed play
- Replay
Sound Tuning
- Bass Engine SQ
- Bass Engine™ Pro
- Subwoofer level control
- Subwoofer phase reversal
- 2 V High Voltage line outputs (3pr) Requires KTX-PRE1 cable
- EQ: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- Dual HD EQ (9-band parametric equalizer front/rear)
- 6 channel delay controls
- Distribution filters
- Car-specific adjustments
- Media Xpander HD
- Volume level control of different program sources
- Easy, Step-by-Step adjustment
- Alpine TuneIt App compatible
General
- 4 x 50W High Power Amplifier
- Advanced Power IC
- Display: 9'' capacitive WVGA High Resolution Display
- 50/50 Split Screen: Left / Right switchable
- 3 line outputs (2 V, Front / Rear / Subwoofer) Requires KTX-PRE1 cable
- AUX-In: 1 A/V AUX input (RCA)
- Compatible with steering wheel buttons
- A wireless remote control is available as an accessory
- Connection for reversing camera & Multi-View camera control from the screen
- Adjusting the camera guide lines
- Automatic camera screen
- Live contrast adjustment
- Menu languages: 24 languages (AV / Bluetooth), 29 languages (Navigation)
- Automatic dimming
- Anti-theft security code
- The software can be updated
- Integrated microphone
- Remote Turn-On
- HDMI input (for Alpine Special HDMI cable)
- Compatible with Start-Stop cars
- Steering wheel remote control adapter included
- Ready for DVD player DVE-5300
Map updates
- Updates: alpine.naviextras.com
- TomTom maps
- 3 years of free map updates
Installation
- All mounting hardware, wiring harnesses and steering wheel remote control adapter included for a complete installation
MORE SPECS
Display
- 9″ capacitive WVGA
- LCD: Transparent Type TN LCD
- Operation: TFT Active Matrix
- Number of pixels: 1,152,000 (800 x 3 x 480)
- Lighting: White LED backlight
- NTSC / PAL
Amplifier
- Max Power: 4 x 50 W
FM radio
- Frequency range: 87.5 – 108.0 MHz
- Mono sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB attenuation sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternative channel selection: 80 dB
- Signal to noise ratio: 65 dB
- Stereo separation: 35 dB
USB
- USB 2.0
- 1,500mA (CDP Support)
- USB type: Mass Storage Class, Play From Device
- Stick initialization: FAT 16/32
- MP3 decoding: MPEG-1/2 AUDIO Layer-3
- WMA decoding: Windows Media™ Audio
- AAC decoding: ACC-LC format ".m4a" file
- Flac support
- USB video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
- Number of channels: 2 (Stereo)
- Playback range: 5 – 20k Hz ±1 dB *The playback range varies depending on the used encoding and bit stream
- Harmonic Distortion (1kHz): 0.008%
- Dynamic range (at 1kHz): 95 dB
- Signal to noise ratio: 100 dB
- Channel separation (at 1kHz): 85 dB
GPS
- GPS Antenna: Micro-strip Planar Aerial
- Reception frequency: 1575.42 ±1 MHz
- Reception sensitivity: -130 dB Max
- Reception type: 12 channels
BLUETOOTH®
- Bluetooth V3.0+EDR
- Power: +4 dBm Max. (Power class 2)
- HFP: HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- AVRCP: AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
Sound control
- Subwoofer level adjustment: 0 to +15
- Subwoofer phase shift: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- High-pass filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- High pass filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- High pass filter (Gain): -12 to 0 dB
- Low-pass filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- Low-pass filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- Low pass filter (Gain): -12 to 0 dB
- Time delay settings: 0.0 – 9.9ms (0.1ms steps)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 – 100 Hz
- Parametric Equalizer (Band 2): 63 – 315 Hz
- Parametric Equalizer (Band 3): 125 – 500 Hz
- Parametric Equalizer (Band 4): 250 – 1k Hz
- Parametric Equalizer (Band 5): 500 – 2k Hz
- Parametric Equalizer (Band 6): 1k – 4k Hz
- Parametric Equalizer (Band 7): 2k – 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k – 12k Hz
- Parametric Equalizer (Band 9): 9k – 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Program source level adjustment: -14 to +14
HDMI Section
- In: 720p/480p/VGA
- Out: 480p
General
- Operating voltage: 14.4 V. DC (11-16V)
- PreOut output: 2 V / 10k ohms
Dimensions and fit
- Dimensions (W x H x D) mm: 178 x 50 x 164 mm
Compatible cars
Fiat Ducato III (250) 06/2006 →Fiat Ducato III Facelift (250) 2011 – 2014Fiat Ducato III (290) 2014 →Citroën Jumper II (250) 06/2006 →Peugeot Boxer II (250) 2011 – 2016Note: The player fits directly into cars with a factory-installed 1-DIN radio or the car came with radio readinessNote: Cars with a factory-installed 2-DIN radio VP1 or a factory-installed 2-DIN navigation VP2 require the original Fiat plastic frame.
*)Installing Android Auto
Android Auto is pre-installed in Android 10, Android 11 and Android 12 operating systems. If you are using Android 9 or an older version, you need to install Android Auto on your phone manually.
Team #peränurkka has made a detailed video about the installation.
Software update:
An update that brings camera pole warnings to your player.
Download the installation instructions here.
Download the update file here.
DVR-C320S compatibility
This player is compatible with the Alpine DVR-C320S dash cam. You can watch the camera recordings on the player's screen and you can change all the camera's settings on the touch screen.
