Description
BLAM 165RS-W447 (MB VITO)
BLAM 165RS-W447 is a separate kit designed and assembled in Finland for Mercedes Benz Vito (W447) and Mercedes Benz X (WDB 470) 2017->.
The starting point of the speaker set is the very popular 6.5" separate set 165RS from the French BLAM, which has been modified so that the set can replace Vito's original speakers
6.5″ midbass
Installing the speaker set does not require any modifications to the car or the car's structures, but all components fit 100% directly in place of the original speakers and using the original connectors.
The 6.5″ midbass has a paper pulp cone, butyl rubber suspension and an efficient 85 x 17mm magnet. These guarantee high power durability and 93dB sensitivity.

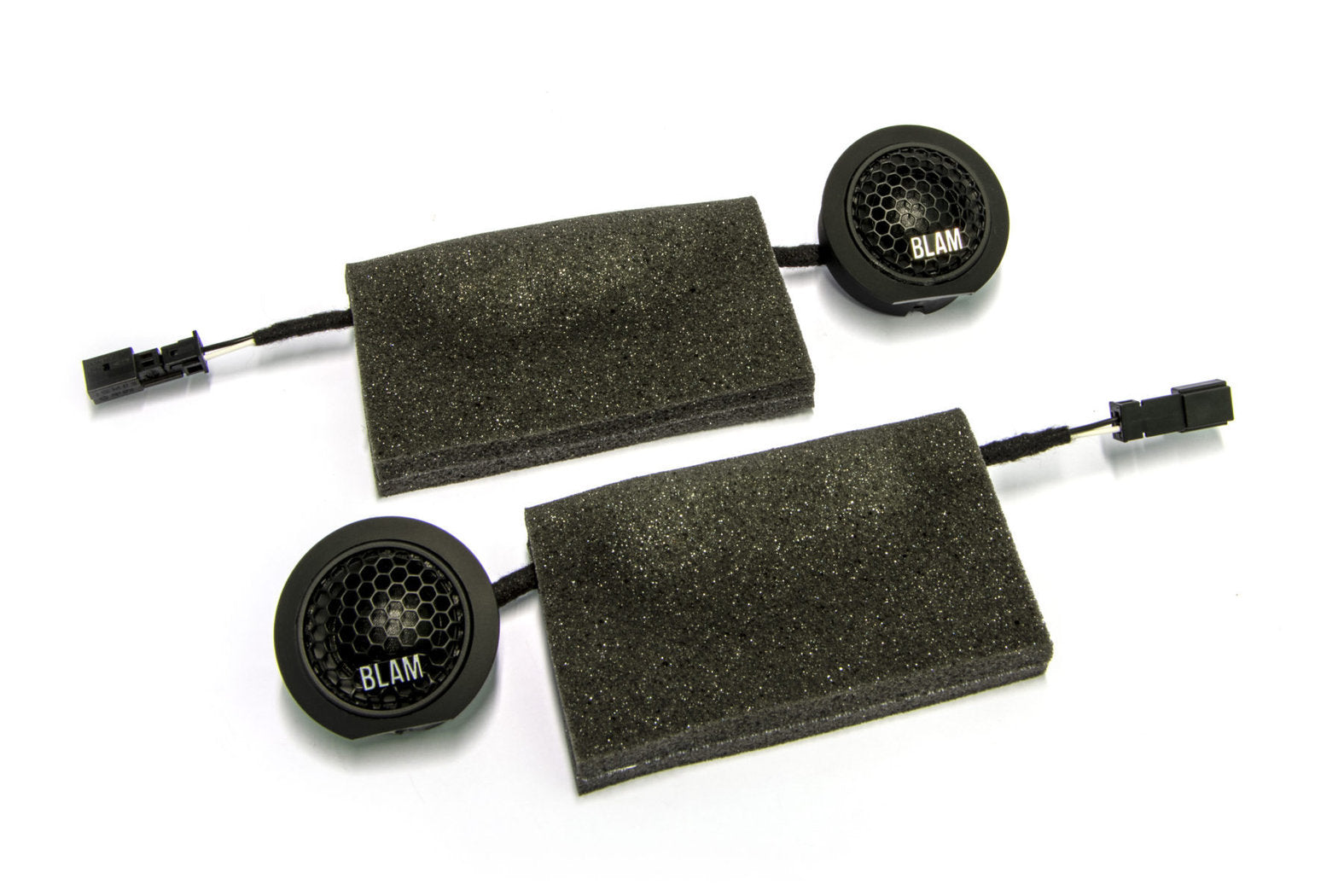

20mm Treble
The tweeter is a fabric dome tweeter equipped with a 20mm copper/aluminum voice coil and a neodymium magnet, which fits directly in place of the MB Vito's original tweeter.
Distribution filters
The crossover filters of the separate series are integrated into the cables of the tweeters.
Technical data of the speaker set
- 6.5″ (165mm) separate set
- Fits perfectly MB Vito 2014-> (body model W447)
- Fits perfectly MB X 2017-> (WDB 470)
- Between tweeter cable 6dB/oct with crossover filter level adjustment (-3dB)
- Fabric tweeter with 20mm voice coil
- Sensitivity: 93dB (2.83V/1m)
- Playback range: 60Hz – 20kHz
- Power consumption RMS / Max: 75W / 150W
The loudspeakers of the BLAM Relax collection make it possible to raise the sound quality to a new level at relatively low costs. The speakers of the Relax collection have two ohm voice coils and very high sensitivities (165RS sensitivity 93dB). Thanks to this, the speaker does not require a large amplifier power behind it and thus the BLAM Relax collection is an excellent choice even for those cars where the original player is not replaced.
Auto-Hifi.ru's thoughts on the BLAM 165RS series, freely translated:
"I'll start with an estimate of the bass side. There are enough low frequencies and, for example, even the lowest notes of the double bass are repeated, which almost all loudspeakers cannot do"
"Then that middle voice! I got so hooked on this that I forgot to enjoy the music for an hour and a half, instead of the originally planned ten minutes!”
"The tweeters accurately reproduce everything."
"In summary, a very warm and beautifully sounding middle voice and the highest notes. And an hour and a half listening session instead of the planned 10 minutes, probably says enough. Because listening to this series is really pleasant. REAL RELAX”
Total:
Sound: 10
Scene: 9
Sensitivity: 9
Volume: 8
Bass potential: 9
AFC: 9.5
Ease of installation: 8.5
Stop by and read a comprehensive article about the series yourself
https://auto-hifi.ru/autozvuk/2017-06-11.html
We recommend the CTK Doorkit with this speaker set, which you can use to easily dampen the front doors when installing the speakers.
