BLUESOUND PULSE SUB+

A wireless subwoofer that you can connect to almost all Bluesound products

Take your listening experience to a new level with the wireless PULSE SUB + subwoofer. It is designed for use with Bluesound wireless speakers, amplifiers and streamers. This subwoofer features an 8-inch woofer and an intelligent DSP amplifier to deliver 150 watts of deep, detailed bass reproduction without distortion. Its sleek, compact design and wireless connectivity give you unlimited flexibility, while the BluOS app lets you connect and set up in minutes.

• Designed for use with Bluesound wireless speakers, soundbars or streamers *
• 150 watt amplifier that adds deep bass to music, movies and games
• 8 inch woofer driven by an intelligent DSP amplifier for controlled distortion-free sound
• With wireless technology, you can place the subwoofer anywhere without worrying about the signal cable, the device only needs a power connection

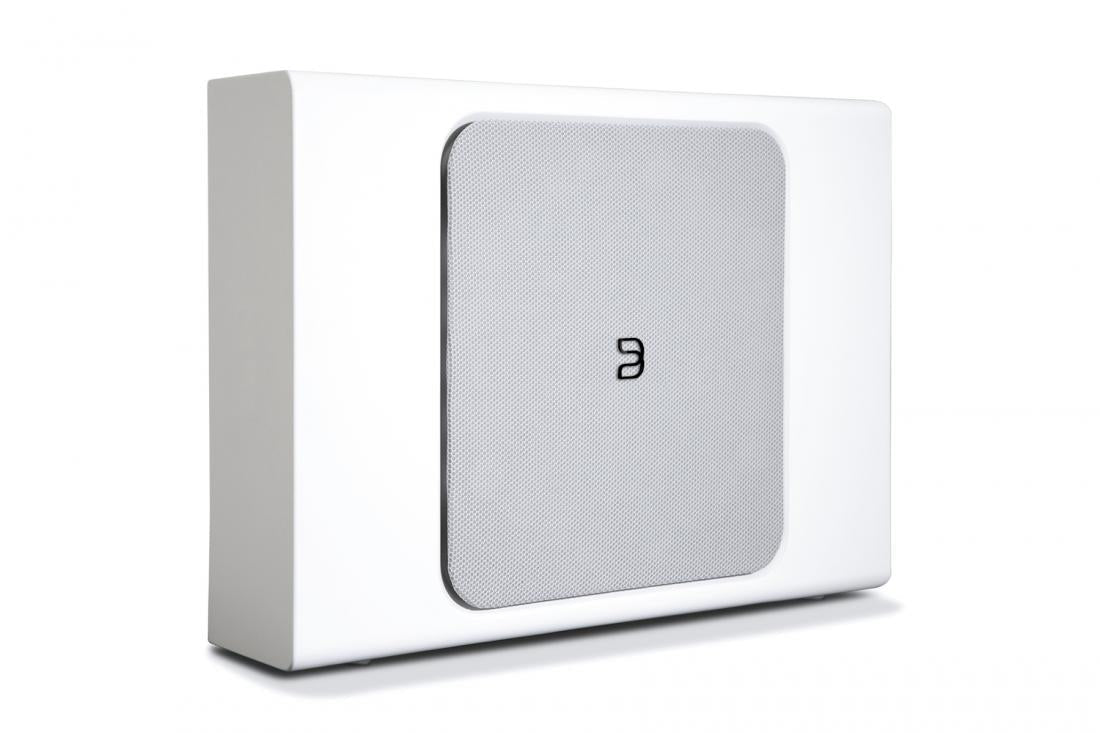

• Stylish and compact to fit next to, behind or under furniture
• Pairing and installation is easy in a few minutes with the BluOS Controller app

* 2nd generation Bluesound models or later

Technical information:

General

• Indicator light: adjustable LED
• Processor: ARM® Cortex™ -A9, 1GHz
• Wireless WiFi: 802.11ac, dual-band

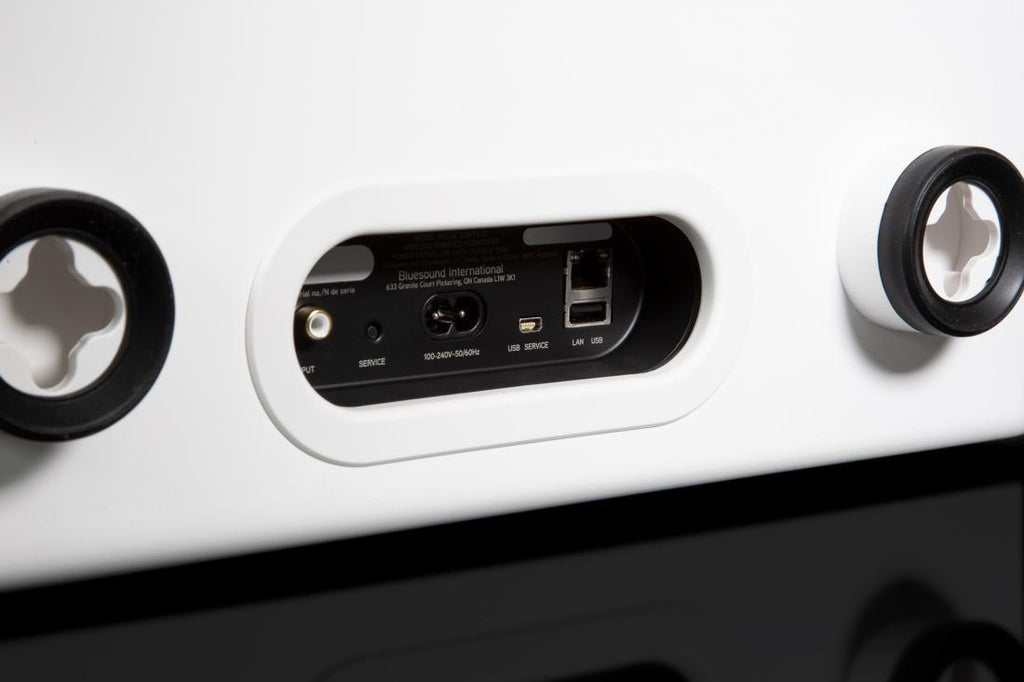

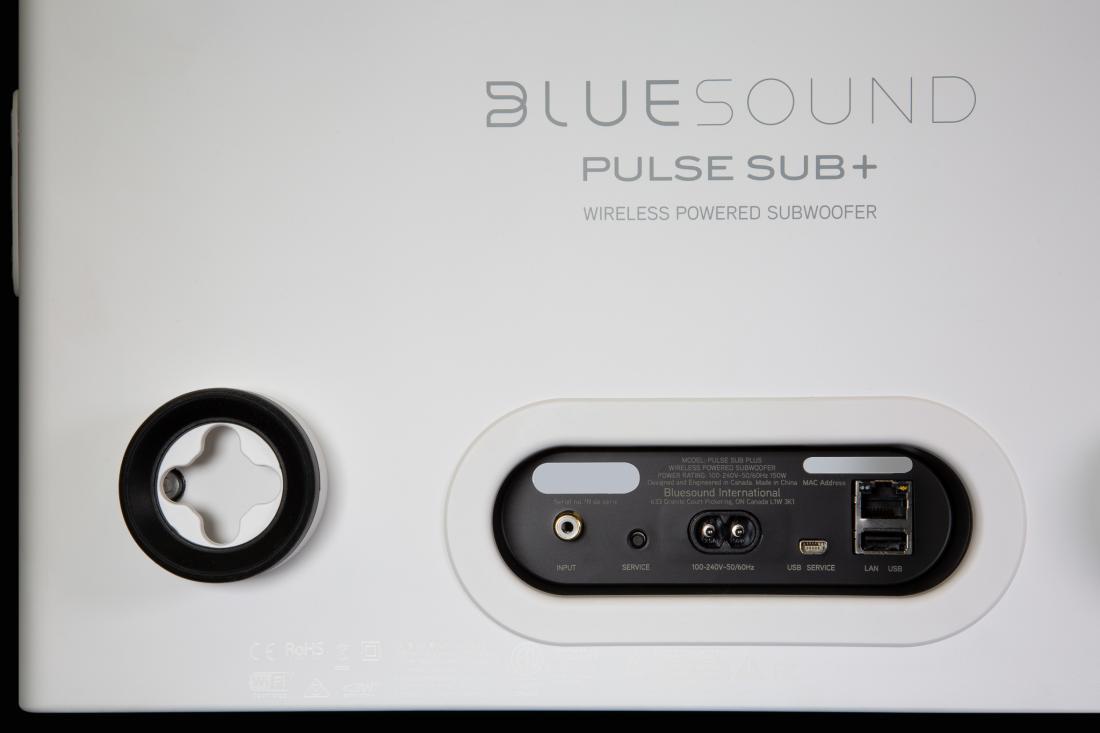

• Ethernet/LAN: Ethernet RJ45
• Analog input: Mono line level input
• USB: Type A (for updates); Type B (mini) for maintenance

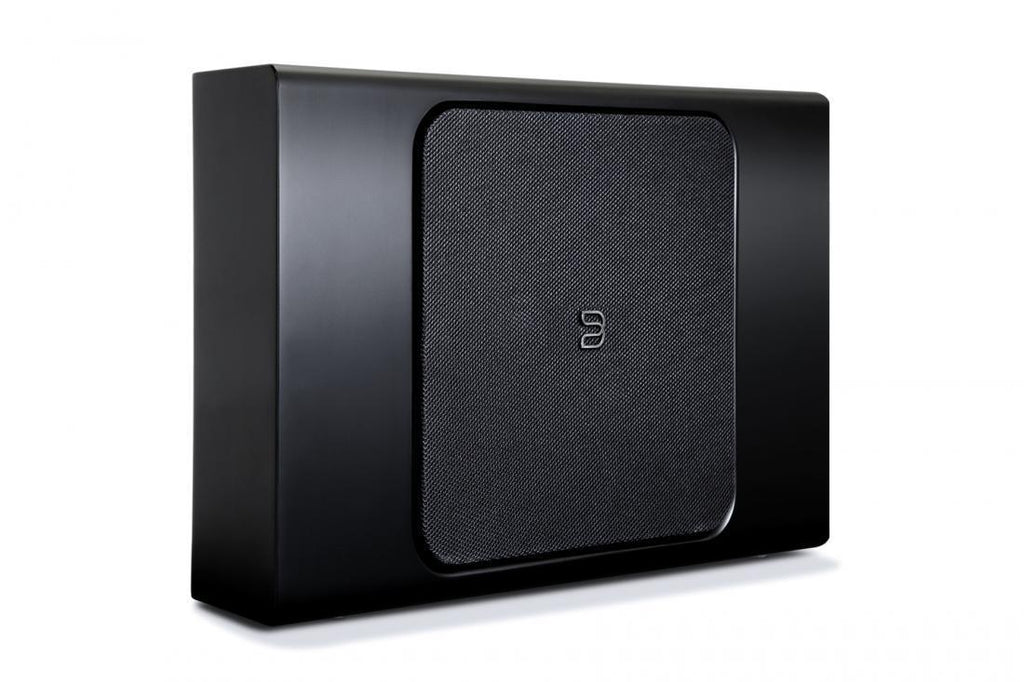

• Finish: matte white or matte black
• Included accessories: power cord, insulating rubber feet, wall bracket, safety/warranty guide, Quick SetUp Guide

Amplifier:

• Continuous power: 150 W
• Dynamic Peak power: 200 W
• Operating principle of the amplifier: Smart DSP amplifier, Class D Type
• Power consumption: 0.5 W Network Standby

Frequency response:

• On Axis @ 0°±2dB: 22Hz to 150Hz
• LF Cutoff -10dB: 20Hz

Acoustic design:

• Bass driver: 203 mm / 8” Polypropylene cone, rubber suspension
• Splitter: 50Hz - 150Hz, with LFE setting

User interface

• Mobile: BluOS - Free Android and iOS application available on Google Play and Apple App Store
• Settings:
• Strength +/-
• Adjustable dividing frequency
• Adjustable phase
• Buttons:
• Volume +/- functions

Dimensions

• Size: 457 x 300 x 146mm (W x H x D)
• Weight: 8.3 kg (without legs and wall bracket)
