BRAX MATRIX ML165 PRO

BRAX MATRIX ML165 PRO

• 6.5″
• high-end midwoofer
• 170W
• 4 Ohms

The legendary BRAX MATRIX speaker series, which has been synonymous with top-notch sound quality for many years, has now been expanded with the ML165 PRO model.

Developed and manufactured with the same uncompromising care as all other BRAX speakers.

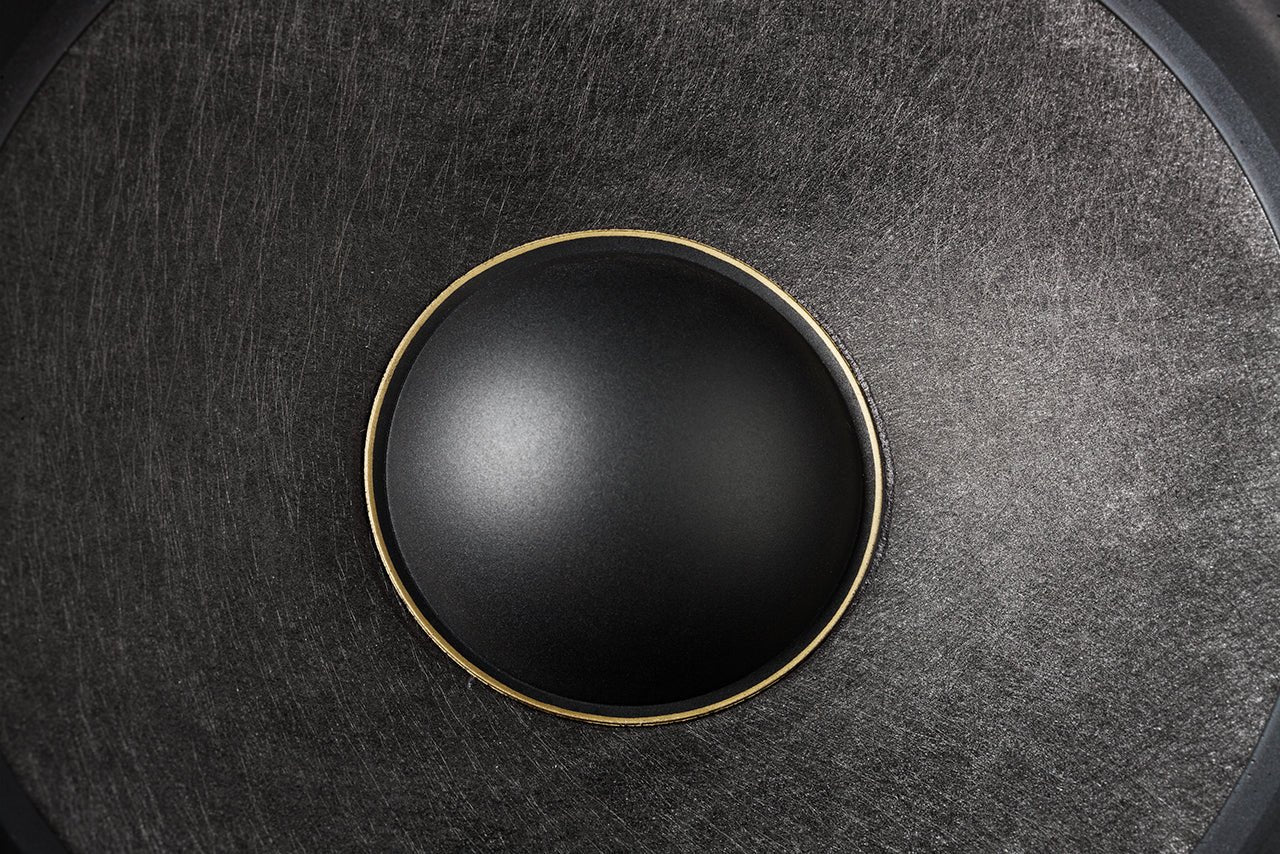

The ML165 PRO's cone was designed and manufactured in close collaboration with renowned expert Dr. Kurt Müller. Its layered carbon fiber construction combines extreme stiffness with minimal mass, effectively reducing unwanted resonances.

The new aerodynamically designed open cast aluminum frame allows for ideal voice coil cooling and reduces annoying blowing noises caused by air movement.

Specifications:
Technical data
Power handling RMS / max. P 120 / 170 Watts
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 40 Hz to 4,000 Hz
Resonance frequency Fs 48 Hz
Mechanical Q factor Qms 6.80
Electrical Q factor Qes 0.50
Total Q factor Qts 0.47
Compliance Cms 560 μm/N
Equivalent air volume Vas 14.6 L
Force factor B*I 6.3 Tm
Sensitivity SPL 91 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 137 cm²
Moving mass MMS 19.1 g
Cone material Carbon fleece multilayer cone
Mechanical resistance Rms 0.87 kg/s
Voice coil diameter ø 37 mm / 1.5″
Voice coil winding height 14 mm / 0.6″
Max. linear excursion Xlin +/- 4.0 mm
Max. mechanical excursion Xmax +/- 8.0 mm
Outer diameter ø 167 mm / 6.5″
Installation diameter ø 143 mm / 5.6″
Installation depth 64 mm / 2.5″

Recommended installation options
a. Infinite baffle
Recommended highpass filter 50 Hz / 24 dB/Octave
“Linkwitz-Riley”

b. Sealed box
Net volume 13 L
Lower limiting frequency (-3dB) 71 Hz
Recommended highpass filter 65 Hz / 24 dB/Octave
“Linkwitz-Riley”

Scope of delivery
2 x High-End Woofer BRAX MATRIX ML165 PRO
1 x Drill
1 x High quality screwdriver
1 x Stainless steel screws
1 x Certificate
1 x Data sheet
