The car model-specific reversing camera is installed in the place of the car's original additional brake light. The additional brake light camera is IP68 protected, so the camera is completely dustproof and can withstand high-pressure water jets.

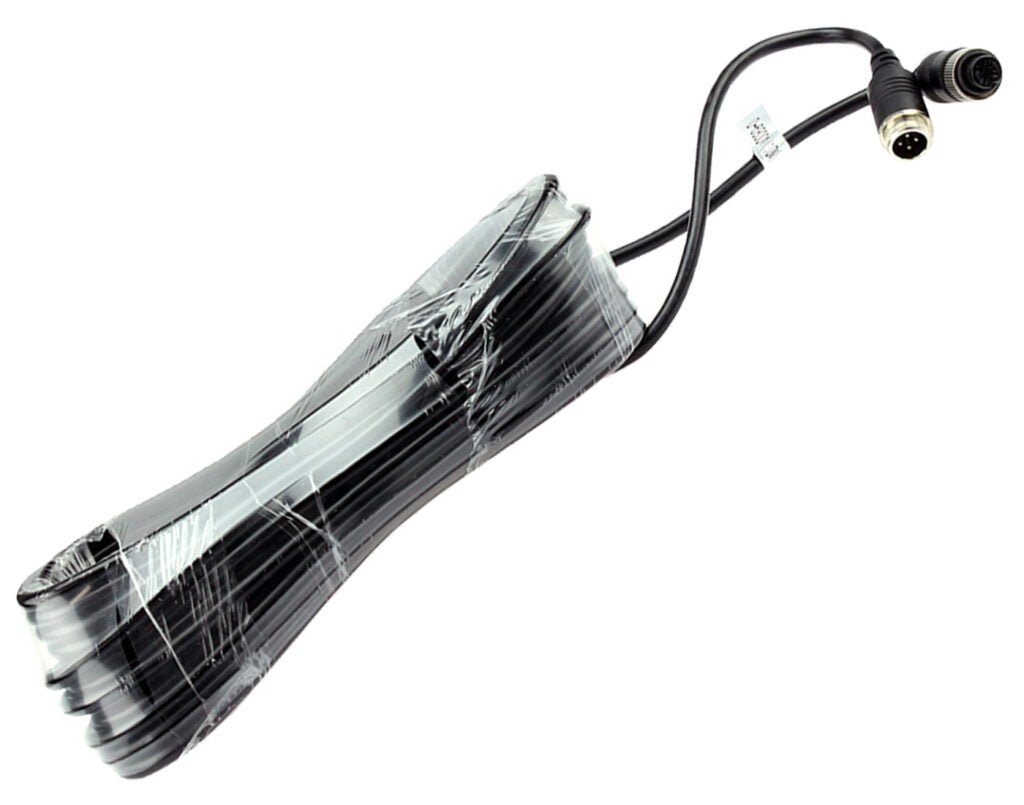

The camera has a fixed 65cm cable with a multi-pole connector and a 10m cable is delivered with the camera, which can be used to connect the camera to e.g. an Alpine player or a separate monitor.
The camera has infrared LEDs, so the camera can produce an image even in complete darkness (0 lux)
- Reversing camera with additional brake light
- Viewing angle: 170°
- 1/3″ CCD sensor
- IP rating: IP68
- Infrared LEDs: Yes
- Minimum lux: 0
- Night Vision view: 10 meters
- Resolution: 976 x 494 NTSC, 976 x 596 PAL
- 10m cable included
- Operating voltage: 12 volts
- Voice: Yes
Compatibility:
Installation:
- Remove the car's original additional brake light and disconnect the cable for the additional brake light
- Connect the cable to the CAM-FD7 camera and test the operation of the brake light
- Connect the included extension cable to the camera's fixed cable and install the additional brake light camera in the place of the original brake light. Make sure no wires are kinked or pinched.
- Black wire = Ground
- Red wire = Current from the reversing light
- Yellow RCA cable = to the reverse camera connection of the player / monitor (if you use an Alpine player with a Direct camera connection, you need this adapter)
- If you also want to use the sounds, connect the white RCA to the audio input of the player / monitor.
