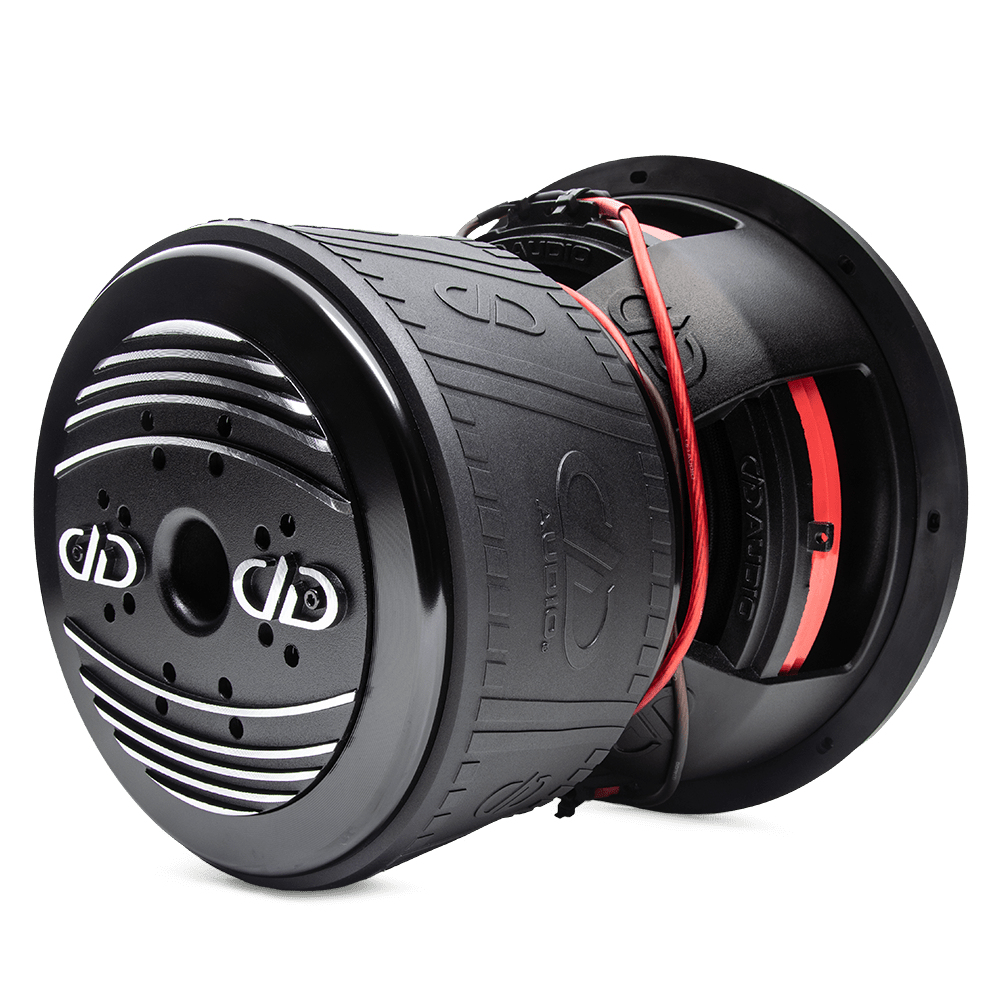

DD audio 812f-D2

DD audio 812f-D2

The new 800f series offers a selection of DD AUDIO's sturdiest subwoofers with astonishingly high power endurance, and because of this, they are suitable for even the most brutal use!

HEAT TRANSFER
The ″F″ series subwoofers are designed to significantly improve heat transfer. The two-stage aluminum cooling element conducts the heat away from the moving parts together with the ″Free Flow Cooling System″ much better than the traditional engine design.

MORE XMAX
Compared to the old d-series, the top plate and voice coil of the elements have been increased, with which the model series offers an even bigger range of motion = MORE BASS!

With the increased range of motion, the suspensions of the elements have also been designed to meet the new requirements. A higher top suspension attached to the cone with double stitching. The multi-layer lower suspension guarantees the element better control, tighter bass and longer durability.

The new Redline 800f series is available with 2x1 or 2x2 ohm voice coils. The coil diameter is 4″. 12″, 15″ and 18″ elements are available.

Technical information:
- 12″ subwoofer
- 4″ voice coil wound of Made in USA wire
- 2x 2 ohms
- alucast frame with dd logos
- power handling 2500 W RMS, 7500 W Peak
- weight: N/A
- mounting diameter: 288 mm
- mounting depth: 279.4 mm
- x-mech: 100 mm
- x-max: +- 31 mm
- fs: 34 Hz
- qts: 0.548
- left: 18.84 Liter
- recommended ported enclosure: 49-85 liter ( NET )
- recommended sealed enclosure: N/A
