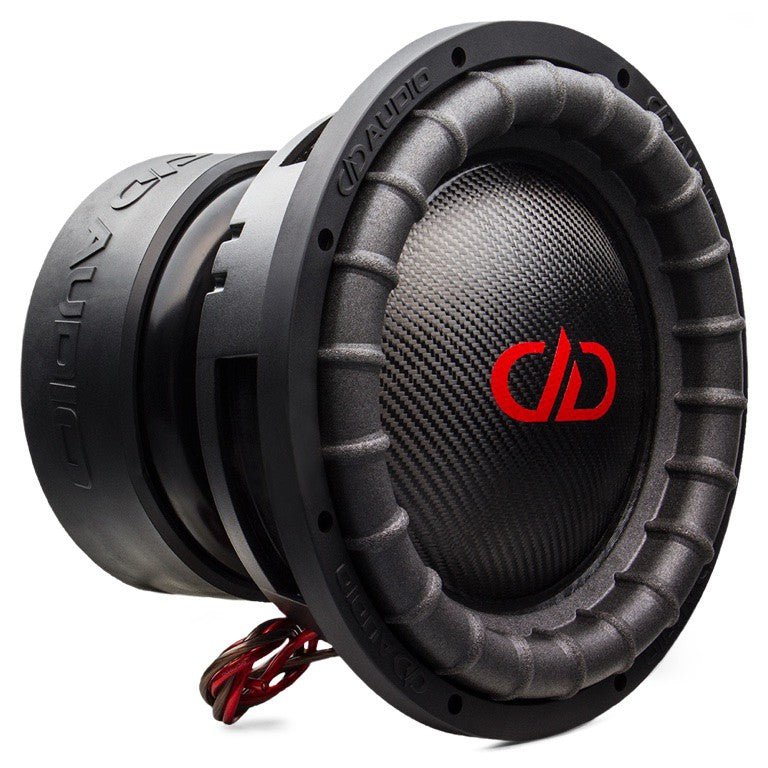

The elements of DD Audio's 9500 series are ones that other manufacturers try to copy. However, without success. You can supply 1000-2000 watts of continuous power and up to 8000 watts of instantaneous power to these elements. Multiple bottom suspensions, Free Flow cooling, voice coils wound in eight layers, EROM and V-Rom suspensions and a 28 mm ventilation hole in the central pile ensure that the element lasts and works and receives even higher powers without stuttering.
This element uses an ESP structure ( Evolution Subwoofer Performance ) which includes, among other things, lower suspensions with a larger diameter, a body with the depth required by the movement path, and an upper suspension and cone structure that differs from normal model series. ESP elements are built to achieve maximum performance in their size class.
Handmade in USA.
Technical information: -12″ subwoofer - cast frame - 2 x 2 ohm voice coils - 3.35″ voice coil diameter - driver displacement: 7.9 liters - recommended ported enclosure 50-77 liters (NET) - power handling 2000 W RMS - Peak power handling 8000 watts - x-max: +- 22 mm - xmech: 100 mm - qts: 0.662 - Fs: 37.68 Hz - Left: 26.31 liters - mounting depth 248 mm - Cutout diameter 310 mm.
The elements of DD Audio's 9500 series are ones that other manufacturers try to copy. However, without success. You can supply 1000-2000 watts of continuous power and up to 8000 watts of instantaneous power to these elements. Multiple bottom suspensions, Free Flow cooling, voice coils wound in eight layers, EROM and V-Rom suspensions and a 28 mm ventilation hole in the central pile ensure that the element lasts and works and receives even higher powers without stuttering.
This element uses an ESP structure ( Evolution Subwoofer Performance ) which includes, among other things, lower suspensions with a larger diameter, a body with the depth required by the movement path, and an upper suspension and cone structure that differs from normal model series. ESP elements are built to achieve maximum performance in their size class.
Handmade in USA.
Technical information: -12″ subwoofer - cast frame - 2 x 2 ohm voice coils - 3.35″ voice coil diameter - driver displacement: 7.9 liters - recommended ported enclosure 50-77 liters (NET) - power handling 2000 W RMS - Peak power handling 8000 watts - x-max: +- 22 mm - xmech: 100 mm - qts: 0.662 - Fs: 37.68 Hz - Left: 26.31 liters - mounting depth 248 mm - Cutout diameter 310 mm.1090,00DD Audio12" subwooferitAutohifiAutosubwooferitadd-to-cart//audiokauppa.fi/cdn/shop/products/DD9512K-D2-ESP-3.jpg?v=1683203633//audiokauppa.fi/cdn/shop/products/DD9512K-D2-ESP-4.jpg?v=1683203633//audiokauppa.fi/cdn/shop/products/DD9512K-D2-ESP.jpg?v=168320363346573413007698Default Title817,501090,00//audiokauppa.fi/cdn/shopifycloud/shopify/assets/no-image-2048-5e88c1b20e087fb7bbe9a3771824e743c244f437e4f8ba93bbf7b11b53f7824c.gifhttps://audiokauppa.fi/en/products/dd-audio-9512k-d2-esp?variant=46573413007698InStockDefault Title
