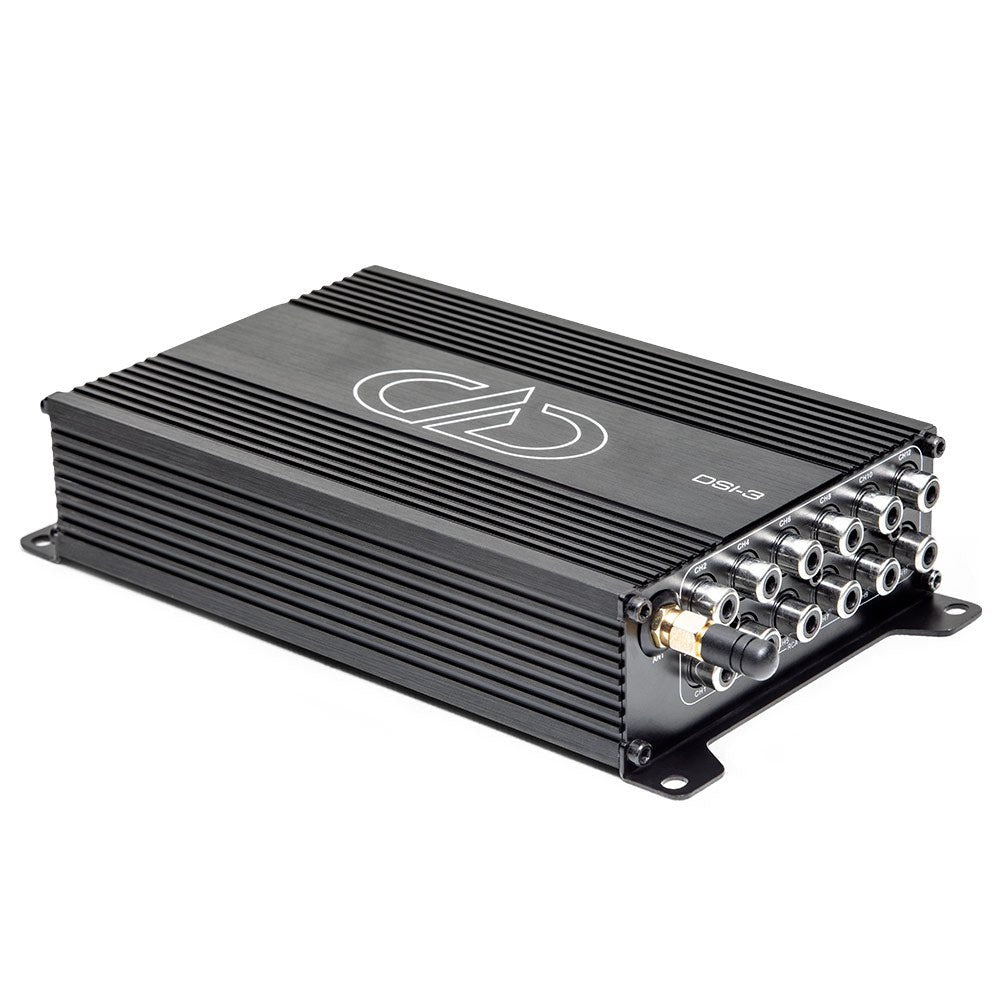

DD Audio DSI-3, a DSP that can be adjusted on Android, Apple and PC. Great features and 12 output channels.
The DSI-3 audio signal processor has been greatly improved over the previous DSI-2. Several updates have been made to the device, which are based directly on customer feedback. Improvements have been made to processing power, input channels, output channels, wireless connectivity, installation features, OEM integration and equalizer features.
Signal in as speaker level or line level. Excitation can be selected either controlled with a 12v Remote or to recognize the signal as speaker level or RCA level. DD Audio DSI-3 is an excellent device, for example after the car's original stereo, to give a signal to the amplifiers and handle the tasks of the DSP. Or for any hardware when you want a DSP that can be adjusted with almost any device!
By summing the incoming signals, the signal of the entire audio range is obtained, even if it is taken in after the splitters. In some original equipment of cars, it is difficult to find a signal of the entire audio range from single cables, in this case the summation of the signal is a big help when you want to build the equipment after.
The adjustments of this processor can be made with a PC (USB-B cable) or mobile devices via Bluetooth (The device has a built-in bluetooth receiver). In addition to adjustments, you can also use the bluetooth connection for audio streaming.
As an accessory, a remote control unit with volume and memory location change (DSI-3RMT) is available.
DSI-3 updated features compared to the old DSI-2 model:
- 6 x faster processor - Optical input - Clip light - 6 x input (3.2-5V) with signal summation. - 12 x RCA output ( 5V ) - 31-band parametric equalizer - Built-in Bluetooth 5.0
Technical information: Operating Voltage 8.7-16.5V High-Level input impedance 240Ω RCA input impedance 20kΩ RCA output impedance 50Ω RCA output voltage 0.2-5V High-Level input S/N 105 dBA RCA input S/N 115 dBA High-Level input THD 0.02% RCA input THD 0.01% REM OUT output current 12V 500 mA SPK input sensitivity Max 20V (CH1-4) / 40V (CH5-6) RCA input sensitivity Max 3.2V (CH1-4) / 6.4V (CH5-6) Turn-On 10V (REM), 1.3V(SPK/DC), 15mV (RCA) Turn-On time 3 seconds Input channels 6 Output channels 12 Parametric / Graphic EQ 31 Bands Sampling Frequency 192 kHz Bit depth 32bit Processing speed 295 MHz Idle current 0.46A Dimensions (in) 7.5 x 4.2 x 1.5 Dimensions (mm) 191 x 107 x 39.
/en/products/dd-audio-dsi-36806791815247DD Audio DSI-3399,00//audiokauppa.fi/cdn/shop/products/DD-DSI-3-SPECSHEET-v1-11-2_d073ff0b-7256-4f2d-8804-ef0312222bc3.jpg?v=1683195128//audiokauppa.fi/cdn/shop/products/DD-DSI-3-SPECSHEET-v1-11-2_d073ff0b-7256-4f2d-8804-ef0312222bc3_large.jpg?v=1683195128EURInStock268172984399All products that are in stock626998280530Autohifi for discount code (compare price is empty)268132221007Car stereo268167544911DD Audio268142084175DSP processors
DD Audio DSI-3
DD Audio DSI-3, a DSP that can be adjusted on Android, Apple and PC. Great features and 12 output channels.
The DSI-3 audio signal processor has been greatly improved over the previous DSI-2. Several updates have been made to the device, which are based directly on customer feedback. Improvements have been made to processing power, input channels, output channels, wireless connectivity, installation features, OEM integration and equalizer features.
Signal in as speaker level or line level. Excitation can be selected either controlled with a 12v Remote or to recognize the signal as speaker level or RCA level. DD Audio DSI-3 is an excellent device, for example after the car's original stereo, to give a signal to the amplifiers and handle the tasks of the DSP. Or for any hardware when you want a DSP that can be adjusted with almost any device!
By summing the incoming signals, the signal of the entire audio range is obtained, even if it is taken in after the splitters. In some original equipment of cars, it is difficult to find a signal of the entire audio range from single cables, in this case the summation of the signal is a big help when you want to build the equipment after.
The adjustments of this processor can be made with a PC (USB-B cable) or mobile devices via Bluetooth (The device has a built-in bluetooth receiver). In addition to adjustments, you can also use the bluetooth connection for audio streaming.
As an accessory, a remote control unit with volume and memory location change (DSI-3RMT) is available.
DSI-3 updated features compared to the old DSI-2 model:
- 6 x faster processor - Optical input - Clip light - 6 x input (3.2-5V) with signal summation. - 12 x RCA output ( 5V ) - 31-band parametric equalizer - Built-in Bluetooth 5.0
Technical information: Operating Voltage 8.7-16.5V High-Level input impedance 240Ω RCA input impedance 20kΩ RCA output impedance 50Ω RCA output voltage 0.2-5V High-Level input S/N 105 dBA RCA input S/N 115 dBA High-Level input THD 0.02% RCA input THD 0.01% REM OUT output current 12V 500 mA SPK input sensitivity Max 20V (CH1-4) / 40V (CH5-6) RCA input sensitivity Max 3.2V (CH1-4) / 6.4V (CH5-6) Turn-On 10V (REM), 1.3V(SPK/DC), 15mV (RCA) Turn-On time 3 seconds Input channels 6 Output channels 12 Parametric / Graphic EQ 31 Bands Sampling Frequency 192 kHz Bit depth 32bit Processing speed 295 MHz Idle current 0.46A Dimensions (in) 7.5 x 4.2 x 1.5 Dimensions (mm) 191 x 107 x 39.DD AudioAutohifiDSP-prosessoritadd-to-cart40154270367823Default Title399,00//audiokauppa.fi/cdn/shopifycloud/shopify/assets/no-image-2048-5e88c1b20e087fb7bbe9a3771824e743c244f437e4f8ba93bbf7b11b53f7824c.gifhttps://audiokauppa.fi/en/products/dd-audio-dsi-3?variant=40154270367823InStockDefault Title
