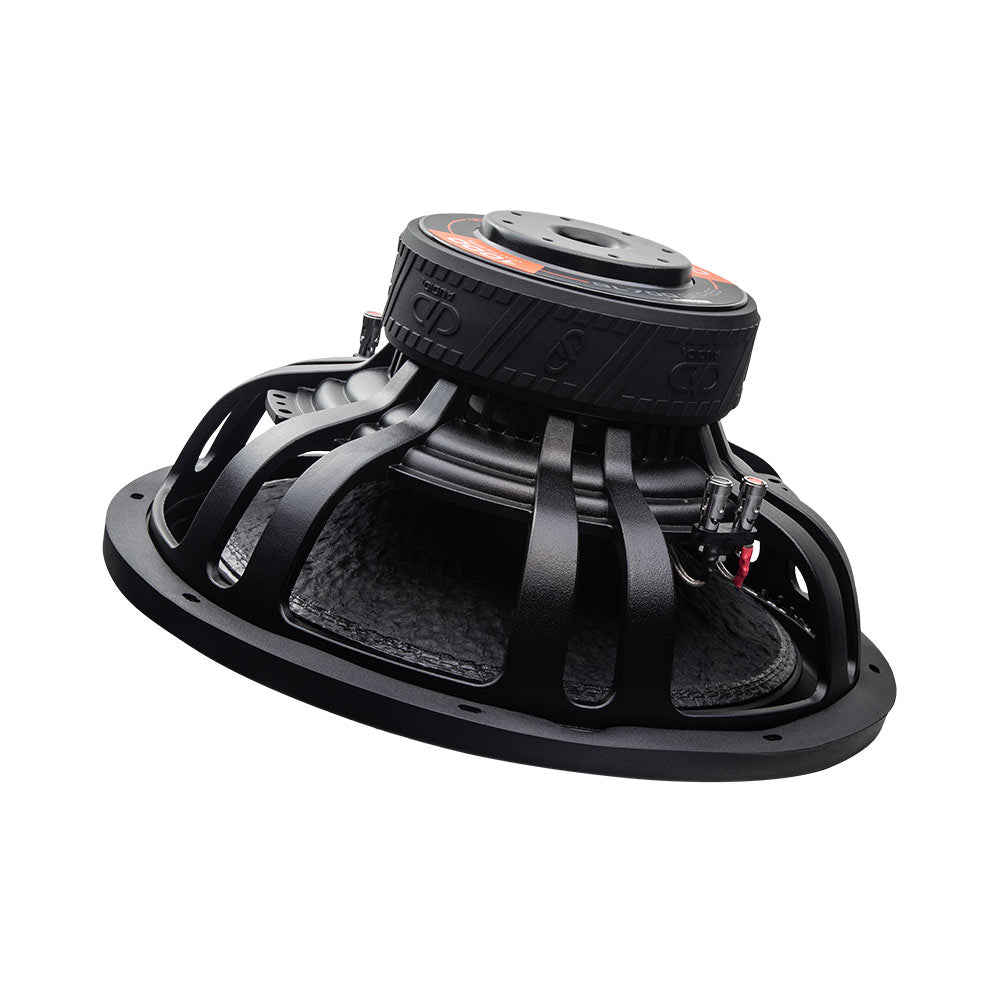

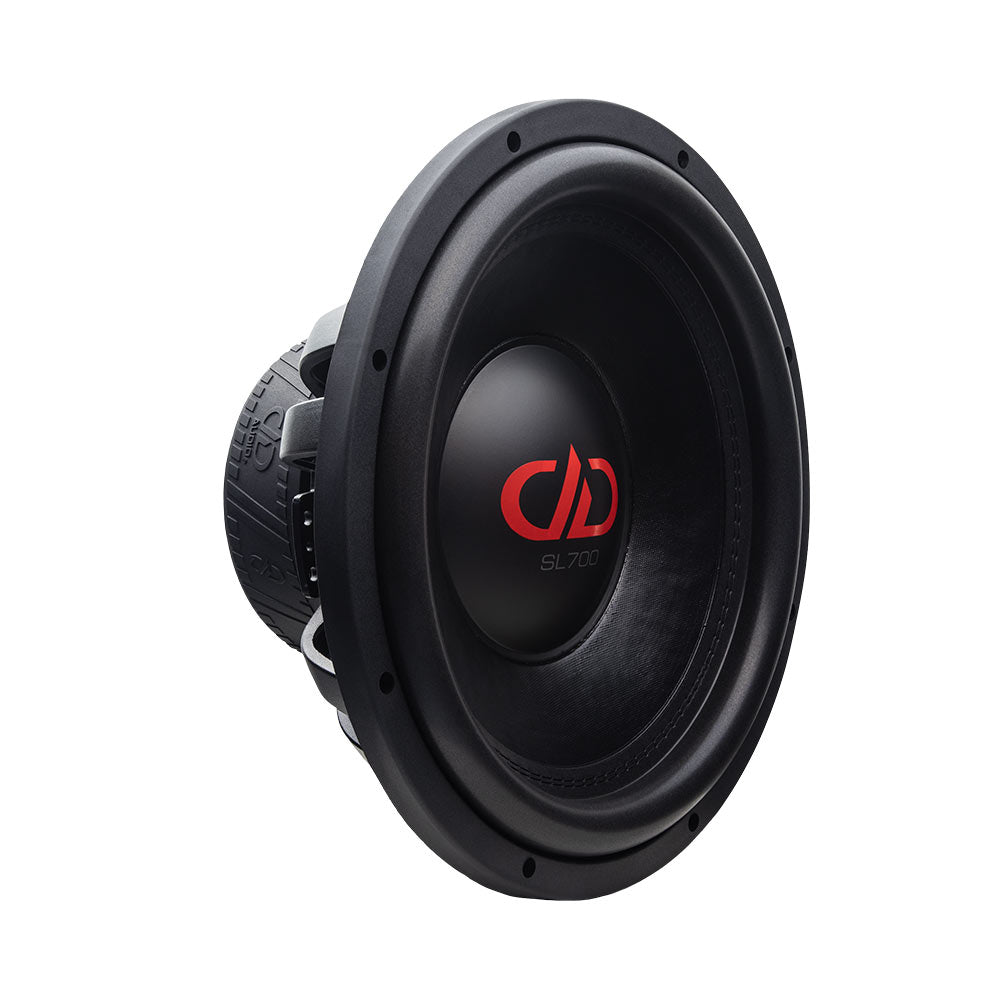

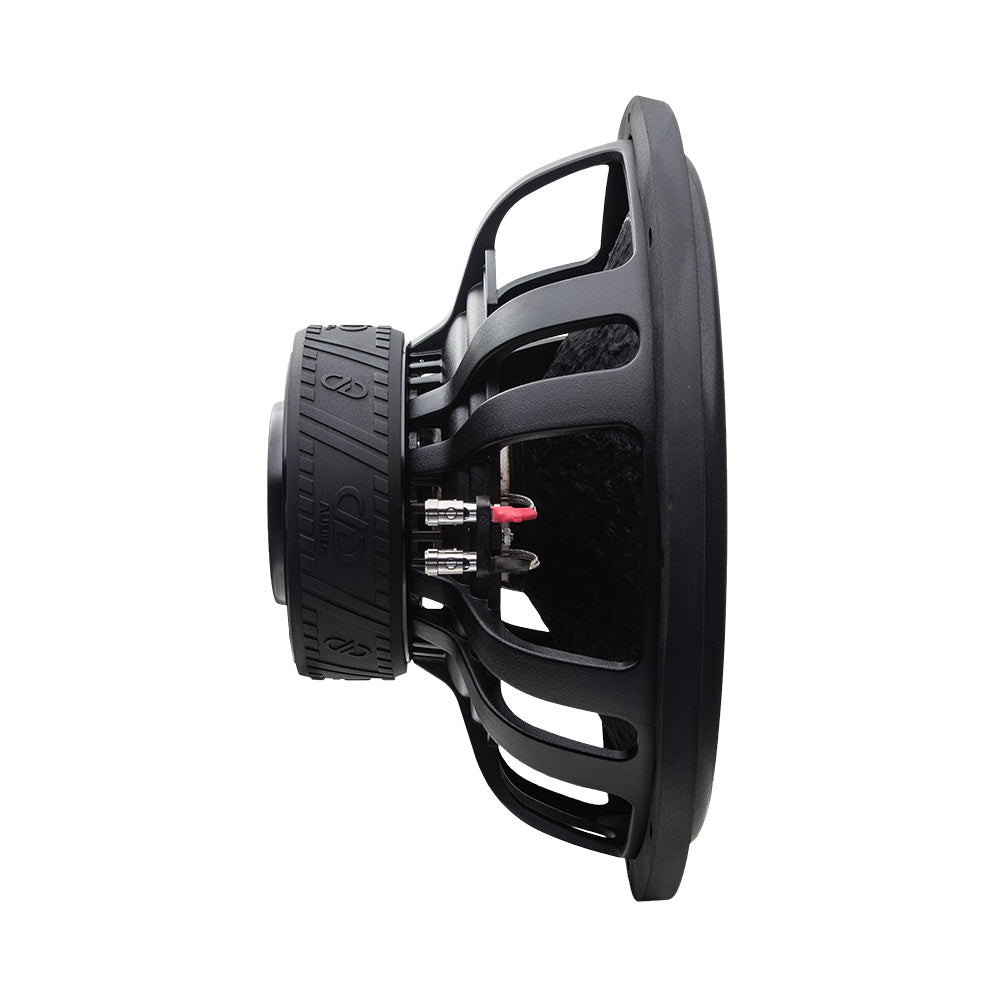

DD audio SL715-D4
• 15″ Subwoofer
• 2 x 4 Ohms
• 1000W
• 3″ voice coil
• FS: 27.7Hz
The SL700 series is a return to the 21st century style of subwoofers, designed to play music with power and precision!
The SL700 series features an open cast body, a stiff and extremely lightweight cone, a rigid double-layer sub-suspension, EROM suspensions made of high-density material, and a 3-inch voice coil, which allows these basses to hit hard while maintaining great accuracy!
The SL700 series is optimized to reproduce frequencies between 30 - 300Hz, making it an incredibly good subwoofer for listening to music due to its accuracy and power.
The element's open cast body is rigid but it also helps move air through the element = better efficiency!
The SL715 subwoofer does not need a large enclosure to operate. The recommended size of a closed enclosure is a minimum of 25L!!
Specifications:
Speaker Size (In): 15
Watts RMS: 1000
Impedance: D4
VCD (In): 3
Piston Diameter (In): 15
Fs (Hz): 27.7
Qms: 6
Qes: 0.73
Qts: 0.66
Left (Liters): 54.9
Xmech (MM): 40
Xmax (MM): 19
Frame OD (In): 15.375
Frame OD (MM): 391
Frame OD w/Gasket (In): 15.5
Frame OD w/Gasket (MM): 394
Mounting Diameter (In): 13.875
Mounting Diameter (MM): 352
Mounting Depth (In): 6.75
Mounting Depth (MM): 172
Motor Diameter (In): 6.7
Motor Diameter (MM): 170
Motor Depth (In): 2.5
Motor Depth (MM): 63.5
Woofer Displacement (CuFt): 0.09
Woofer Displacement (Liters): 2.55
Sealed Enclosure (CuFt): 1.25 - 2.5
Sealed Enclosure (Liters): 25.4 - 70.8
Ported Enclosure (CuFt): 1.75 - 2.75
Ported Enclosure (Liters): 50 - 77.9
