DD Audio SS5.500

DD Audio SS5.500

• AB + D class
• 5-channel amplifier
• 4 x 120W + 1 x 500W
• Excellent choice for active systems

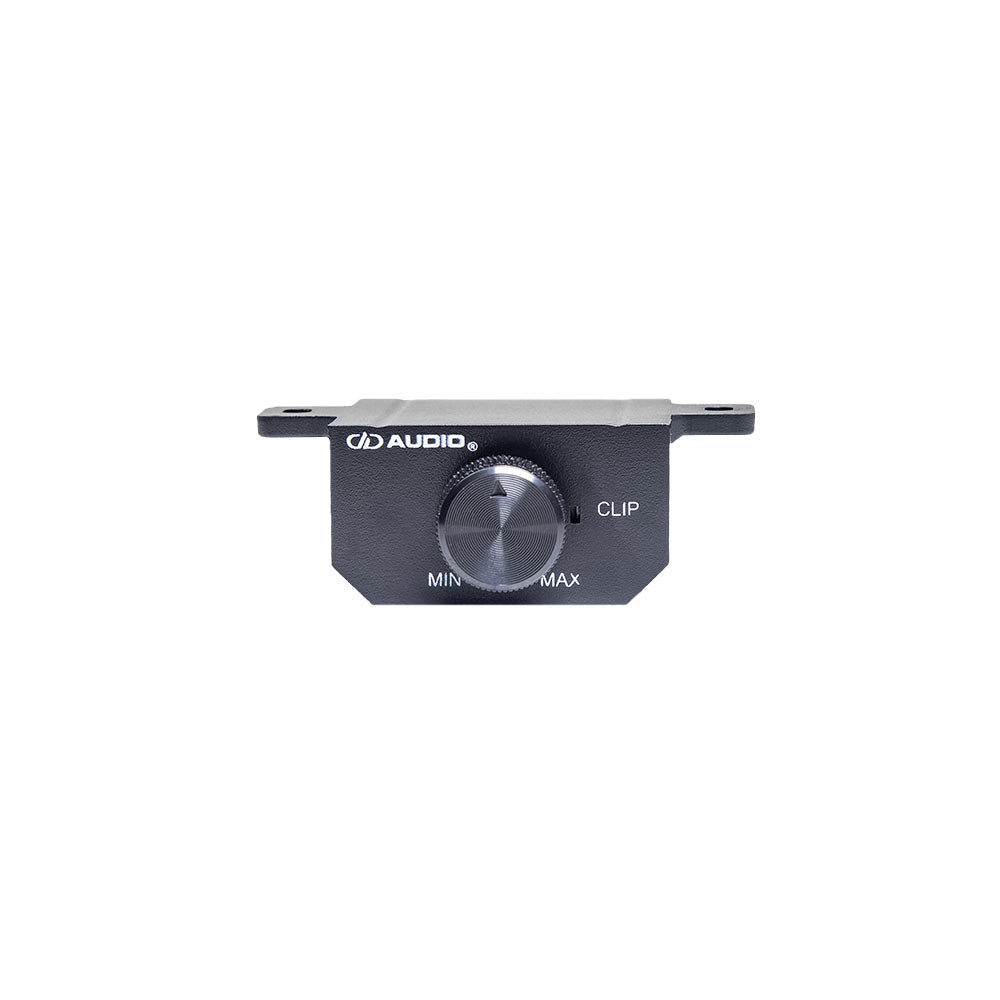

• Level control with CLIP light

The DD Audio SS5.500 is a compact 5-channel (AB 4ch + D Mono) amplifier that powers your entire car system!

This amplifier's AB and D class design offers high power and excellent sound quality in the same package.

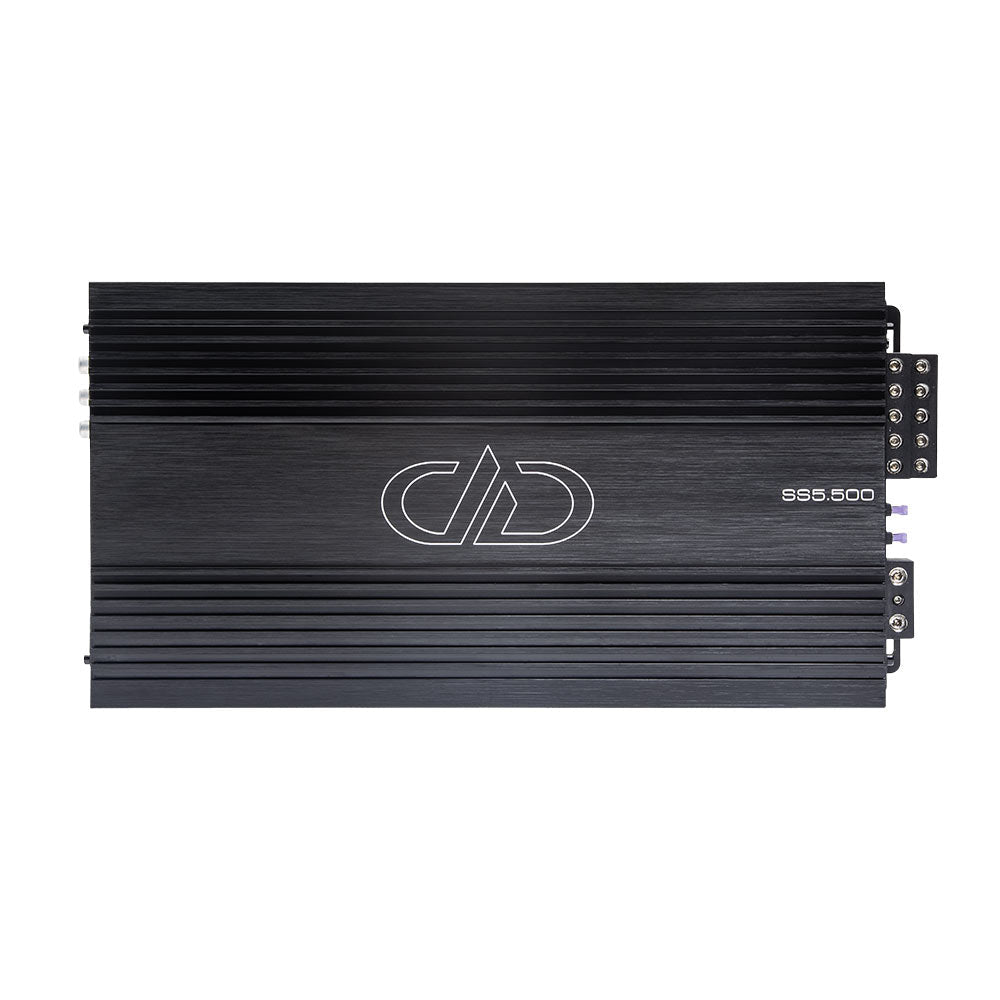

The SS series uses the traditional DD AUDIO style chassis for maximum cooling.

All key internal components have been upgraded to meet today's demanding power needs

The new SS series amplifiers are the result of cutting-edge, uncompromising design, offering not only top-notch sound quality but also unprecedented power and size. The change is not only tangible, but also audible!

Specifications:
Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 6
Output Channel(s): 5
Continuous Wattage @4ohm: 80 x 4
Continuous Wattage @2ohm: 120 x 4
Continuous Wattage @1ohm: 500 x 1
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 6 - 0.25
High-Level Input Voltage Sensitivity: 20 - 1.1
RCA Input S/N: 95
Damping Factor: 100
THD: 1.0%
Bass Boost: 12
Frequency Response (Hz): 20 - 20k
High Pass Filter: 20 - 5k
Sub-Sonic Filter: 10 - 50
Low-Pass Filter: 50 - 5k
Remote Control: Remote Included in Box
Power Wire Gauge: 0
Speaker Wire Gauge: 12
Dimensions (Inches): 13.5 x 7.3 x 2.4
Dimensions (MM): 340 x 185 x 60
Shipping Weight (Lbs): 5
