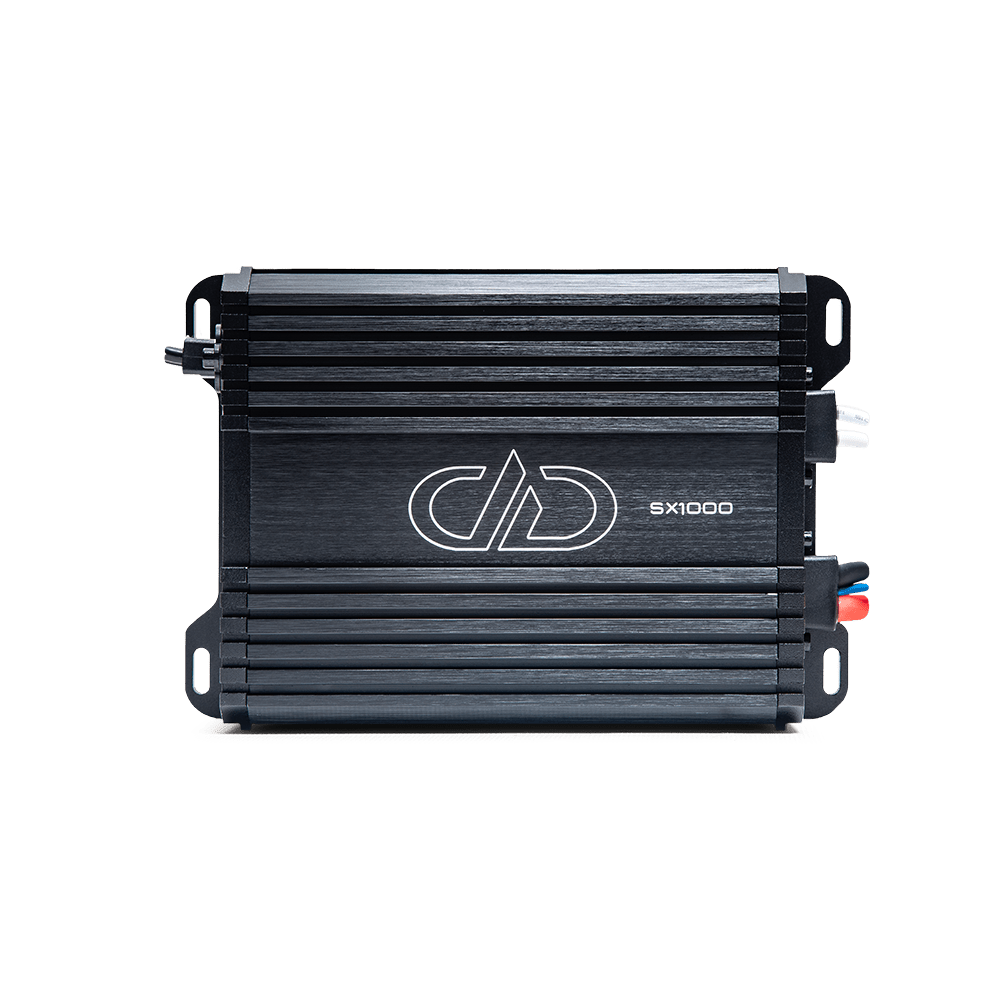

DD AUDIO SX1000
The SX1000 is a waterproof, compact full-range mono amplifier that allows you to drive both a subwoofer and other speakers with an impressive 1000W of continuous power!

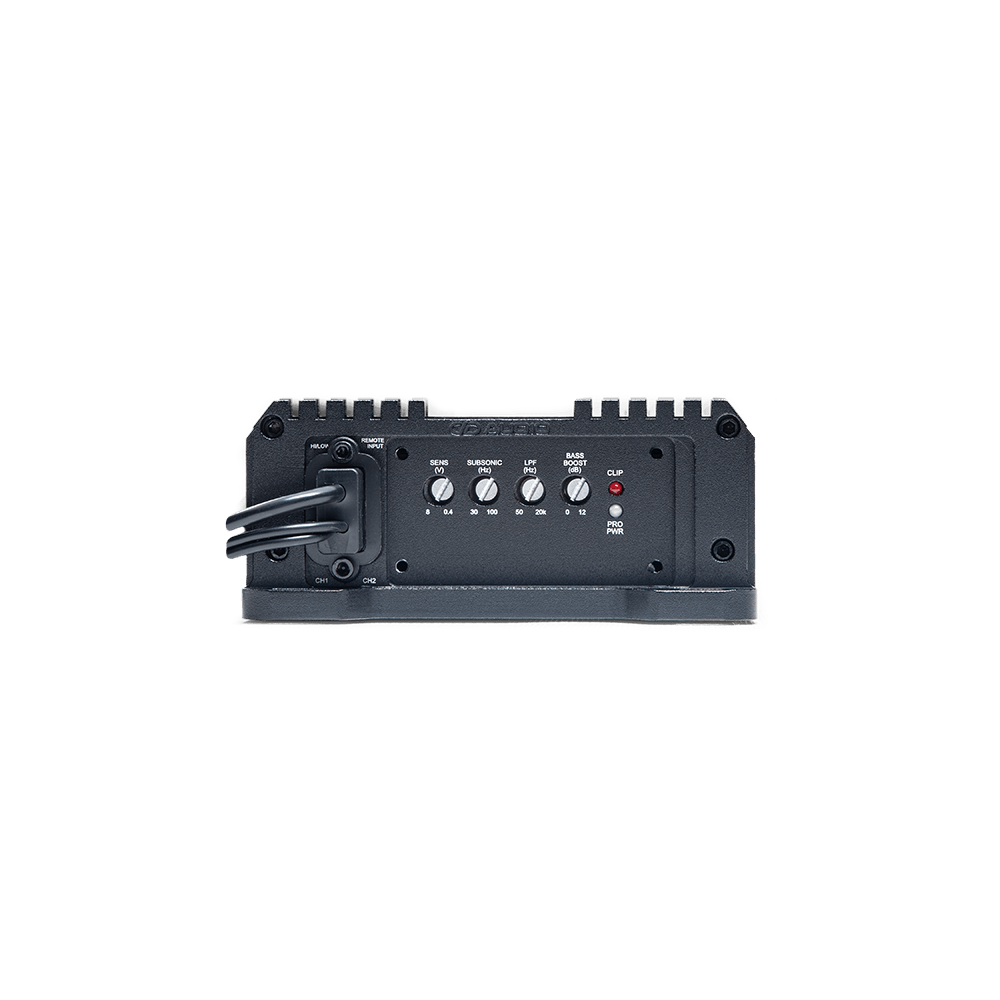

The SX amplifiers are IPX67 rated (the amplifiers are resistant to moisture, splash water, and dust) and feature cast aluminum end panels, aluminum bottom panels, and the preamplifier controls are protected by a plexiglass panel.
These amplifiers use premium components sourced from world-renowned brands. These include larger MOSFETs and output components, larger power capacitors, a more efficient transformer, as well as improved ventilation and a circuit board with improved thermal capacity.
A wired level control is included with the amplifier.
Specifications:
Features:
High Level Inputs
12dB/Oct High Pass/Low Pass xovers
Heavyweight DD Aluminum Chassis
Aluminum End Panels and Bottom Panel
Set Screw Power and Speaker Terminals
Remote Gain Control
4 AWG Power Terminals
Specifications:
Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 1
Output Channel(s): 1
Continuous Wattage @2ohm: 600
Continuous Wattage @1ohm: 1000
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 8 - 0.4
High-Level Input Voltage Sensitivity: 8 - 0.4
RCA Input S/N: 85
Damping Factor: 70
THD: 0.1%
Bass Boost: 12
Frequency Response (Hz): 10 to 205
Sub-Sonic Filter: 30 -100
Low-Pass Filter: 50 - 20k
Remote Control: Remote Included in Box
Power Wire Gauge: 8
Speaker Wire Gauge: 12
Dimensions (Inches): 7 x 4.5 x 2
Dimensions (MM): 178 x 115 x 50
