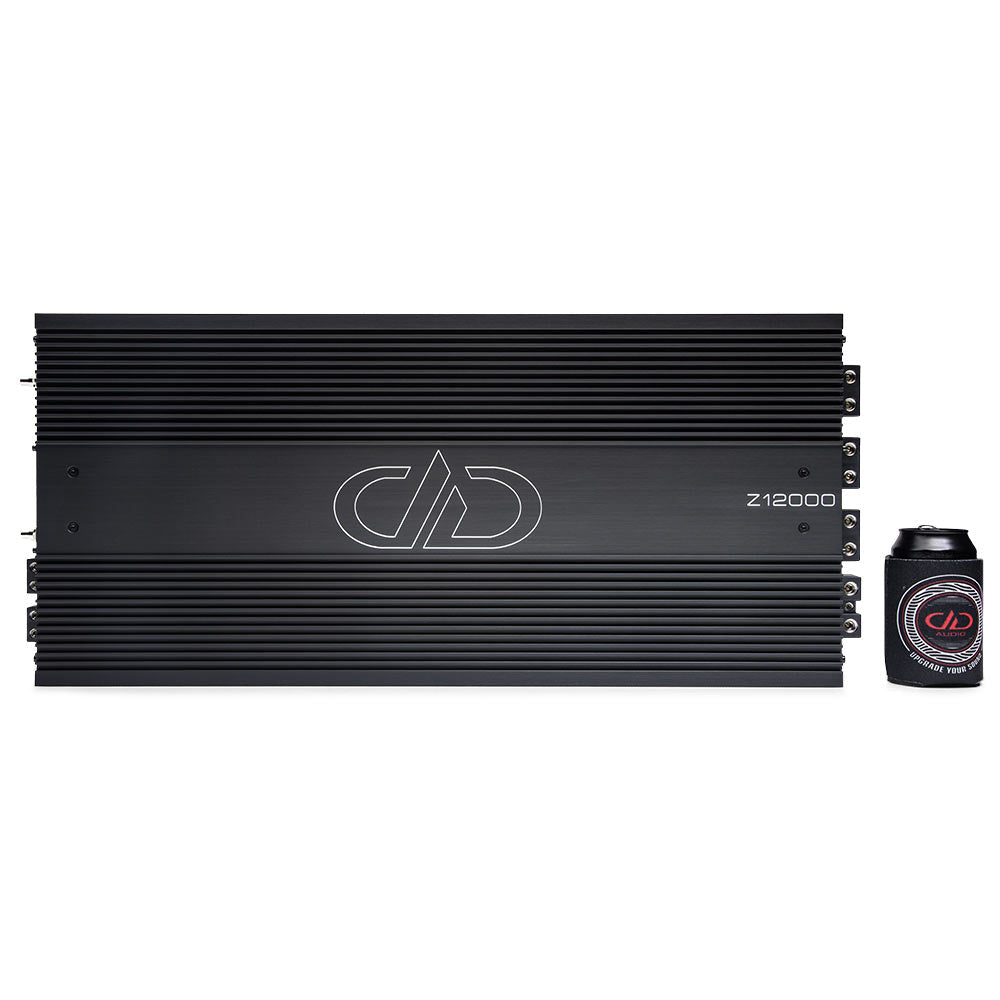

The DD Audio Z12000 is a new high-end amplifier for the legendary Z series. This amplifier produces well over 12,000 Watts of continuous power and is suitable for playing even the stoutest subwoofers!
The Z12000 features state-of-the-art circuit optimization.
The chassis of the Z12000 features DD Audio's unique ″High Volume Air Circulation″ (HVAC) thermal management system.
The mass of the heavy aluminum heatsink combined with the smart frame design efficiently dissipates heat, while the internal fan draws cooler air through the raised bottom panel and end panel vents to maximize effective ventilation.
The Z12000 is also compatible with the DD Audio ZVL module, which allows you to link multiple amplifiers together and adjust them using ZVL.
Technical information: Operating Voltage: 9 - 16 Test Voltage: 14.4 Output Channel(s): 1 Continuous Wattage @4ohm: 4000 Continuous Wattage @2ohm: 7000 Continuous Wattage @1ohm: 12000 Dynamic Wattage: 14000 Max Current Draw (Amps): 1200 RCA Input Voltage Sensitivity: 8 - 0.2 RCA Input S/N: 92dB Damping Factor: 200 Frequency Response (Hz): 10 to 200 Sub-Sonic Filter: 10Hz to 50Hz Low-Pass Filter: 20Hz to 200Hz ZVL Input: Yes Power Wire Gauge: 4x0 Speaker Wire Gauge: 4x8 Dimensions (Inches): 27″ x 12″ x 3.125″ Dimensions (MM): 686 x 305 x 83 Shipping Weight (Lbs): 40
The DD Audio Z12000 is a new high-end amplifier for the legendary Z series. This amplifier produces well over 12,000 Watts of continuous power and is suitable for playing even the stoutest subwoofers!
The Z12000 features state-of-the-art circuit optimization.
The chassis of the Z12000 features DD Audio's unique ″High Volume Air Circulation″ (HVAC) thermal management system.
The mass of the heavy aluminum heatsink combined with the smart frame design efficiently dissipates heat, while the internal fan draws cooler air through the raised bottom panel and end panel vents to maximize effective ventilation.
The Z12000 is also compatible with the DD Audio ZVL module, which allows you to link multiple amplifiers together and adjust them using ZVL.
Technical information: Operating Voltage: 9 - 16 Test Voltage: 14.4 Output Channel(s): 1 Continuous Wattage @4ohm: 4000 Continuous Wattage @2ohm: 7000 Continuous Wattage @1ohm: 12000 Dynamic Wattage: 14000 Max Current Draw (Amps): 1200 RCA Input Voltage Sensitivity: 8 - 0.2 RCA Input S/N: 92dB Damping Factor: 200 Frequency Response (Hz): 10 to 200 Sub-Sonic Filter: 10Hz to 50Hz Low-Pass Filter: 20Hz to 200Hz ZVL Input: Yes Power Wire Gauge: 4x0 Speaker Wire Gauge: 4x8 Dimensions (Inches): 27″ x 12″ x 3.125″ Dimensions (MM): 686 x 305 x 83 Shipping Weight (Lbs): 403490,00Audiokauppa Oulu1-kanavaisetAutohifiAutohifi Outletadd-to-cart//audiokauppa.fi/cdn/shop/products/Z12000-control-panel.jpg?v=1683204242//audiokauppa.fi/cdn/shop/products/Z12000-power-panel.jpg?v=1683204242//audiokauppa.fi/cdn/shop/products/Z12000-top-panel.jpg?v=168320424251038617698642Default Title2490,003490,00//audiokauppa.fi/cdn/shopifycloud/storefront/assets/no-image-2048-a2addb12.gifhttps://audiokauppa.fi/en/products/dd-audio-z12000-monovahvistin-virheeton-messudemo?variant=51038617698642InStockDefault Title
