Description
A very compact camera that can be used as a reversing camera or a front camera.
Almost imperceptible
The PCAM-201-N is very compact, but offers a wide 170° view.
The camera also meets the IP67 rating, meaning the PCAM-201-N is completely dustproof and can withstand strong water jets from all directions.
Easy to install

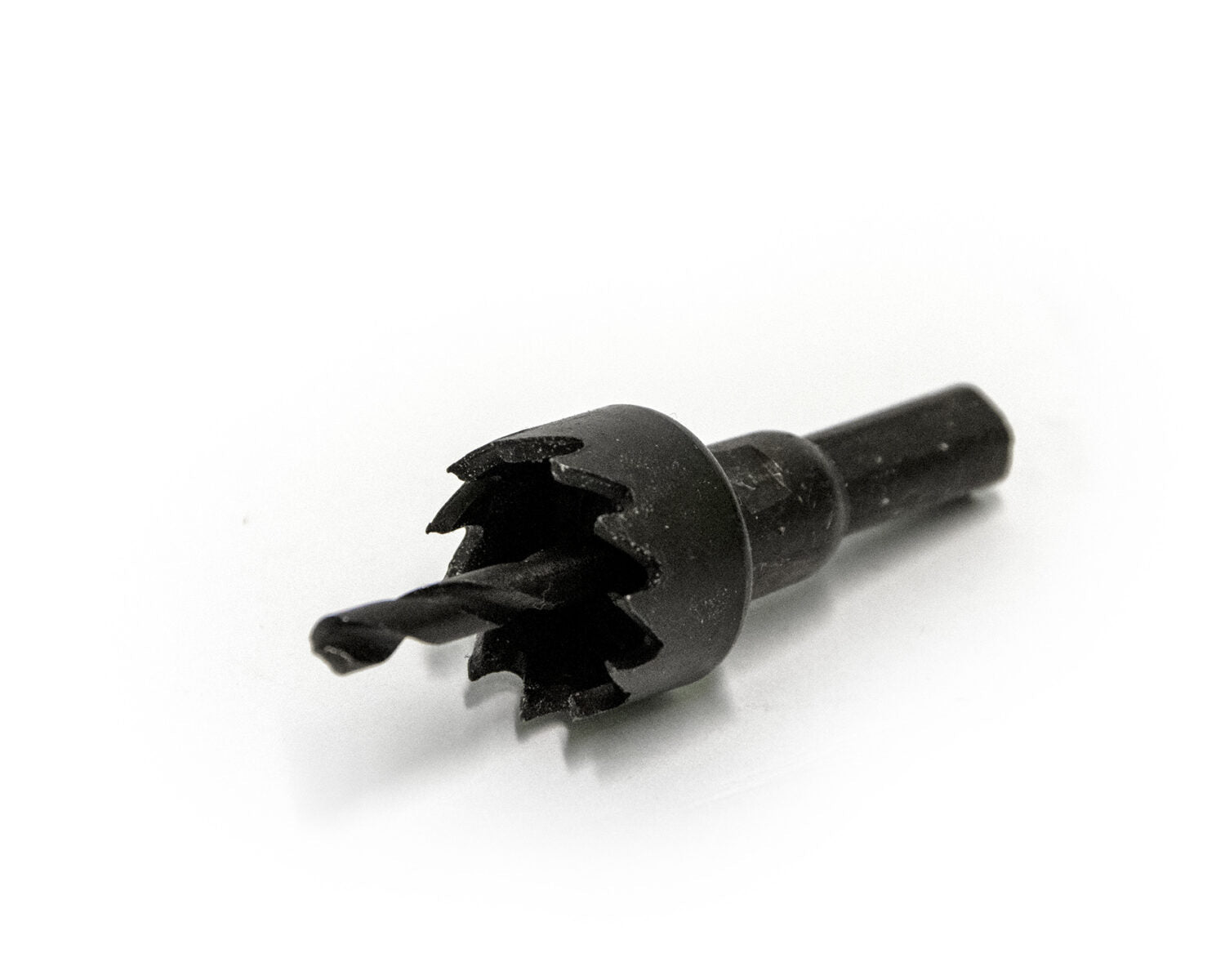

Echomaster PCAM-201 is easy to install. The camera comes with a 19mm hole saw, with which you drill a hole where you want and press the camera into place. The camera's locking tongues keep the camera securely in place.
Forward or backward
By default, the camera is in reversing camera mode, but by connecting the white wires, the camera can be used as a front camera (the image of the reversing camera is always a horizontal mirror image, while the image of the front camera is "facing right").
The camera image also has guidance lines that make parking easier. If you don't want guide lines, connect the green wires.
-
1/4″ CMOS sensor
- Viewing angle: 170°
- Picture type: NTSC
- Connection: RCA
- Resolution: 648 x 488
- Minimum lighting: 0.5 Lux
- Water/dustproof: IP67
- Parking lines: On / Off
- Operating temperature: -30°C to +70°C
- Operating voltage: 9-16V
- Can also be used as a front camera
- Cable length: 7.8m
- Camera dimensions: 27 x 26 x 27mm
Note: If you connect the camera to an Alpine player with Alpine's own Direct camera connection, you need an Alpine Direct -> RCA adapter .
