The tweeter features a silk-impregnated thin fabric dome diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other tweeters, yet provides a smooth, linear and very extended response.
The 25 mm voice coil has an aluminum support and very light copper-coated aluminum wire. The voice coil is ventilated and damped with iron-fluid oil.
The special SVS ventilation design provides two benefits: optimal cooling of the voice coil and avoiding compressing the air at the back of the dome.
The neodymium N42 magnet, a type of magnet with significantly higher performance than "standard" magnets, is optimized with computer simulations to get better efficiency and improve linearity.
/en/products/esb-audio-3-25-1-25-mm-silk-dome-tweeter-pair10546115936594ESB Audio 3.25 1"/25 mm Silk Dome Tweeter (pair)59,00//audiokauppa.fi/cdn/shop/files/3.25_1.jpg?v=1769108043//audiokauppa.fi/cdn/shop/files/3.25_1_large.jpg?v=1769108043EURInStock2681406751514" and smaller speakers609707753810Auto hifi News626998280530Autohifi for discount code (compare price is empty)268132221007Car stereo646067847506Car-specific accessory search 668859040082ESB Audio668607512914ESB Audio 3000 Series268140642383speakers

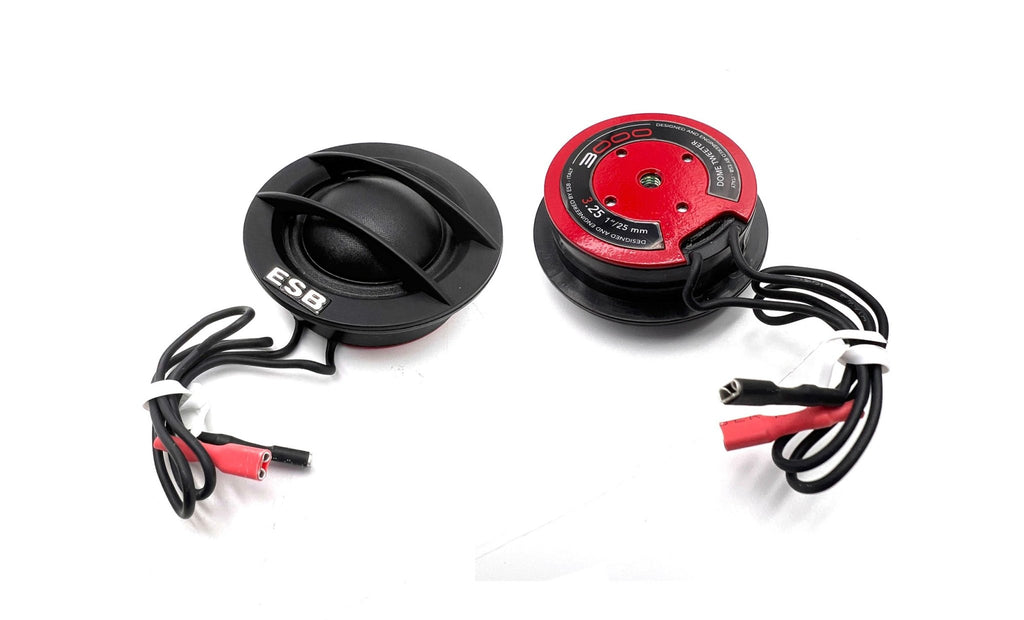

ESB Audio 3.25 1"/25 mm Silk Dome Tweeter (pair)
Main Features
The tweeter features a silk-impregnated thin fabric dome diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other tweeters, yet provides a smooth, linear and very extended response.
The 25 mm voice coil has an aluminum support and very light copper-coated aluminum wire. The voice coil is ventilated and damped with iron-fluid oil.
The special SVS ventilation design provides two benefits: optimal cooling of the voice coil and avoiding compressing the air at the back of the dome.
The neodymium N42 magnet, a type of magnet with significantly higher performance than "standard" magnets, is optimized with computer simulations to get better efficiency and improve linearity.
Technical Specifications
Nominal Impedance: 4 Ohm
Nominal Power Handling: 90 Watt
Transient Power: 180 Watt
Frequency Response: 900 Hz ~ 25 KHz
Sensitivity: 92 dB 2.83v/1m
