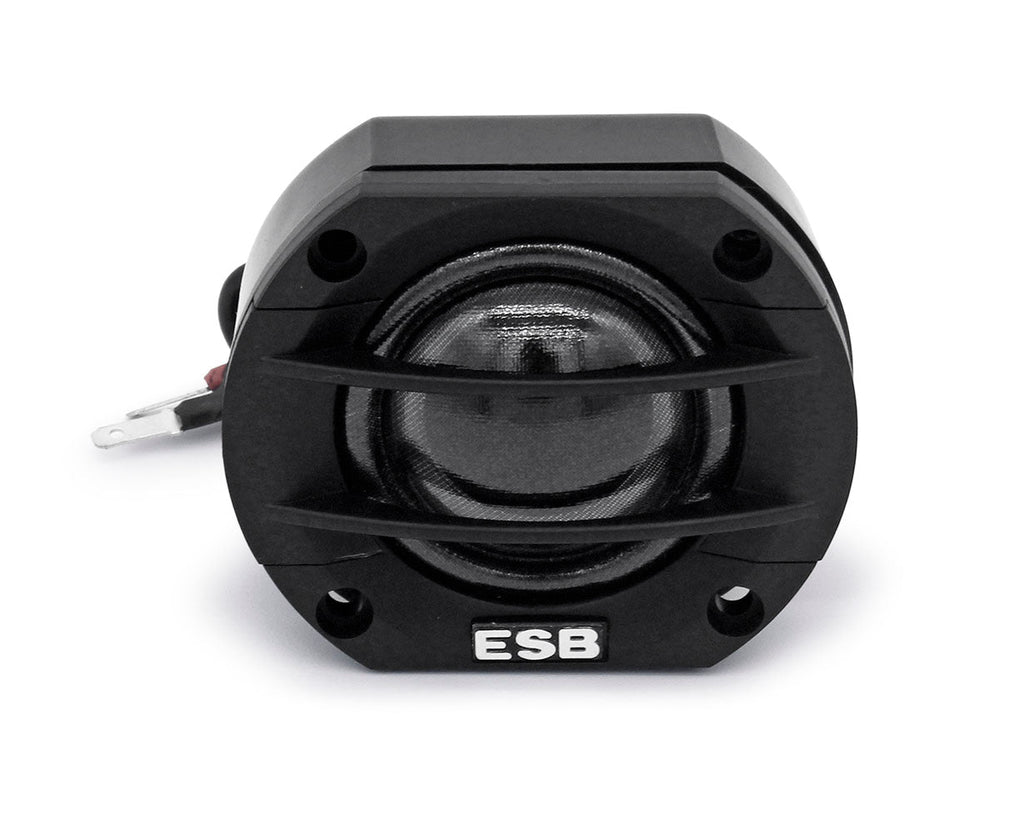

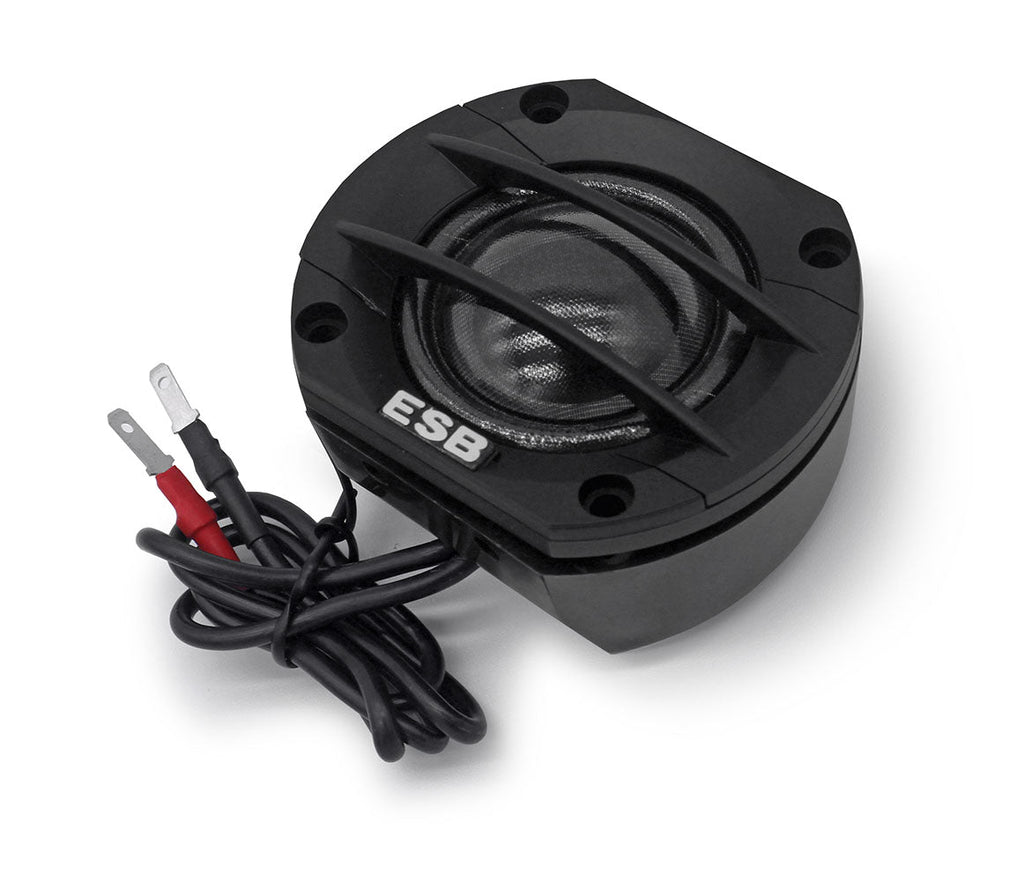

ESB Audio 3.28 1.1"/28 mm Silk Dome Tweeter (pair)

Main Features

• The tweeter uses a Torcon® diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other tweeters, yet it provides a smooth, linear and very extended response.

• The 28 mm voice coil has an aluminum support and very light copper-coated aluminum wire. The coil is ventilated and damped with iron-fluid oil.

• The special SVS ventilation design provides two benefits: optimal cooling of the voice coil and avoiding compressing the air at the back of the dome.

• The neodymium N42 magnet, a type of magnet with significantly higher performance than "standard" magnets, is optimized with computer simulations to get better efficiency and improve linearity.

Technical Specifications

• Nominal Impedance: 4 Ohm

• Nominal Power Handling: 90 Watt

• Transient Power: 180 Watt

• Frequency Response: 900 Hz ~ 25 KHz

• Sensitivity: 94 dB 2.83v/1m
