ESB Audio Rear Speaker System for Audi A4/Q5

ESB Audio A4/Q5 Rear 165 Rear Speaker System for Audi A4/Q5

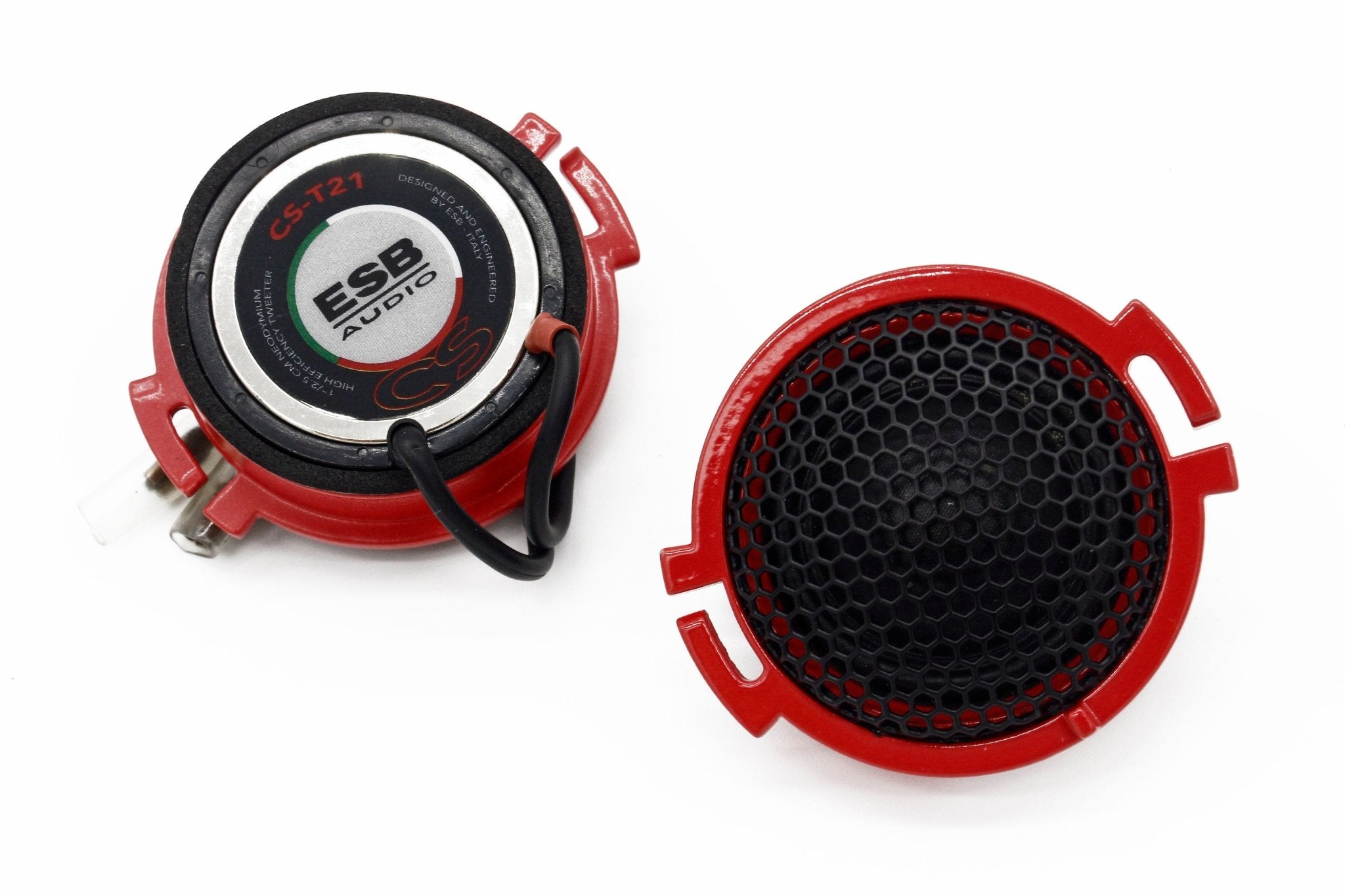

A6-RTW1 1"/25 mm Dome Tweeter

The A6-RTW1 uses the ESB CS-T31 1"/2.5 cm component tweeter, with special adaptor to fit the Audi A6/A4/Q5 original tweeter housing in the front seats.

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 Watt
- Transient Power: 120 Watt
- Frequency Response: 1 KHz ~ 25 KHz
- Sensitivity: 95 dB 2.83v/1m

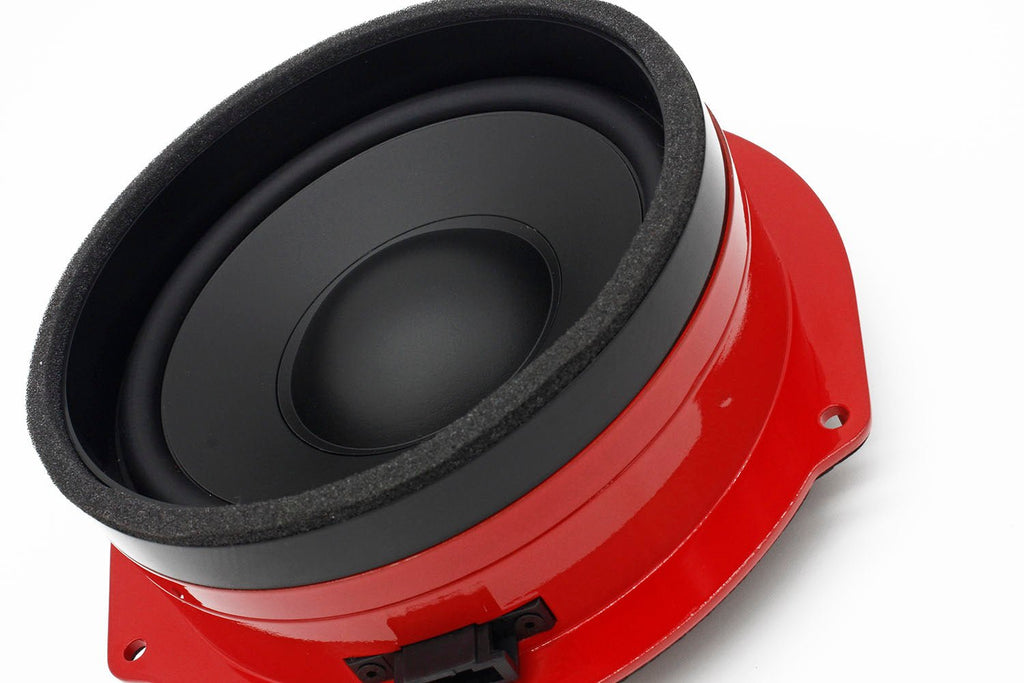

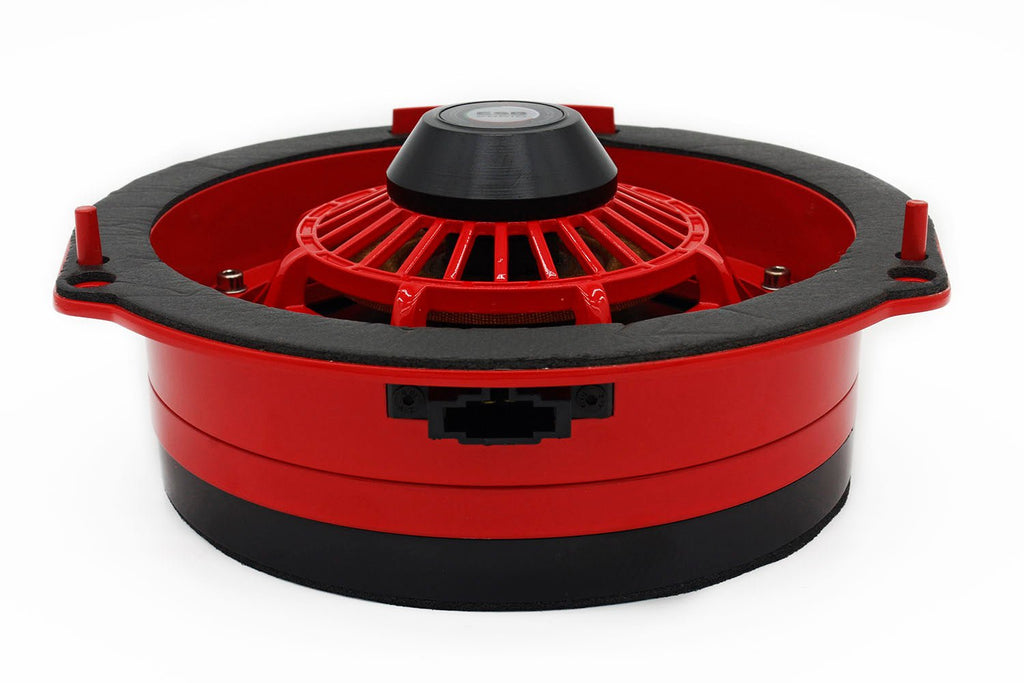

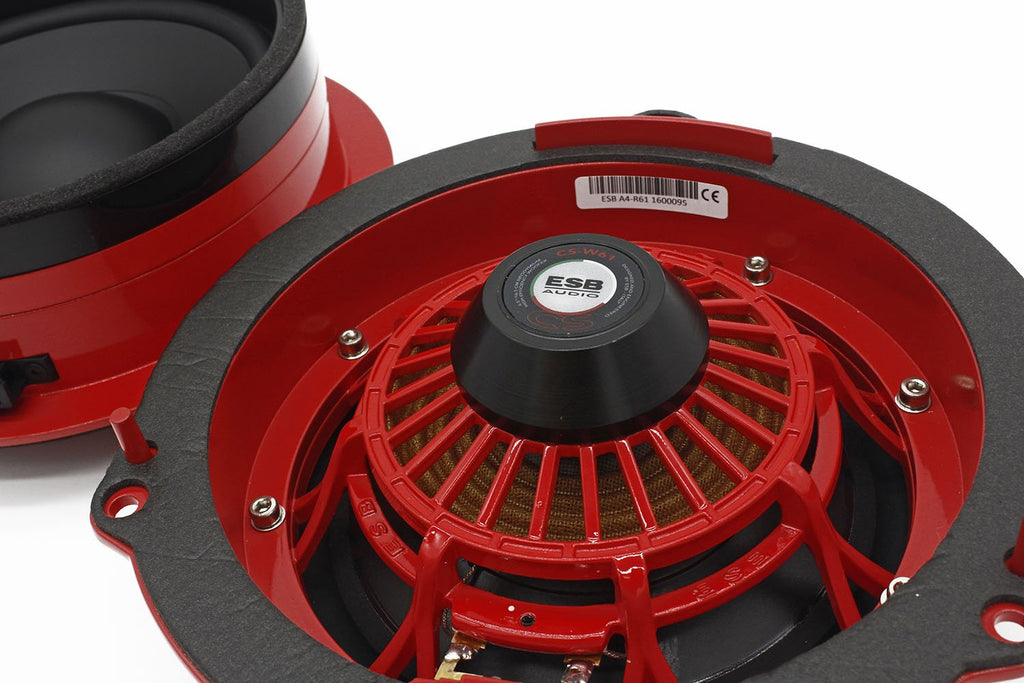

A6-R61 6.5"/165 mm Mid-Woofer

The A6-R61 uses the ESB CS-W61 6.5"/16.5 cm component mid-woofer, with special adaptor to fit the Audi A6/A4/Q5 original woofer housing in the rear seats.

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 115 Watt
- Transient Power: 230 Watt
- Frequency Response: 65 Hz ~ 2.2 KHz
- Sensitivity: 94 dB 2.83v/1m
