Final D8000

Top headphones from the Japanese manufacturer Final. Planar operating principle, membrane damping based on AFDS (Air Film Damping System) technology.

We reinvented the planar magnetic model driver with AFDS (Air Film Damping System)

With the development of the new AFDS (Air Film Damping System), we have achieved sound quality that has both the sensitive high ranges of planar magnetic models and the volume and open feel bass tones of dynamic models. This is a product that will have you making new Discoveries from music you're used to listening to, and will have you wanting to listen to your favorite music over and over, reaffirming the Pleasure that audio products bring.

Features

A combination of the sensitive high ranges of planar magnetic models and the volume and open feel bass tones of dynamic models.

“Volume and open feel bass tones”

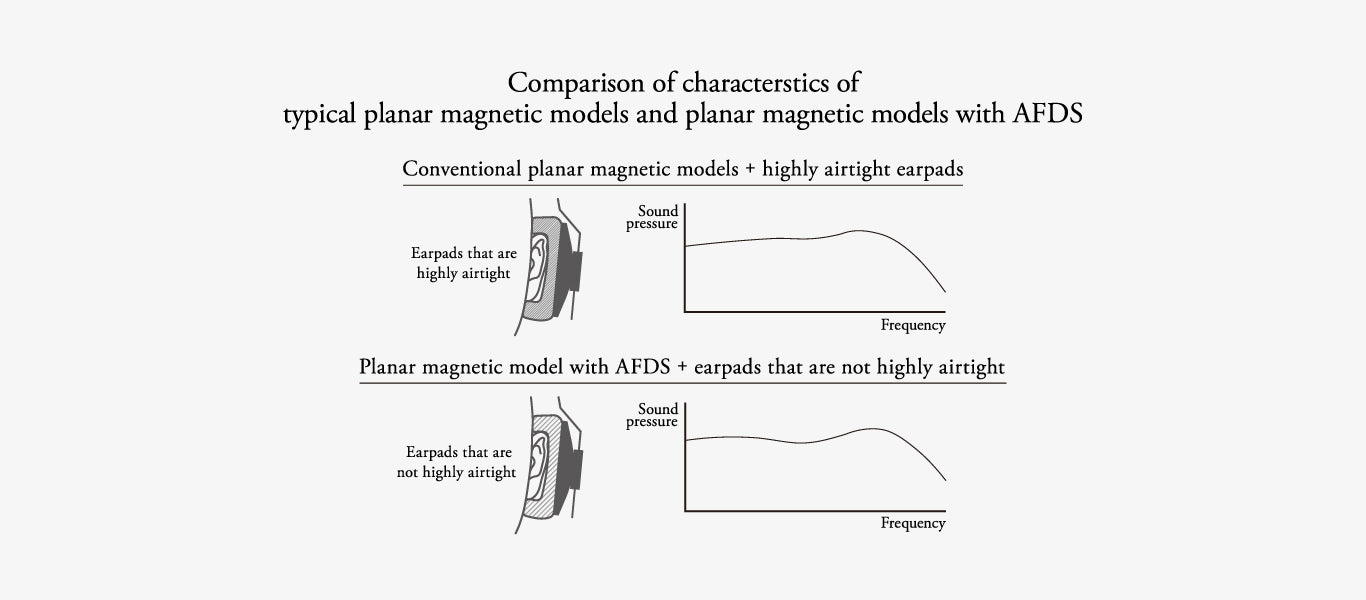

With conventional planar magnetic models, amplitude is an increasing low range, and since the diaphragm comes into contact with magnets, it was necessary to raise the frequency of bass tones to a level that the driver unit can reproduce. To make up for the lack of bass tones, the inside of the earpads have been tightly sealed, and the front section of the diaphragm has been made a closed space.

This is the same principle as earphones with sealed earpieces being able to reproduce bass frequencies despite their small size. By sealing the inner earpads, it is possible to produce bass tones across low frequency bands; these become the bass tones produced within a sealed space the same as earphones.

With D8000, the problem with the diaphragm coming into contact with Magnets has been solved through AFDS (Air Film Damping System), and it has become possible to reduce the frequency of the bass tones that the driver unit can reproduce. Combined with breathable earpads, bass tone reproduction with a volume and open sound only achievable with superior dynamic models is possible.

"Subtle high frequencies"

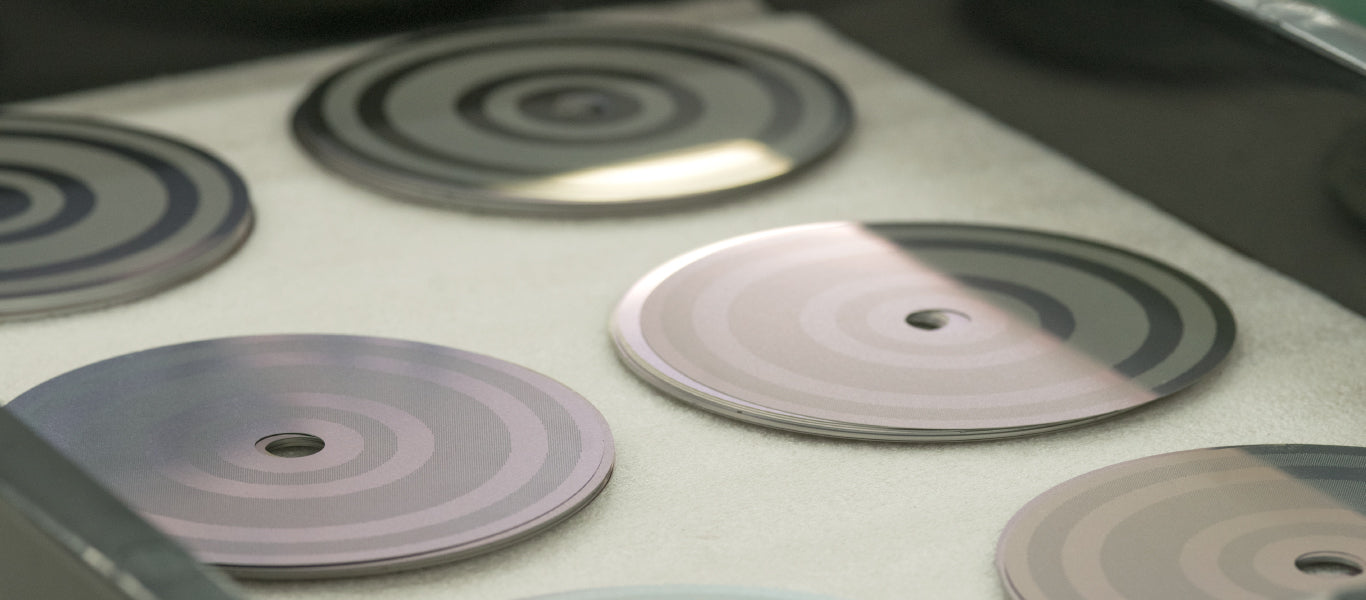

In reproducing subtle high frequencies, the Lightweight nature of the diaphragm comes before anything else. Compared to other dynamic models with the same diameter, the D8000's diaphragm is 1/3 lighter. A super thin aluminum coil has been etched on the extremely Lightweight film diaphragm, and as such, the adhesive essential for use between the coil and the diaphragm of dynamic models - which has a very negative effect on sound quality - is not necessary. This is an important part, packed with know-how. With D8000, this problem is solved theoretically, and reproduction of subtle high frequencies has been achieved.

"The combination of the planar magnetic model's subtle high frequencies and the dynamic model's volume and open bass tones"

With a combination of the planar magnetic model's subtle high frequencies and the dynamic model's volume and open bass tones, you discover new things about music you're used to listening to when you use the D8000; they have you wanting to listen to your favorite music over and over again. With this product, you realize that high sound quality provides the impetus for experiencing the deeper aspects of music.

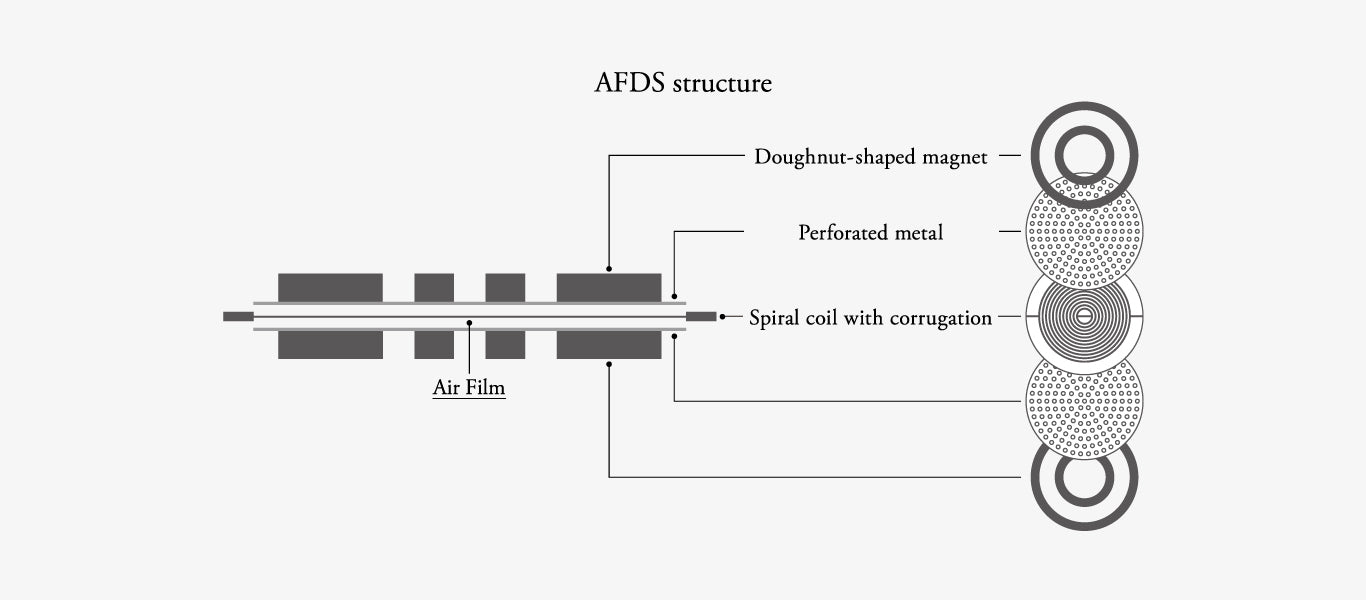

Newly-developed AFDS: Air Film Damping System

With conventional planar magnetic models, the amplitude was an increasing low range, and the diaphragm came into contact with magnets. To solve this problem, we took measurements by conducting diaphragm simulations using the finite element method and laser Doppler devices numerous times, and established a new diaphragm braking technology known as AFDS - Air Film Damping System.

In doing so, the shortcoming of planar magnetic models - the low reproducibility of bass tones - was solved. This technology could be considered a reinvention of planar magnetic models.

With D8000, the problem with the diaphragm coming into contact with Magnets has been solved through AFDS (Air Film Damping System), and it has become possible to reduce the frequency of the bass tones that the driver unit can reproduce. Combined with breathable earpads, bass tone reproduction with a volume and open sound only achievable with superior dynamic models is possible.

More information from below the surface HERE

Technical information:

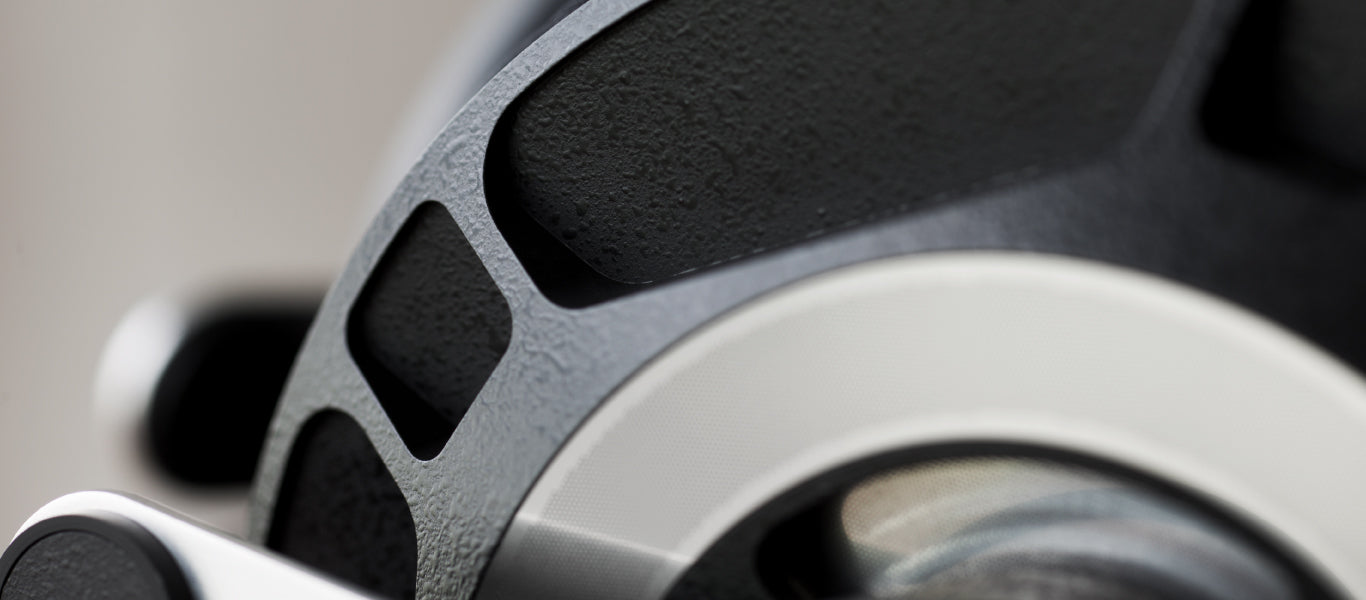

• Housing Aluminum magnesium alloy
• Driver AFDS Planer Magnetic
• Sensitivity 98dB/mW
• Impedance 60ohm
• Weight 523 g
• Cord length 1.5 m/3 m

Included accessories:

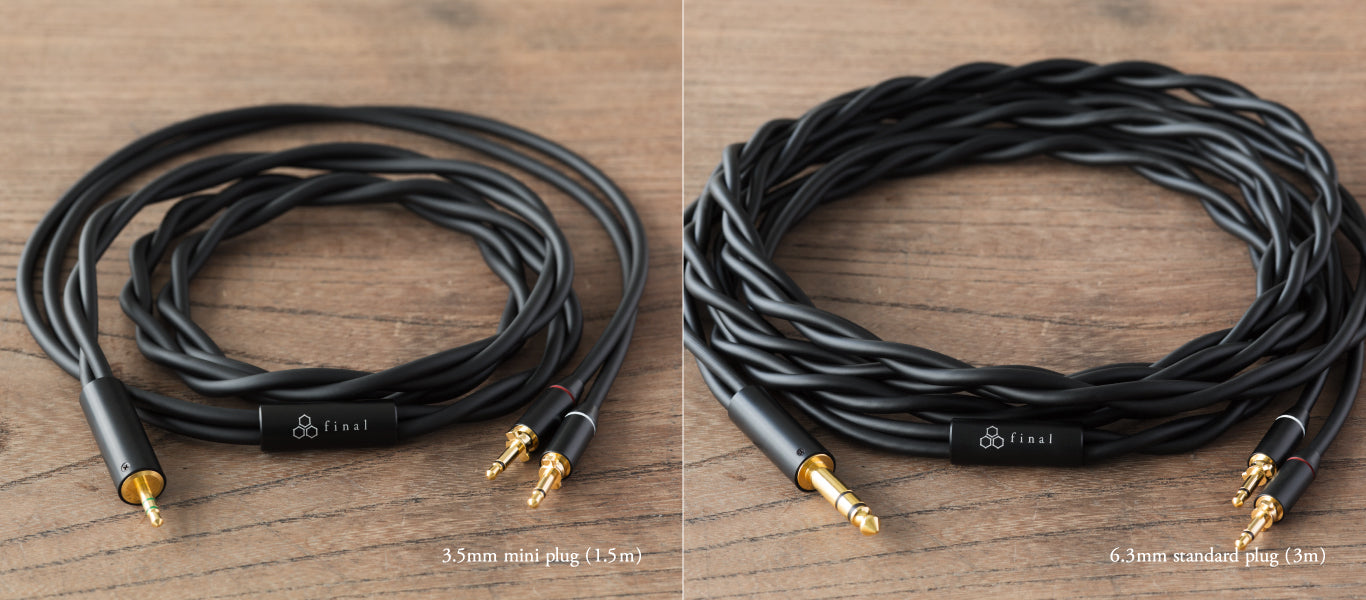

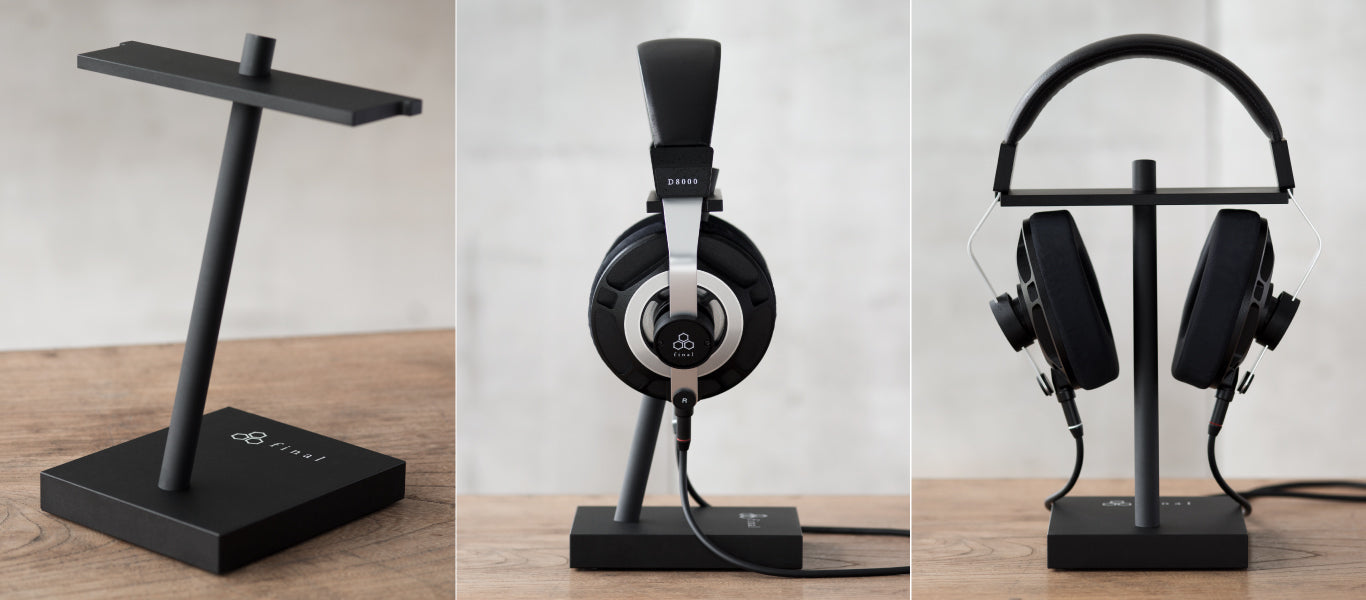

• Headphone stand, Detachable cable (1.5m/3.5mm plug), Detachable cable (3m/6.3mm plug)
