Description
May we introduce:
Powerful GAS MAD A2 amplifier collection!
The GAS MAD A2 sits above the popular MAD A1 range, while replacing the previous PRP range of amplifiers.
Even better components have been used in the pre-stages of the new MAD A2 amplifiers, with which the sound quality has been raised to a new level. In addition, the very stylish cooling profile of the amplifier pleases the eye and at the same time ensures that the temperature of the amplifier remains under control, which in turn improves the performance of the amplifier.
The GAS MAD A2-600.1DFL is a class D mono amplifier with a full sound range, so instead of a subwoofer, you can also command the mids with it. For this purpose, the amplifier also has bandpass jacks, which you can use to cut off the lowest and highest frequencies in midi mode.
Stay cool…
Compared to the more affordable MAD A1 collection, the cooling profile of MAD A2 amplifiers has a larger surface area. In addition, the amplifier's ends have ventilation openings and the amplifier's end profiles are higher than the amplifier's cooling profile, which allows air to circulate under the amplifier as well.
We recommend 35mm² cables for the power and grounding side.
Versatile filters

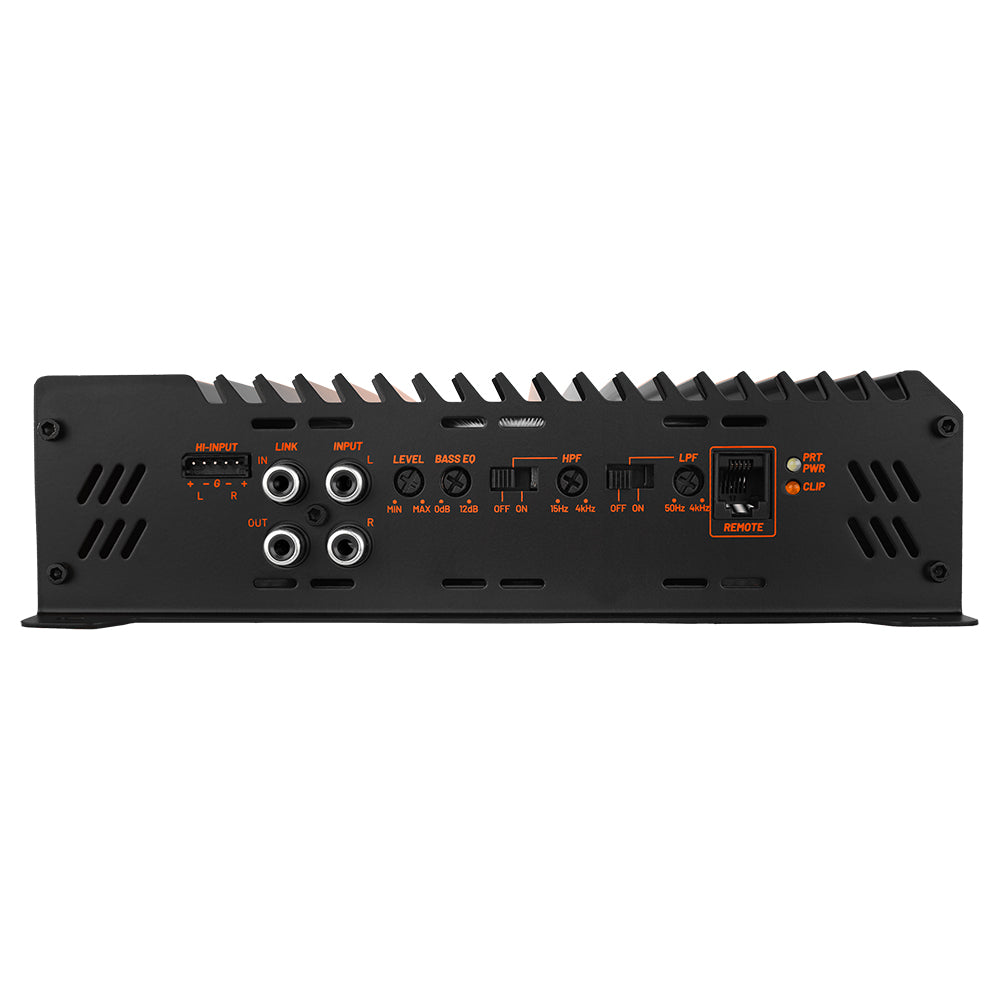

The splitter filters of the MAD A2 collection are very versatile and all filters cut with a steepness of 12dB. You can use the MAD A2-600.1DFL crossover filters as low-pass filters, high-pass filters or bandpass filters, which is the best option for, for example, mids or midranges, in which case you can cut out both the highest and lowest frequencies.
The high-pass filter can be adjusted from 15 to 4000 hertz, the adjustable range for the low-pass filter is 50 to 4000 hertz, and in bandpass mode the adjustment range is 15 to 4000 hertz.
Clip light
Sometimes you have to get the most out of your devices. To make this easier, the amplifier has a clip light. If the signal is distorted by more than one percent, the clip light starts flashing orange. If the distortion becomes greater than this, the amplifier goes into protection mode.

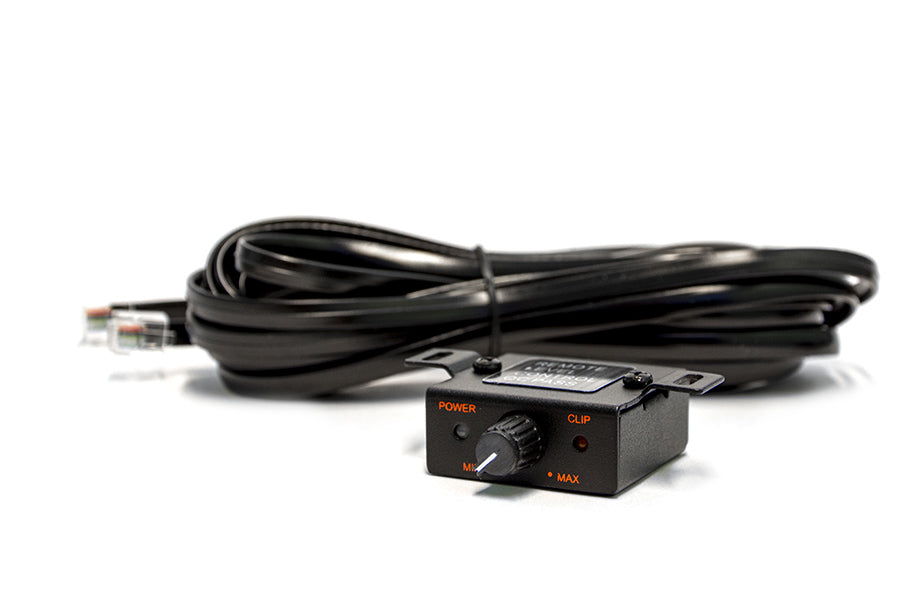

GAS MAD A2-600.1DFL also includes a level control with clip light.
MAD LINK – double the power!
Isn't one stronger enough? You can use the GAS MAD LINK feature and link two MAD A2-600.1DFL amplifiers. The connection is very easy, because you link the "Primary" amplifier with one RCA cable to the "Secondary" amplifier and bring the speaker wires to the element as shown in the picture. You select the correct levels and crossover filters from the primary amplifier, because the settings of the secondary amplifier do not affect the MAD LINK connection.
Note: Linking cannot be done with two different amplifiers, the amplifiers must be of the same model. In this case, 2 x GAS MAD A2-600.1DFL
GAS MAD A2 amplifiers contain protection circuits for overload, overheating and short circuit. So you can focus on the most important thing, i.e. rocking the music without worry!!!
MAD A2-600.1DFL technical data:
- Class D mono amplifier
- 1 x 240W (4ohm)
- 1 x 420W (2ohm)
- 1 x 600W (1ohm)
- Playback range: 15 – 25,000Hz
- High pass filter: 15 – 4000Hz
- Low pass filter: 50 – 4000Hz
- Bandpass filter: 15 – 4000Hz
- Pitch of splitters: 12dB / oct.
- Bass EQ: 0 – 12dB @ 45Hz
- Input sensitivity: 0.5 – 6V
- Damping factor: >130
- RCA input
- Speaker-level input with auto-start: Yes
- Bass EQ: 0 – 12dB @ 45Hz
- Signal to noise ratio: >95dB
- Recommended power cable: 10mm² – 20mm²
- Wired level control with clip light
- MAD LINK Option: Yes
- Dimensions: 292 x 208 x 52mm
